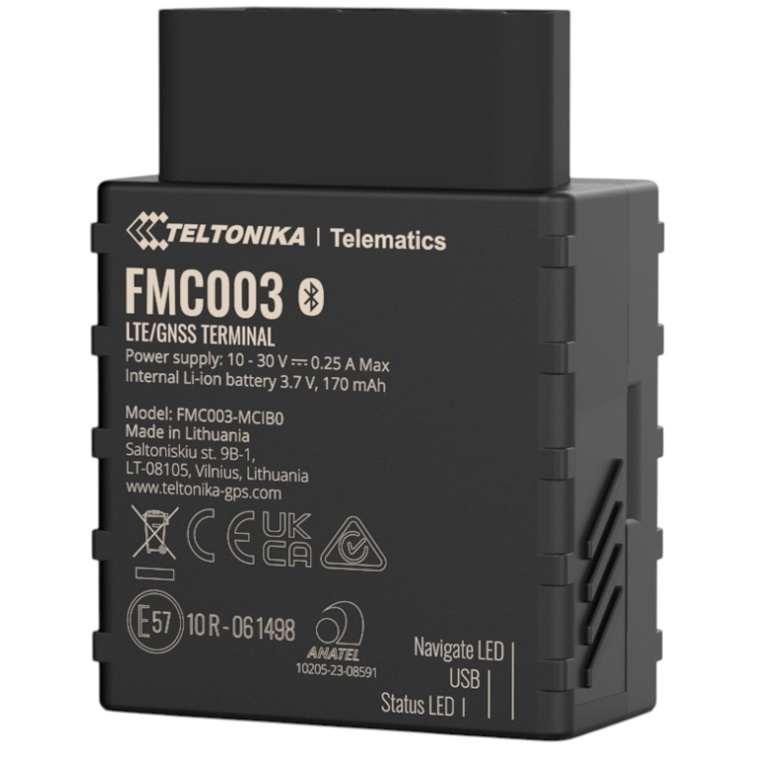

Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading

PB Tech price
PB Tech price
$ 164 .14
 +GST
$ 188 .76
 inc GST
$164.14  +GST
$188.76

Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading

  • Brand: Teltonika
  • MPN: FMC003
  • Part #: NETTTK0031
  • UPC:
NEW ARRIVAL
PB Tech price
$ 164 .14 $ 188 .76
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 26 Sep When will I receive it?
$164.14  +GST
$188.76

Features

Teltonika FMC003 4G - Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network

Teltonika FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth® which expands its already rich set of features.

- Device supports LTE CAT 1 connectivity, which allows low-power wide area technologies to be used
- Available list of vehicles with OEM parameters to be read
- Standard OBDII data reading from vehicle ECU
- Bluetooth for external devices and Low Energy Sensors

Reading OBD OEM parameters

Get real odometer & real fuel level data.



Effortless Plug & Play installation

Simply plug the device in OBD-II port and start tracking.



Electric Vehicle Support

Bringing new value and expanding usage scenarios with more than 150 supported vehicles in the EV market.



Supported vehicle and data list

Know in advance what vehicle parameters are available to optimise your fleet operations.

Specifications

Technology

LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH

Frequency Bands

4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B20, B28, 4G (LTE-TDD): B40; 2G (GSM): B2, B3, B5, B8

Transmit Power

Class 4 for GSM850/900: 23±2dBm, Class 1 for GSM1800/1900: 20±2dBm, Class 3 for LTE-TDD: 23±2.7dBm, Class 3 for LTE-FDD: 23±2.7dBm

Data Support

SMS (text/data)

GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

GNSS Receiver

33 tracking channel, 99 acquisition channel

Tracking Sensitivity

-165 dBM

Position Accuracy

< 2.5 m CEP

Hot Start

< 1 s

Warm Start

< 25 s

Cold Start

< 35 s

Velocity Accuracy

< 0.1 m/s (within +/- 15% error)

Input Voltage Range

10-30 V DC with overvoltage and reverse polarity protection

Internal Back-up Battery

170 mAh Li-Ion battery, 3.7 V (0.63 Wh)

Power Consumption

At 12V < 3 mA (Ultra Deep Sleep), At 12V < 5 mA (Deep Sleep), At 12V < 16 mA (Online Deep Sleep), At 12V < 18 mA (GPS Sleep), At 12V < 33 mA (nominal)

Bluetooth

4.0 + LE

Supported Peripherals

Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

OBD iInterface Data

K-Line, CAN bus data

Data Reading

Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (fast init, 10.4 kbaud), ISO 15765-4 CAN (11 bit ID, 250 kbaud), ISO 15765-4 CAN (11 bit ID, 500 kbaud), ISO 15765-4 CAN (29 bit ID, 250 kbaud), ISO 15765-4 CAN (29 bit ID, 500 kbaud)

Interface Connection

OBDII Socket

GNSS Antenna

Internal High Gain

Cellular Antenna

Internal High Gain

USB

2.0 Micro-USB

LED Indication

2 status LED lights

SIM

Micro-SIM

Memory

128MB internal flash memory

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep Modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and Firmware Update

FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth)

SMS

Configuration, Events, Debug

GPRS Commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel Monitoring

OBD II

Ignition Detection

Accelerometer, External Power Voltage, Engine RPM

Weight

63 g

Dimensions (L x W x H)

67.2 x 49.6 x 25 mm

Regulatory

CE/RED/UKCA, E-Mark, EAC, RoHS, REACH, RCM, SDPPI POSTEL, CITC

Manufacturer Part No:
FMC003
Brand:
Teltonika
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.13 kg
PB Part No:
NETTTK0031
Product Model:
FMC003
Warranty: Not applicable
