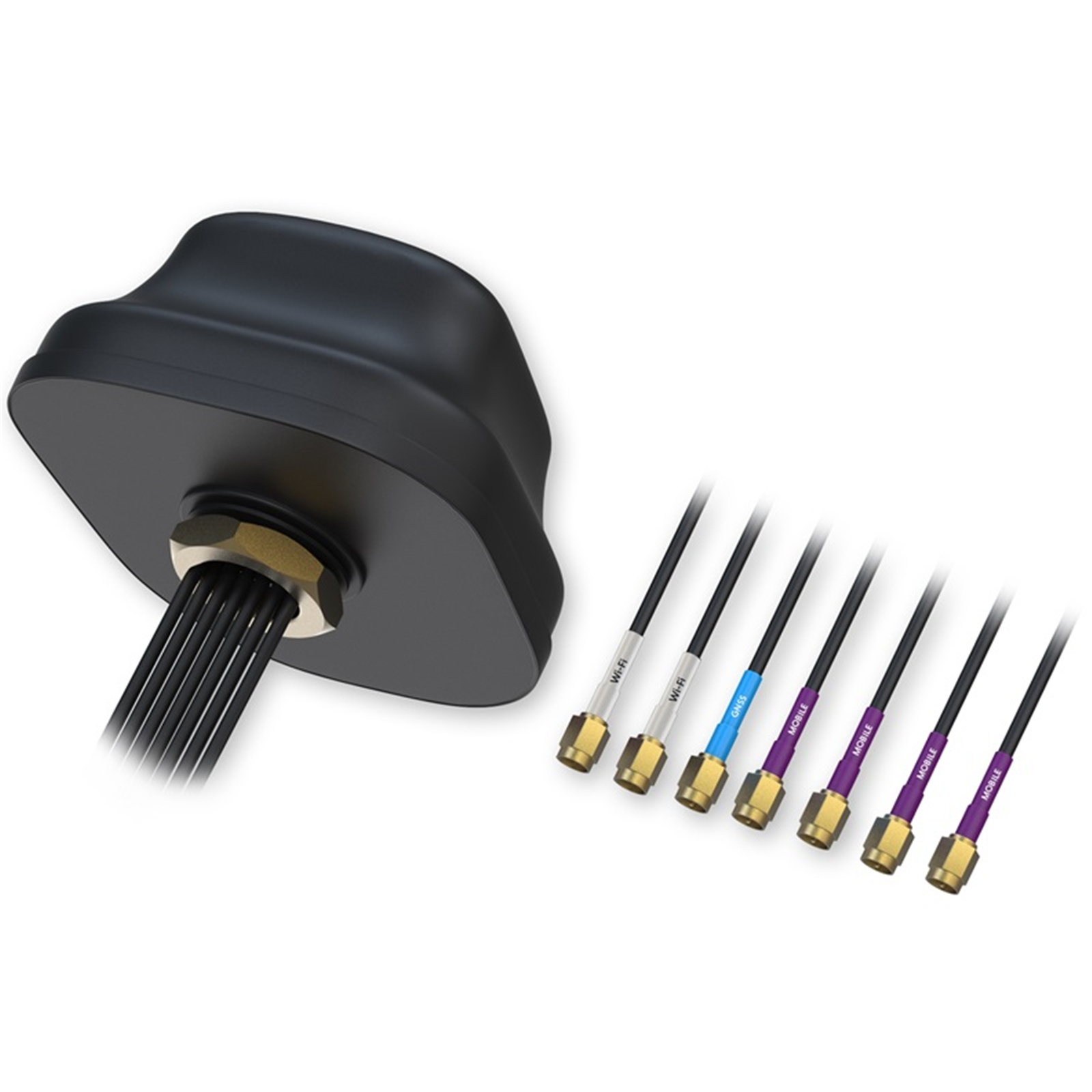

Teltonika Combo 5G MIMO Mobile/GNSS/WiFiRoof SMA Antenna
Teltonika Combo 5G MIMO Mobile/GNSS/WiFiRoof SMA Antenna
- Brand: Teltonika
- MPN: PR1KC640
- Part #: NETTTK1016
- UPC:
- Brand: Teltonika
- MPN: PR1KC640
- Part #: NETTTK1016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Teltonika Combo 5G MIMO Mobile/GNSS/WiFiRoof SMA Antenna
- Brand: Teltonika
- MPN: PR1KC640
- Part #: NETTTK1016

Product URL: https://www.pbtech.co.nz/product/NETTTK1016/Teltonika-Combo-5G-MIMO-MobileGNSSWiFiRoof-SMA-Ant
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Specifications
MPN
PR1KC640
5G Frequency Range
617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
5G Polarization
Linear
5G Gain
4.0 dB
5G V.S.W.R
Less than3.0
5G Impedance
50 Ohm
5G Connector type and count
4x SMA Male
GNSS Frequency range
1164 - 1300 / 1559 - 1610 MHz
GNSS Polarization
RHCP
GNSS Supply voltage
3 - 12 VD
GNSS LNA Gain
40 ± 2 dB
GNSS V.S.W.R
=2.0
GNSS Impedance
50 Ohm
GNSS Current Consumption
=60 mA
GNSS Connector type and count
SMA Male
Wi-Fi Frequency range
2400 - 2483.5 / 4900 - 5925 MHz
Wi-Fi Polarization
Linear
Wi-Fi Gain
4.0 dBi
Wi-Fi V.S.W.R
=2.5
Wi-Fi Impedance
50 Ohm
Wi-Fi Connector type and count
2x RP SMA Male
Mounting method
Screw
Radome ingress projection rating
IP67 (exclude cable outlet)
Radome material
UV-Resistant ABS/PC
Weight
960 ± 30 g
Housing dimensions
189 x 182 x 85 mm
Cable
7 x LMR100, 3000 mm
Recomended mounting dimensions
Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature
-40 °C - +85 °
RoHS Compliant
Yes
