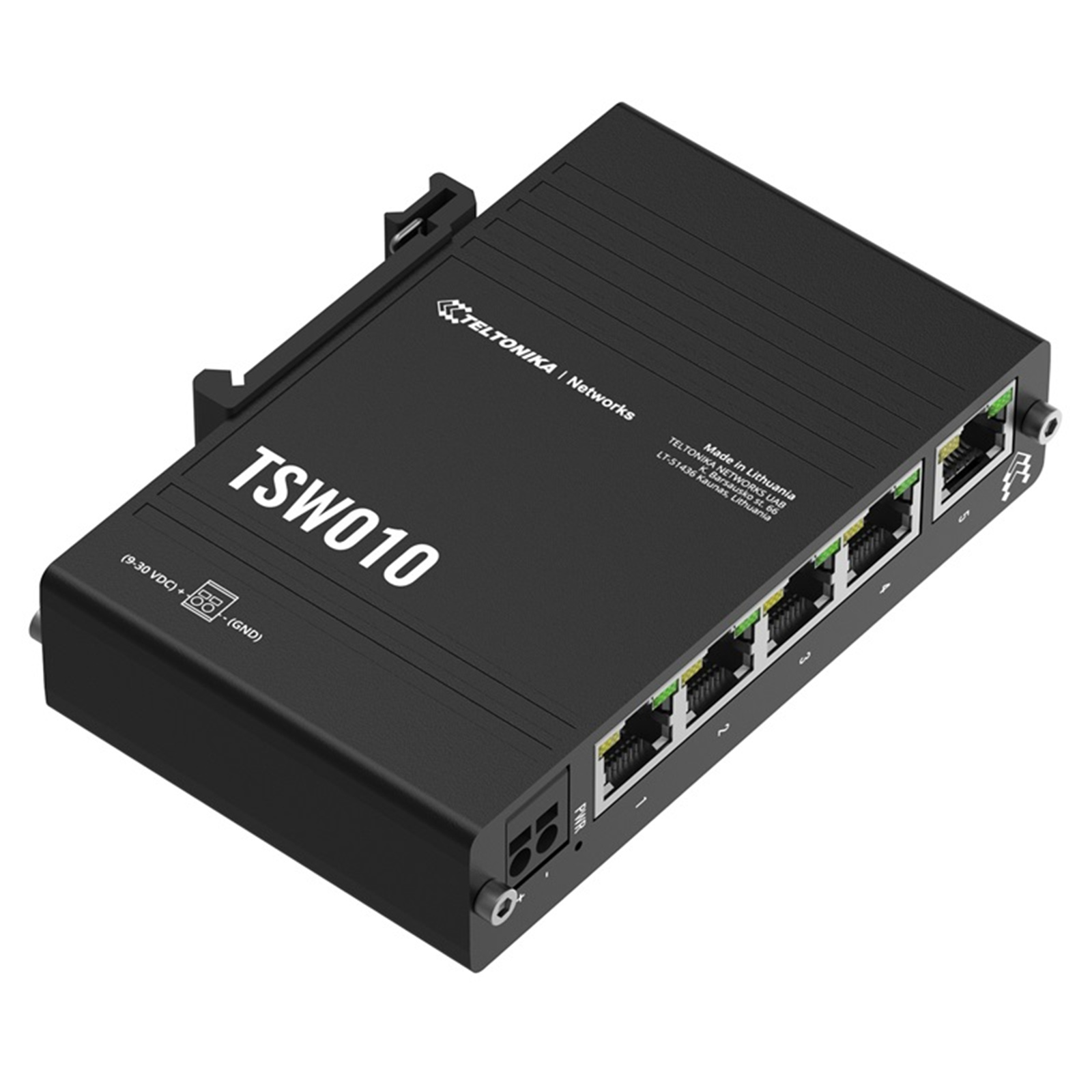

Teltonika TSW010 Unmanaged Industrial Ethernet Switch 100M FE x 5
Teltonika TSW010 Unmanaged Industrial Ethernet Switch 100M FE x 5
- Brand: Teltonika
- MPN: TSW010
- Part #: NETTTK1019
- UPC:
- Brand: Teltonika
- MPN: TSW010
- Part #: NETTTK1019
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Switches
Teltonika TSW010 Unmanaged Industrial Ethernet Switch 100M FE x 5
- Brand: Teltonika
- MPN: TSW010
- Part #: NETTTK1019
Product URL: https://www.pbtech.co.nz/product/NETTTK1019/Teltonika-TSW010-Unmanaged-Industrial-Ethernet-Swi
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 29 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
PLUG AND PLAY
No additional configuration needed
MOUNTING
Integrated DIN rail bracket and surface mounting options
INDUSTRIAL DESIGN
Anodized aluminum housing and panels
ETHERNET
5 x Ethernet ports with speeds of up to 100 Mbps
Specifications
Ethernet
ETH
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)
Performance Specifications
Bandwidth (Non-blocking)
1 Gbps
MAC address table size
2K entries
Jumbo frame support
2048 bytes
Power
Connector
2-pin industrial DC power socket
Input voltage range
9 - 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: 0.3 W / Max: 0.9 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Physical Specification
Casing material
Aluminium housing
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
Weight
146.5 g
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
