Features

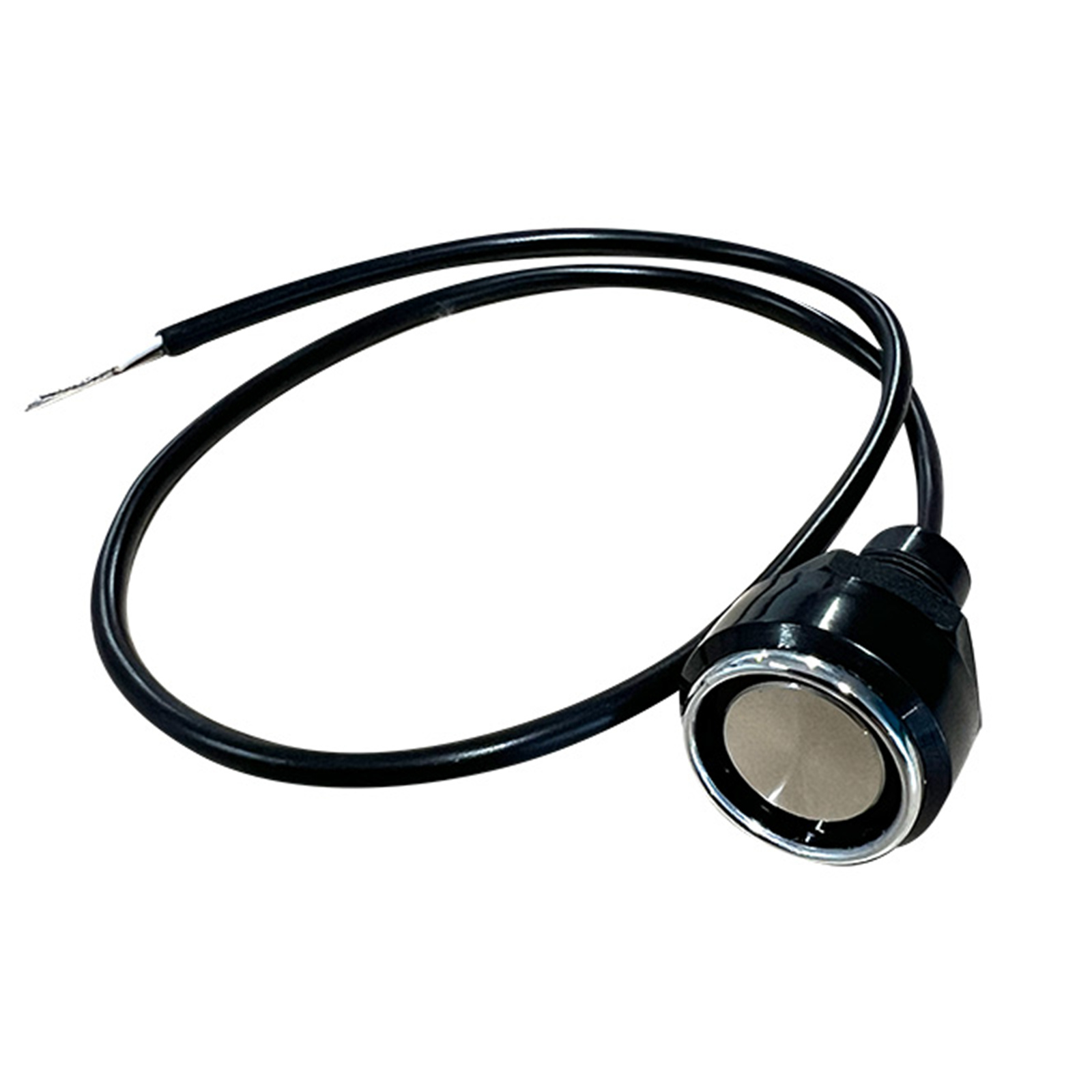

Teltonika iButton Magnetic Key tag reader
One of the implemented features for fleet management devices is 1-Wire data protocol, which enables connection of iButton. The iButton IoT device is perfect for any application where AVL data needs to travel along with a person or object identification. One of the implemented features for fleet management devices is 1-Wire data protocol, which can be used for iButton reading. It is the most straight-forward way to implement driver authorization in your vehicles. To connect the 1-wire iButton reader, simply connect the 1-Wire Signal wire from the reader to the 1-Wire Data pin on the device, and connect the ground wire to the same grounding used for the device.
Immobilizer - prevent anyone from starting the vehicle without scanning an iButton first.
Authorized driving - keep track of who is driving your vehicle according to the iButton ID they use to authenticate themselves.
AutoGeofencing - gives ability to know when car leaves customized areas without iButton authorization.
Specifications
MPN
PPEX00000060
Interface
White wire - 1-wire signal, Brown wire - Ground
Case material
Plastic (polyacetal)
Ring material
Ferrite steel with chrome plating
Signal joint material
Brass with chrome plating
Wire dimensions
2 wires Ø 0,25 mm2, 40 cm length
Fastening method
M12 screw, tape, glue, etc.
Operating temperature
From -40 ºC to +85 ºC
Supported 1-Wire commands
0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Operating humidity
5% to 95% non-condensing
Regulatory
RoHS certified
