Teltonika GNSS Adhesive Fakra Antenna, 1700-2100MHz
Teltonika GNSS Adhesive Fakra Antenna, 1700-2100MHz
- Brand: Teltonika
- MPN: 003R-00235
- Part #: NETTTK9235
- UPC:
- Brand: Teltonika
- MPN: 003R-00235
- Part #: NETTTK9235
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas
Teltonika GNSS Adhesive Fakra Antenna, 1700-2100MHz
- Brand: Teltonika
- MPN: 003R-00235
- Part #: NETTTK9235
Product URL: https://www.pbtech.co.nz/product/NETTTK9235/Teltonika-GNSS-Adhesive-Fakra-Antenna-1700-2100MHz
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

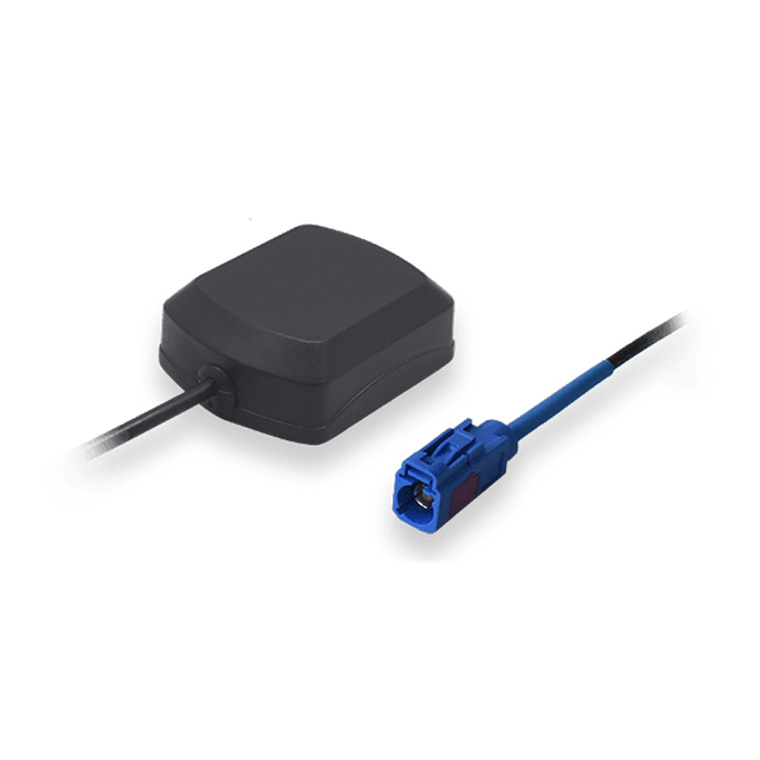

Teltonika GNSS Adhesive Fakra Antenna, 1700-2100MHz
Teltonika 2dBi GNSS Adhesive Antenna with FAKRA C Female straight connector.
- RG174 3 meter cable
- FAKRA C Female straight connector
Specifications
Manufacturer's Product Code
003R-00235
Frequency
1575.42-1602 MHz
Polarization
RHCP
Antenna Gain
2 dBi
Antenna V.S.W.R
< 1.5
Impedance
50 Ohm
Max Axial Ratio
3 dB
LNA Gain
26±2 dB
LNA Noise Figure
< 1.5 dB
Supply Voltage
2.2-5.0 VDC
Current Consumption
5-15 mA
LNA V.S.W.R
< 2.0
Cable
RG174, 3000 mm
Connector
FAKRA C Female straight
Mounting Method
Adhesive
Operating Temperature
-40 to +85
Operating Relative Humidity
95 % max
RoHS Compliant
Yes
