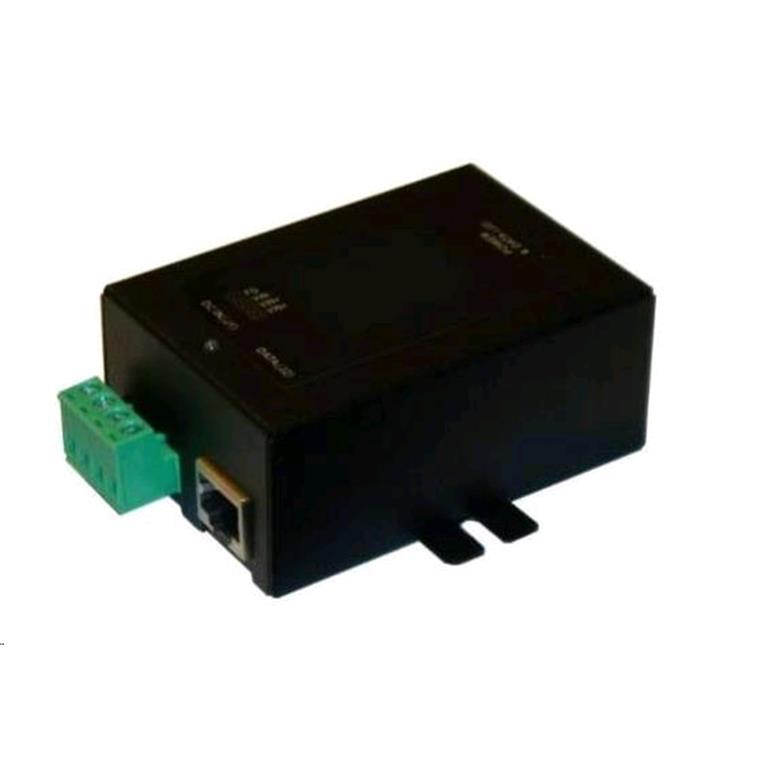

Tycon Systems TP-DCDC-1248GD-M Tycon 9-36VDC In, 48VDC 802.3af Out DC to DC Converter
Tycon Systems TP-DCDC-1248GD-M Tycon 9-36VDC In, 48VDC 802.3af Out DC to DC Converter
- Brand: Tycon Systems
- MPN: TP-DCDC-1248GD-M
- Part #: NETTYC1018
- UPC:
- Brand: Tycon Systems
- MPN: TP-DCDC-1248GD-M
- Part #: NETTYC1018
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Tycon Systems TP-DCDC-1248GD-M Tycon 9-36VDC In, 48VDC 802.3af Out DC to DC Converter
- Brand: Tycon Systems
- MPN: TP-DCDC-1248GD-M
- Part #: NETTYC1018

Product URL: https://www.pbtech.co.nz/product/NETTYC1018/Tycon-Systems-TP-DCDC-1248GD-M-Tycon-9-36VDC-In-48
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload.
- Industrial Grade Metal Housing
- Input Voltage 12VDC or 24VDC or 48VDC
- IEEE 802.3af/at compliant POE output
- Dual Inputs for connecting 2 power sources
- Integrated 10/100/1000MB POE Inserter
- High Power up to 35W
- Low self consumption power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact size - Maximize Available Space
- Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems
Specifications
DC Input Voltage
9VDC - 36VDC
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage
48V (802.3af)
Data in & Data/POE Output Connector
RJ45 (Shielded)
Output Current (max)
0.35A
Output Power (max)
17W
Self Consumption Power
1W
Dimensions
Length
85 mm
Width
76 mm
Height
36 mm
