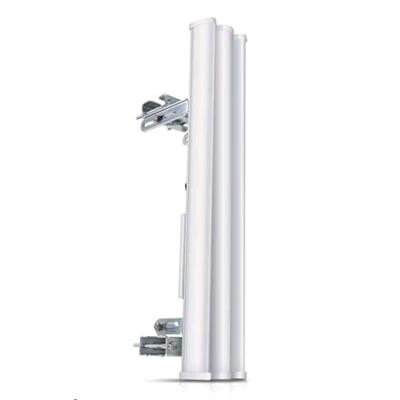

Ubiquiti airMAX Sector Antenna AM-5G20-90, 5GHz, 20dBi, 90°
Ubiquiti airMAX Sector Antenna AM-5G20-90, 5GHz, 20dBi, 90°
- Brand: Ubiquiti
- MPN: ANT-125
- Part #: NETUBI1112
- UPC:
- Brand: Ubiquiti
- MPN: ANT-125
- Part #: NETUBI1112
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





Ubiquiti airMAX Sector Antenna AM-5G20-90, 5GHz, 20dBi, 90°
- Brand: Ubiquiti
- MPN: ANT-125
- Part #: NETUBI1112

Product URL: https://www.pbtech.co.nz/product/NETUBI1112/Ubiquiti-airMAX-Sector-Antenna-AM-5G20-90-5GHz-20d
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Ubiquiti AirMax 5G-20-90 5GHz 20dBi 90 degree Sector Antenna
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam shaping characteristics rivaling the highest quality cellular carrier base station antennas in the world. Instantly pair with Ubiquiti Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP Base Station. Ubioquiti Rocket M5 mount and weatherproof RF jumpers included. Always seal all outdoor coax cable connections with coax seal tape.
-Rocket M5 Seamlessly Integrates with Ubiquiti Dual Polarised AirMax Base Station Sectors.
-Ubiquiti Rocket M5 and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together. Installing Ubiquiti Rocket M5 on AirMax -Base Station/Rocket Antennas requires no special tools; you simply snap it into place with the mount provided with the Antennas.
-Ubiquiti Dual Polarised antennas also work perfectly with MikroTik 802.11n NV2 long range wireless radio cards as well.
Specifications
5.15 - 5.85 GHz
Gain
19.4 - 20.3 dBi
Polarisation
Dual-Linear
Cross Polarisation
28 dB Min.
Max VSWR
1.5:1
Vertical Beamwidth
85° (6 dB)
Horizontal Beamwidth
91° (6 dB)
Connector Type
(2) RP-SMA Female
Dimensions
700 x 135 x 70
Wind Loading
125 mph
Pole Mount Diameter
38 - 75mm
