Features

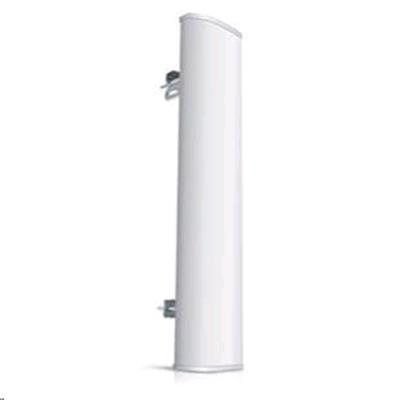

Ubiquiti AirMax 900MHz 9M13-120 120 degree Dual Polarised Sector Antenna
Patent-pending next-generation wireless technology achieves gain, cross-pol isolation, and beam shaping characteristics rivalling the highest quality wireless cellular carrier base station antennas in the world. Instantly pair with Ubiquiti Rocket M900 to create a powerful Ubiquiti AirMax 2x2 MIMO PtMP Base Station. Ubiquiti Rocket M900 mounts and weatherproof RF jumpers included. Always seal all outdoor coax cable connections with coax seal tape.
-Ubiquiti RocketM900 Seamlessly Integrates with AirMax Base Station Sectors.
-Ubiquiti Rocket M900 and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together.
-Installing Ubiquiti Rocket M900 on AirMax Base Station/Rocket Antennas requires no special tools; you simply snap it into place with the mount provided with the Antennas.
-Note: The Ubiquiti RocketM900 can only be used on 924MHz with a 5MHz channel width in New Zealand to meet the General User Radio Licence requirements.
Specifications
902-928MHz (924MHz / 5MHz Channel Width required for NZ)
Gain
13.2 - 13.8 dBi
Polarisation
Dual-Linear
Cross Polarisation
30 dB Min.
Max VSWR
1.5:1
Vertical Beamwidth
120° (6 dB)
Horizontal Beamwidth
109° (6 dB)
Connector Type
(2) RP-SMA Female
Dimensions
1290 x 290 x 134
Wind Loading
125 mph
Pole Mount Diameter
38 - 75mm
