Features

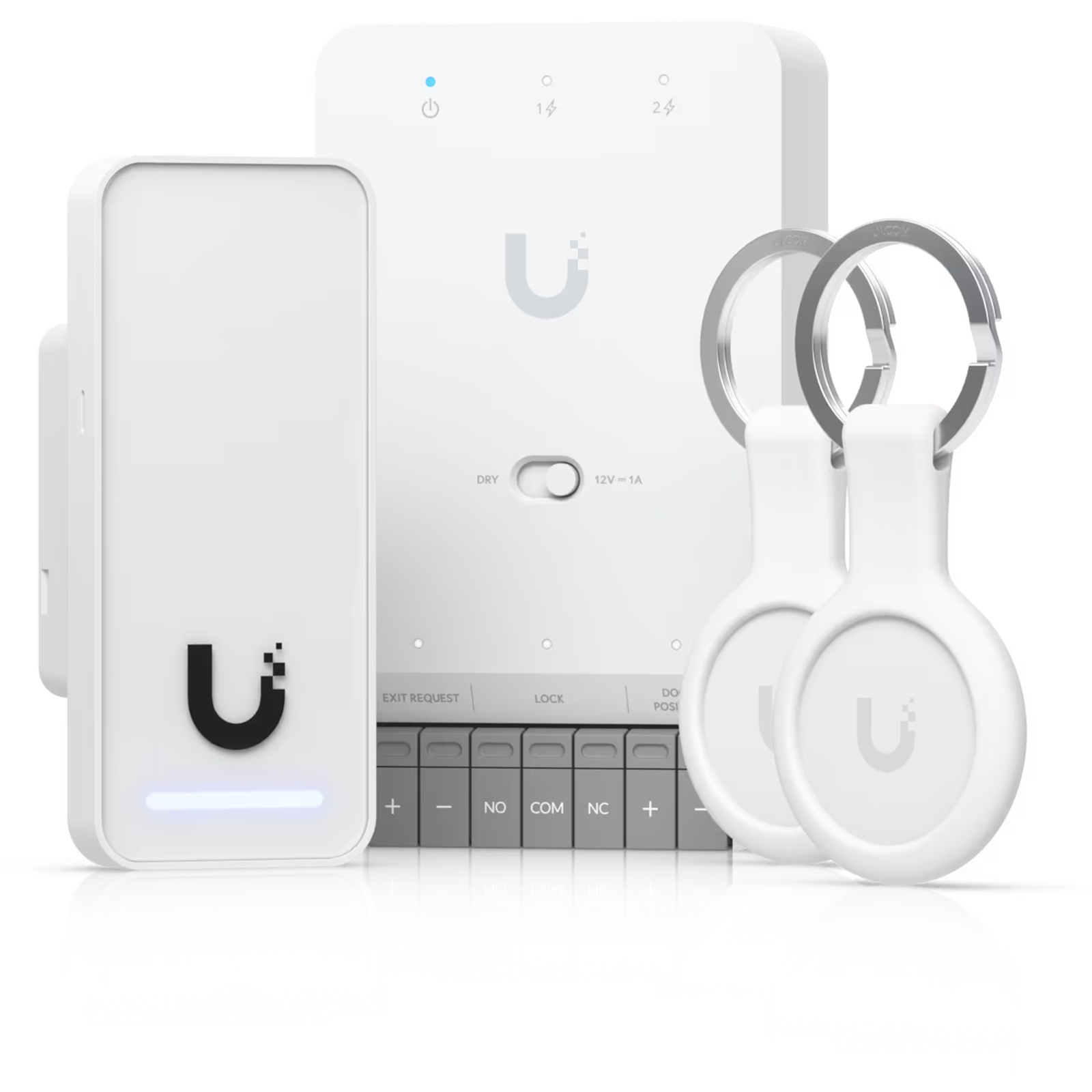

G3 Starter Kit
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.
(1) Door Hub Mini
(1) G3 Reader
(2) Pocket Keyfobs
Specifications

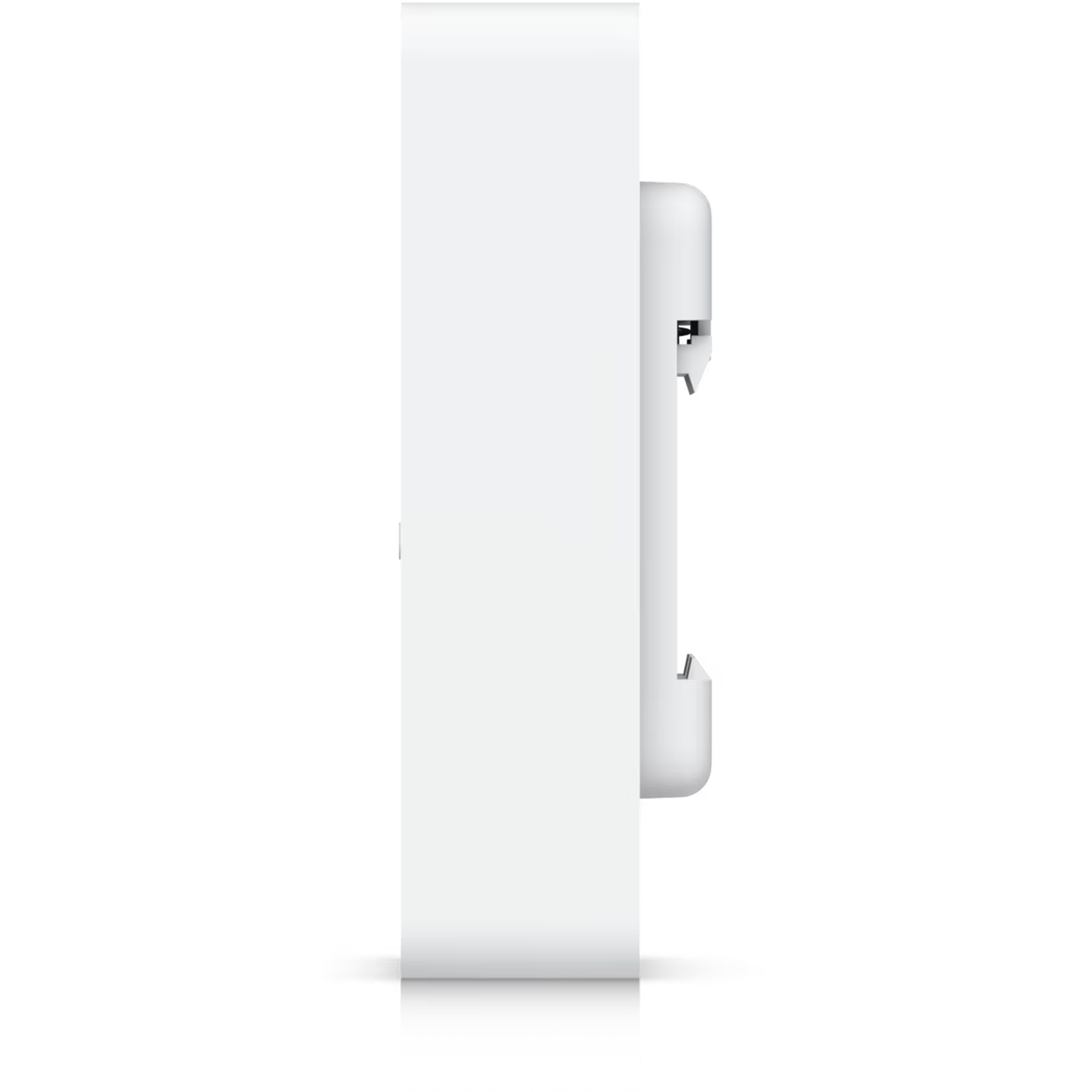

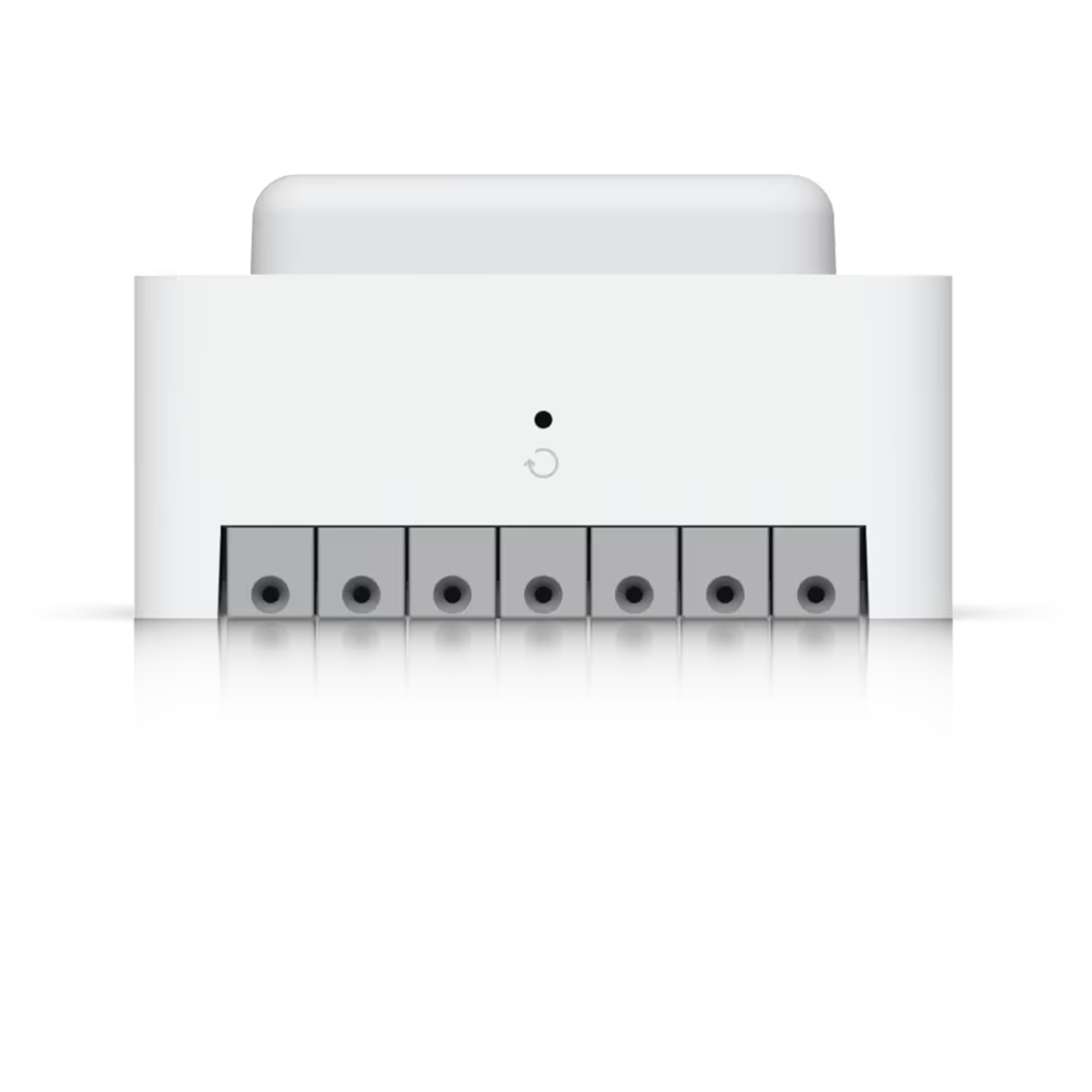

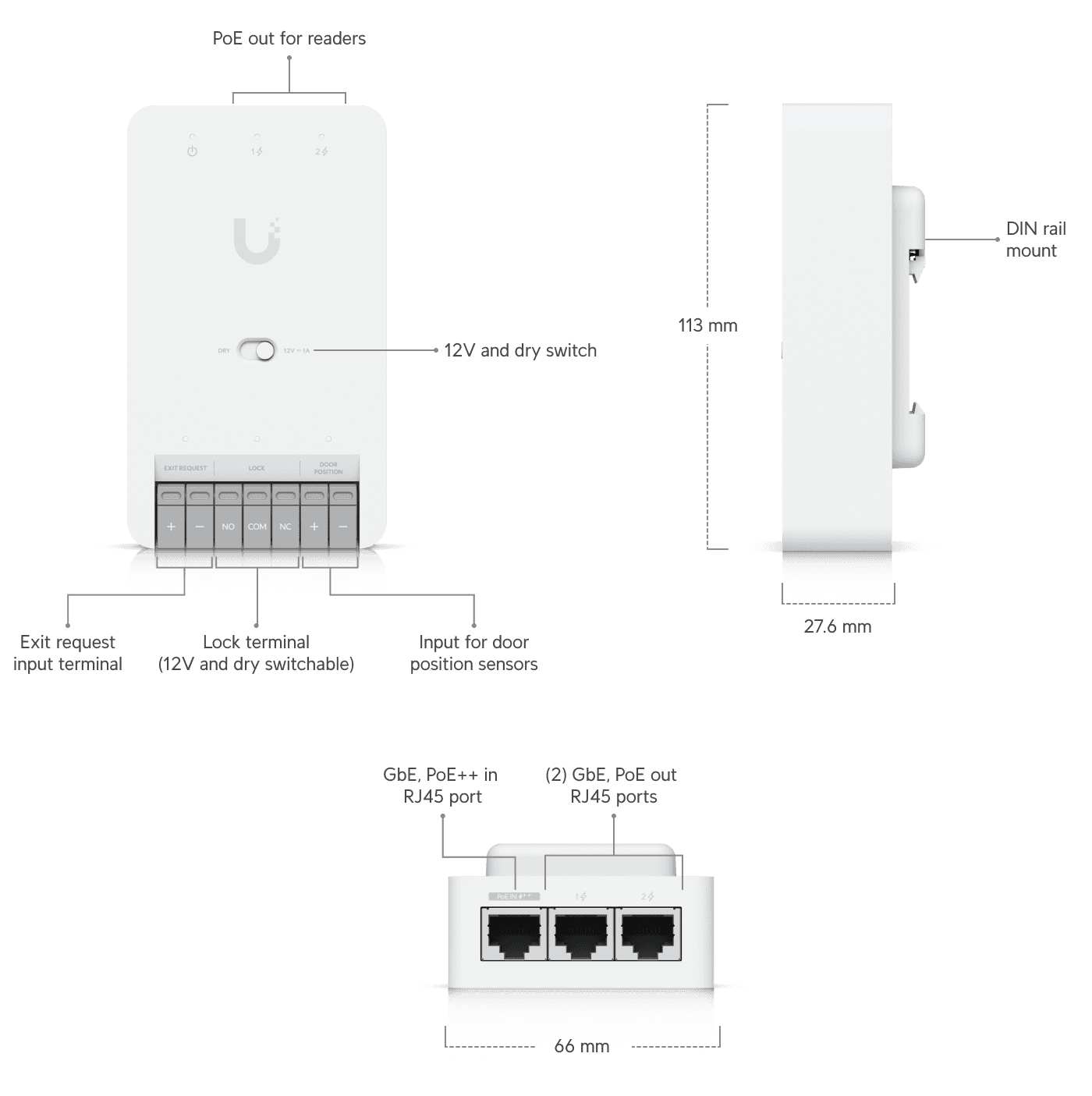

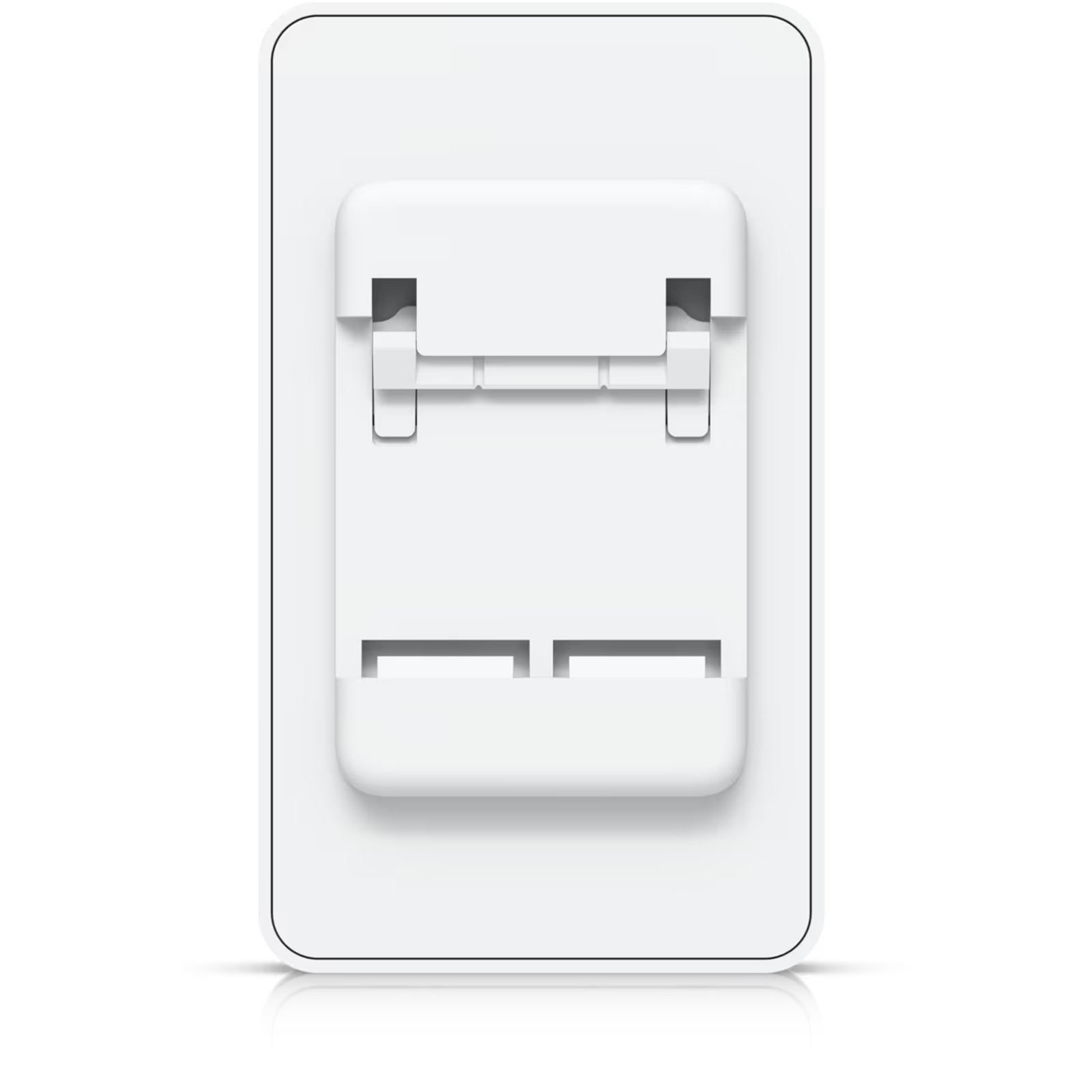

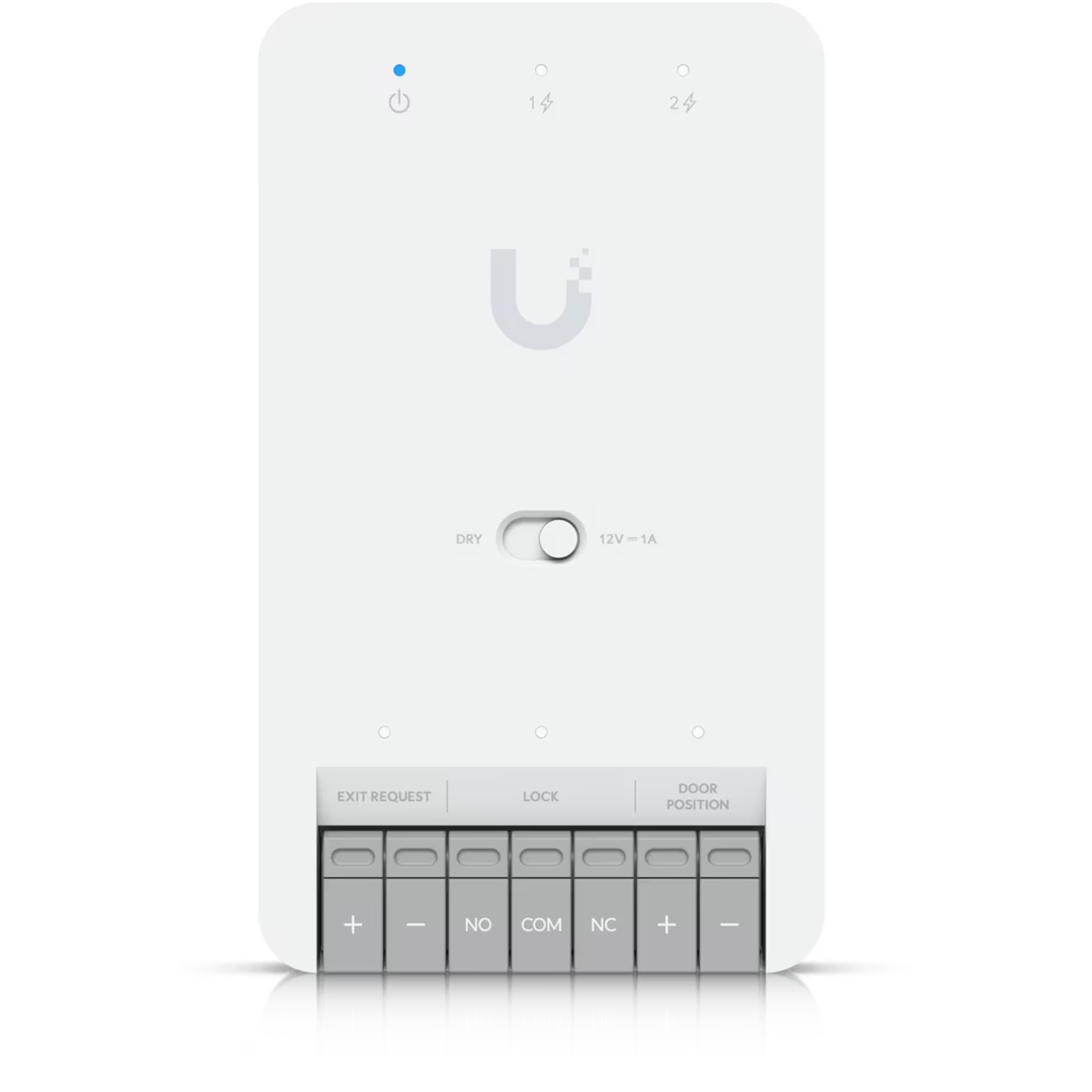

UA-Hub-Door-Mini
Mechanical
Dimensions
113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Weight
190 g (6.7 oz)
Enclosure material
Polycarbonate, metal
Hardware

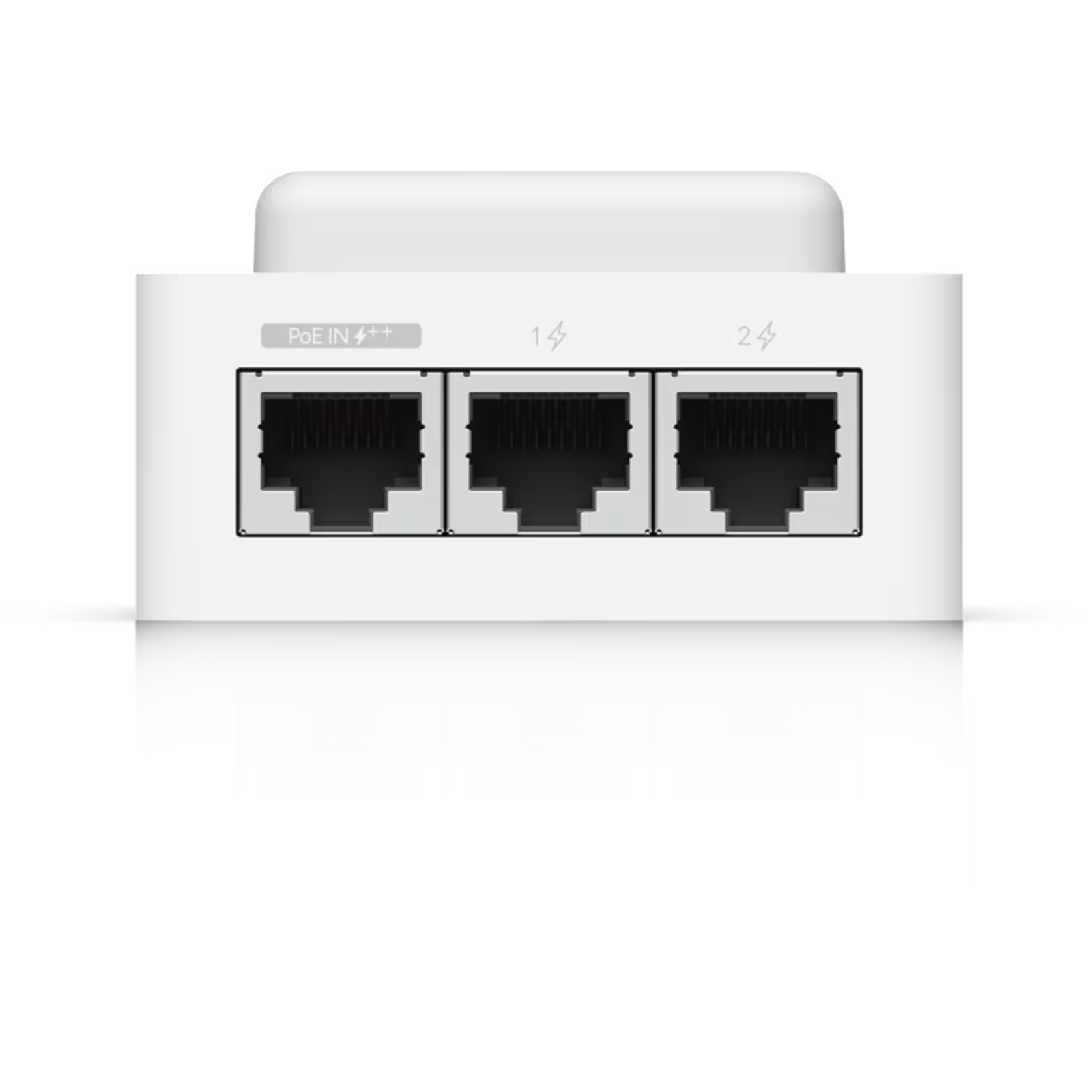

Networking interface
(3) GbE RJ45 ports
Power method
PoE++
Max. power consumption
Without PoE output: 19W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
(2) PoE ports, total 31W
LEDs
White/blue (Learn more)
Button
(1) Factory-reset
(1) Dry/Wet switch
Digital input
Request to exit/door position sensor
Output relay
Dry: 30V DC, 1A
Wet: 12V DC, 1A
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment
Indoor use only
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
Certifications
CE, FCC, IC
Document number, and issue date and/or revision level
UA-Hub-Door-Mini, V01
Software
Management application
UniFi Access: Version 2.5.2 and later

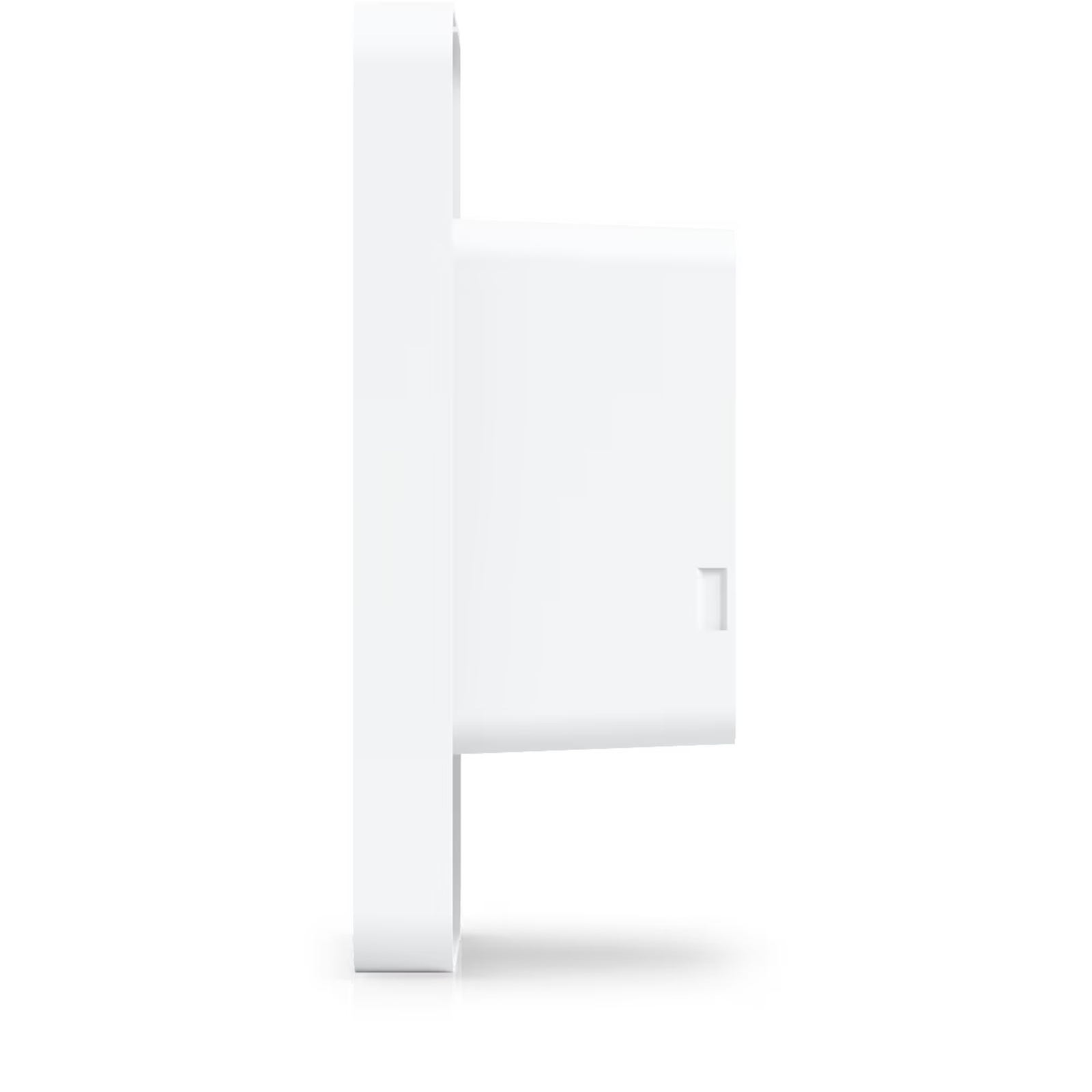

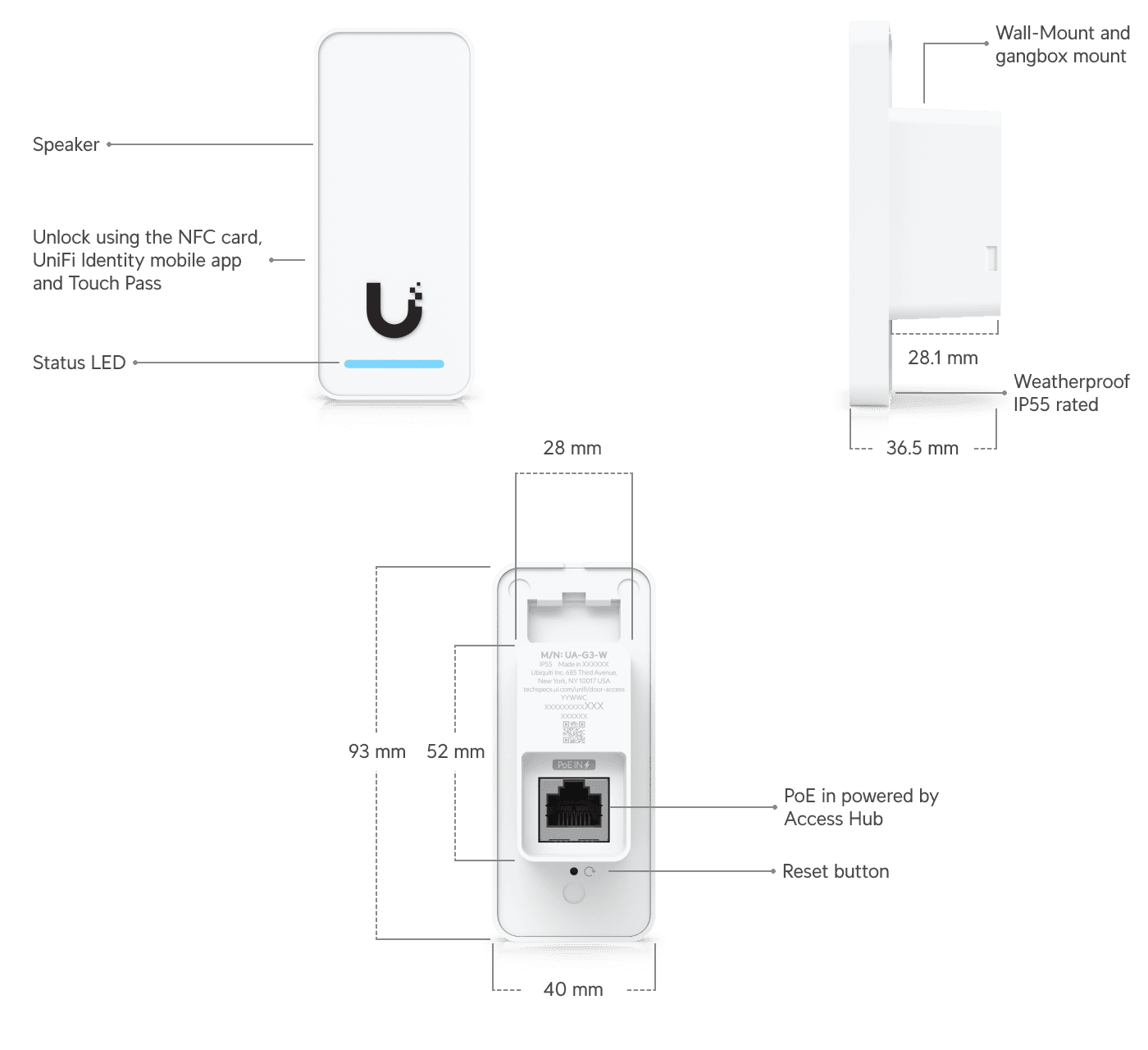

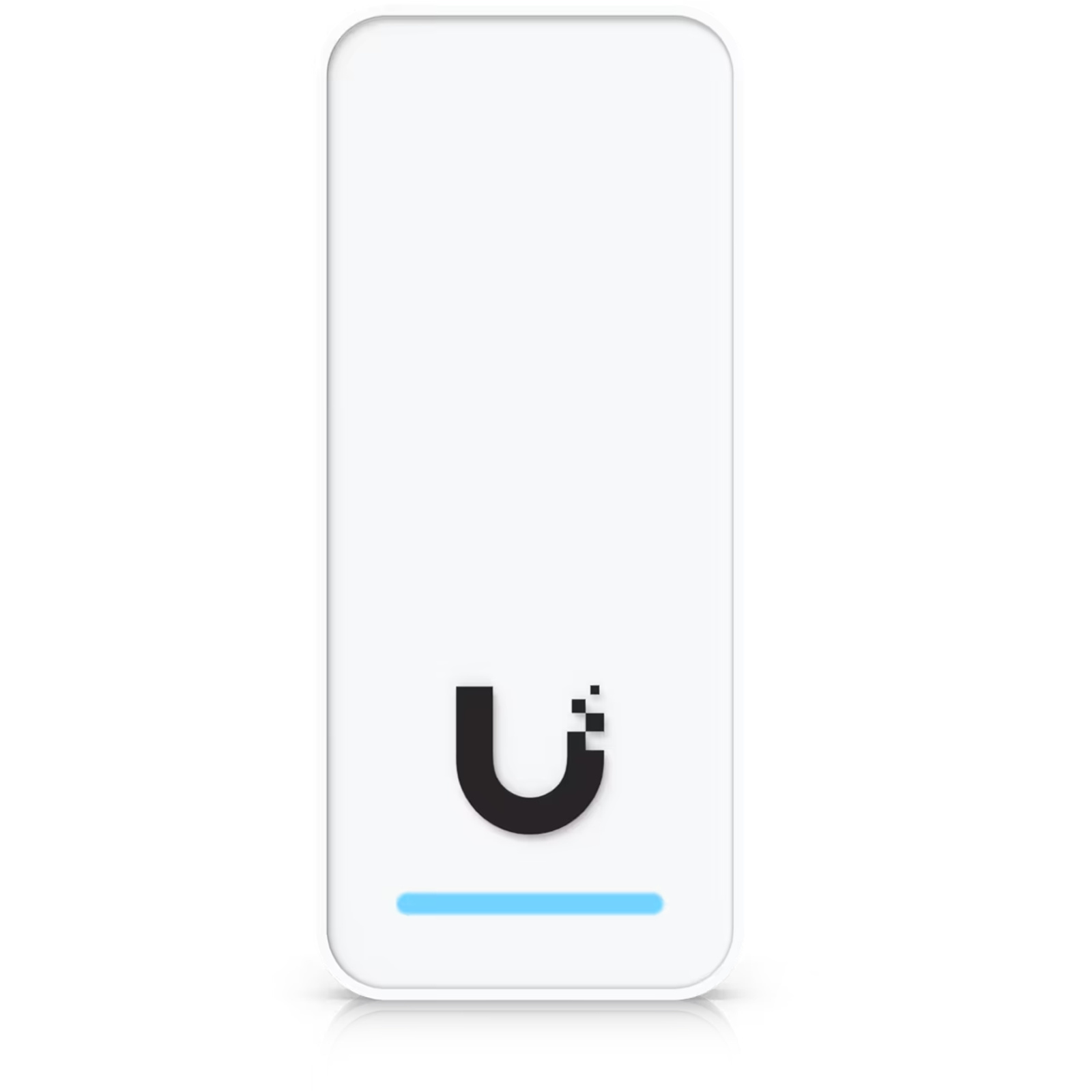

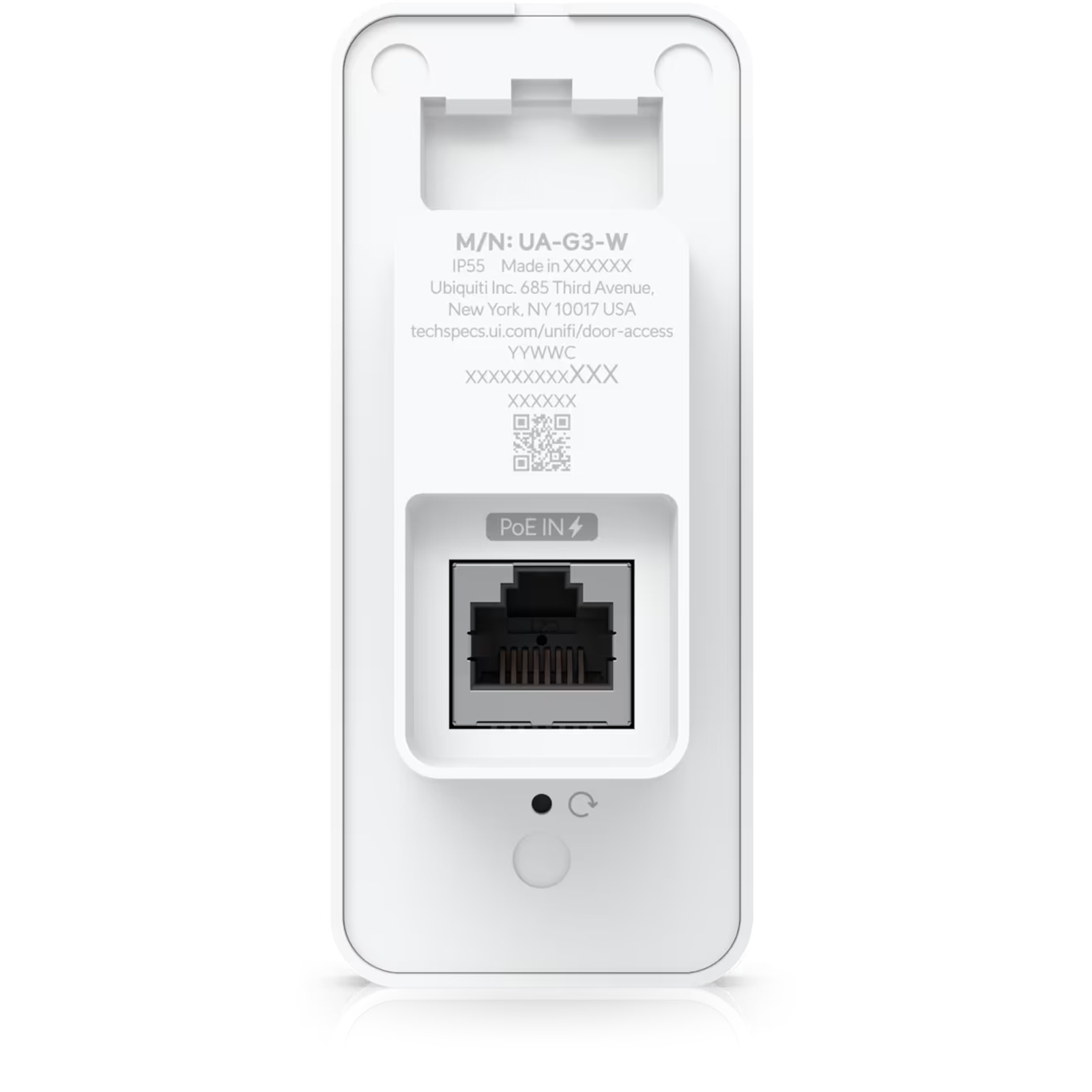

UA-G3
Mechanical
Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight
82 g (2.9 oz)
Enclosure material
Polycarbonate, glass
Mounting material
Aluminum alloy
Mounting
In wall, gang box
Weatherproofing
IP55
Hardware
Networking interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1
NFC
Power method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range
48V DC
Max. power consumption
5W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker
(1) 8 ohm, 0.7W
LEDs
R/G/B/W
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Operating environment
Outdoor use
Ambient operating temperature
-30 to 45° C (-22 to 113° F)
Ambient operating humidity
5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3, V01
Software
Management application
UniFi Access: Version 3.0.15 and later

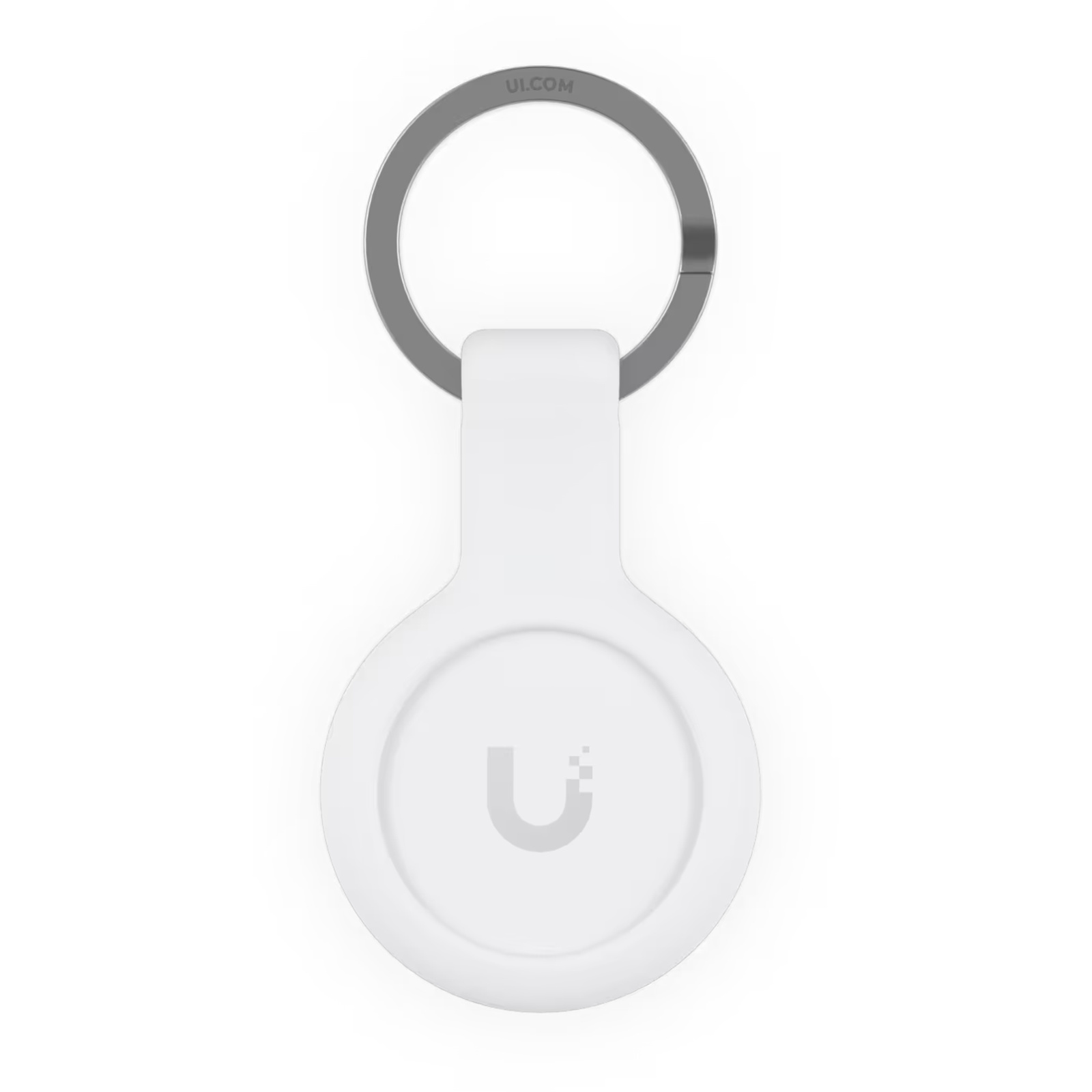

UA-Pocket
Mechanical
Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure material
Polycarbonate, stainless steel, silicone rubber
Weatherproofing
IP54
Hardware
NFC frequency
13.56 MHz
NFC technology
ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Ambient operating temperature
-10 to 45° C (14 to 113° F)
Ambient operating humidity
10 to 90% noncondensing
Certification
CE
