Features

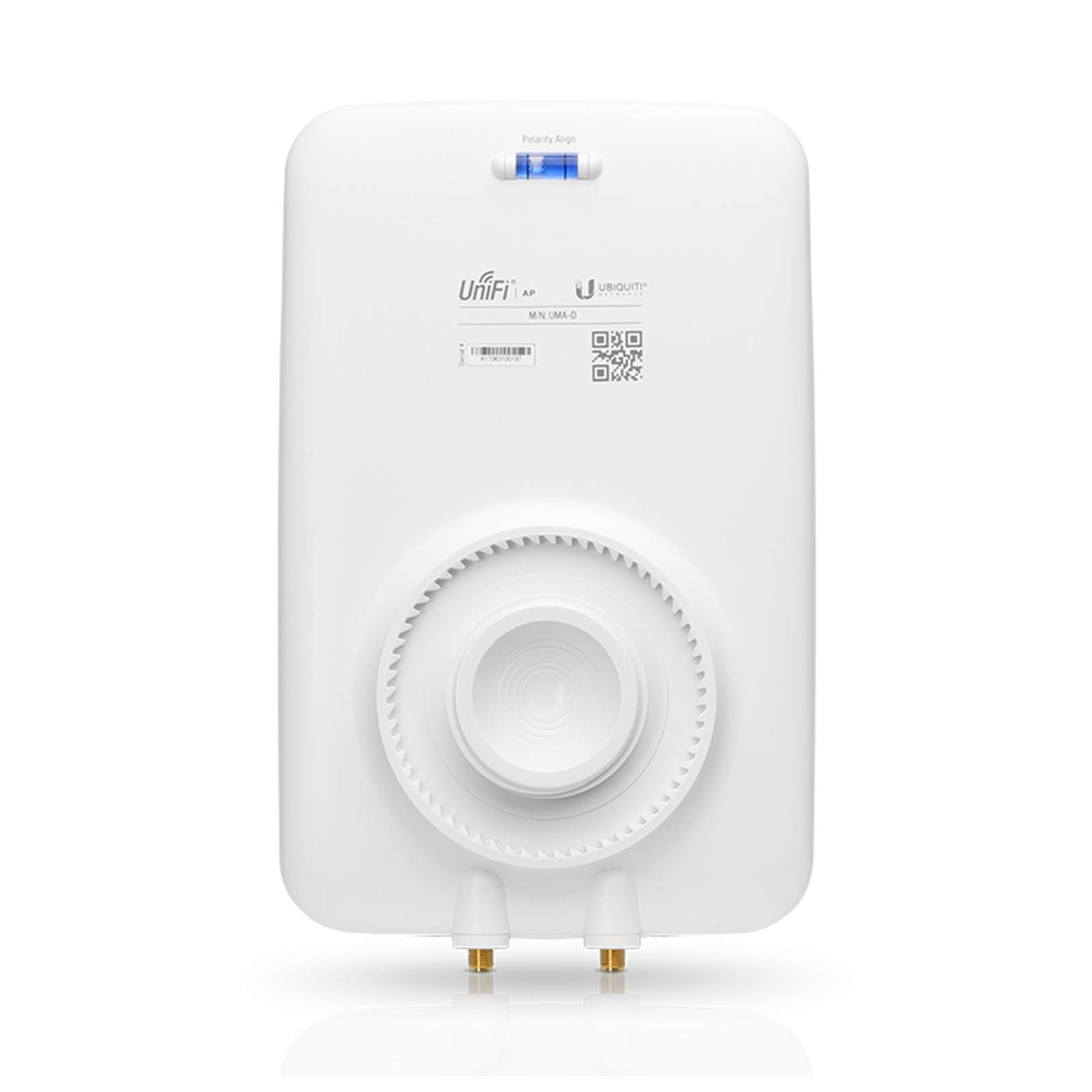

The Ubiquiti UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customised pattern shaping. It is available in single and five packs.

- Optimised for 802.11ac, UMA-D offers a high efficiency directional radiation pattern with dual polarity
- Encased in UV-stabilised plastic, can be used indoors or outdoors
- Ball joint mount designed for precise aiming and can be mounted on a pole or wall
- Connectorised antenna that is compatible with the UAP-AC-M

Specifications

Manufacturer's Product Code
UMA-D

Frequency Range
2.4 - 2.5 GHz, 5.1 - 5.9 GHz

Gain
10dBi @ 2.4GHz, 15dBi @ 5GHz

Polarisation
Dual-Linear

Max VSWR
2:1

Vertical Beamwidth
90deg @ 2.4GHz, 45deg @ 5GHz

Horizontal Beamwidth
90deg @ 2.4GHz, 45deg @ 5GHz

Elevation Beamwidth
90deg @ 2.4GHz, 45deg @ 5GHz

Connector Type
(2) RP-SMA Female

Wind Loading
125 mph

Pole Mount Diameter
38 - 75mm
Manufacturer Part No: UMA-D Brand: Ubiquiti Product Type: -
UPC 817882022736 Product Family: - Shipping Weight: 1 kg
PB Part No: NETUBI9012 Product Model: UMA-D

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
