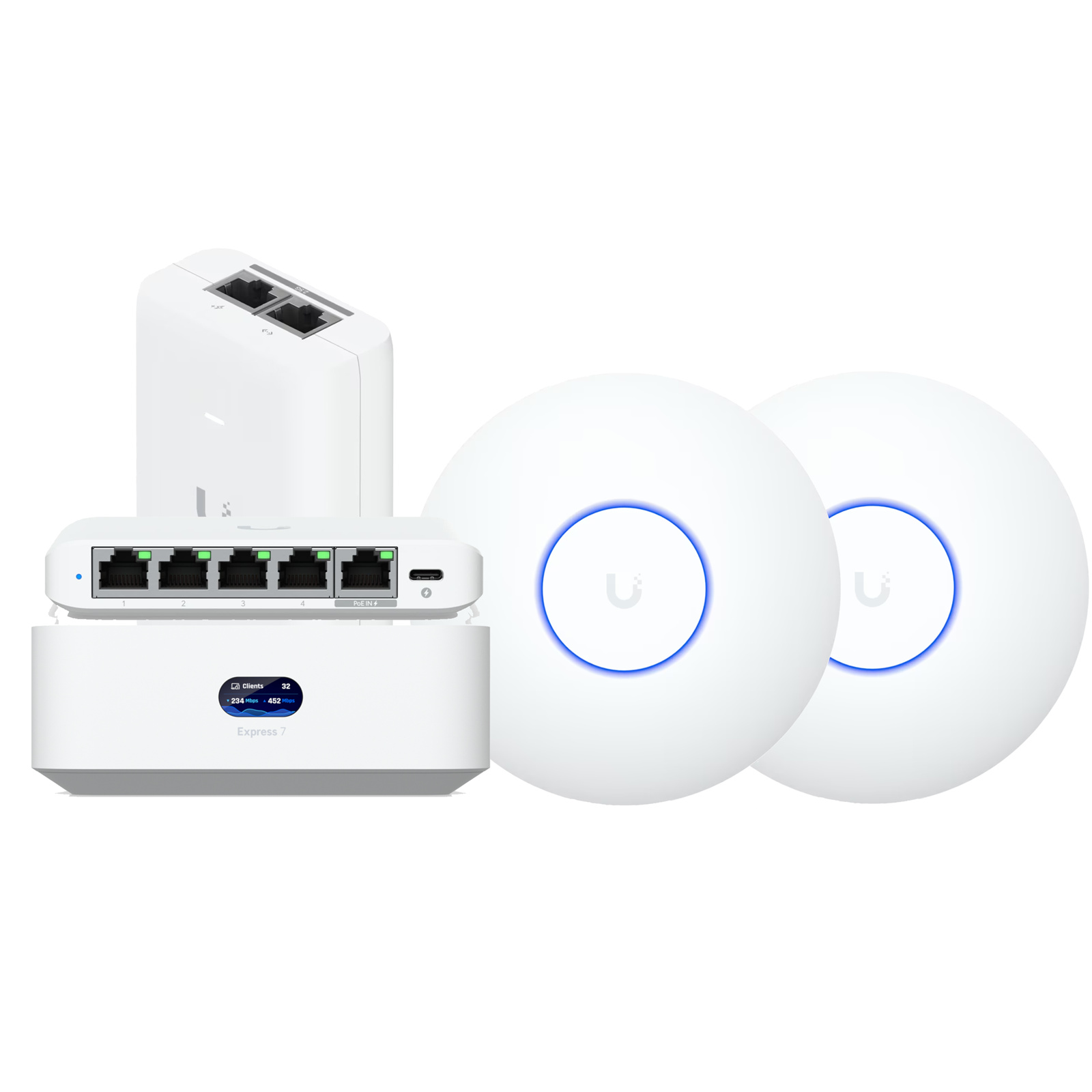

Ubiquiti Unifi Starter Kit for HyperFibre 2000 UX7 x1 / USW-Flex-2.5G-5 x1 / U7-Lite x2 / UACC-PoE+-2.5G x2

PB Tech price

$ 1,006 .29

+GST

$ 1,157 .23

inc GST

Ubiquiti Unifi Starter Kit for HyperFibre 2000 UX7 x1 / USW-Flex-2.5G-5 x1 / U7-Lite x2 / UACC-PoE+-2.5G x2

Brand: Ubiquiti
MPN: Unifi Starter Kit for HyperFibre 2000
Part #: NETUBI9201
UPC:

NEW ARRIVAL

PB Tech price

$ 1,157 .23

inc GST

+GST inc GST

Hurry, only 2 units left!

In stock at PB Tech

Check store stock levels

Click & Collect: Available from 1 store.
Select your store to check availability

Delivery: Order now and it ships tomorrow When will I receive it?

Add To Compare

Stock Alerts

Four payments of $292.20 per fortnight*

Finance from $11.01 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: Unifi Starter Kit for HyperFibre 2000
Part #: NETUBI9201
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

Flex Mini 2.5G

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

- (4) 2.5 GbE ports
- (1) 2.5 GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter

Ubiquiti UniFi U7-Lite

U7 Lite

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

UACC-PoE+-2.5G

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring

Specifications

Ubiquiti UniFi (UX7)

Dimensions

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite

Network

Yes

Managed UniFi Devices

Simultaneous Users Connected

300

Default WAN Ports

(1) 10 GbE RJ45

LAN Ports

(1) 2.5 GbE RJ45

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Dynamic Routing/ OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps

MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
4 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio (Gateway Mode)
4 per Radio (AP Mode)

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption

22W

Power Method

USB type C (5V DC/5A)

Power Supply

USB type C (5V DC/5A) (Adapter included)

Max. TX Power

6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

422 g (14.9 oz)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

Ethernet

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 9.0.108 and later

USW-Flex-2.5G-5

Mechanical

Dimensions

117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")

Weight

206 g (7.3 oz)

Enclosure material

Polycarbonate

Hardware

Management interface

Ethernet In-Band

Networking interface

(5) 1/2.5 GbE RJ45 ports

Total non-blocking throughput

12.5 Gbps

Switching capacity

25 Gbps

Forwarding rate

18.6 Mpps

Power method

(1) AC power adapter, 5V DC, 1A
(1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)

Power supply

External AC/DC adapter
UniFi PoE switch

Supported voltage range

AC/DC input: 5V DC
PoE input: 44-57V DC

Max. power consumption

AC/DC input: 5W
PoE input: 6.4W

Button

Factory reset

Ambient operating temperature

-20 to 45° C (-4 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

LEDs

System

(1) Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet

(5) Green: link/activity

Application Requirements

UniFi Network

Version 8.4.62 and later

Ubiquiti UniFi U7-Lite

Dimensions

Ø171.5 x 33 mm
(Ø6.8 x 1.3")

WiFi Standard

WIFi 7

Spatial Streams

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

Mounting

Ceiling, Wall
(Lite Mount Included)

Power Method

PoE

Performance

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 5 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W

Supported Voltage Range

42.5-57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 9.0.114 and later

UniFi OS
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later

UACC-PoE+-2.5G

General

Color

White

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48V DC @ 0.65A

Rated Voltage

100-240V AC @ 50/60Hz

LAN Activity Indicator

Gigabit LAN Port

Yes, up to 2.5GbE

Remote Reset Capability

Reset Button

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<150A peak @ 230V AC

Efficiency

>87%

Switching Frequency

65 kHz Max.

Output Ripple

1% Max.

Line Regulation

<= 1%

Load Regulation

<= 3%

Max. Surge Discharge

1500A (8/20 µs) power

Peak Pulse Current

36A (10/1000 µs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158°F)

Ambient Operating Temperature

0 to 40°C (32 to 104°F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Manufacturer Part No:

Unifi Starter Kit for HyperFibre 2000

Brand:

Ubiquiti

Product Type:

UPC

Product Family:

Shipping Weight:

7.58 kg

PB Part No:

NETUBI9201

Product Model:

Unifi Starter Kit for HyperFibre 2000

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

write a review

learn more

Delivery & Pick-up

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.

Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.

Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Share this Product
