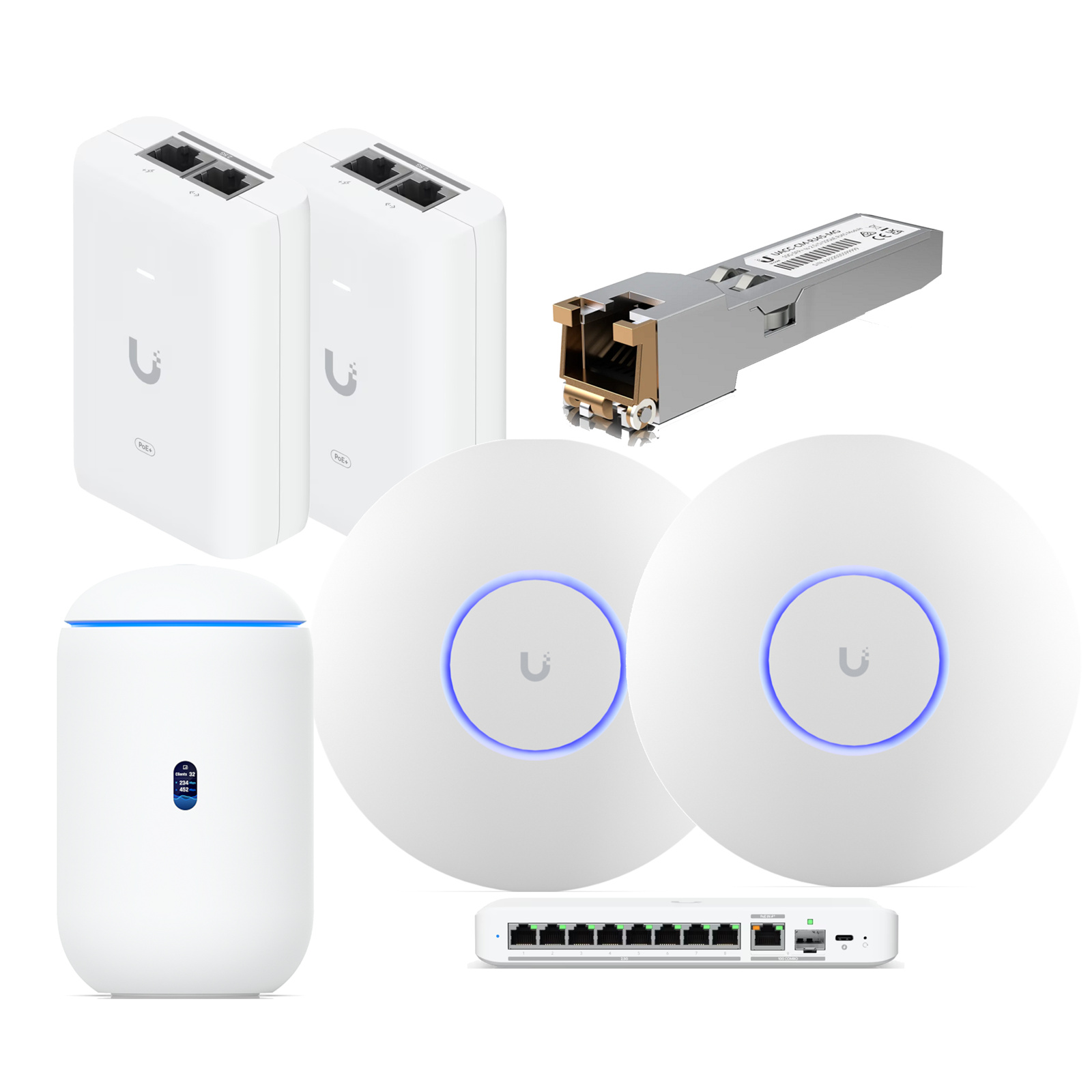

Ubiquiti Unifi Performance Kit for HyperFibre 2000 UDR7 x1 / UACC-CM-RJ45-MG x1 / USW-Flex-2.5G-8 x1 /U7-PRO x2 / UACC-PoE+-2.5G x2

Ubiquiti UniFi (UDR7) Dream Router 7

Dimensions

Ø110 x 184.1 mm (Ø4.3 x 7.3")

UniFi Application Suite

Network

Yes

Protect

Yes

Access

Yes

Talk

Yes

Connect

Yes

Managed UniFi Devices

30+

Managed Cameras

(5) HD
(2) 2K
(1) 4K

Simultaneous Users Connected

300+

Default WAN Ports

(1) 10G SFP+
(1) 2.5 GbE RJ45

LAN Ports

(3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

2,000

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps

MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
5 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

NVR Storage

Pre-installed 64GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44-57V

Max. Power Consumption

26W (Excluding PoE output)

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 50W

Max. TX Power

6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

1.1 kg (2.4 lb)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

System

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 9.0.108 and later

UACC-CM-RJ45-MG

Product code

UACC-CM-RJ45-MG

Supported media

Copper

Connector type

RJ45

Data rate

10GbE/5GbE/2.5GbE/1GbE

Max. power consumption

1.9W

Cable distance

10 Gbps (Cat 6A): 100 m

Operating temperature

0 to 70° C (32 to 158° F)

Pack options

1-pack

USW-Flex-2.5G-8

Mechanical

Dimensions

212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

Weight

420 g (14.8 oz)

Enclosure material

Polycarbonate

Mounting

Wall-mountable (kit included)
DIN rail-mountable (sold separately)

Hardware

Management interface

Ethernet In-Band

Networking interface

(8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port*
While only one is active, RJ45 can receive power and SFP+ can be utilized for data.

Total non-blocking throughput

30 Gbps

Switching capacity

60 Gbps

Forwarding rate

44.64 Mpps

Power method

(1) AC power adapter, 5V DC, 3A
(1) PoE+ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)

Power supply

External AC/DC adapter
UniFi PoE switch

Supported voltage range

AC/DC input: 5V DC
PoE input: 42.5-57V DC

Max. power consumption

14W

Button

Factory reset

Ambient operating temperature

-20 to 45° C (-4 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring

LEDs

System

Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet

Link/activity
PoE input

SFP+

Link/activity

Application Requirements

UniFi Network

Version 9.0.108 and later

Ubiquiti UniFi U7-PRO

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, metal

Mount material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+

Power supply

UniFi PoE switch

Supported voltage range

44-57V DC

Max. power consumption

21W

Max. TX power

2.4 GHz 22 dBm
5 GHz 26 dBm
6 GHz 23 dBm

MIMO

2.4 GHz 2 x 2
5 GHz 2 x 2
6 GHz 2 x 2

Throughput rate

2.4 GHz 688 Mbps
5 GHz 2882 Mbps
6 GHz 5765 Mbps

Antenna gain

2.4 GHz 4 dBi
5 GHz 6 dBi
6 GHz 5.8 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall/ceiling (Included)

Operating temperature

-30 to 60° C (-22 to 140° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.0.26 and later

UniFi OS

Version 3.2 and later

Ubiquiti UACC-PoE+-2.5G

General

Color

White

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48V DC @ 0.65A

Rated Voltage

100-240V AC @ 50/60Hz

LAN Activity Indicator

-

Gigabit LAN Port

Yes, up to 2.5GbE

Remote Reset Capability

-

Reset Button

-

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<150A peak @ 230V AC

Efficiency

>87%

Switching Frequency

65 kHz Max.

Output Ripple

1% Max.

Line Regulation

<= 1%

Load Regulation

<= 3%

Max. Surge Discharge

1500A (8/20 µs) power

Peak Pulse Current

36A (10/1000 µs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158°F)

Ambient Operating Temperature

0 to 40°C (32 to 104°F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
