Lenovo ThinkSystem 10Gb 2-port Base-T LOM
Out of stock
- Brand: Lenovo
- MPN: 7ZT7A00548
- Part #: NICLEN00548
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Cards (NIC)





Lenovo ThinkSystem 10Gb 2-port Base-T LOM
- Brand: Lenovo
- MPN: 7ZT7A00548
- Part #: NICLEN00548

Product URL: https://www.pbtech.co.nz/product/NICLEN00548/Lenovo-ThinkSystem-10Gb-2-port-Base-T-LOM
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

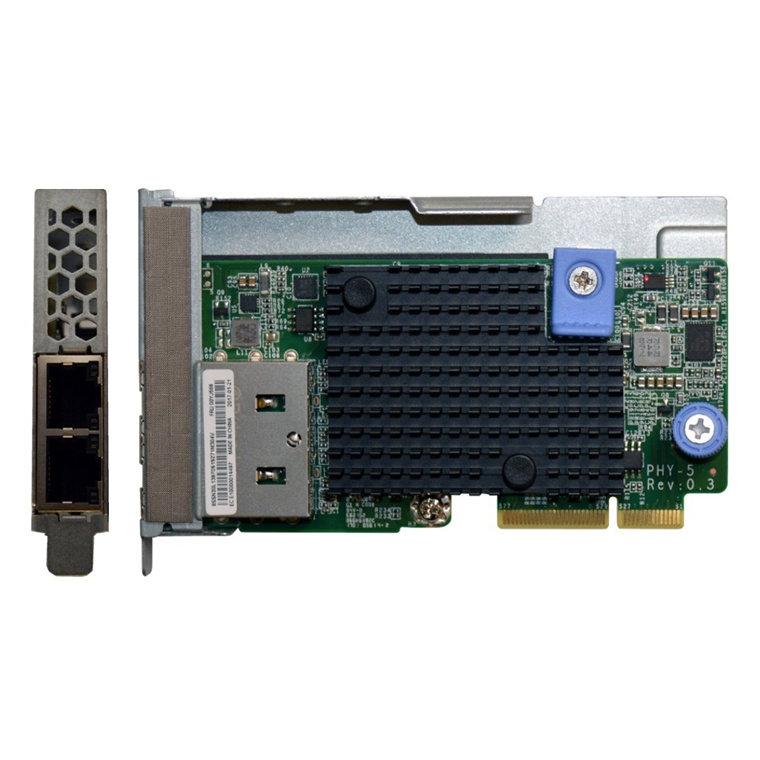

10Gb 2-port Base-T LOM Option
The server has two onboard 1 GbE ports and up to two additional onboard 1/10 GbE network ports with optional LOM cards. Onboard ports and LOM cards use the Intel Ethernet Connection X722 1/10 GbE technology integrated into the Intel C622 Platform Controller Hub (PCH). The LOM cards support direct connectivity to the XClarity Controller via the Network Controller Sideband Interface (NSCI) for out-of-band systems management. ThinkSystem 10Gb 2-port Base-T LOM
Specifications
Device Type
Network Adapter
Form Factor
Plug-in Card
Interface (bus) Type
Lan-on-motherboard (lom)
Ports
10gb Ethernet X 2
Cabling Type
Ethernet 10gbase-t
Data Link Protocol
Gige, 10 Gige
Data Transfer Rate
10 Gbps
Capacity
Virtual Functions: 128
Processor
1 X X557-at2 - Intel
Compliant Standards
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.1qbg.
Designed For
Thinksystem Sr530, Sr550, Sr570, Sr590, Sr630, Sr650, Sr850, Sr860, Sr950.
System Requirements
Microsoft Windows Server 2012 R2, Suse Linux Enterprise Server 11 Sp4, Microsoft Windows Server 2016, Vmware Esxi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, Suse Linux Enterprise Server 12 Sp2, Vmware Esxi 6.0 Update 3.
