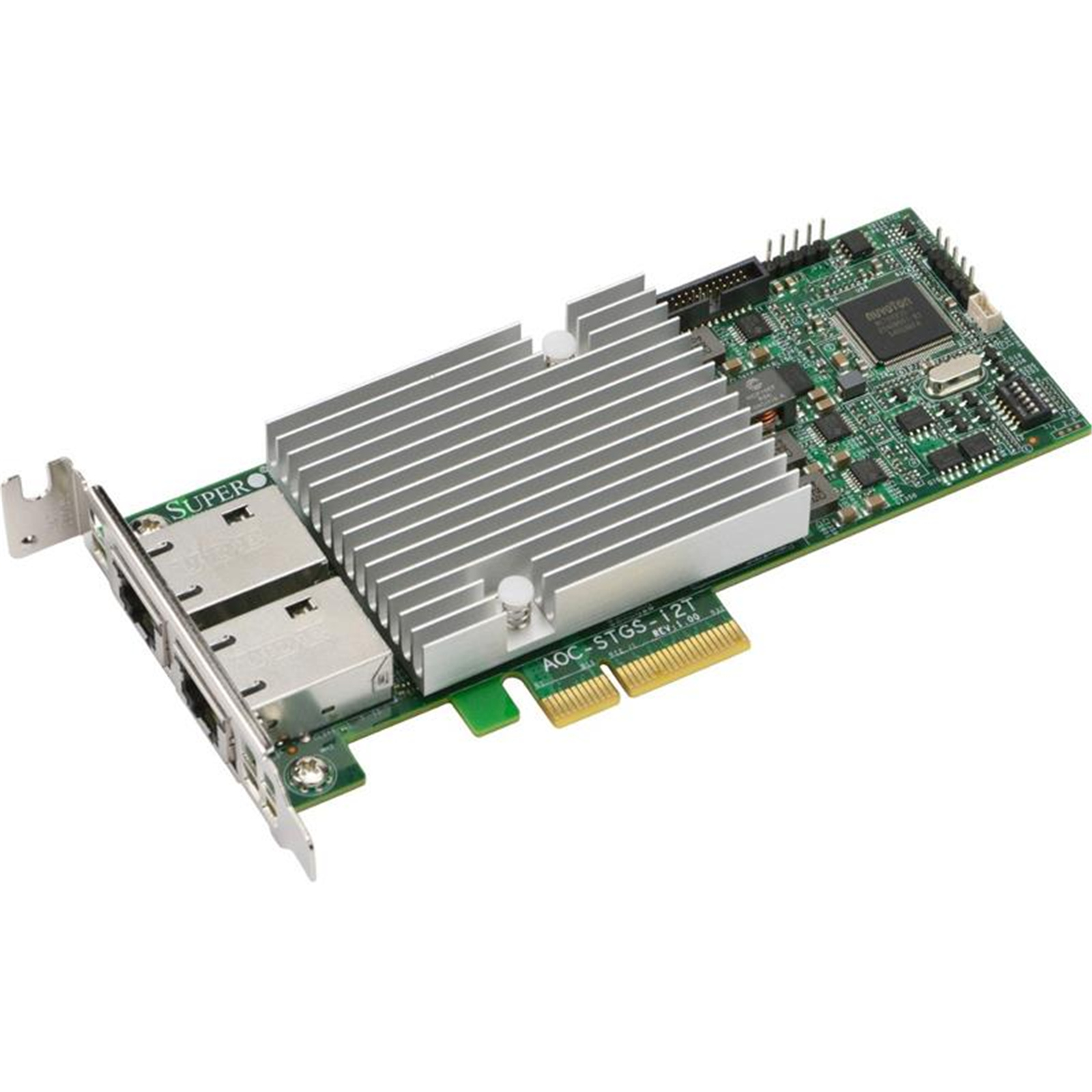

Supermicro AOC-STGS-I2T Server NIC, 2x RJ-45 10GbE, Low-Profile PCIe, Intel X550 Controller

PB Tech price: PB Tech price:
$592 57  +GST $681 46  inc GST
$592.57  +GST
$681.46  inc GST

Supermicro AOC-STGS-I2T Server NIC, 2x RJ-45 10GbE, Low-Profile PCIe, Intel X550 Controller

Part #: NICSPM1022
PB Tech price: PB Tech price:
$592 57 $681 46
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 12/09/2022 When will I receive it?
$592.57  +GST
$681.46  inc GST

Six easy payments of $116.98 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $141.20 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free fortnightly payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $5.46 per week, 18 months interest free - 36 months to pay available*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

No payments or interest for 18 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Supermicro
  • MPN: AOC-STGS-I2T-O
  • Part #: NICSPM1022
  • UPC:
  • Number of Ports: 2
  • Port Type: RJ-45
  • View more

Features

Offers flexible connectivity
Dual-port 10Gbase-T controller
Virtual Machine Device Queues
Support for Packets Up to 15.5KB

2-Port 10 Gigabit (10GbE) PCI-E 3.0 Ethernet Card - Low-Profile, Intel X550 AT2 10GbE controller with integrated MAC and PHY, PCI-E x4 v3.0 (8GT/s, 5GT/s or 2.5GT/s) interface, Dual RJ45 connectors with speed up to 10Gb/port - RoHS Compliant 6/6, Pb Free (OEM, Bundled with Supermicro System ONLY)

VXLAN and NVGRE
Dual RJ45 Connectors
PCI Express v3.0 x4 (8GT/s)
IEEE802.3az Energy Efficient Ethernet (EEE)
Low-Profile, Short Length Standard Form Factor
Asset Management Features with thermal sensor
VMDq, PCI-SIG SR-IOV for Virtulization Environments
Data Center Bridging (DCB) with FCoE stateless offload
Unified networking delivering LAN, iSCSI and FCoE over 10GbE
Intel Ethernet Flow Director for hardware-based application traffic steering
Intel's second generation, dual-port 10GbE controller with integrated MAC and PHY

Specifications

Device Type

10GbE controllers

Dimensions (WxDxH)

Height of end brackets: standard 12cm (4.725in), low-profile 8cm (3.15in)
Card PCB dimensions: 15cm x 6.89cm (5.9in x 2.71in) (LxW)

Form Factor

Low-Profile, Short Length Standard Form Factor

Interface (Bus) Type

PCI Express v3.0 x4 (8GT/s)

Weight

120g (0.2645lb)

Miscellaneous

Features

Jumbo Frames support up to 15.5KB

RoHS

RoHS Compliant 6/6, Pb Free

Networking

Port Quantity

Dual RJ45 connectors

Expansion / Connectivity

Interfaces

Dual RJ45 connectors with speed up to 10Gb/port

Connections

RJ-45 Category-6 up to 55m, Category-6A up to 100m

Environmental Parameters

Operating Temperature

Operating temperature: 0C to 55C (32F to 131F)
Storage temperature: -40C to 70C (-40F to 158F)
Storage humidity: 90% non-condensing relative humidity at 35C

Software / System Requirements

OS Supports

Windows 7 SP1, Windows 8, Windows 8.1, Windows 10 (X64)
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (X64)
Windows PE 3.0 (2008 R2 PE), Windows PE 4.0 (2012 PE), Windows PE 5.0 (2012 R2 PE) (IA32, X64)
Linux Stable Kernel Version 2.6/3.x/4.x (IA32, X64, IPF)
Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 12 (IA32, X64)

System Requirements Details

NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors
Motherboards with minimum PCI-E x4 slot
Server Systems with low-profile or full-height PCI-E x4 expansion slot

Manufacturer Part No:
AOC-STGS-I2T-O
Brand:
Product Type:
Server NIC,
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
NICSPM1022
Product Model:
AOC-STGS-I2T
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
