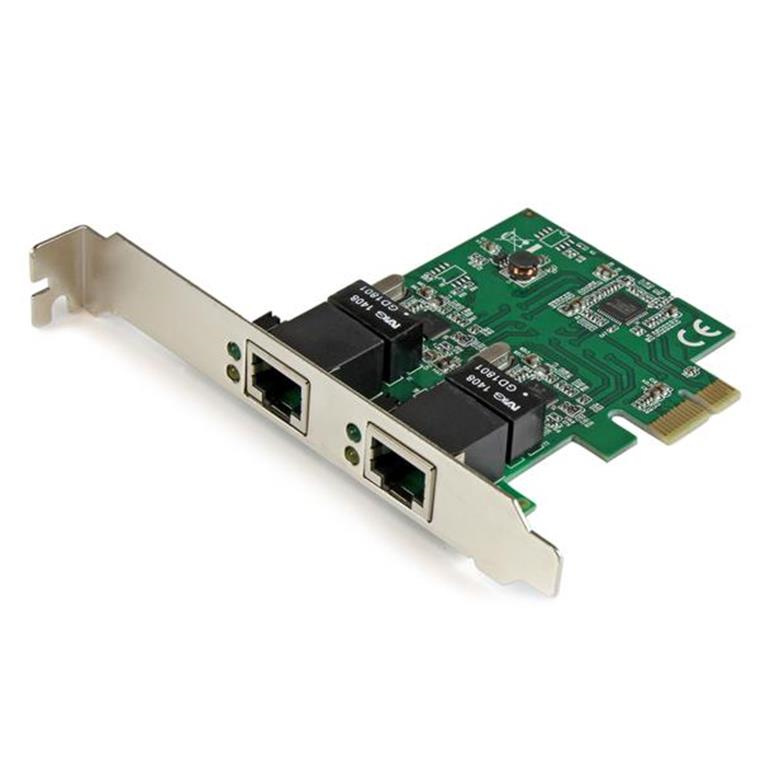

StarTech.com ST1000SPEXD4 2 Port Gigabit PCI Express Network Card
StarTech.com ST1000SPEXD4 2 Port Gigabit PCI Express Network Card
- Brand: StarTech.com
- MPN: ST1000SPEXD4
- Part #: NICSTT690400
- UPC: 065030859356
- Brand: StarTech.com
- MPN: ST1000SPEXD4
- Part #: NICSTT690400
- UPC: 065030859356
What PB Tech customers are saying about this product...
See More Reviews"Works as expected. Windows 10 loaded the drivers fine."
COMBO DEALS: Buy Together and SAVE!
Dynamix RAFILTER Fan Dust Filter for Server Cabinet Suits 120mm x 120mm Fan.
$8.68 +GST
$9.98
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Cards (NIC)
StarTech.com ST1000SPEXD4 2 Port Gigabit PCI Express Network Card
- Brand: StarTech.com
- MPN: ST1000SPEXD4
- Part #: NICSTT690400
- UPC:065030859356
Product URL: https://www.pbtech.co.nz/product/NICSTT690400/StarTechcom-ST1000SPEXD4-2-Port-Gigabit-PCI-Expres?srsltid=AfmBOop6s-9T62nd6oQYPHuAtBG4sugBAOQaWsgtapUEWi_5l9wRYclM
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Nelson | 0 | |
| Auckland - Head Office | 5 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Up to 9K Jumbo Frame support
- Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
- Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Pair Swap / Polarity / Skew Correction
The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Applications
- Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Provide redundant connectivity to ensure an uninterrupted network connection
- Configure a dual-homed proxy or gateway system for an added layer of security
- Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available
The StarTech.com Advantage
- Protect critical networked systems with a redundant and independent Gigabit port
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize the networking efficiency of your virtualized server, with dedicated ports
Specifications
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
2 - RJ-45
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
0°C to 100°C (32°F to 212°F)
Humidity
10~90% RH
Hardware
Ports
2
Interface
RJ45 (Gigabit Ethernet)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
PCI Express Base Specification 2.0
Chipset ID
Realtek - RTL8111
ASMedia - ASM1182E
Indicators
LED Indicators
2 - Yellow - Gigabit Mode
2 - Green - Link/Activity
Packaging Information
Package Height
1,3 in [3,2 cm]
Package Length
6,8 in [17,2 cm]
Shipping (Package) Weight
4,8 oz [136,0 g]
Package Width
5,6 in [14,2 cm]
Package Quantity
1
Performance
Wake On Lan
Yes
Maximum Data Transfer Rate
2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Promiscuous Mode
Yes
Supported Protocols
IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Physical Characteristics
Weight of Product
1,9 oz [53,0 g]
Color
Green
Material
Steel
Product Length
3,6 in [9,3 cm]
Product Width
0,7 in [1,8 cm]
Product Height
4,7 in [12,0 cm]
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS 10.4 to 10.9
Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express slot
What's in the Box
Included in Package
1 - PCIe Network Card
1 - Low Profile Bracket
1 - Instruction Manual
