Features

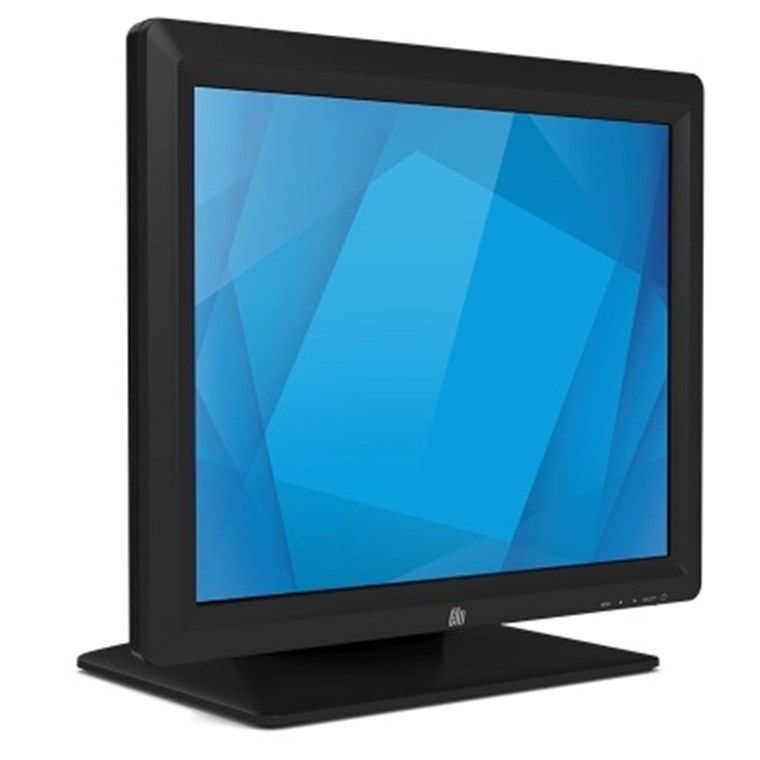

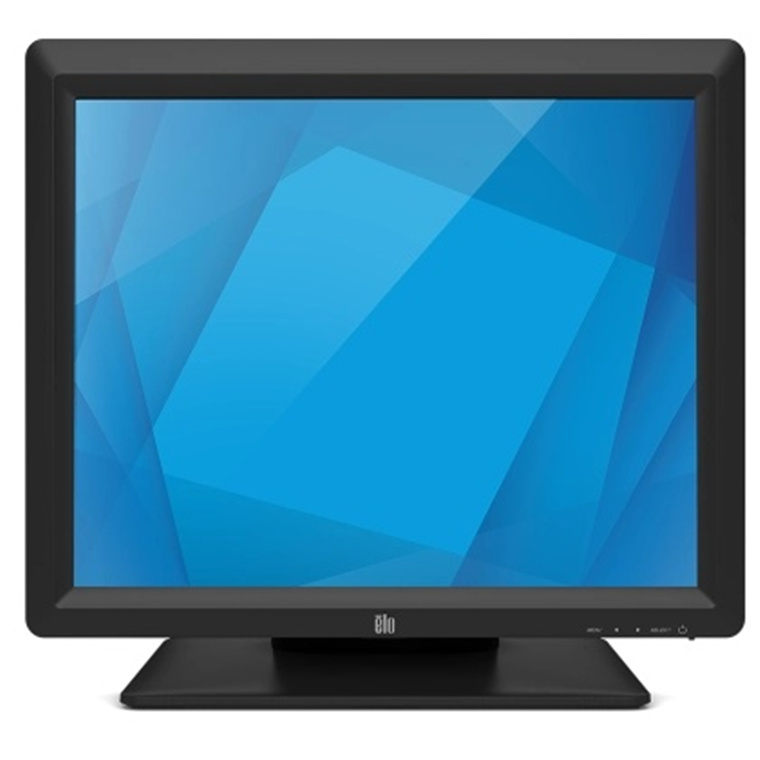

Elo 1517L 15-inch LCD (LED Backlight) Desktop, AccuTouch (Resistive) Single-touch, USB & RS-232 Controller, Anti-glare, Zero-bezel, VGA video interface, Stand, Black, Worldwide
The 1517L touch monitor is built to withstand the rigors of continuous public use with a rugged built for touch design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touch monitor needs. It is well suited for high use public venues where point-of-sale,point-of-information, point-of-service,loyalty systems, and shelf-level and counter top interactive digital signage are found.
- Sleek and thin design with built-for-touch reliability
- 60% Energy savings using LED technology
- Removable base and mounting options including VESA, wall and pole-mounting
- Typical power consumption: 12W, internal and external power options
- Flexible and space-saving
- Sealed touchscreen against dirt, dust and liquids
- USB and RS232 serial connections
Integrated touch

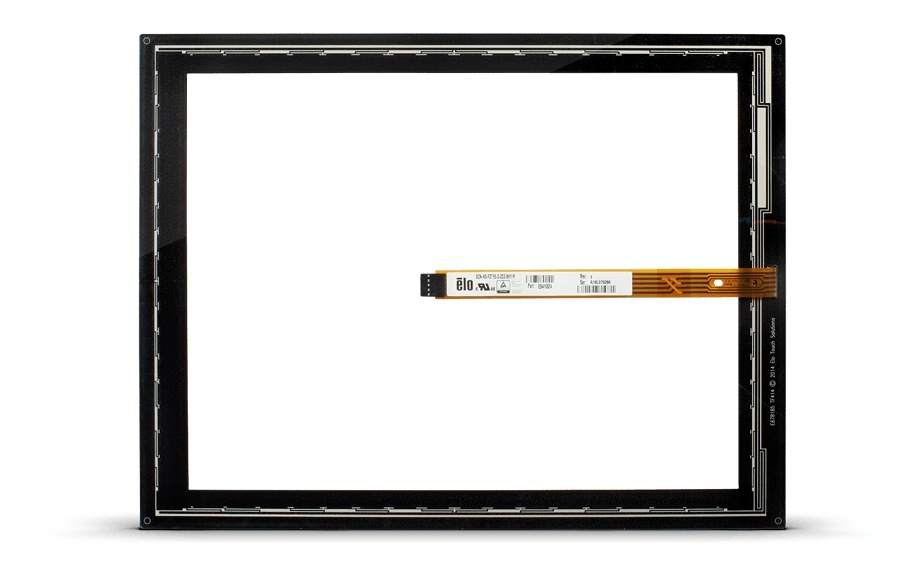

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
Flexible mounting

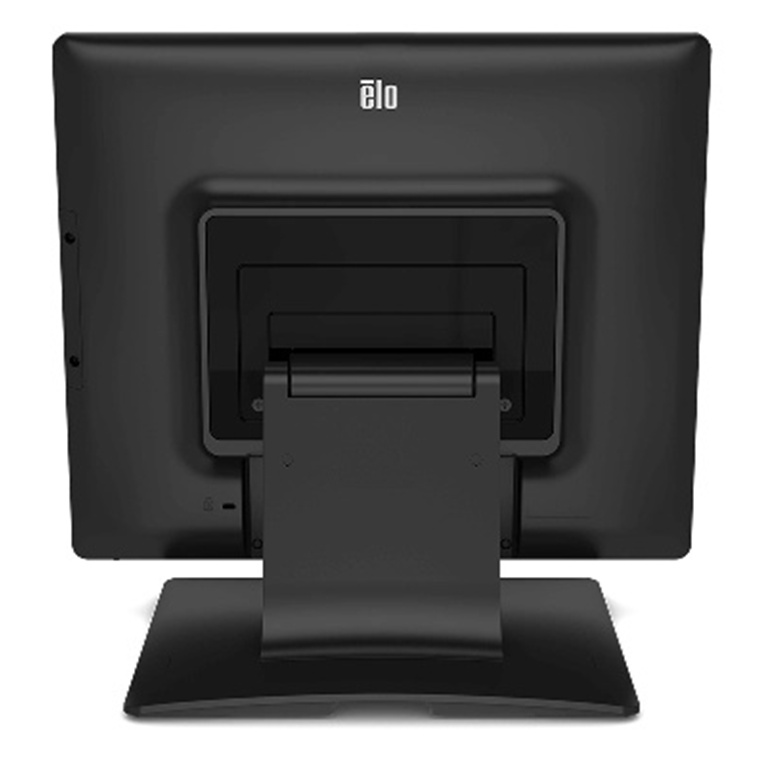

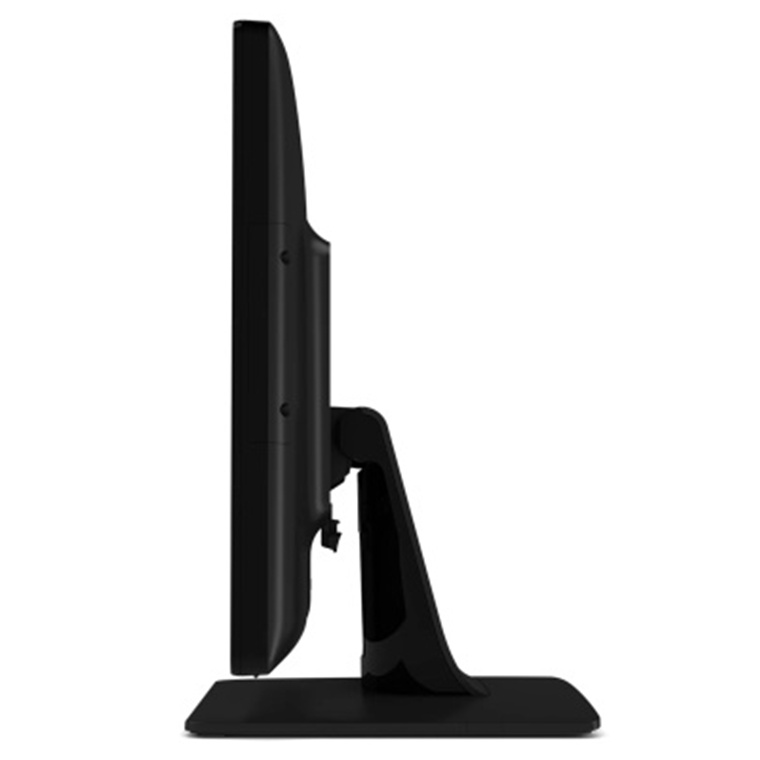

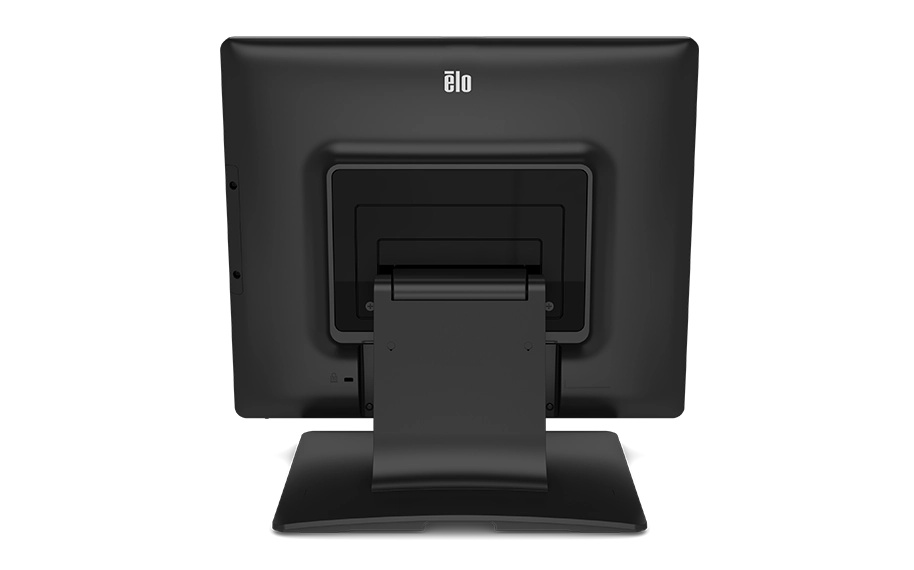

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Specifications
MPN
AccuTouch ZB Black (Worldwide) - E144246
Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
Diagonal Size
15" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
11.97" x 8.98" / 304.13 mm x 228.10 mm
Resolution
1024 x 768 @ 60Hz, 75Hz
Resolution
1024 x 768 @ 60Hz, 75Hz
Number of Colors
16.2 million
Brightness (typical)
AccuTouch: 240 nits
Response Time-total (typical)
23 msec
Contrast Ratio
800:1
Touch Interface
Serial (RS232) and USB
Accessible through switches along the bottom.
Controls: Menu, Up, Down, Select, Power
I/O Ports
VGA
HDMI
DC jack
AC jack
USB Type B
RS-232 (DB-9)
Video
Analog VGA on Female DB-15 connector
Digital HDMI on Type A receptacle
Input Video Horizontal Sync frequency range: 31.5 - 60KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power
Monitor AC input power connector: IEC 60320 C6
Monitor AC input voltage specifications: 100-240VAC, 50/60Hz.
Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor DC input voltage specifications: 12VDC +/- 5%
Power Consumption (Typical)
Monitor Only
ON: 10.5W
SLEEP: 1.40W
OFF: 0.3W
Monitor Dimensions (without Stand)
Bezel: 14.1" x 1.97" x 12.5" / 358 mm x 50 mm x 319
Zero Bezel: 14.1" x 1.73" x 12.5" / 358 mm x 44.1 mm x 319 mm
Monitor Dimensions (with Stand)
14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm
Weight (Unpackaged)
9.48 lbs / 4.3 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm mounting interface on rear of unit
3-hole threaded mounting on bottom of stand
