ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI
ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI
- Brand: ELO
- MPN: E326541
- Part #: POSELO1200
- UPC:
- Brand: ELO
- MPN: E326541
- Part #: POSELO1200
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Accessories





ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI
- Brand: ELO
- MPN: E326541
- Part #: POSELO1200

Product URL: https://www.pbtech.co.nz/product/POSELO1200/ELO-E326541-TOUCH-MONITORS-ELO-ELO-KIOSK-1991L-OPE
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
1991L, 19-inch LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, AccuTouch, USB & RS232 touch controller interface, Worldwide-version, Anti-Glare, No power brick

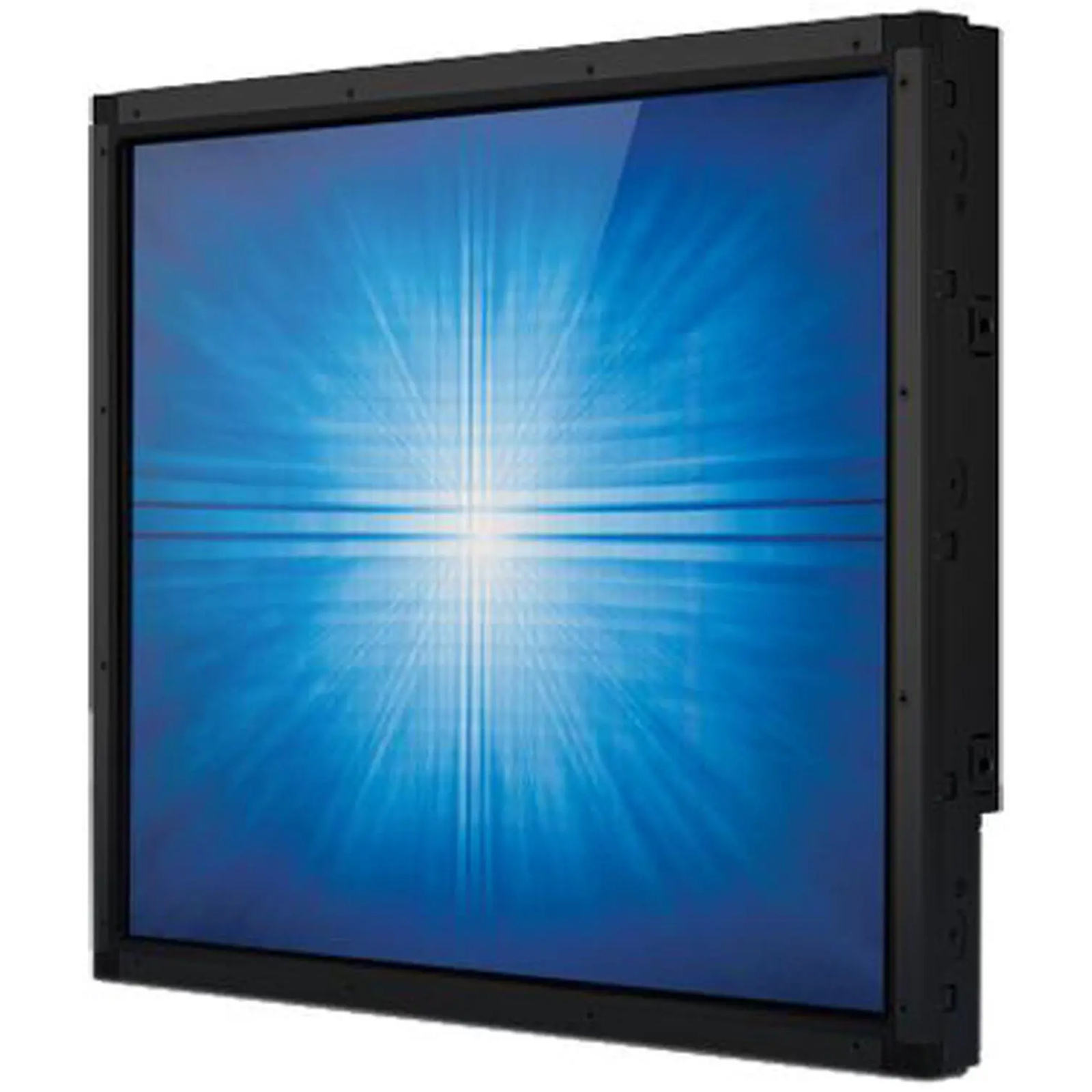

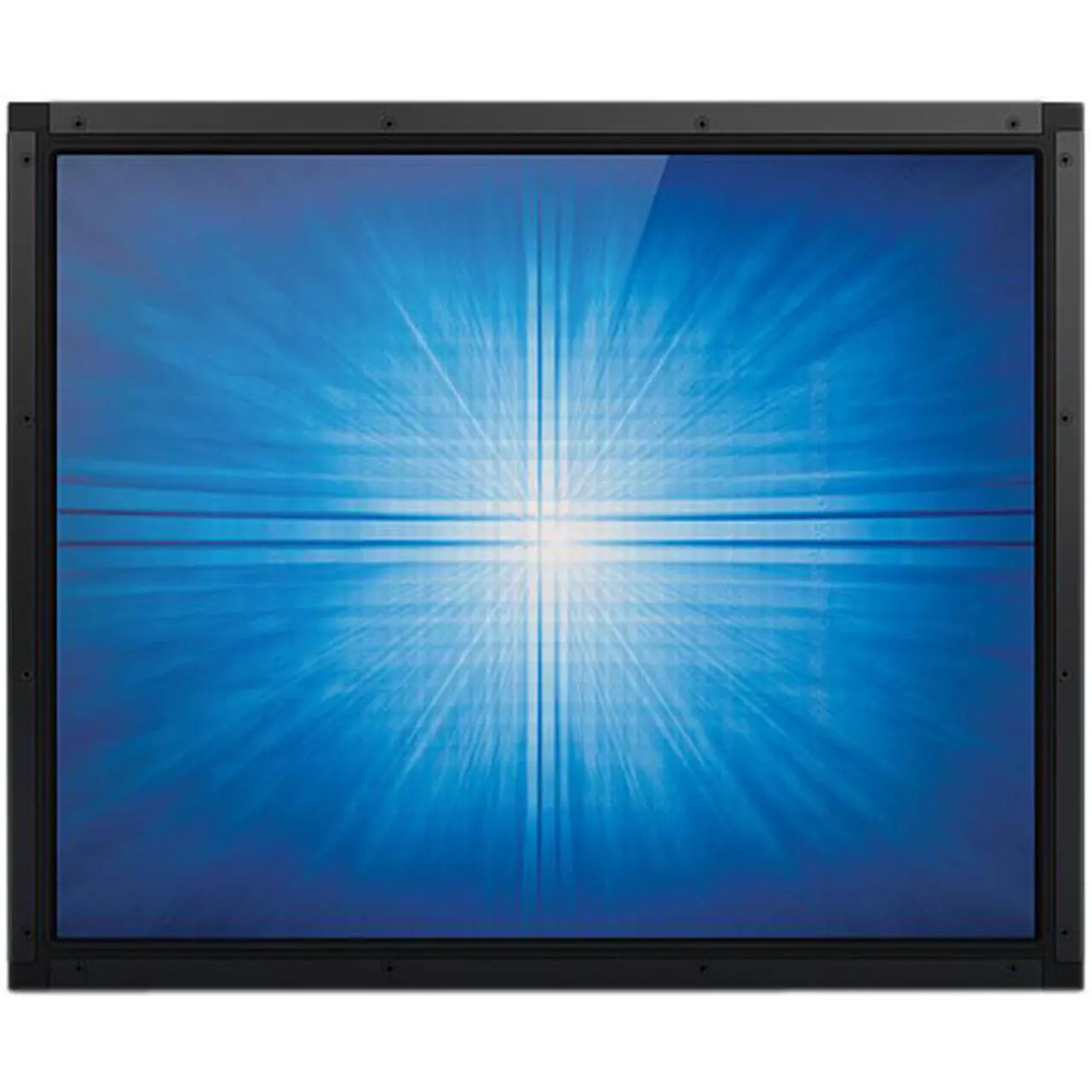

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Specifications
MPN
AccuTouch (Worldwide) - E326541
Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
Touch Interface
TouchPro PCAP - USB 2.0
Dual serial/USB 2.0
Diagonal Size
19" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.76" x 11.80" / 374.78mm x 299.83mm
Resolution
1280 x 1024
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
AccuTouch: 200 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz
Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
ON (Default - 75% Brightness): 10.82 W
ON (Typical - 100% Brightness): 12.12 W
SLEEP (monitor + adapter): 1.5 W
OFF (monitor + adapter): 0.5 W
Dimensions
Bezel: 16.33" x 13.50" x 1.97" / 414.7mm x 342.7mm x 50mm
Zero-Bezel: 16.54" x 13.70" x 1.60" / 420.1mm x 348.1mm x 40.7mm
Weight (Unpackaged)
10.14 lbs / 4.6 Kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
MTBF
50,000 hours demonstrated
