ELO E970665 Digital Displays Digital Signage I-series I5 4/128 15.6P W10
ELO E970665 Digital Displays Digital Signage I-series I5 4/128 15.6P W10
- Brand: ELO
- MPN: E970665
- Part #: POSELO970665
- UPC:
- Brand: ELO
- MPN: E970665
- Part #: POSELO970665
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Accessories





ELO E970665 Digital Displays Digital Signage I-series I5 4/128 15.6P W10
- Brand: ELO
- MPN: E970665
- Part #: POSELO970665

Product URL: https://www.pbtech.co.nz/product/POSELO970665/ELO-E970665-Digital-Displays-Digital-Signage-I-ser
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Elo I-Series for Windows, WW, Core i5-6500TE, 4GB Ram, 128GB SSD, 15.6-inch Widescreen LED, Projected Capacitive 10-touch, Win 10, Clear, Zero-bezel, Gray
The multi-purpose fixed tablet form factor 15-inch I-Series for Windows interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet durable fixed tablet form factor at only 1.5 inches thick. The I-Series is designed for easy in-field system upgrades and ease of serviceability bringing reliability and performance with the latest developments in touchscreen technology.
The fully integrated I-Series is ideal for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical environments. And with flexible mounting options in portrait, landscape and tabletop orientation using Elo wall, floor and tabletop mounting accessories, application use is endless.
Processing power.
The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.
Integrated touch.

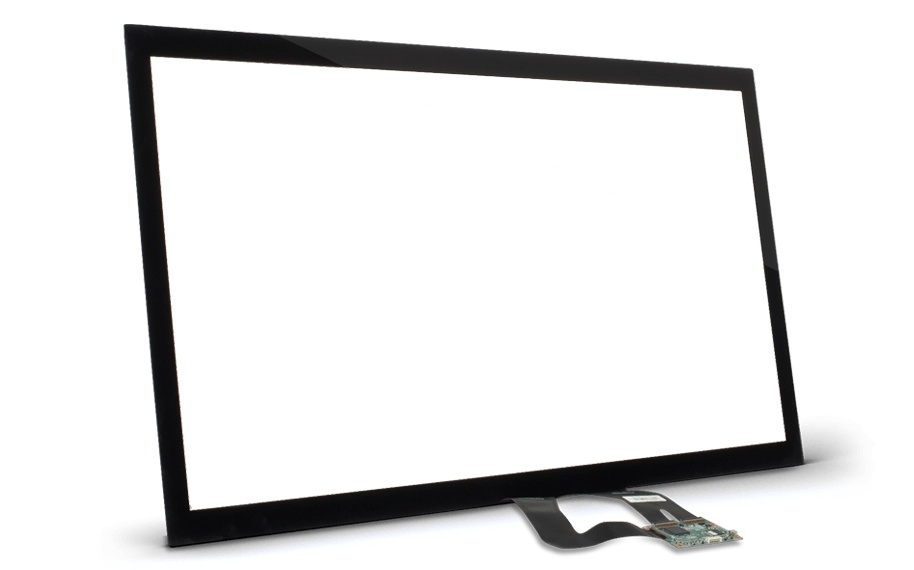

Available in two wide-format display sizes, 15 inches and 22 inches, the I-Series for Windows all-in-one touchscreen features the industry-leading TouchPro® projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease.
Configured perfection.
Create additional interactive touchpoints with the built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.
Commercial grade.
Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All the products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
MPN
PCAP i5 Win10 (Worldwide) - E970665
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
i5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart Cache
Graphics
i5: Intel HD Graphics 530
BIOS
AMI
Memory (RAM)
i5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133
Storage
128GB 2.5" 7mm SATA SSD, 72 TBW
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
On-Screen Display (OSD)
Power, Brightness Up, Brightness Down, Volume Up, Volume Down
Aspect Ratio
16:9
Active Area
13.6" x 7.6" / 344.2mm x 193.5mm
Resolution
Full HD 1920 x 1080 @ 60Hz
Number of Colors
262,000
Brightness (typical)
LCD Panel: 300 nits
PCAP: 270 nits
Response Time-total (typical)
25 msec
Contrast Ratio
700:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
AV Capability
Front-facing HD webcam
Stereo speakers
Webcam
Max resolution: 1920 x 1080 30fps (MJPEG)
Auto Focus @ 10cm ~ Infinity
Automatic Exposure Control
Automatic White Balance Control
Automatic Gain Control
USB Ports
i5: 4 x USB 3.0, 3 x Micro USB for Elo peripherals
Ethernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth
Bluetooth 4.0
Additional Video Out
2nd Micro HDMI out
Audio Ports
1 x 3.5mm line out
Speakers
Two 2W internal speakers
OS
No OS
Windows 7*
Windows 10
Languages
Windows 7 - 35 Language groups
Power
Maximum output power: 65W (Max Draw: 74W)
Maximum output power: 90W (Max Draw: 100W)
Power Supply
External 19VDC universal-type power supply brick
Input Voltage
100 - 240 VAC 50/60Hz
Power Consumption (Typical)
i5: 80.63 W
Dimensions
15.2" x 9.8" x 1.5" / 387mm x 249mm x 39mm
Weight (Unpackaged)
5.64 lbs / 2.56 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL, FCC, TUV, CB, CE, VCCI
Real-Time Clock
lithium-ion battery
MTBF
50,000 hours demonstrated

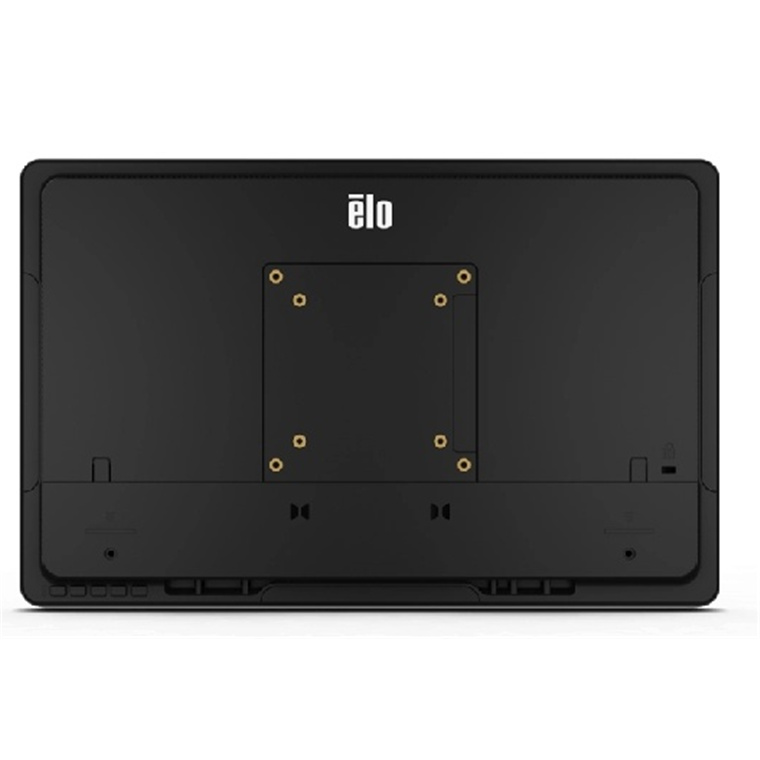

Mounting Options
VESA - 75mm x 75mm and 100mm x 100mm
Wall/pole mount or secure base to tabletop/desktop
