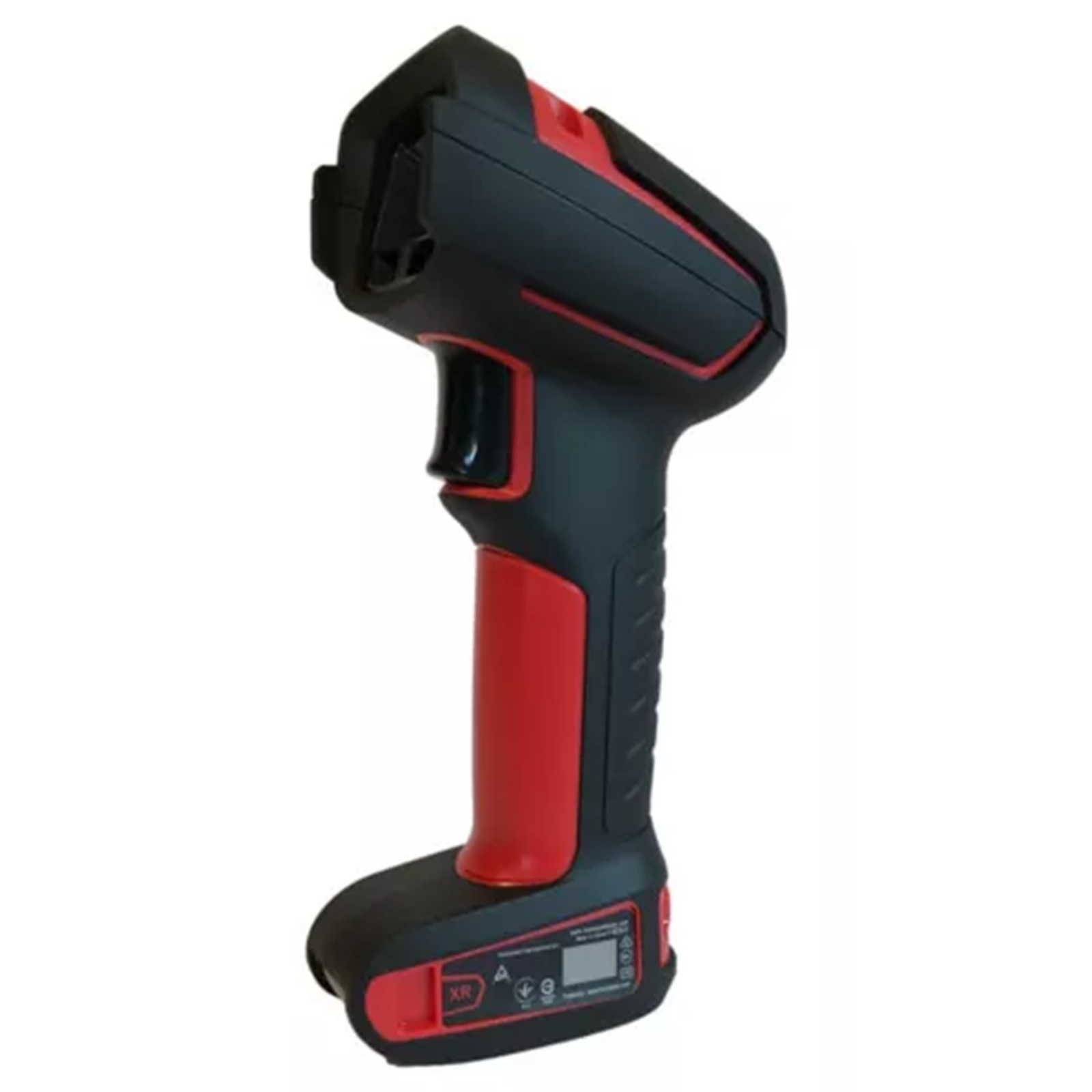

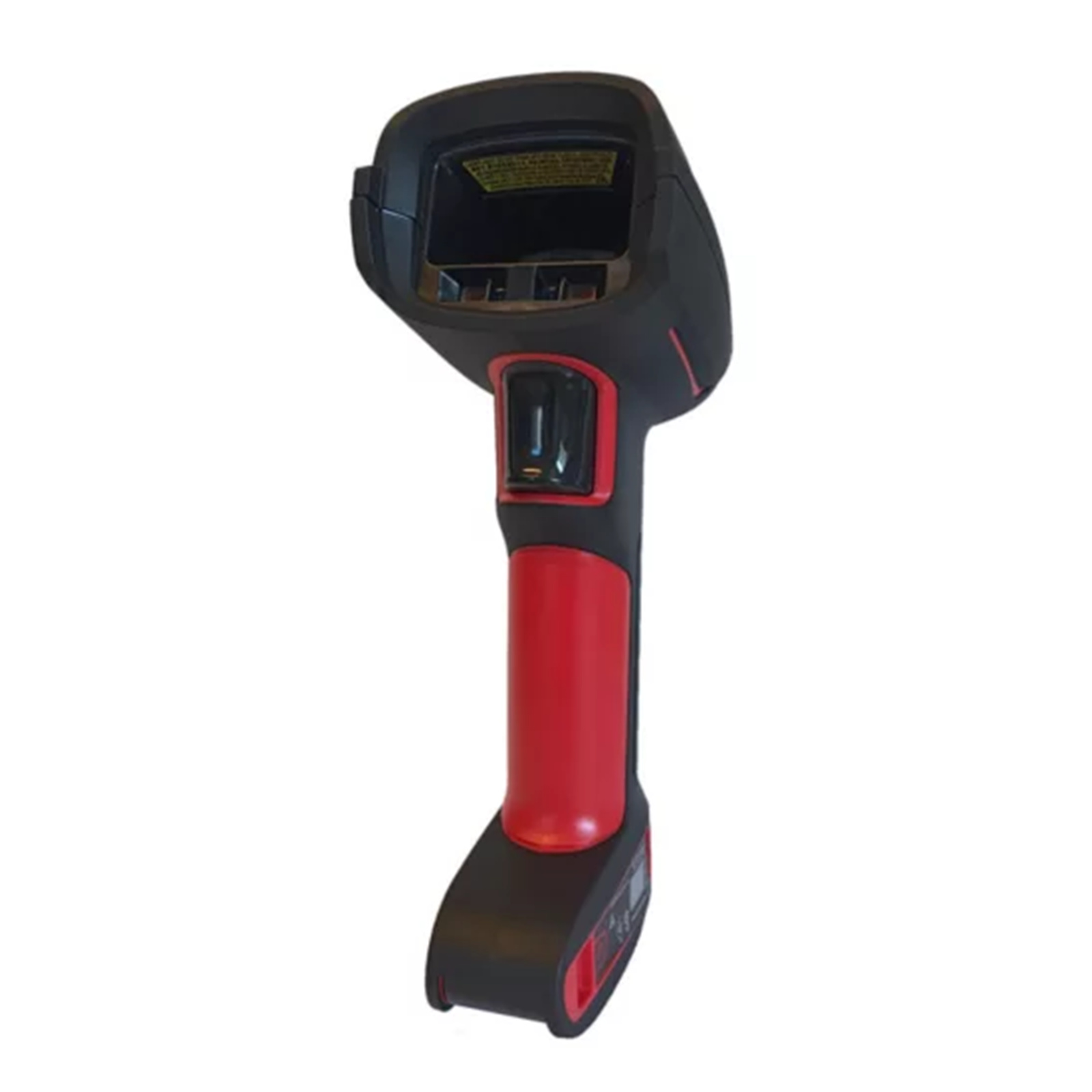

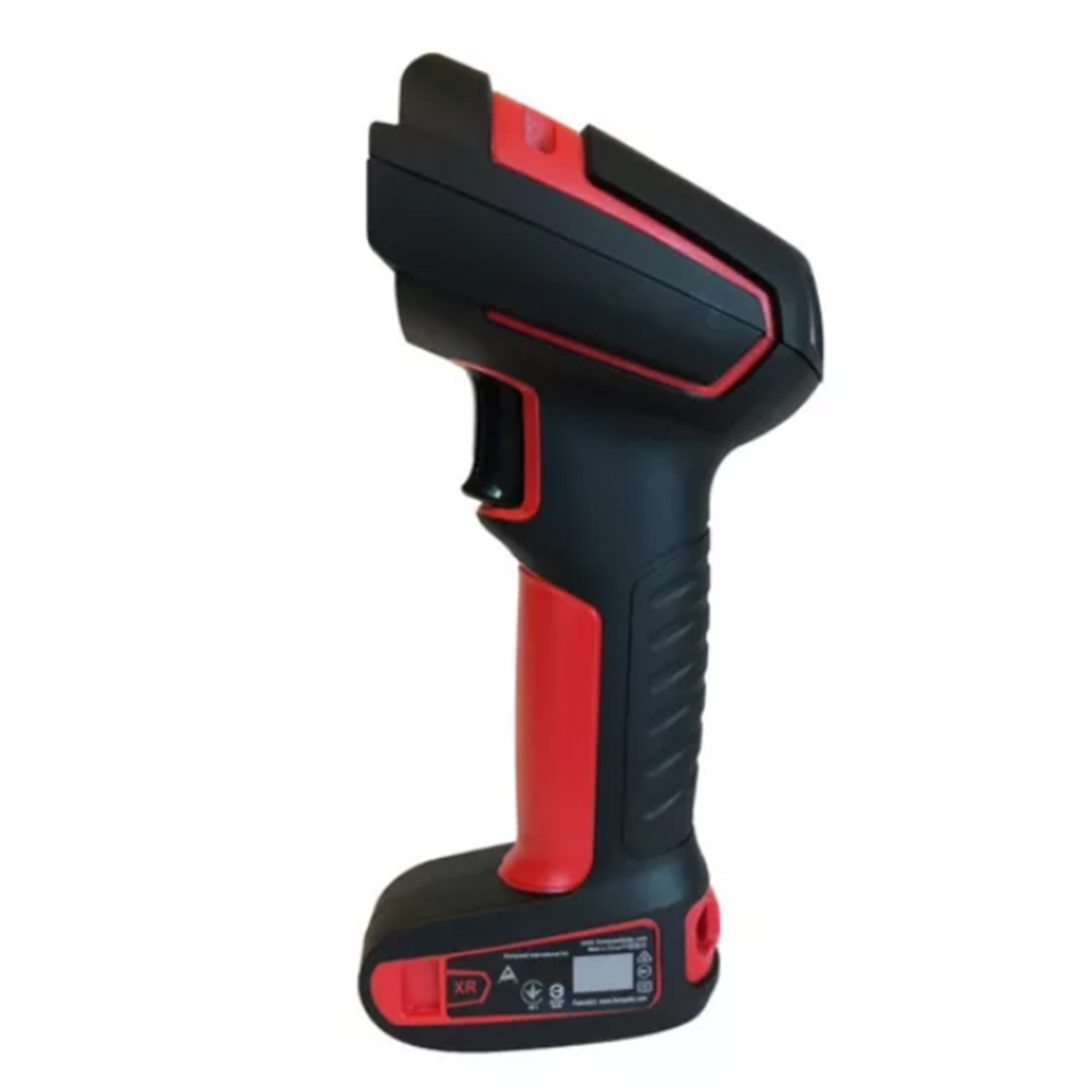

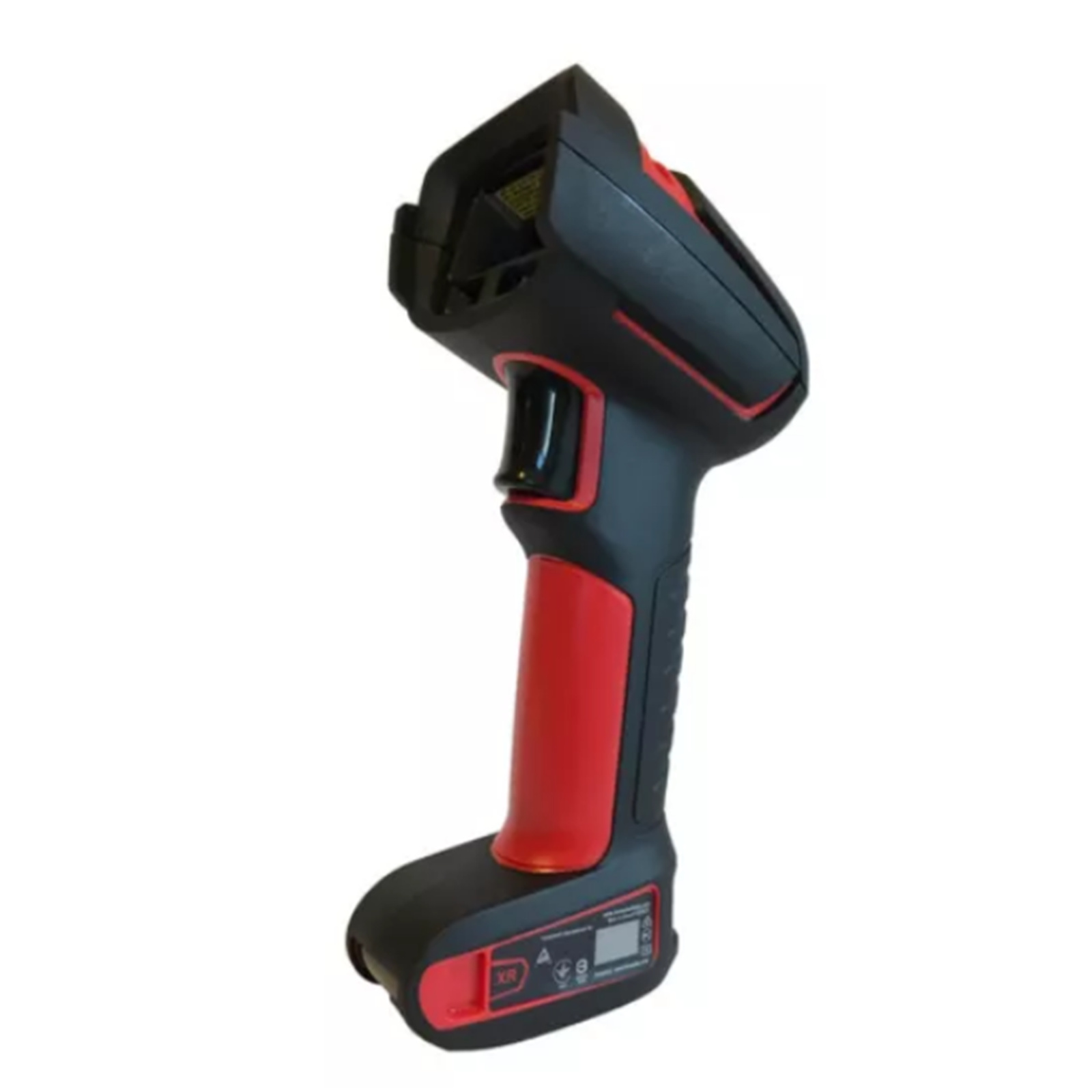

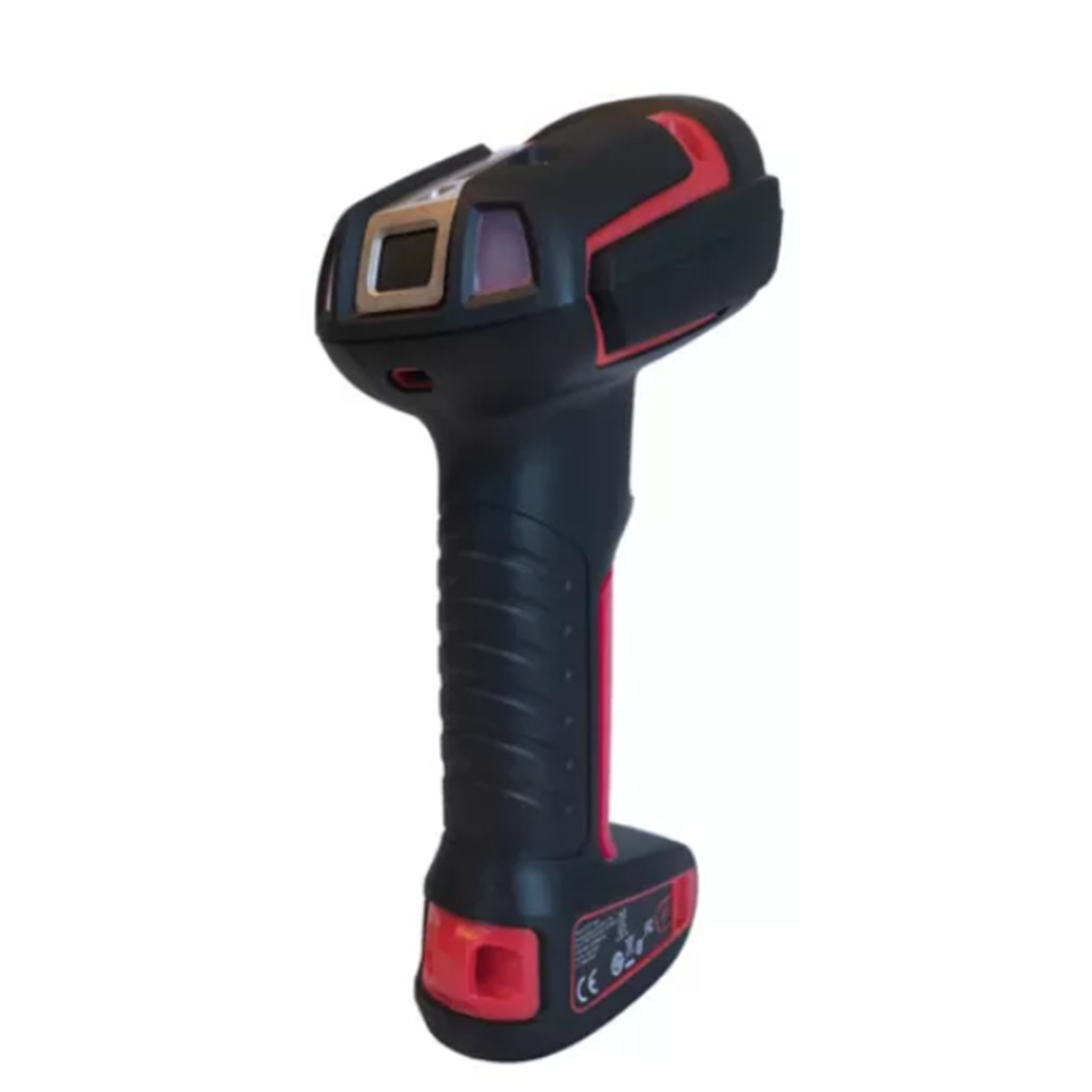

Honeywell 1990ISR SCANNER, 1D/2D/PDF, SR FOCCUS, RUGGED, RED DOT, 3M TYPE USB KIT, NO PSU
Honeywell 1990ISR SCANNER, 1D/2D/PDF, SR FOCCUS, RUGGED, RED DOT, 3M TYPE USB KIT, NO PSU
- Brand: Honeywell
- MPN: 1990ISR-3USB-R
- Part #: POSHON1012
- UPC:
- Brand: Honeywell
- MPN: 1990ISR-3USB-R
- Part #: POSHON1012
- UPC:
Features
Ultra-Rugged Area-Imaging Scanner
Following a legacy of successful deployments, the next generation Granit XP scanners expand capabilities and redefine ultra-rugged scanning.
Ultra Rugged Durability for Harsh Environments
With an ultra-rugged 3 meters (10 foot) drop, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks. The 1 meter (3.3 foot) tumble test indicates lasting durability with daily knocks and drops from workstations or waist height. A grueling 7,000 tumble specification ensures Granit scanners are ready to work long-term in demanding environments.

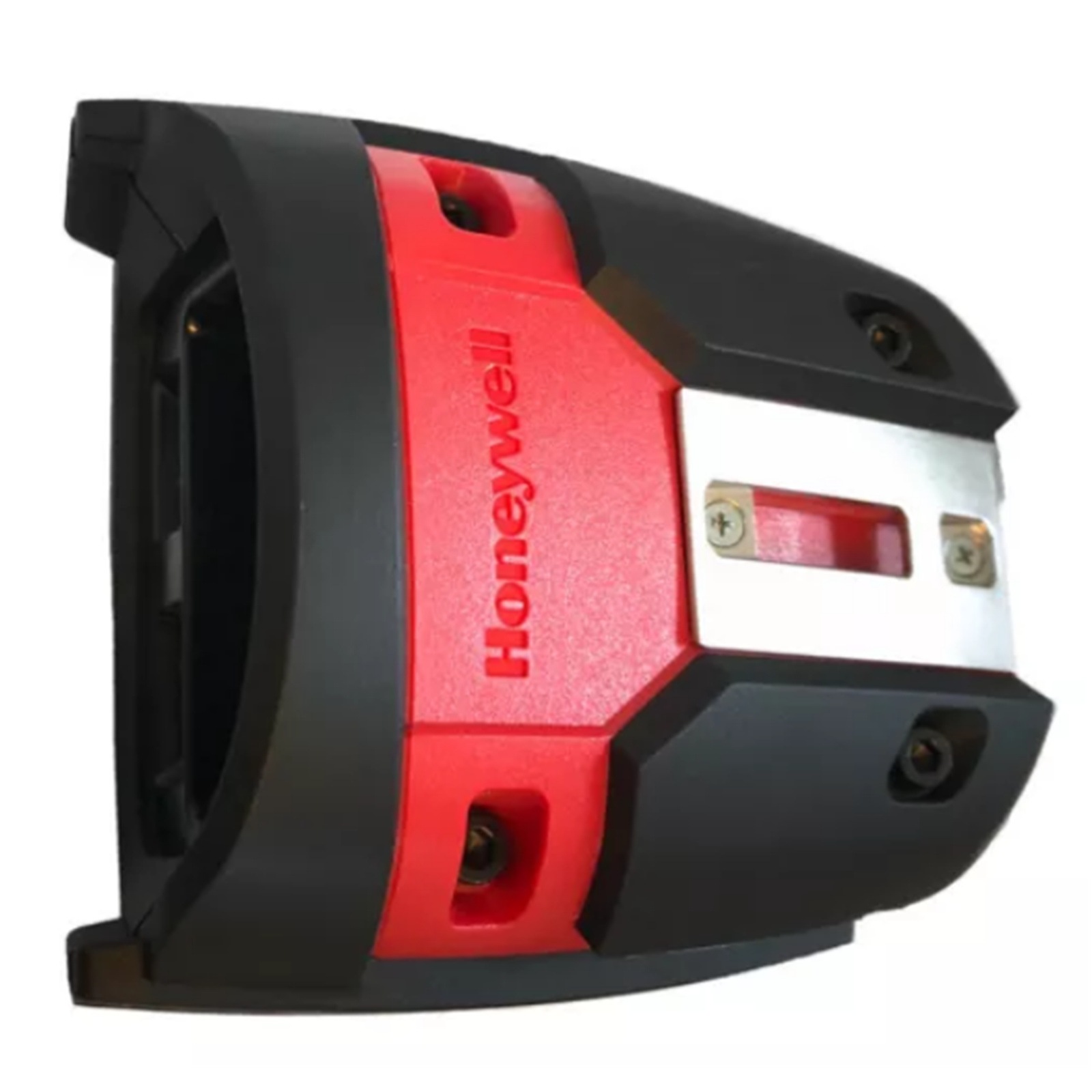

Reinforced Window Design for Long-Term Reliability
Field feedback shows that the scan window is a high-frequency failure point for scanning devices in the industrial environment. Granit scanners are designed with a small, deeply recessed, scratch- and impact-resistant window to prevent these failures. This is a critical sealing component ensuring dust and moisture do not enter the case and degrade scanning performance or cause premature failure. The Granit solution ensures its IP67 sealing remains intact, even under harsh treatment.
Fast Scanning of Damaged Barcodes
Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in warehouses, DCs and industrial environments due to low quality printing or damage during handling. Granit XP is built on Honeywell's next-generation imaging platform, integrating a high-resolution sensor and enhanced decoding algorithms to quickly and accurately read barcode symbols. Granit XP ensures that otherwise challenging labels do not create a bottleneck in the process.
High Performance Standard Range Scanning
The corded Granit XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high-speed scanning is needed to maximize productivity and where durability is non-negotiable for low total cost of ownership, the Granit XP 1990iSR scanner offers the optimal solution.
Built to Withstand Extreme Conditions
Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.
Lightning Fast Scans on Any Barcode
Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.
Optimized for Standard Range Workflows
The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
Actionable Insights with Operational Intelligence
Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
Simplified Deployment with Scanner Management Utility
The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Barcode Scanners
Zebra LS2208 USB kit Corded Black w/stand Wired Handheld 1D Laser...
Zebra DS2208 1D/2D Corded Handheld POS Barcode Scanner KIT 2D-SR...
Honeywell HH492 Wireless Barcode Scanner HANDHELD Bluetooth 2D...
Honeywell 1470G2D-2USB-1-R EMEA USB KIT: Omni-Directional, 1D,...
Honeywell HH490 Handheld 2D Scanner, Scans 1D/2D Barcodes, USB...
Honeywell 1990ISR SCANNER, 1D/2D/PDF, SR FOCCUS, RUGGED, RED DOT, 3M TYPE USB KIT, NO PSU
- Brand: Honeywell
- MPN: 1990ISR-3USB-R
- Part #: POSHON1012
Product URL: https://www.pbtech.co.nz/product/POSHON1012/Honeywell-1990ISR-SCANNER-1D2DPDF-SR-FOCCUS-RUGGED
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Ultra-Rugged Area-Imaging Scanner
Following a legacy of successful deployments, the next generation Granit XP scanners expand capabilities and redefine ultra-rugged scanning.
Ultra Rugged Durability for Harsh Environments
With an ultra-rugged 3 meters (10 foot) drop, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks. The 1 meter (3.3 foot) tumble test indicates lasting durability with daily knocks and drops from workstations or waist height. A grueling 7,000 tumble specification ensures Granit scanners are ready to work long-term in demanding environments.
Reinforced Window Design for Long-Term Reliability
Field feedback shows that the scan window is a high-frequency failure point for scanning devices in the industrial environment. Granit scanners are designed with a small, deeply recessed, scratch- and impact-resistant window to prevent these failures. This is a critical sealing component ensuring dust and moisture do not enter the case and degrade scanning performance or cause premature failure. The Granit solution ensures its IP67 sealing remains intact, even under harsh treatment.
Fast Scanning of Damaged Barcodes
Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in warehouses, DCs and industrial environments due to low quality printing or damage during handling. Granit XP is built on Honeywell's next-generation imaging platform, integrating a high-resolution sensor and enhanced decoding algorithms to quickly and accurately read barcode symbols. Granit XP ensures that otherwise challenging labels do not create a bottleneck in the process.
High Performance Standard Range Scanning
The corded Granit XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high-speed scanning is needed to maximize productivity and where durability is non-negotiable for low total cost of ownership, the Granit XP 1990iSR scanner offers the optimal solution.
Built to Withstand Extreme Conditions
Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.
Lightning Fast Scans on Any Barcode
Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.
Optimized for Standard Range Workflows
The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
Actionable Insights with Operational Intelligence
Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
Simplified Deployment with Scanner Management Utility
The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
Specifications
Scanning
Skew
65°
Scanning Range
Standard range (SR)
Scan Pattern
Area Imager (1280 x 800 pixel array)
Scan Distance
Standard Range (0-1m)
Print Contrast
20% minimum reflectance difference
Motion Tolerance
177 in/s
4500 mm/s
Decode Capability
1D/2D
Brightness
0 - 100,000 lux
9,290 foot-candles
Network
Bluetooth
No
Hardware
Power Connector Type
Corded
Host System Interface
Keyboard Wedge
RS-232 TTL
USB
Charging
Contact Charging
Electrical
Standby Power
0.5 W
Operating Power
2.35 W (470 mA @ 5 VDC)
Input Voltage
4.0 VDC to 5.5 VDC
Dimensions
Overall Dimensions
192 mm x 76 mm x 100 mm
7.6 in x 3.0 in x 3.9 in
Environmental
Storage Temperature Range
-40°C - 70°C
-40°F - 158°F
Operating Temperature
-22°F - 122°F
-30°C - 50°C
Operating Humidity
Up to 95% relative humidity, non-condensing
Standards & Approvals
Tumble Specifications
7,000 1 m (3.3 ft) tumbles
IP Rating
IP65 / IP67
Drop Specifications
2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
