Zebex Z-3220 Plus Linear Image Barcode Scanner USB Black
Zebex Z-3220 Plus Linear Image Barcode Scanner USB Black
- Brand: Zebex
- MPN: Z-3220-PLUS
- Part #: POSZEB3220
- UPC:
- Brand: Zebex
- MPN: Z-3220-PLUS
- Part #: POSZEB3220
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Barcode Scanners





Zebex Z-3220 Plus Linear Image Barcode Scanner USB Black
- Brand: Zebex
- MPN: Z-3220-PLUS
- Part #: POSZEB3220

Product URL: https://www.pbtech.co.nz/product/POSZEB3220/Zebex-Z-3220-Plus-Linear-Image-Barcode-Scanner-USB
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

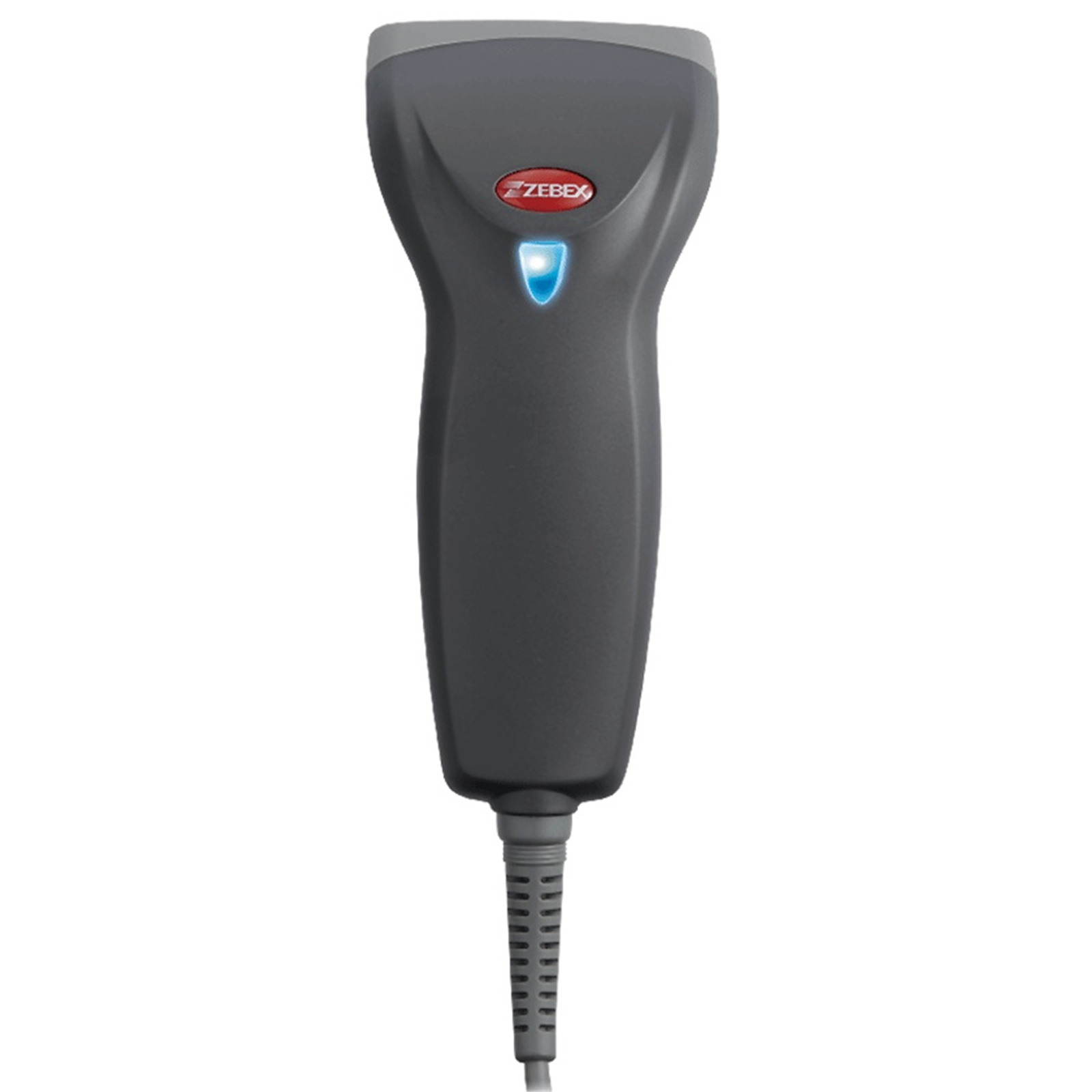

Zebex Z-3220 Plus Linear Image Barcode Scanner USB - Black
The sleek new Z-3220 Plus delivers outstanding scanning performance at a competitive price.
Specially designed for first time users, the scanner is ergonomically shaped and employs a field replaceable cable allowing for fast and easy disconnection from the host. With its newly improved decoding capability, the scanner provides an exceptional first-read-rate, making it ideal for retail applications.
- Proprietary Ultrascan decoding technology
- Light and rugged design
- Advanced image capture technology
- Multi-interface communication
- Ideal for beginners
- Captures barcodes on mobile phone, tablet, or computer screens
Specifications
Operational
Light Source
625 nm visible LED
Optical System
Linear CCD array
Microprocessor
32-bit
Depth of Field
Min. bar width: 3 mil
4 mil: 0 - 45 mm
5 mil: 0 - 70 mm
7.5 mil: 0 - 80 mm
10 mil: 0 - 90 mm
13 mil: 0 - 100 mm
20 mil: 0 - 120 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Rate
250 scans per second
Print Contrast
30% @ UPC/EAN 100%
Indicator
Two colors LED, beep
Beeper Operation
Programmable tone & beep time
System Interface
RS-232, HID USB, USB Virtual COM, OPOS, JPOS
Physical Characteristics
Dimensions H x W x L
161.5 × 72.5 × 55.2 mm (device only)
Weight (g)
91 g (device only)
Cable
Standard 2M straight
Power
Input Voltage
5 VDC ±10%
Operating Current
60 mA @ 5V ( Typical )
Standby Current
55 mA typical
Regulatory
EMC
CE & FCC DOC compliant, VCCI, BSMI, UKCA
Environment & Safety
Operating Temperature
0 °C to +50 °C (32°F - 122°F)
Storage Temperature
-20°C to 60°C (-4°F - 140°F)
Humidity
5% - 95% RH (non-condensing)
Light Level
Max. 6,000 Lux (fluorescence)
Drop Durability
Designed to withstand 1.5M drops
Decoding Capability
1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
