Chief AS3A100 Camera Shelf for Tempo Flat Panel Wall
- Brand: Chief
- MPN: AS3A100
- Part #: PRACHI1337

Product URL: https://www.pbtech.co.nz/product/PRACHI1337/Chief-AS3A100-Camera-Shelf-for-Tempo-Flat-Panel-Wa
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

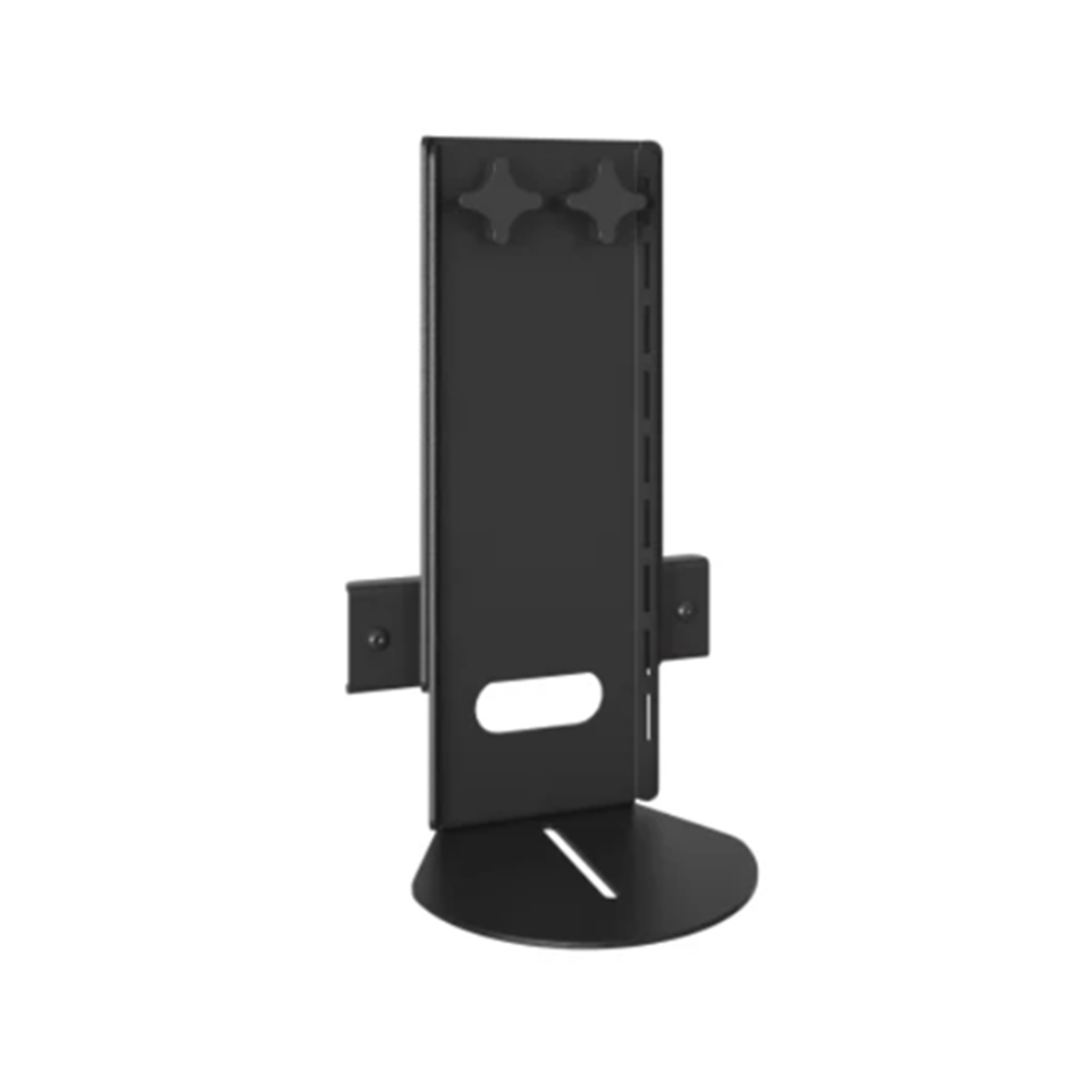

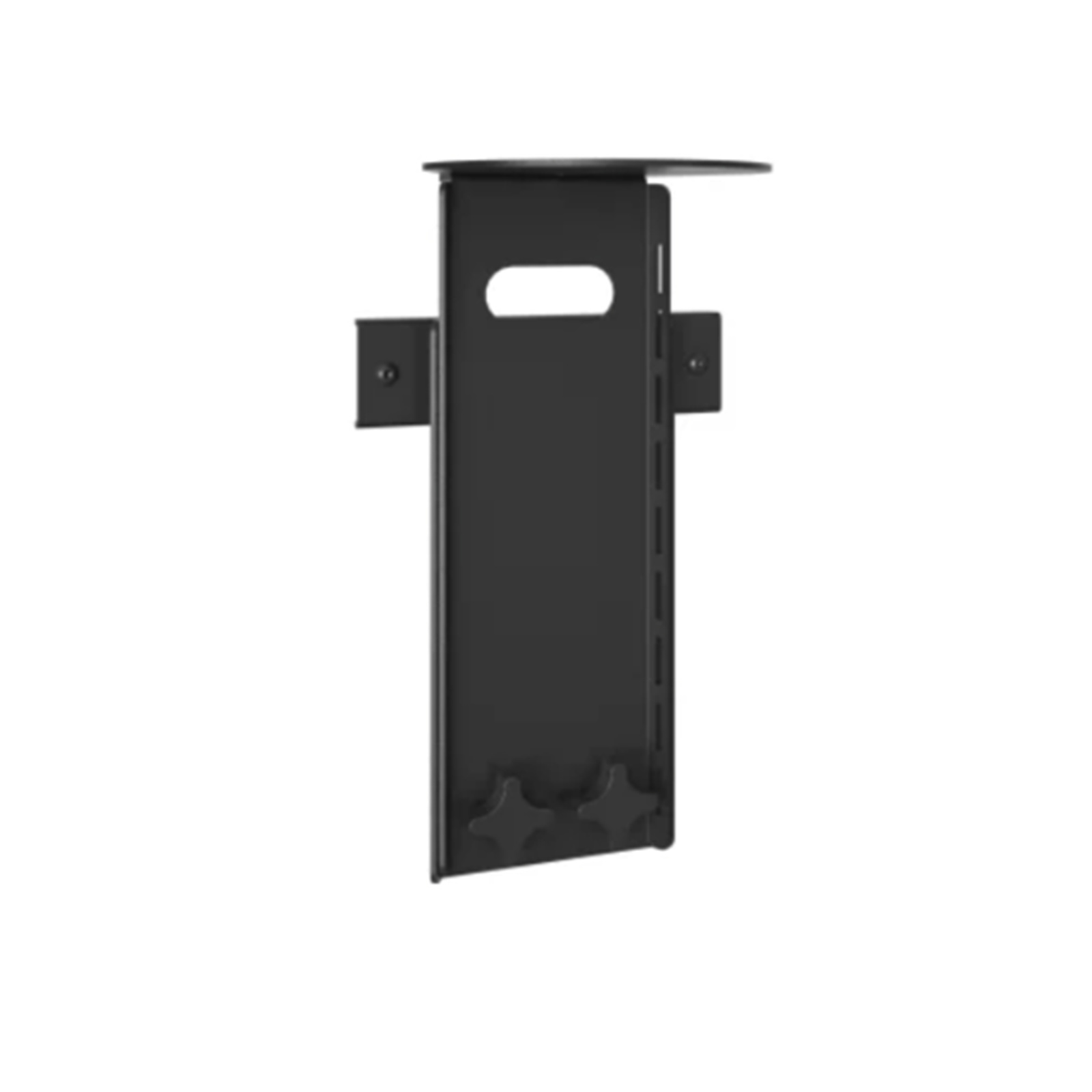

Complete your AV system installations with this Installer Inspired camera shelf for use with Tempo Flat Panel Wall Mount Systems.
- Camera shelf is 6" (152 mm) and has a 3.28" (83 mm) depth adjustment slot to facilitate placement of the camera using ¼"-20 screw.
- Fits most cameras with ¼"-20 tripod mounting hole.

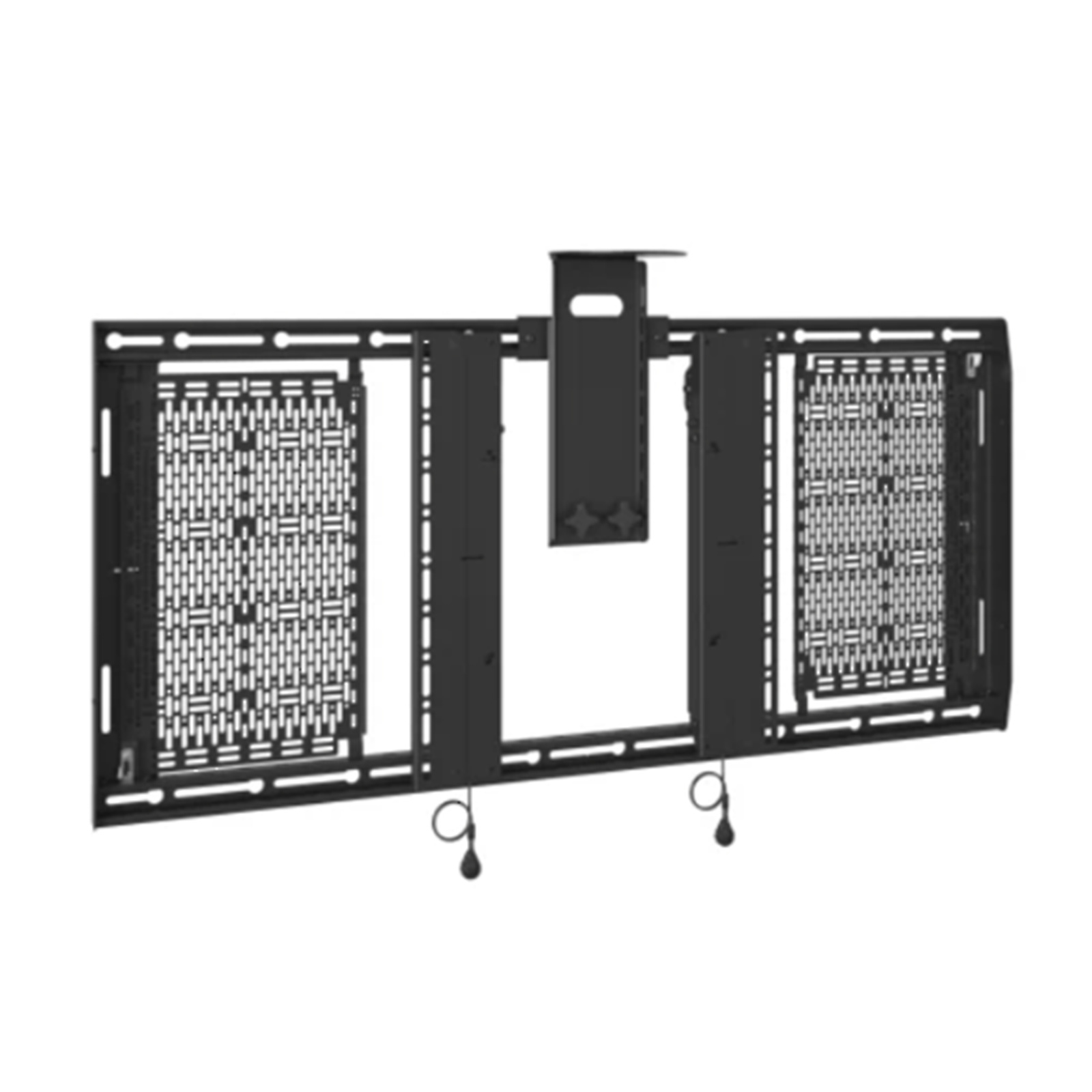

- Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the Tempo Flat Panel Wall Mount System using strut channel nuts with captive screws.
- Lateral shift allows you to position the camera shelf wherever you need it along the wall plate mounting rail.

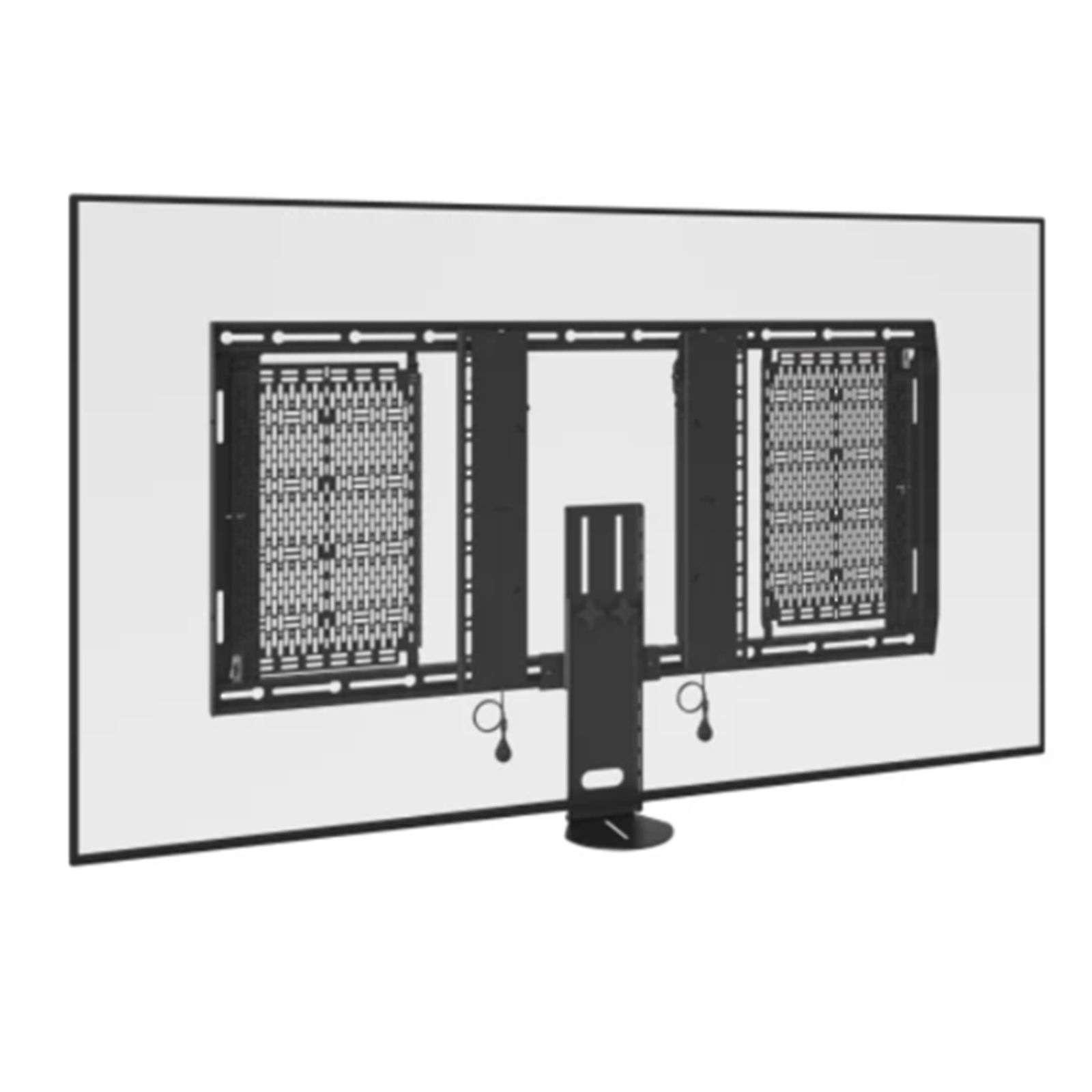

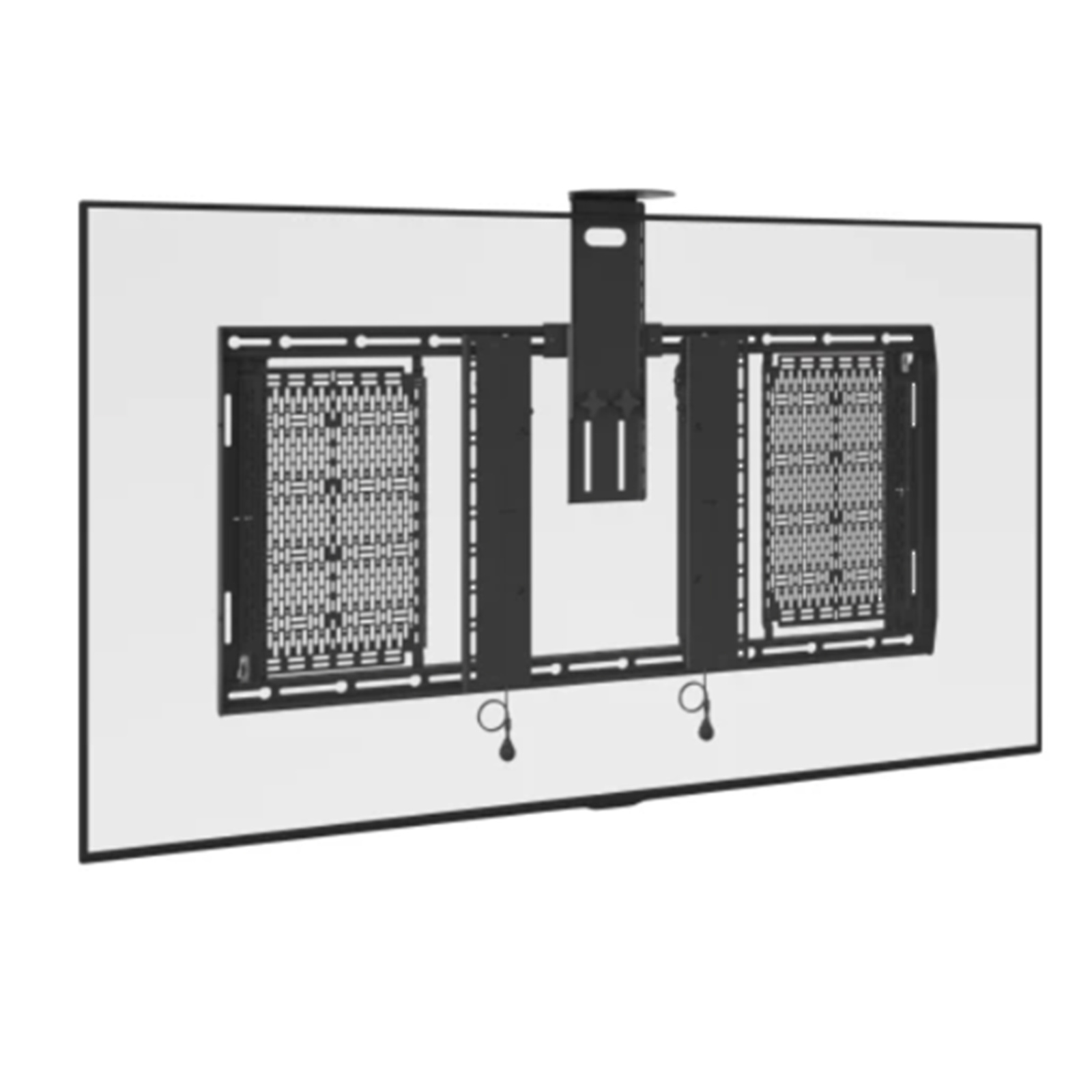

- Toolless height-adjust knobs allow 6.27" (159 mm) of travel to easily position the camera shelf at the right height above or below the display.
- Camera shelf can be installed between 12.7" (323 mm) to 28.26" (718 mm) of Tempo FP Wall Mount System center line.*
- Window opening and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 15 lbs (6.8 kg).

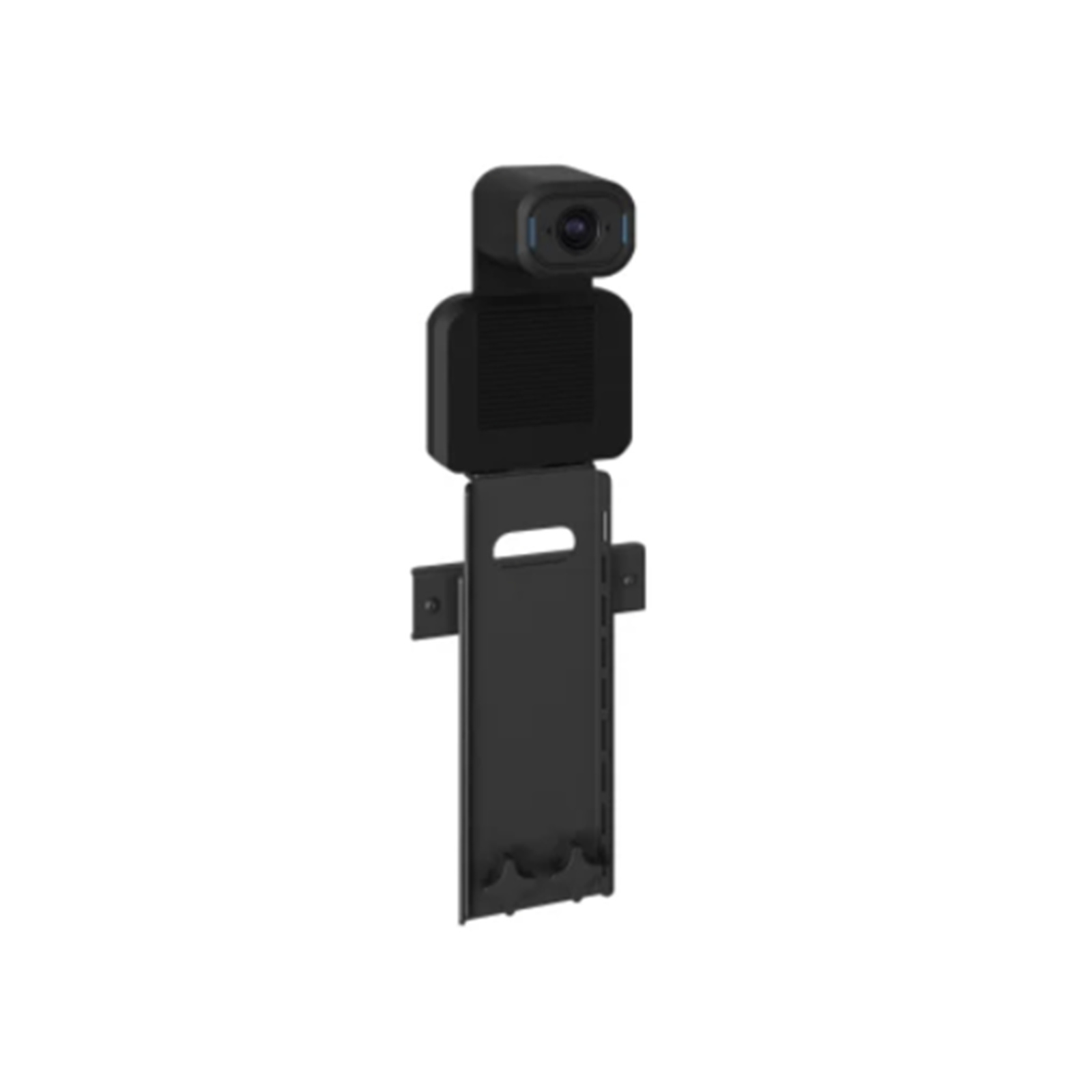

- Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras.
- Ships practically fully assembled! Just screw the shelf to the vertical bracket.
Specifications
Dimensions & Measurements
Height
12.53" (318 mm) - 20.18" (513 mm)
Manual Height Adjustment
6.27" (159 mm)
Weight Capacity
15 lbs (6.8 kg)
Characteristics
Accessory Type
Camera Shelves
Colour
Black
