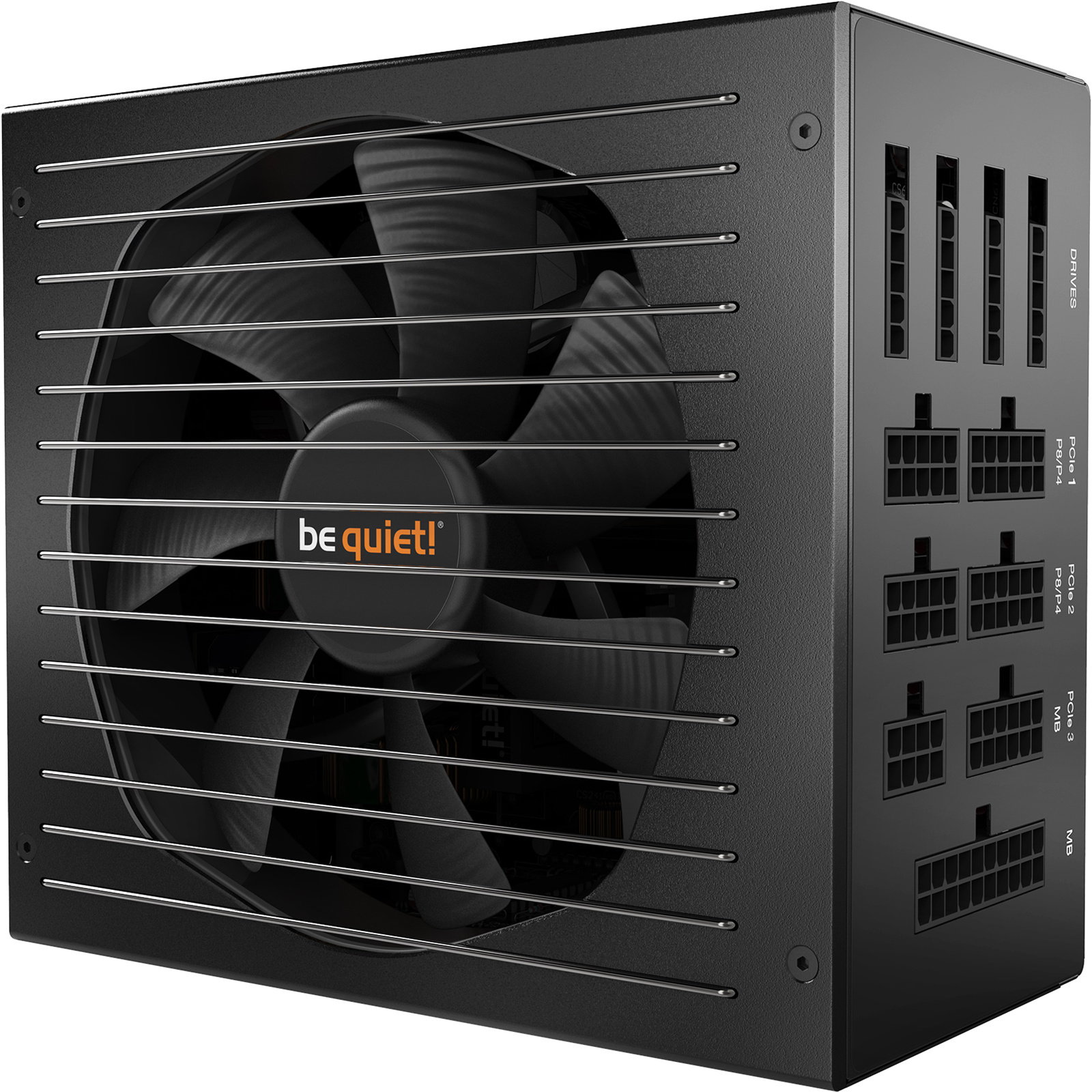

be quiet Straight Power 11 Platinum 850W Power Supply

80 Plus Platinum - Fully Modular

PB Tech price
PB Tech price
$ 294 .78
 +GST
$ 339 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

be quiet Straight Power 11 Platinum 850W Power Supply

80 Plus Platinum - Fully Modular

  • Brand: be quiet
  • MPN: BN925
  • Part #: PSUBQT70850
  • UPC:
1
PB Tech price
$ 294 .78 $ 339 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: be quiet
  • MPN: BN925
  • Part #: PSUBQT70850
  • UPC:

Max Output Power

850W

PSU Form Factor

ATX

80 Plus Rating

Platinum

Modular

Full

Colour

Black

16-Pin GPU Connector

No

PSU Length

170mm

PSU ATX Version

ATX12V 2.x

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"This PSU is awesome at powering my build and I have had no i ...view more"

AA
By: AtsuA 25/03/24

Features





STRAIGHT POWER 11 850W Platinum - WORLD CLASS QUIET AND EFFICIENCY

be quiet! Straight Power 11 Platinum 850W raises the bar for systems that demand virtually inaudible operation and outstanding efficiency.

- 80 PLUS® Platinum efficiency (up to 94%)
- Virtually inaudible Silent Wings 3 135mm fan
- Funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free inside the PSU on the DC side for enhanced cooling and longevity
- Modular cables for maximum build flexibility
- Four PCIe connectors for overclocked high-end GPUs
- Japanese 105°C-rated capacitors ensure stability and reliability
- ErP and Energy Star 7.0 ready

80 PLUS® PLATINUM CERTIFIED - One of the highest efficiency certificates available

Straight Power 11 Platinum 850W is certified with 80 PLUS Platinum efficiency, reaching up to 94%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

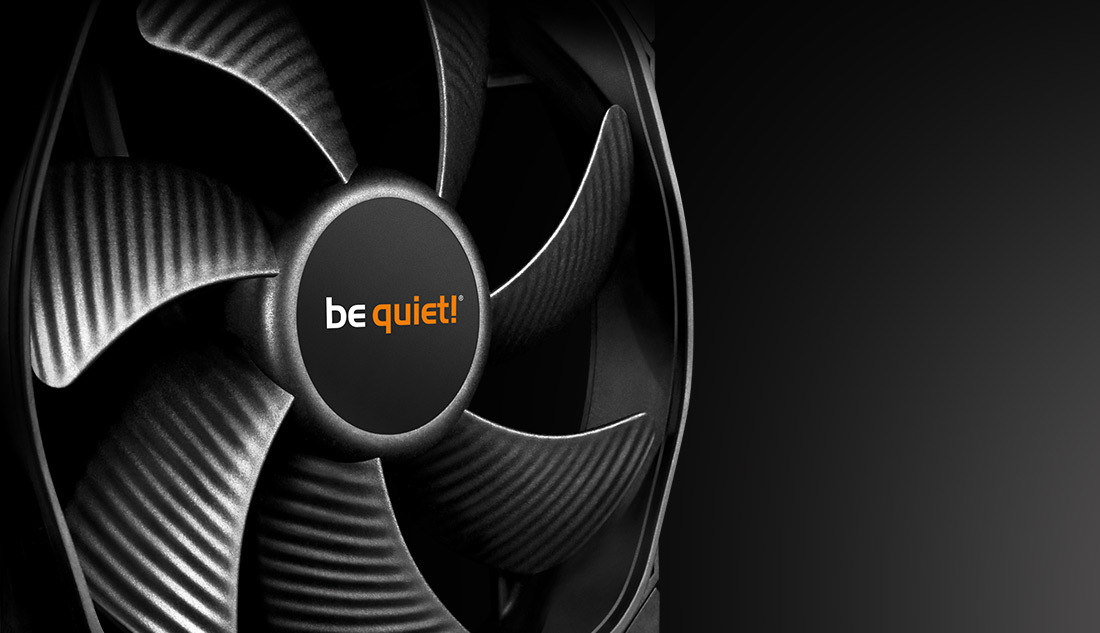

SILENT WINGS 3 FAN - Provides virtually inaudible operation

The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

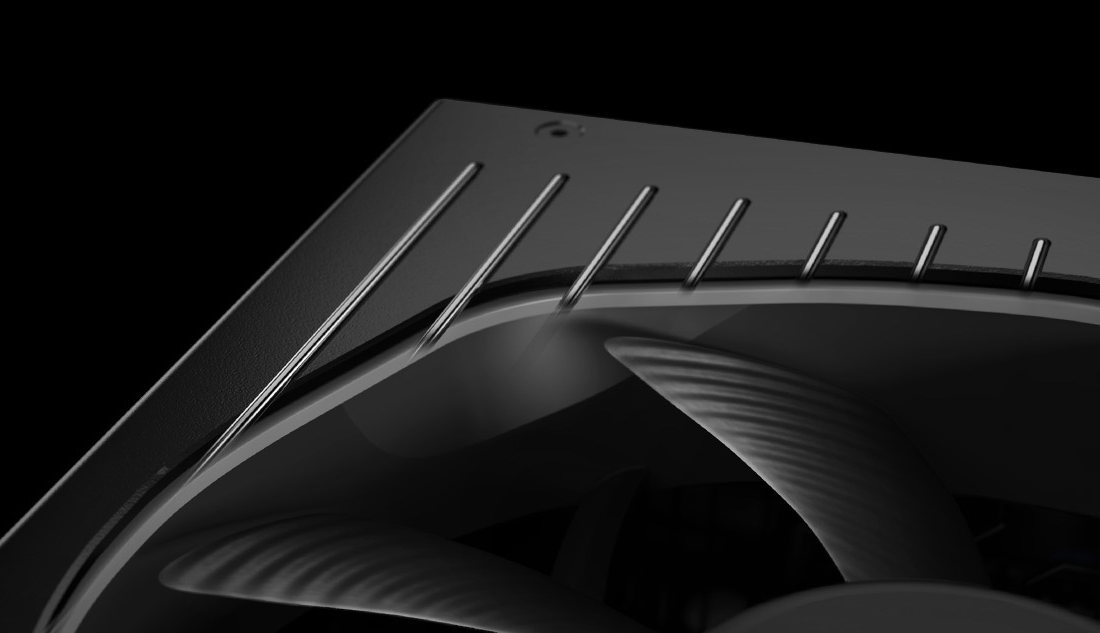

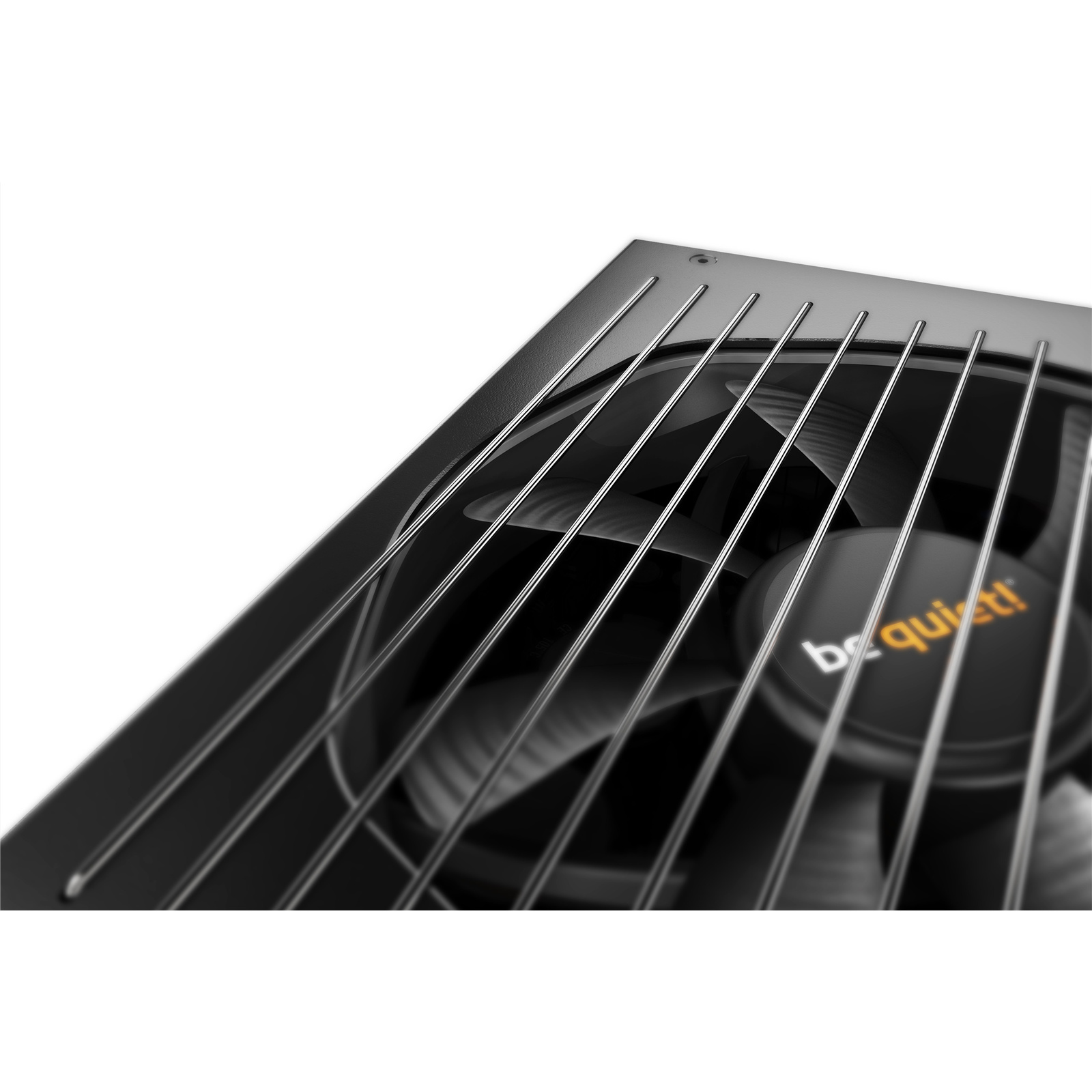

FUNNEL-SHAPED FAN OPENING - Higher cooling performance

The fan inlet of the Straight Power 11 Platinum 850W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

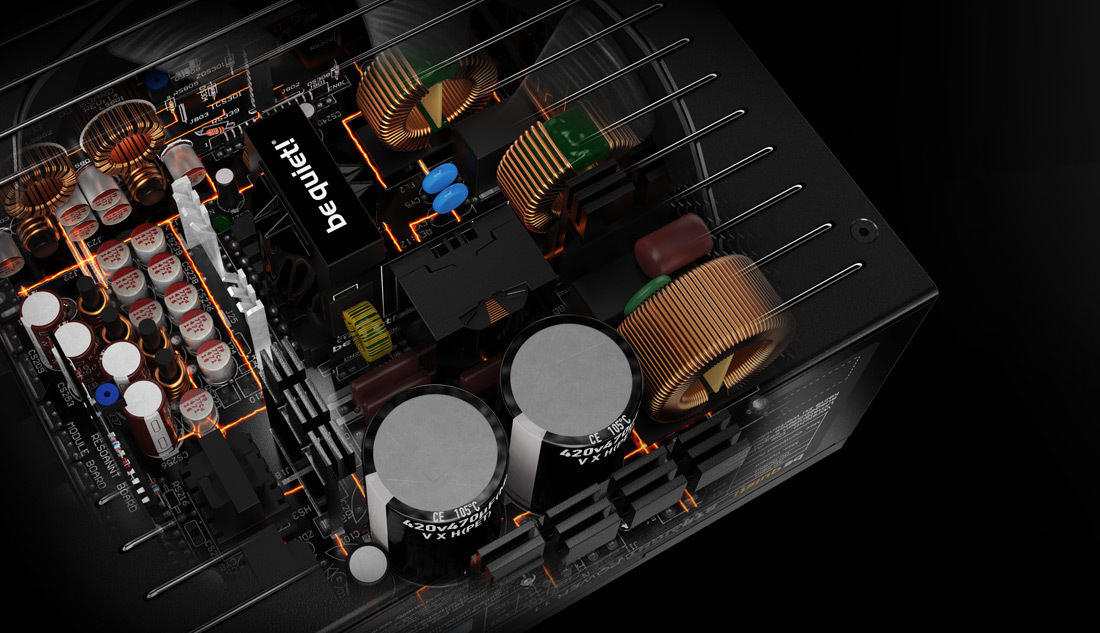

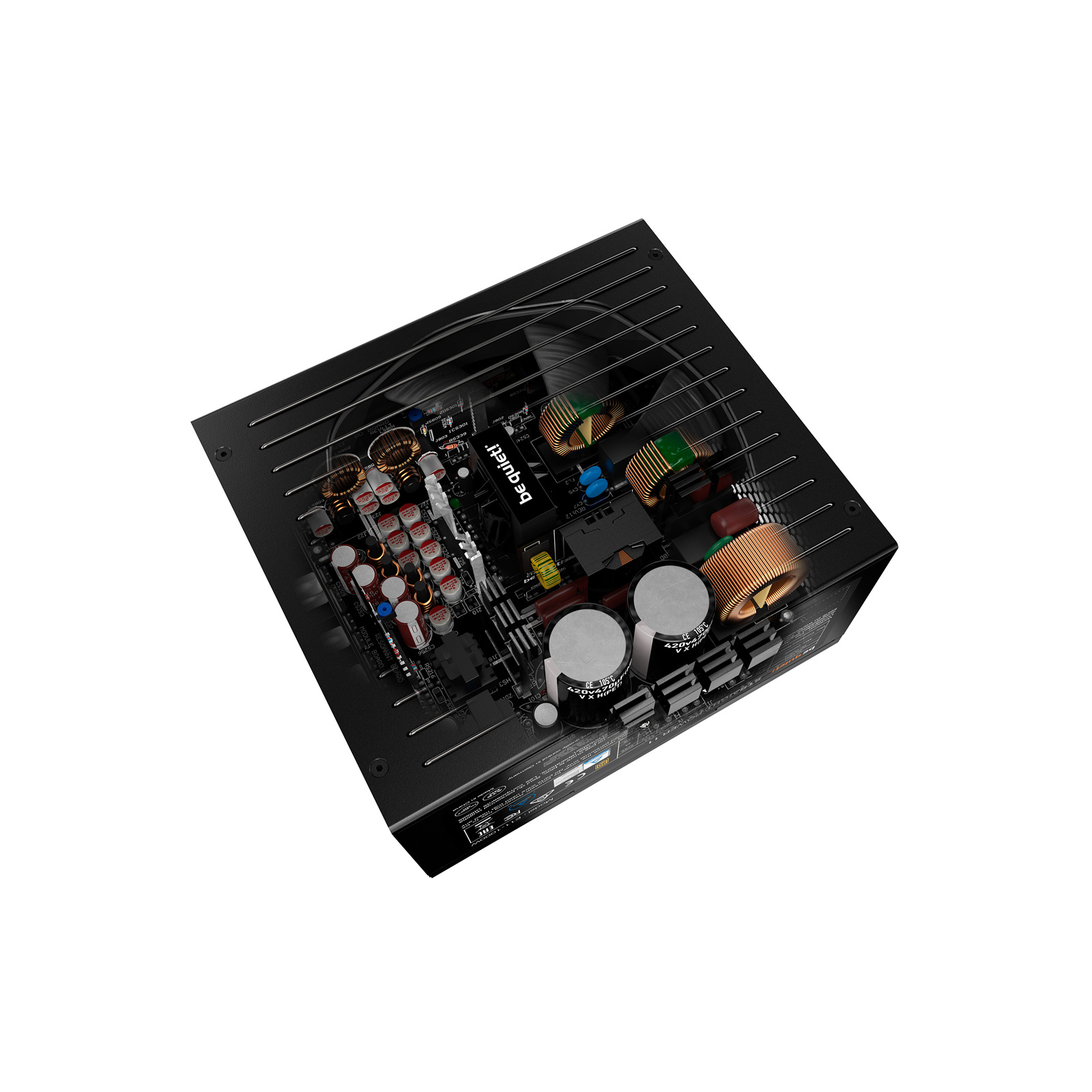

WIRE-FREE DESIGN INSIDE THE PSU - Pushing the longevity of components to a maximum

An absolute innovation: The Straight Power 11 Platinum 850W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

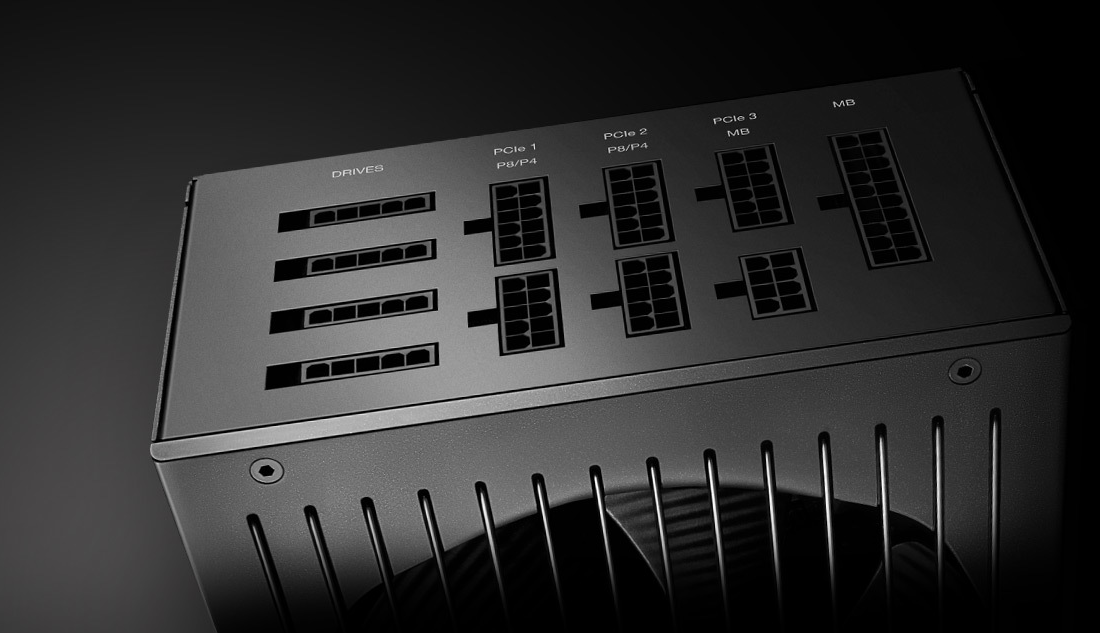

MODULAR CABLES - Utmost convenience and compatibility

Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.



STATE-OF-THE-ART TECHNOLOGIES - Rock-steady signal stability and efficiency

Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. The DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions ensures reliable operation for the next generation of processors and graphics cards.

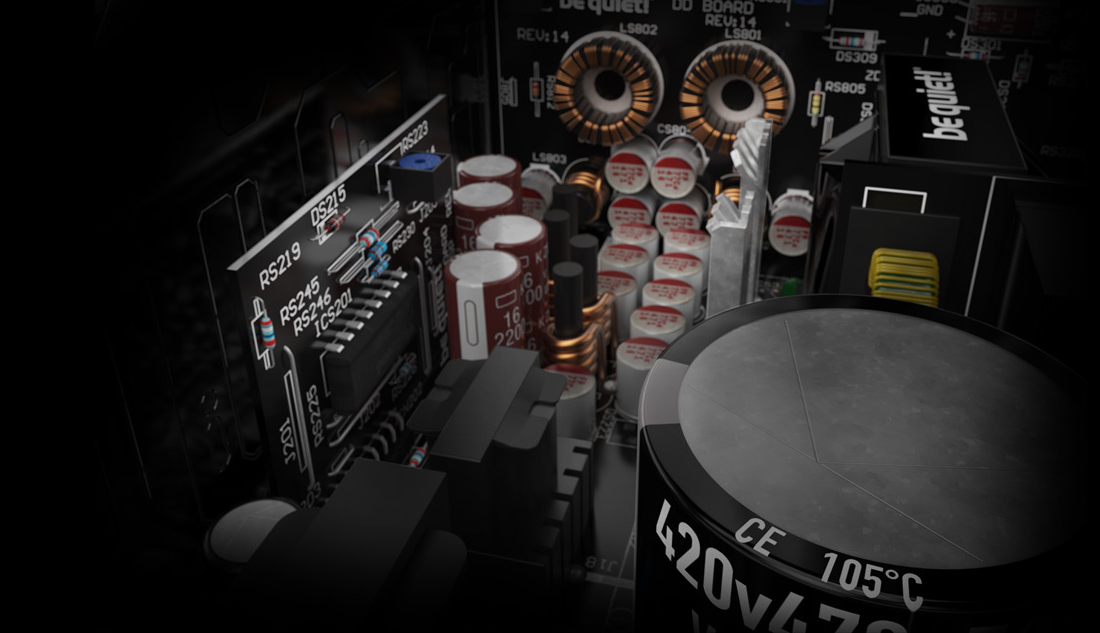

JAPANESE 105° CAPACITORS - A testament to high quality

Only the best components are used in Straight Power 11 Platinum 850W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.



Fan Noise

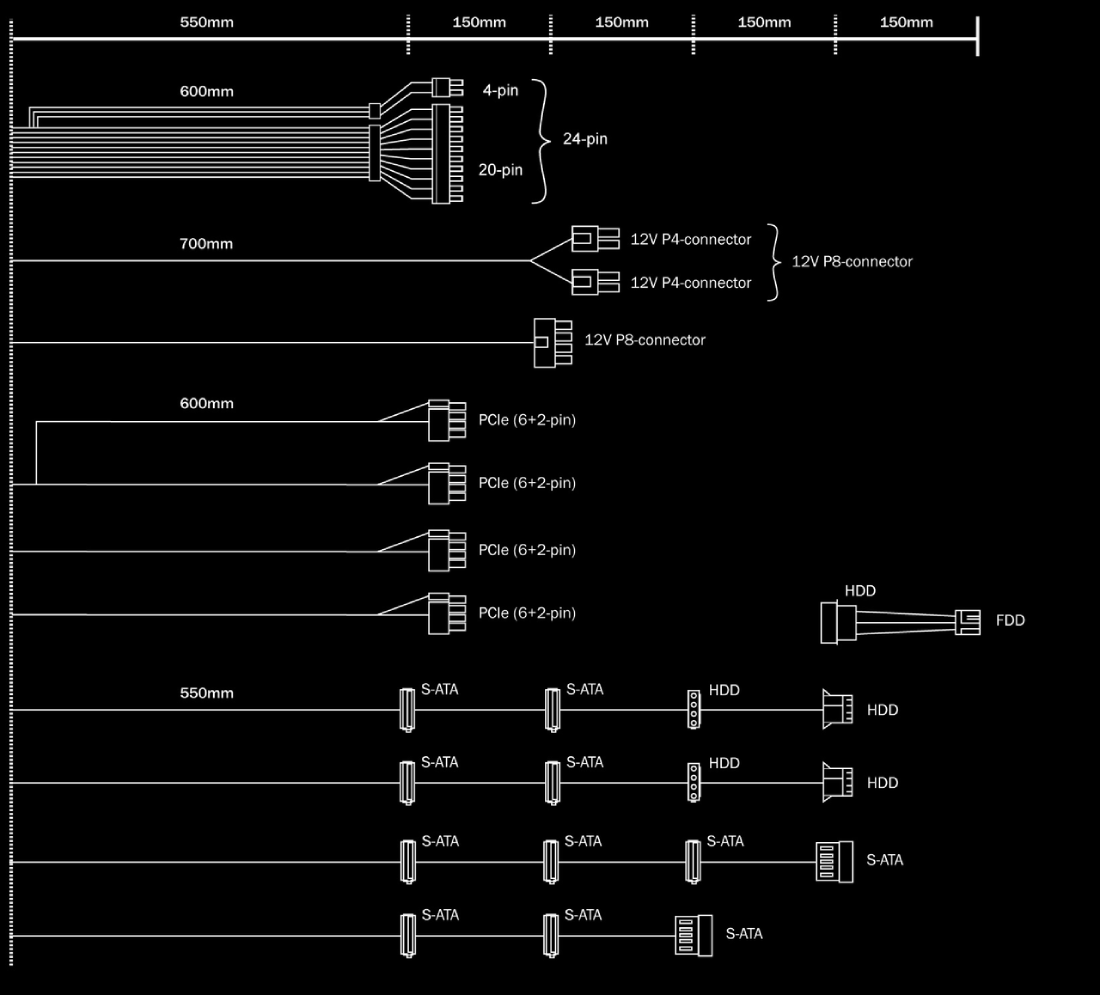

Cables

Specifications

General data

Model

Straight Power 11 Platinum 850W

Continuous power (W)

850

Peak power (W)

920

Form factor

Version 2.51

Form factor EPS 12V

Version 2.92

Modular Cable management

Yes

Topology

Full bridge + LLC + SR + DC/DC

Wire-free design (DC-side)

Yes

Voltage (Vac)

100 - 240

Frequency (Hz)

50 - 60

Input current (A)

10 / 5

PFC

active

Power factor at 100% load

>0.99

Compliant to Intel C6/C7

Yes

Power consumption in standby (W)

0.16

Average life time (h / 25°C)

100,000

Operating temperature up to (°C)

40

Output

12V rails (multi-rail operation)

4

12V single rail operation

-

Overclocking key

-

+3.3V (A)

25

+5V (A)

25

+12V1 (A)

21

+12V2 (A)

21

+12V3 (A)

26

+12V4 (A)

26

+12V5 (A)

-

+12V6 (A)

-

-12V (A)

0.5

+5Vsb (A)

3

Max. combined power 12V (W)

849.6

Max. combined power 3.3V + 5V (W)

150

Hold-up time at 100% load (ms)

22

Power good signal

100 - 150ms

Fan / Cooling technology

Fan type

Silent Wings 3

+SilentWings

Yes

Motor technology

6-pole fan motor

Bearing technology

FDB

Fan size (mm)

135

Max. fan speed (rpm), temperature-dependent

2100

Temperature control for case fans

-

dB(A) at 20% load

7.7

dB(A) at 50% load

7.9

dB(A) at 100% load

22

Protection

OCP (over current protection)

Yes

OVP (over Voltage protection)

Yes

UVP (under Voltage protection)

Yes

SCP (short circuit protection)

Yes

OTP (over temperature protection)

Yes

OPP (over power protection)

Yes

SIP (Surge & Inrush Protection)

Yes

Safety certification

CE

Yes

CB

Yes

TÜV

Yes

FCC

Yes

cRUus

-

cTUVus

Yes

RCM (Australia)

Yes

BSMI

Yes

CU (Russia)

Yes

CCC

Yes

Eco / Efficiency

80 PLUS certification

Platinum

Efficiency (%) at 230V, 20% load

92

Efficiency (%) at 230V, 50% load

94

Efficiency (%) at 230V, 100% load

92.7

Environmental directives

Energy Star

7.0

ErP

Yes

WEEE

Yes

RoHs

Yes

Cables / Connectors

Nvidia® SLI (RTX 3090) ready

-

Cable management

Modular

Sleeved cables

Sleeved cables

Flat cables

-

Cable length to mainboard (cm)

60

Cable length to first connector (cm)

55

Maximum cable length (cm)

115

All-in-one cable (SATA/PATA/FDD)

-

No. of cables

11

ATX-Motherboard (20+4-pin)

1

P8 (CPU)

1

P4+4 (CPU)

1

P4 (CPU)

-

PCI-e 6-pin (GPU)

-

PCI-e 6+2-pin (GPU)

4

PATA

4

SATA

11

FDD (Floppy)

1

External fan connectors

-

Casing

Dimensions without cable (L x W x D), (mm)

170 x 150 x 86

Weight (kg)

1.84

Color

Black

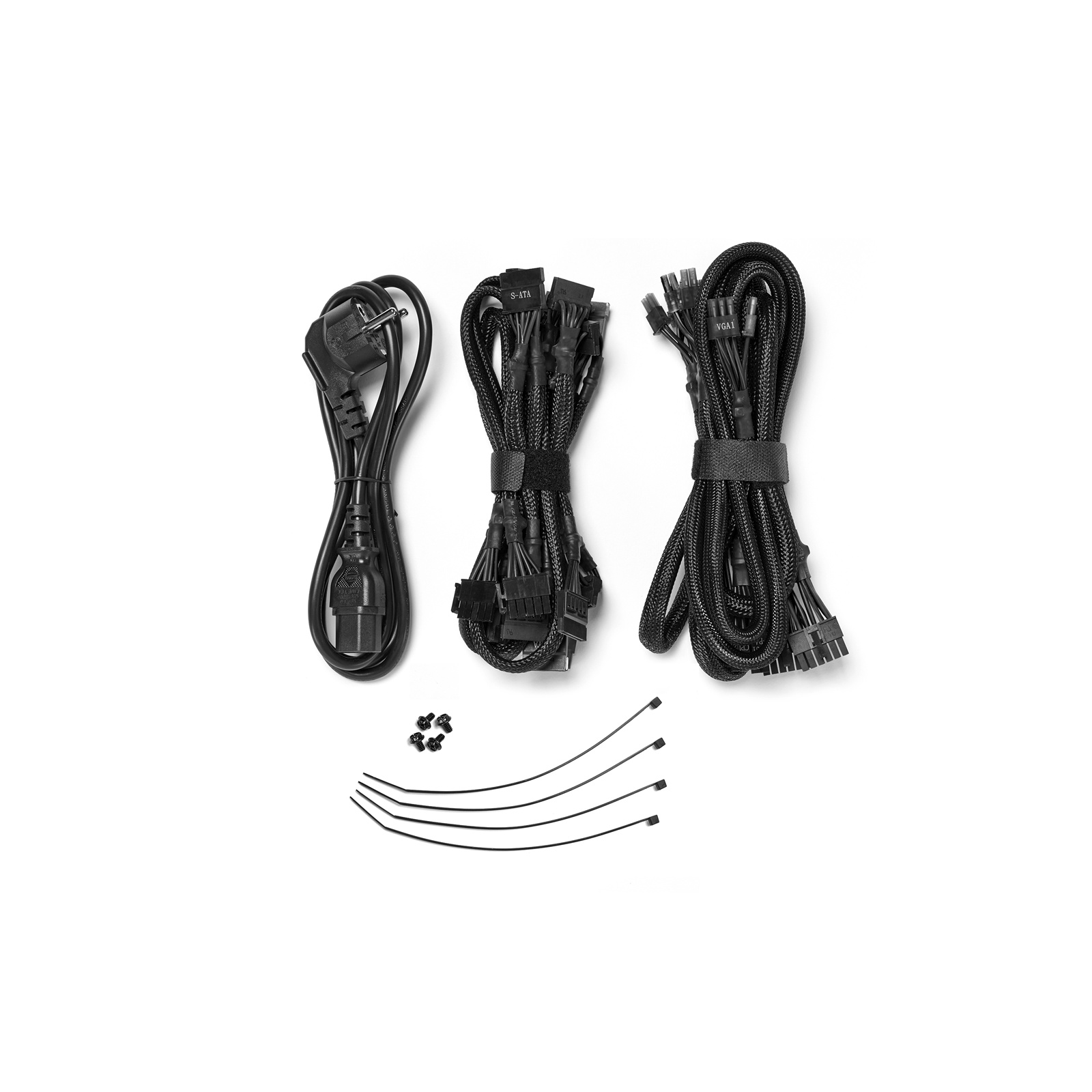

Accessories

Screws

Yes

Cable ties

Yes

User manual languages

DE, EN, ES, FR, PL, RU

Manufacturer Part No:
BN925
Brand:
Product Type:
Power Supply
UPC
-
Product Family:
Straight Power
Shipping Weight:
3.5 kg
PB Part No:
PSUBQT70850
Product Model:
11 Platinum
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
