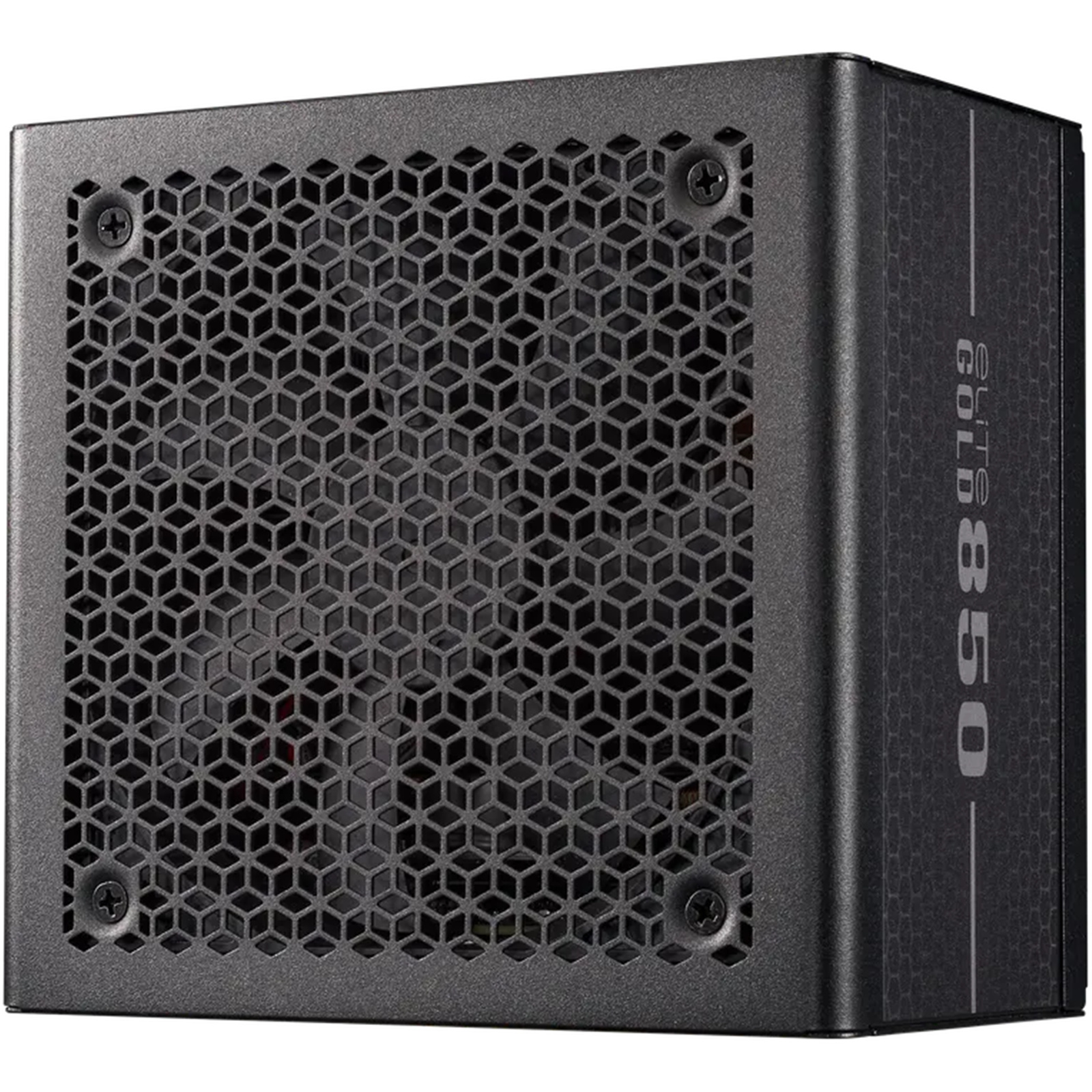

Cooler Master Elite Gold 850W Power Supply

ATX 3.1 - PCIE 5.1 Standard - Full Modular - 1x Native 16 Pin Power

PB Tech price
PB Tech price
$ 152 .78
 +GST
$ 175 .70
 inc GST
$152.78  +GST
$175.70

Cooler Master Elite Gold 850W Power Supply

ATX 3.1 - PCIE 5.1 Standard - Full Modular - 1x Native 16 Pin Power

  • Brand: Cooler Master
  • MPN: MPX-8505-AFAG-BAU
  • Part #: PSUCLM5860
  • UPC: 884102134913
NEW ARRIVAL
PB Tech price
$ 152 .78 $ 175 .70
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$152.78  +GST
$175.70

Four payments of $44.36 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Cooler Master
  • MPN: MPX-8505-AFAG-BAU
  • Part #: PSUCLM5860
  • UPC: 884102134913

Max Output Power

850W

PSU Form Factor

ATX

80 Plus Rating

Gold

Modular

Full

Colour

Black

16-Pin GPU Connector

1

PSU Length

140mm

PSU ATX Version

ATX 3.1

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Cooler Master Elite Gold 850W Power Supply ATX 3.1 - PCIE 5.1 Standard...
Cooler Master Elite Gold 850W Power Supply ATX 3.1 - PCIE 5.1 Standard - Full Modular -  1x Native 16 Pin Power
Total:
$ 458 .34
 +GST
$ 527 .09
Buy together and save $8.24 $9.48
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)

Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)

Collect from 15 stores by 10:00am tomorrow
Ships tomorrow

$6.50  +GST

$7.48

You save 5% You save 5%
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
$56.17 $64.60

$53.67  +GST

$61.72

You save 4% You save 4%
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$229.00 $263.35

$224.13  +GST

$257.75

Features

Essential Gold Power for Everyday Gaming Builds - Elite Gold 850

- Supports ATX 3.1 and PCIe Gen 5.1 standards
- Ideal for RTX 50 GPUs
- Stable performance under high loads at up to 40°C
- Quiet rifle bearing fan for efficient cooling and low noise
- 850W output with 80 Plus Gold-certified efficiency
- Fully modular embossed cable design

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.



HIGH TEMPERATURE RESILIENCE

Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

Compatible with ATX 3.1 and PCIe Gen 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 850 ready for the latest and upcoming mid-range GPUs.

*All performance stats confirmed in 25°C ambient temperature testing.



RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

*All performance stats confirmed in 25°C ambient temperature testing.

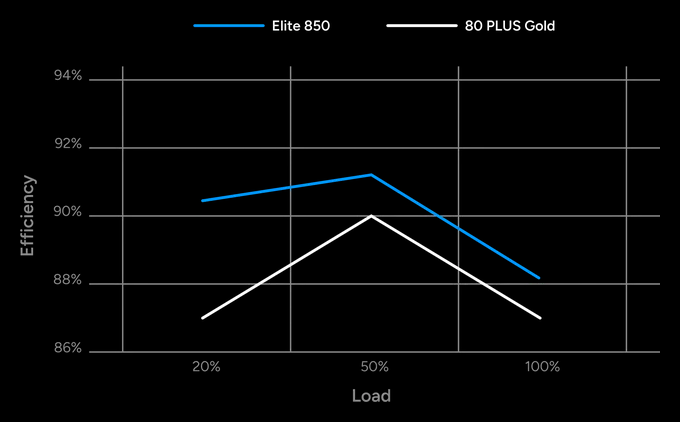

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 850 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

*All performance stats confirmed in 25°C ambient temperature testing.

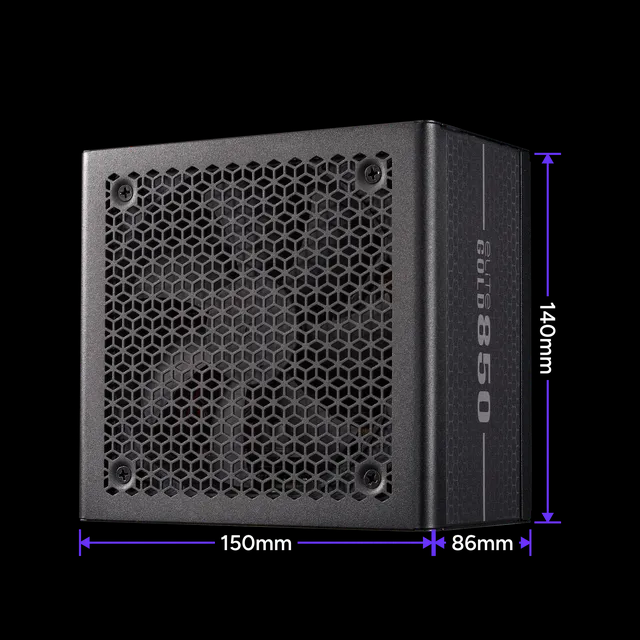

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold's compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.​

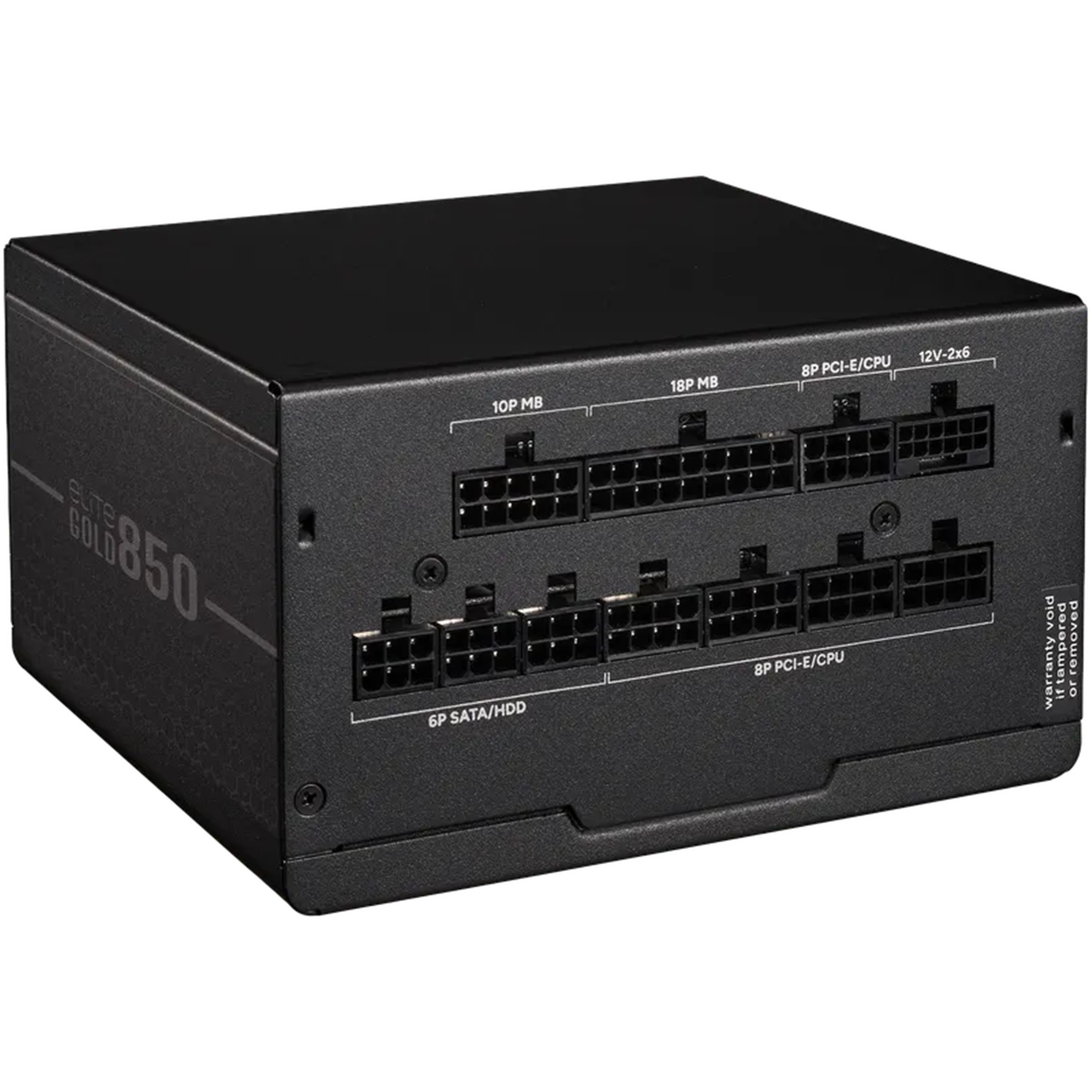

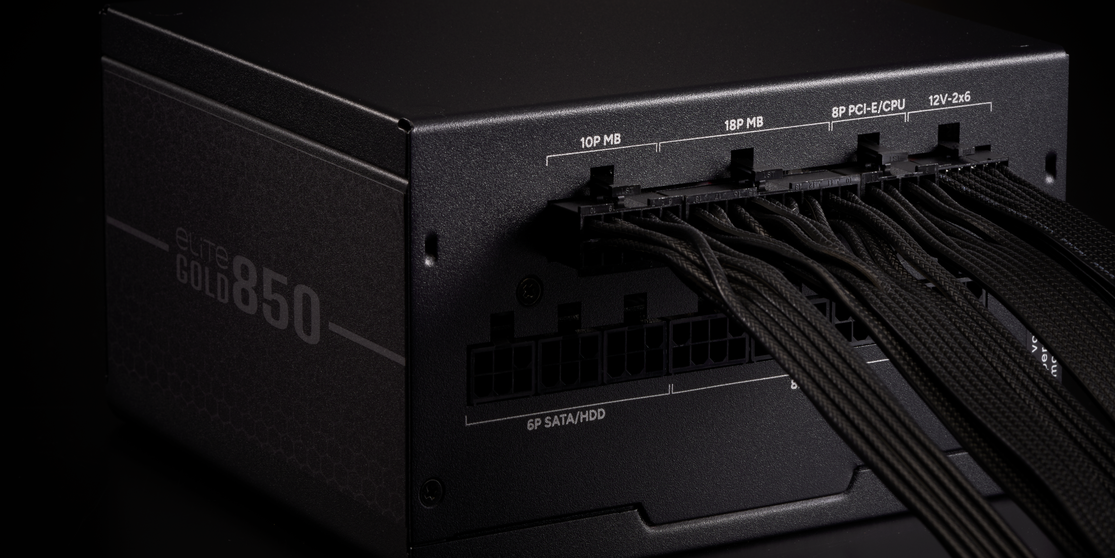

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

Specifications

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

6 ~ 12A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

Rifle bearing

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥ 11ms @ 100% Load

MTBF

>100,000 hours​ @ 25℃ ambient

Protections

UVP / OVP / OPP / OTP / SCP

Regulatory

cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

ATX 24 Pin Connectors

x1 = 1 (550mm)

EPS 4+4 Pin Connectors

x1 = 1 (600mm)

EPS 8 Pin Connector

x1 = 1 (600mm)

SATA & Peripheral 4 Pin Connectors

X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

PCI-e 6+2 Pin Connectors

x3 = 1 (500+120mm), 1 (500mm)

12+4 Pin Connectors

x1 = 1 (650mm)

Series

Elite Series

Form Factor

ATX

Watts

850W

Modular

Fully Modular

80 Plus Efficiency

Gold

Manufacturer Part No:
MPX-8505-AFAG-BAU
Brand:
Product Type:
Power Supply
UPC
884102134913
Product Family:
Elite
Shipping Weight:
2.16 kg
PB Part No:
PSUCLM5860
Product Model:
Gold
Warranty: 60 months *
