Features
ENGINEERED FOR MODERN COMPONENTS
With the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ750G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

THE GOLD STANDARD

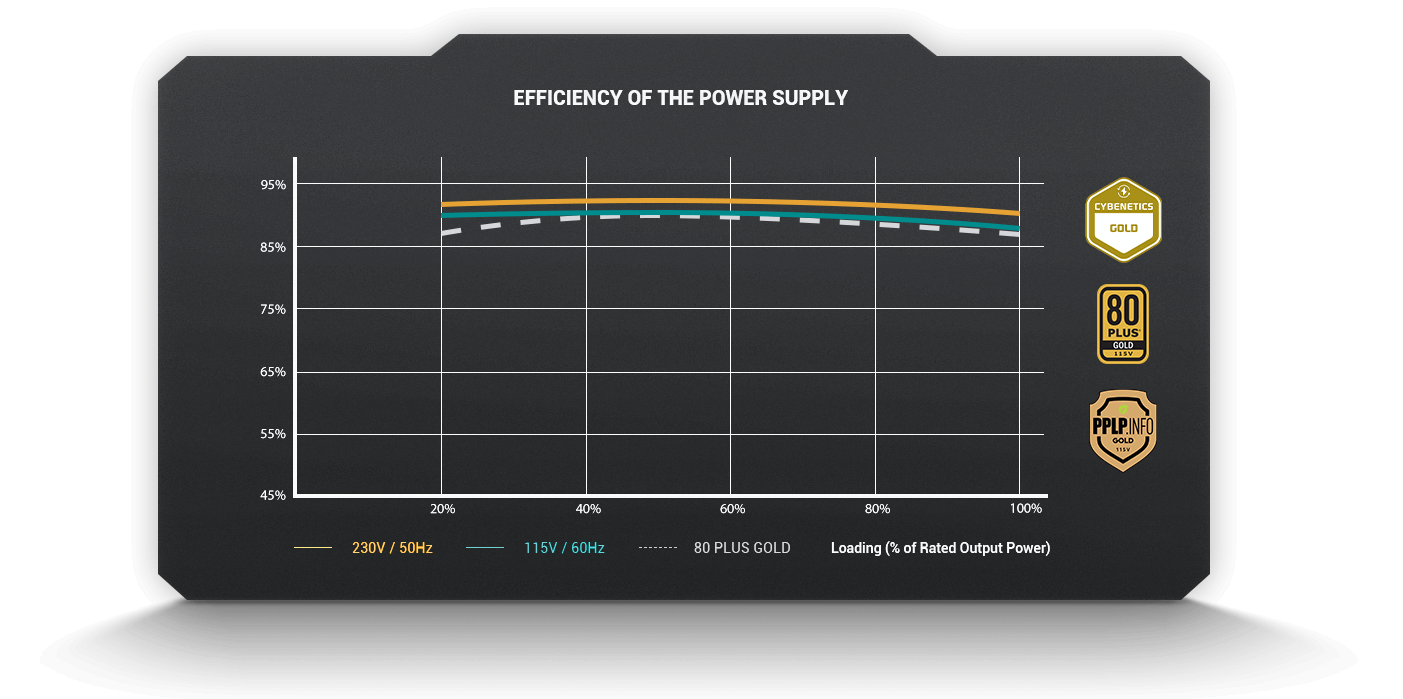

80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ750G unit as Gold as well.

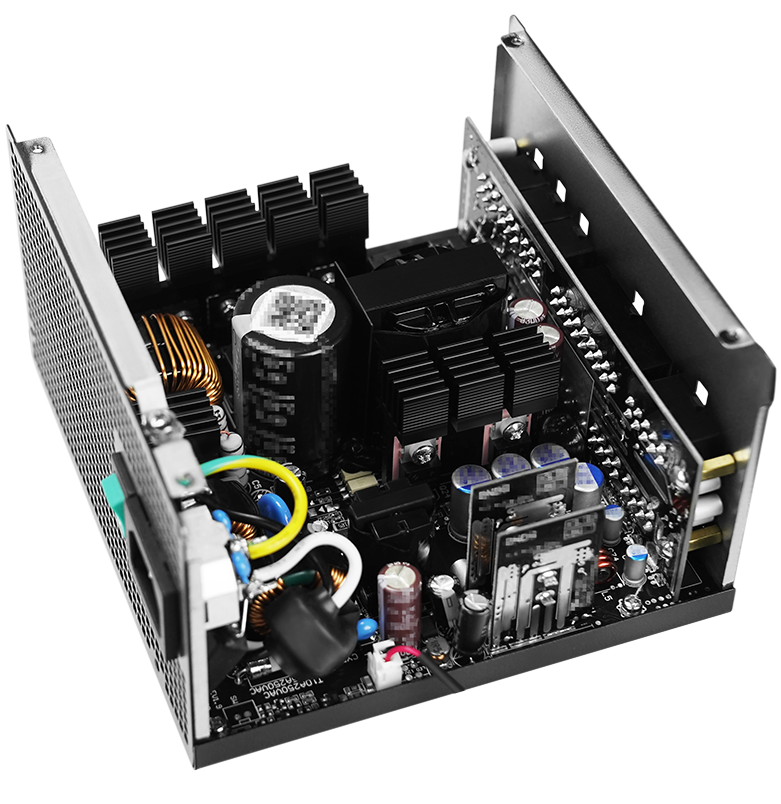

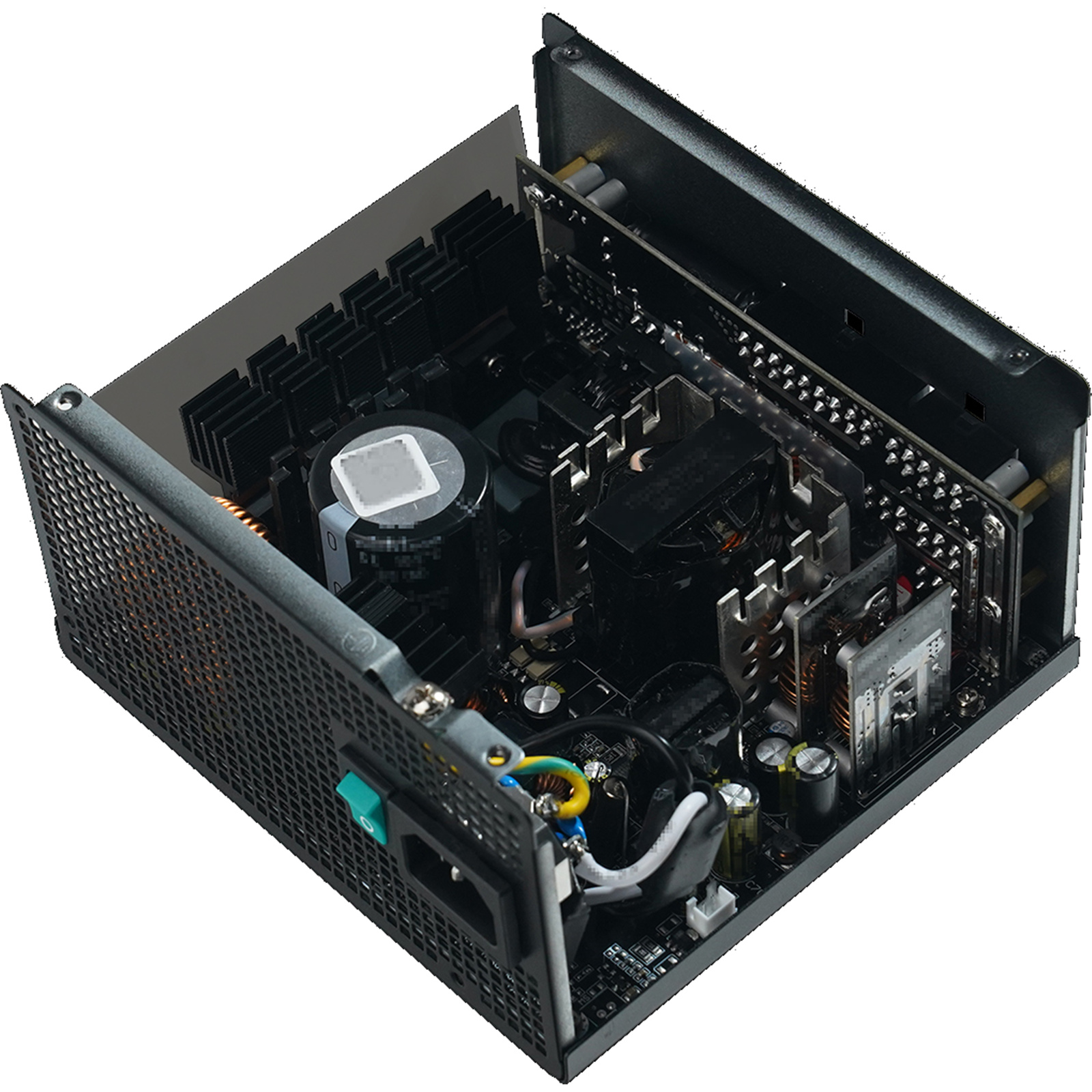

TRUST-WORTHY STABILITY
Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ750G can keep the hold-up time to ≥ 16 ms under a 100% full load-a higher standard than required to meet ATX3.1 compliance.

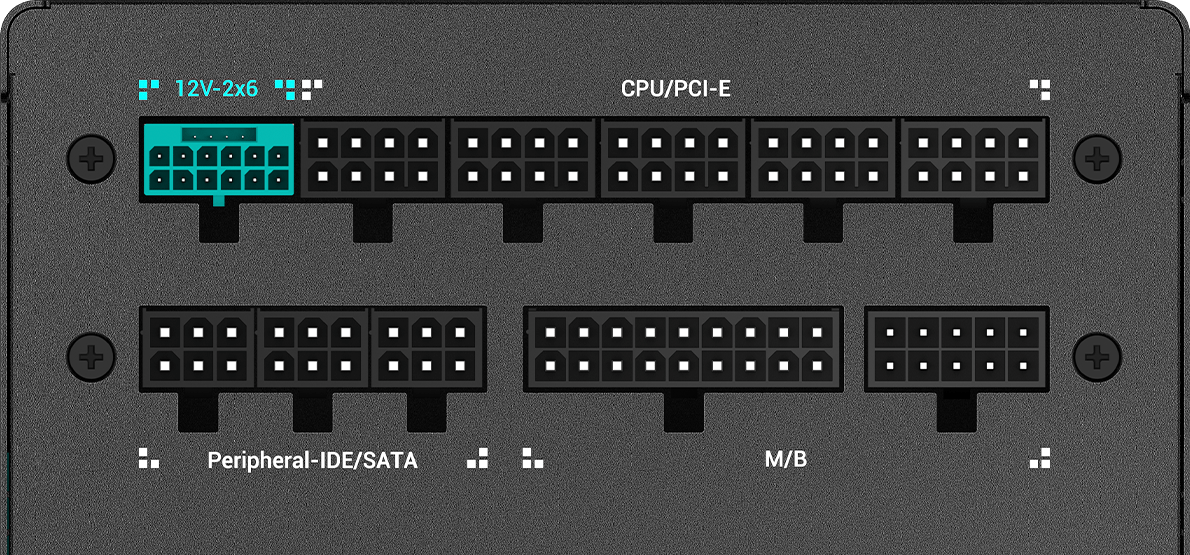

PCI-E 5.1 PERFECTION

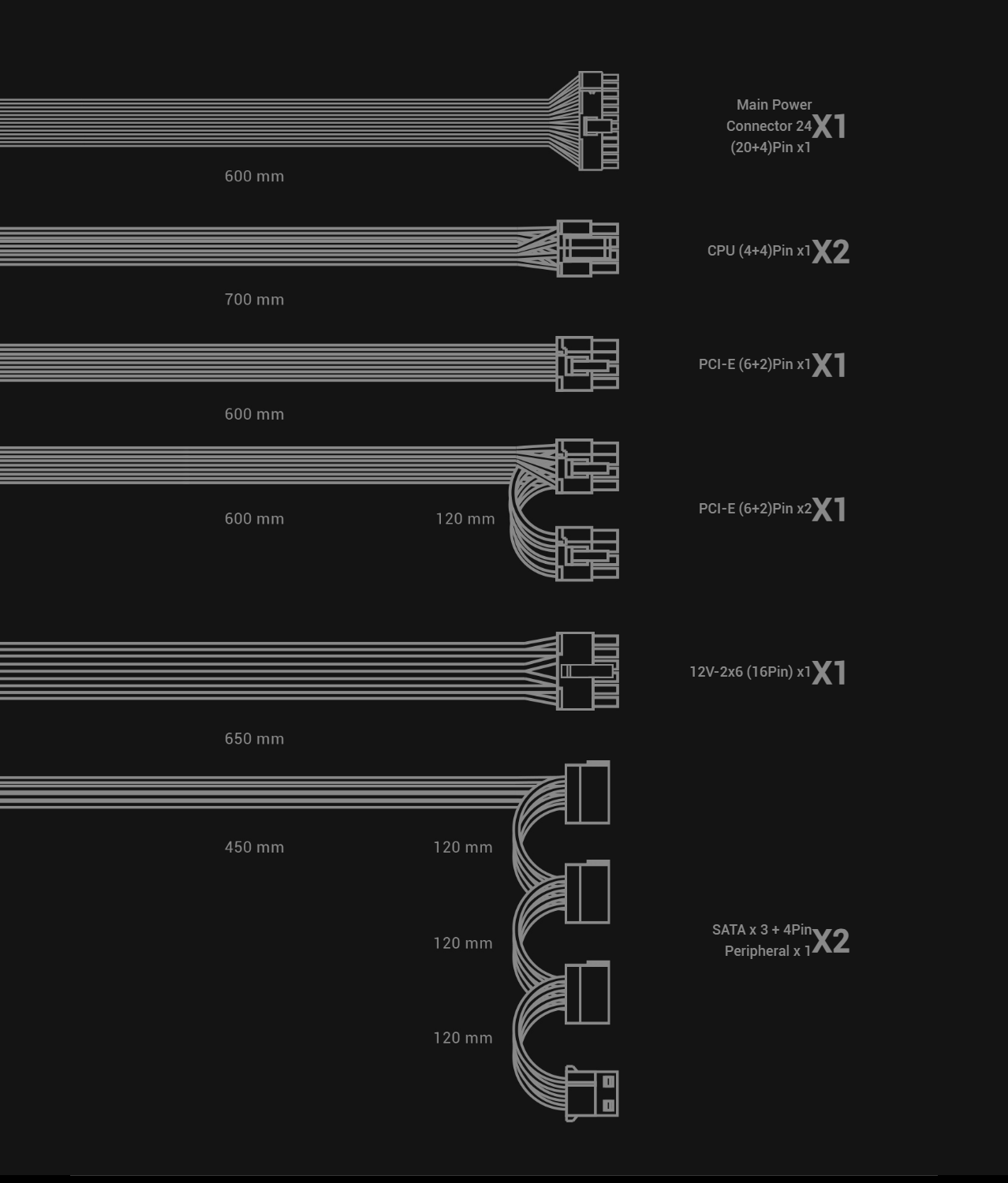

Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ750G provides up to 450W for modern GPUs.

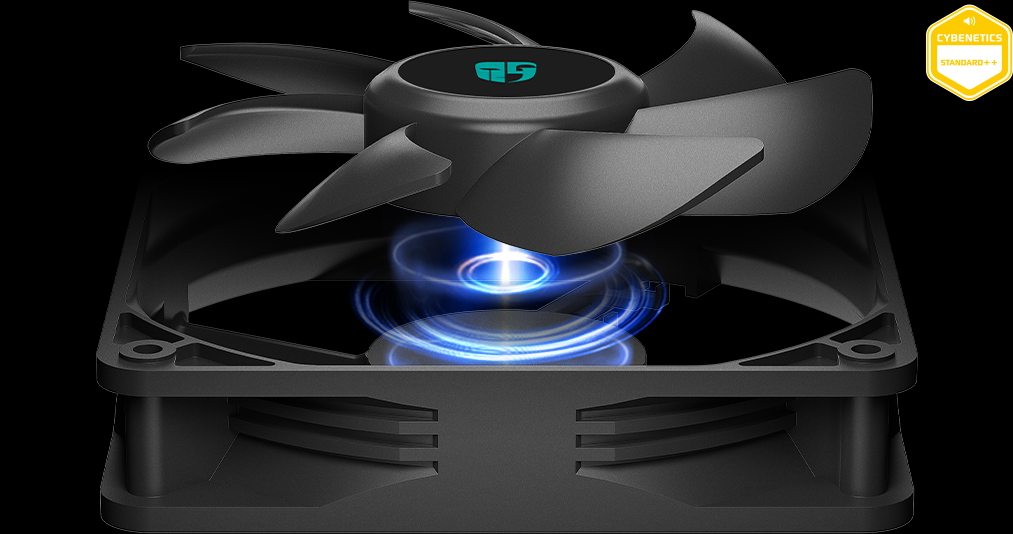

DYNAMIC FDB FAN

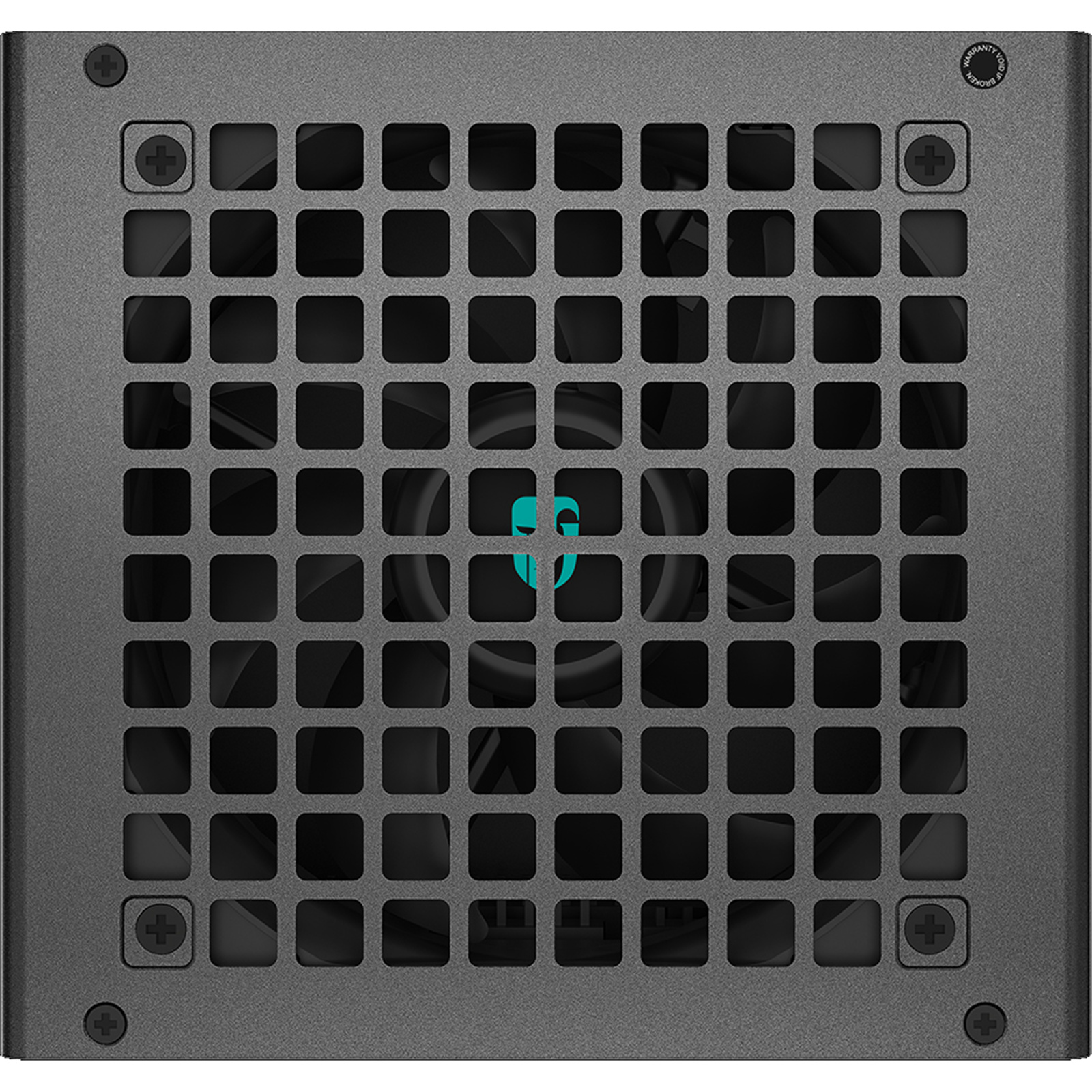

The PQ750G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.

EXCEPTIONAL QUALITY

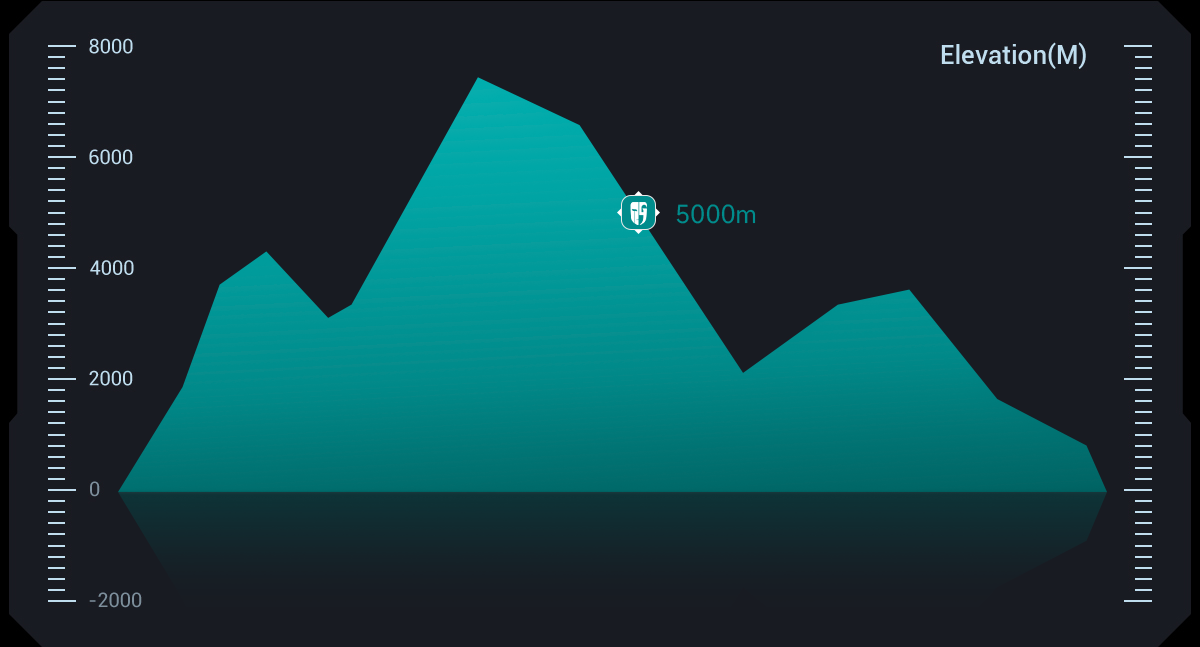

Due to the high quality of the parts utilized, every PQ-G power supply will operate at altitudes up to 5000 meters above sea level.

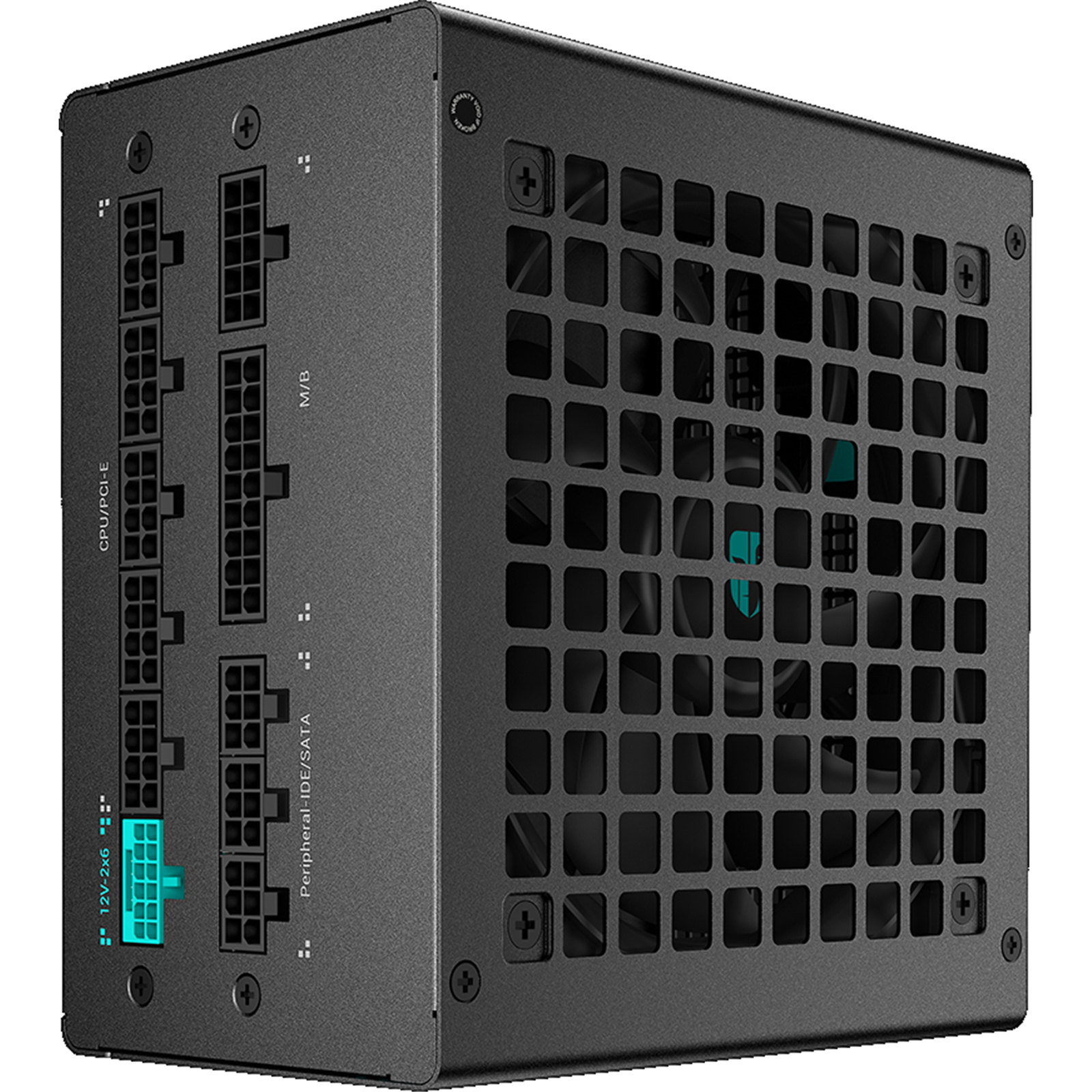

COMPACT DESIGN

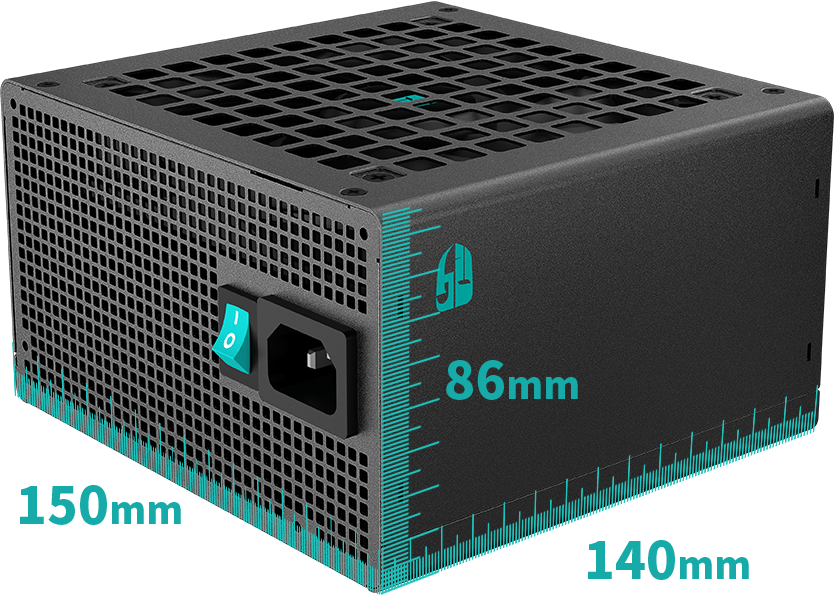

Coming in at an agreeable 140x150x86mm, the PQ750G can easily fit into the vast majority of cases that support ATX-sized PSUs.

NECESSARY PROTECTIONS
Keep your mind at ease, knowing that the PQ750G comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection

Specifications
Total Output
750W
Type
ATX12V V3.1
Product Dimensions
150×140×86mm (W x L x H)
Efficiency certification
80Plus Gold/Cybenetics Gold/PPLP Gold
Fan Size
120×120×25mm (W x L x H)
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Full Japanese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms Full load
Efficiency
≥90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0-40°C
Regulatory
EAC
Erp Regulation
ErP 2013
Environment Protection
EAC
MTBF
100,000 Hours
