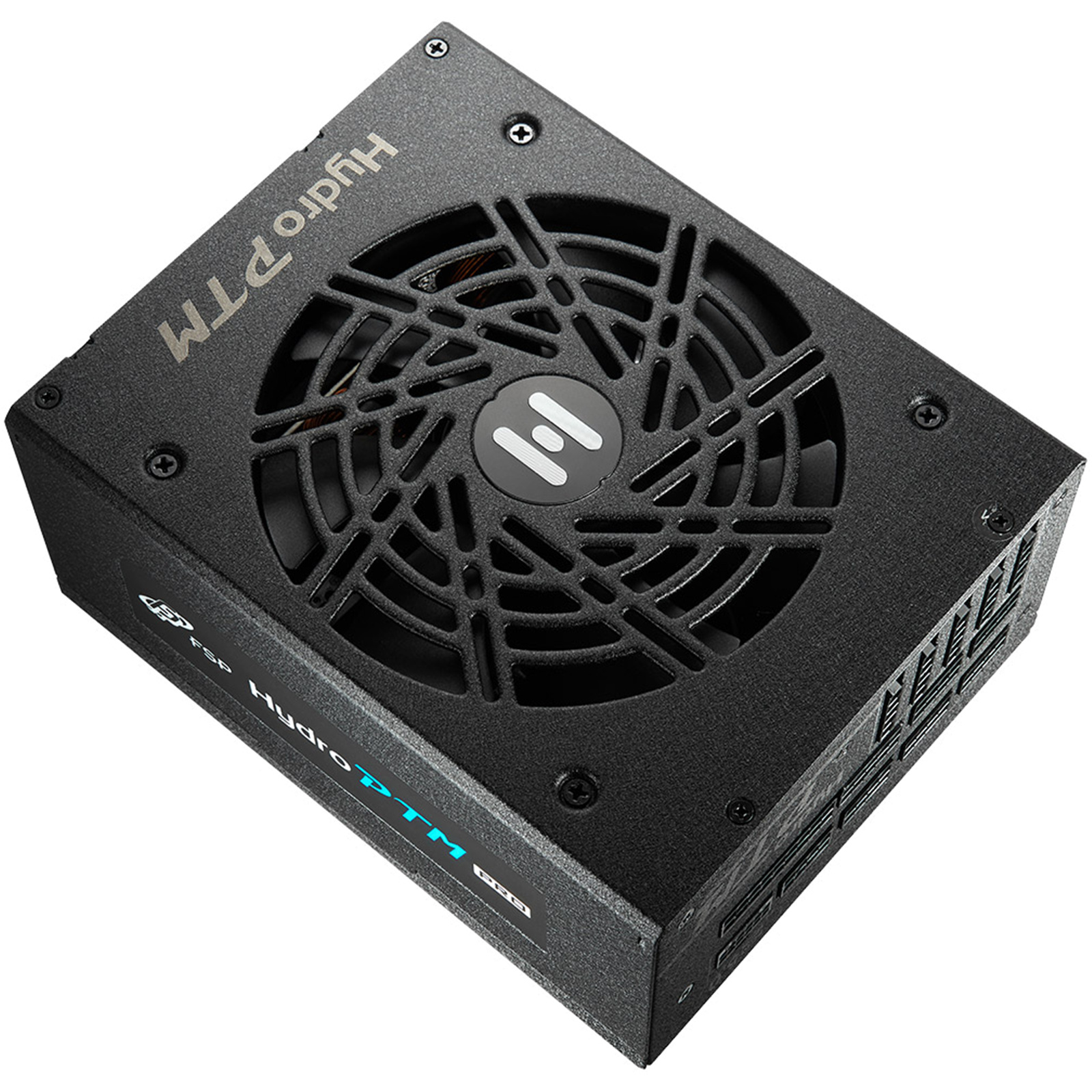

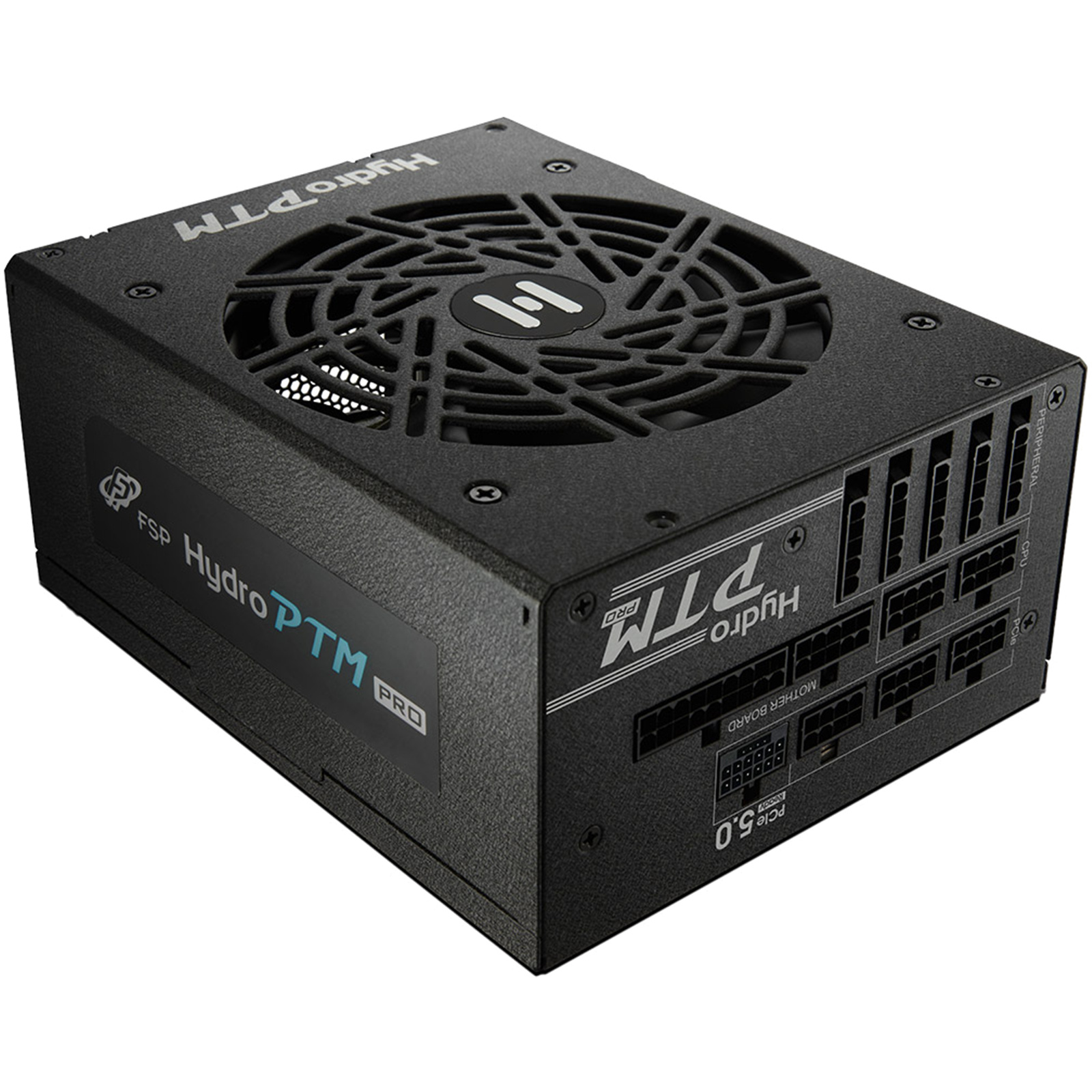

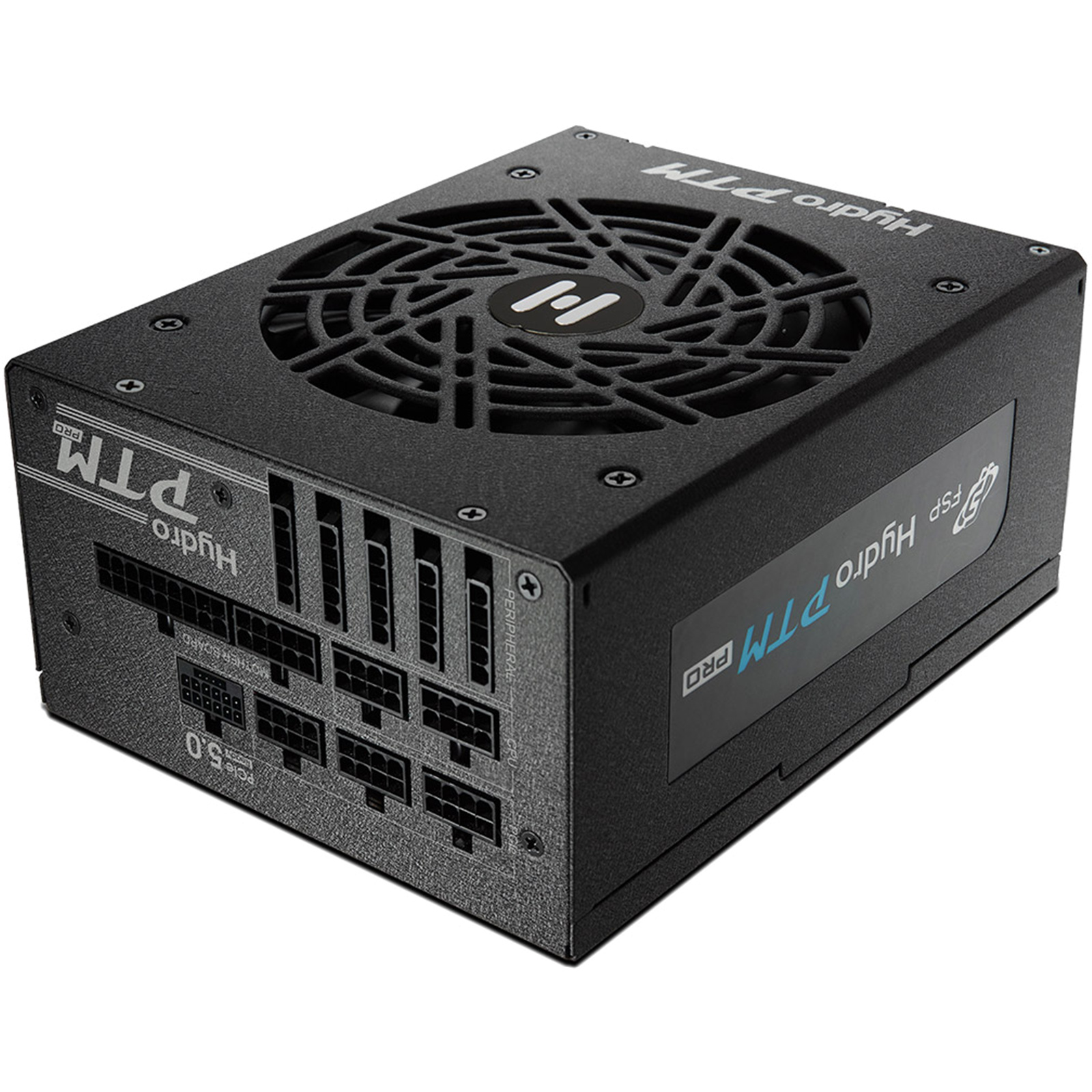

FSP Hydro PTM PRO 850W ATX 3.0 & PCIe Gen 5 Power Supply
80 Plus PLATNIUM - Full Modulary - With 12VHPWR 12+4-Pin Cable for RTX 40 Series - 10 Years Warranty
Out of stock
FSP Hydro PTM PRO 850W ATX 3.0 & PCIe Gen 5 Power Supply
80 Plus PLATNIUM - Full Modulary - With 12VHPWR 12+4-Pin Cable for RTX 40 Series - 10 Years Warranty
- Brand: FSP
- MPN: HPT2-850M,Gen 5
- Part #: PSUFSP20400
- UPC: 845685013767
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Have had this Power supply in my i7 13700k and Asus RTX4070 ti system since February this year, has been working well and I have found it very quiet in my Fractal Meshify 2 case."
Features
Hydro PTM PRO ATX3.0(PCIe5.0) 850W
- Complies with ATX12V V3.0 & EPS12V V2.92
- Intel Latest CPU ready
- Global Safety Approved
- High efficiency 92%
- Powerful +12V single rail design
- Quiet and durable cooling
- Full Japanese electrolytic capacitors
- Intelligent fan speed control circuit design
- Full protections OCP,OVP, SCP,OPP,OTP, UVP
- High Wattages with 80PLUS® Platinum Certification
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

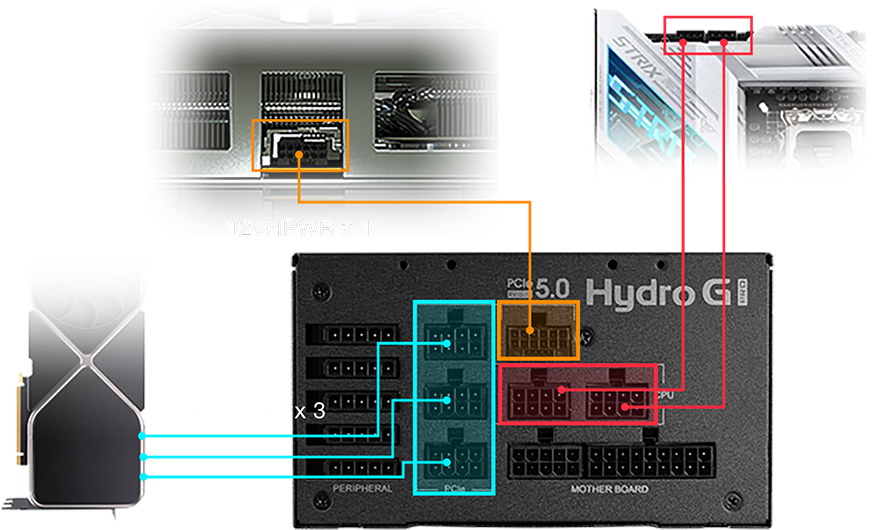

High Compatibility for High Power
The series comes with native PCIe5.0 connector and also supports 3 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
Conformal Coating Application - Off-Wet, Off-Dust and Off-Stain
The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.
LLC Full-Bridge Topology with DC-DC Module Design
HYDRO PTM Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.

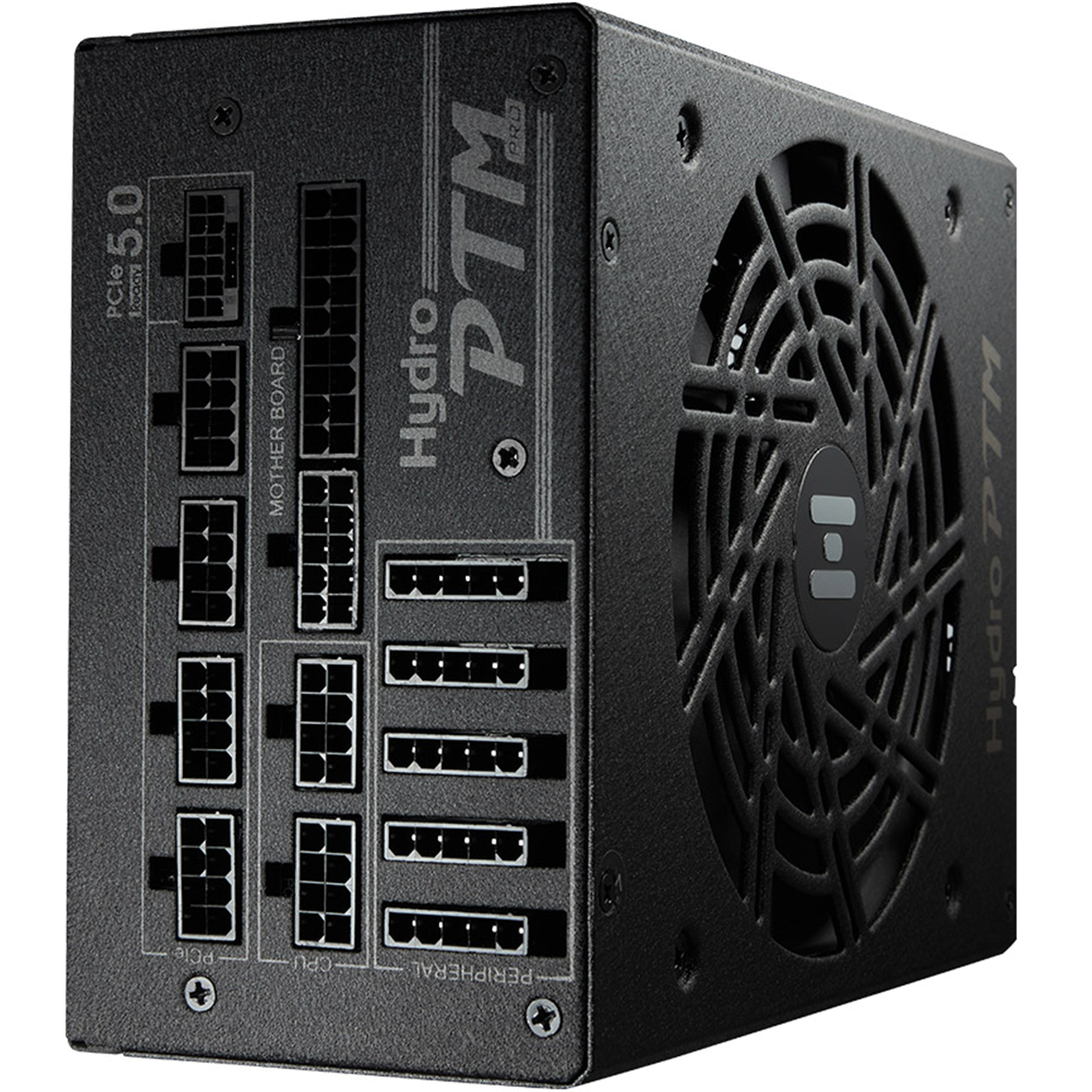

Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

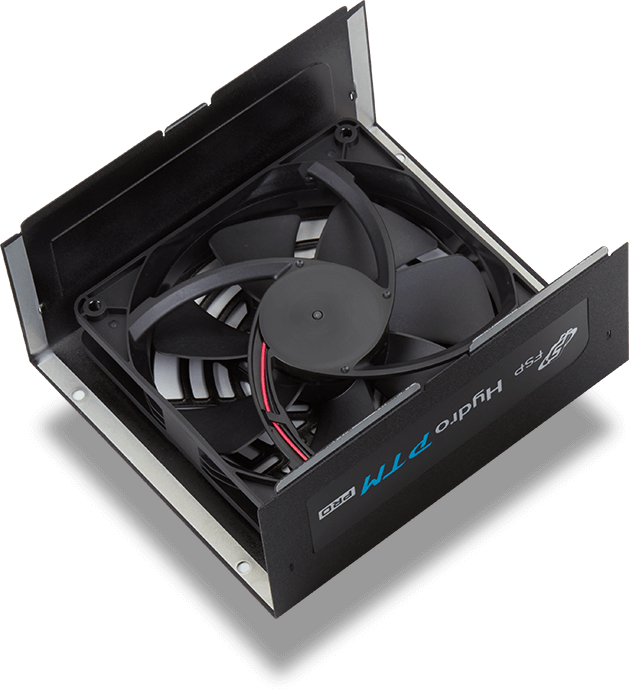

ECO Switch, Quieter and Longer Lasting Fan
When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
HYDRO PTM Pro series comes with FDB fan and intelligent 0dBA function to reduce noise, and features a longer-lasting life.
80 Plus® Platinum Certification
Hydro PTM Pro series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
Supports Latest CPU Systems
HYDRO PTM PRO fully supports high performance systems, complies with the most recent Intel, ATX12V V3.0 & EPS12V v2.92 standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP j (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
FSP Hydro PTM PRO 850W ATX 3.0 & PCIe Gen 5 Power Supply 80 Plus PLATNIUM - Full Modulary - With 12VHPWR 12+4-Pin Cable for RTX 40 Series - 10 Years Warranty
- Brand: FSP
- MPN: HPT2-850M,Gen 5
- Part #: PSUFSP20400
- UPC:845685013767
Product URL: https://www.pbtech.co.nz/product/PSUFSP20400/FSP-Hydro-PTM-PRO-850W-ATX-30--PCIe-Gen-5-Power-Su
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Hydro PTM PRO ATX3.0(PCIe5.0) 850W
- Complies with ATX12V V3.0 & EPS12V V2.92
- Intel Latest CPU ready
- Global Safety Approved
- High efficiency 92%
- Powerful +12V single rail design
- Quiet and durable cooling
- Full Japanese electrolytic capacitors
- Intelligent fan speed control circuit design
- Full protections OCP,OVP, SCP,OPP,OTP, UVP
- High Wattages with 80PLUS® Platinum Certification
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
High Compatibility for High Power
The series comes with native PCIe5.0 connector and also supports 3 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
Conformal Coating Application - Off-Wet, Off-Dust and Off-Stain
The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.
LLC Full-Bridge Topology with DC-DC Module Design
HYDRO PTM Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.
ECO Switch, Quieter and Longer Lasting Fan
When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
HYDRO PTM Pro series comes with FDB fan and intelligent 0dBA function to reduce noise, and features a longer-lasting life.
80 Plus® Platinum Certification
Hydro PTM Pro series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
Supports Latest CPU Systems
HYDRO PTM PRO fully supports high performance systems, complies with the most recent Intel, ATX12V V3.0 & EPS12V v2.92 standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP j (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
Specifications
Model
HPT2-850M,Gen5
Rated Output Power
850W
Form Factor
ATX
80 PLUS Certification
Platinum
Input Voltage
100-240V
Input Current
11-5.5A
Input Frequency
50-60Hz
PFC
Active PFC
Efficiency
= 92%
Fan Type
FDB Fan, 135mm
Dimensions(L x W x H)
150 x 190 x 86 mm
Protection
OCP, OVP, SCP, OPP, OTP, UVP
Cables
ATX 20+4
1
4+4 PIN
3
12VHPWR
1
PCIe 6+2
6
SATA
14
Molex (PERIPHERAL)
5
Floppy
1
AC/DC
AC Input
100-240Vac~ 11-5.5A 50-60Hz (Not for China)
DC Output
+3.3V / +5V / +12V / -12V / +5Vsb
Max Output Current
20A / 20A / 70.83A / 0.3A / 3A
Max Combined Power
120W / 850W / 18.6W
Total Power
850W
