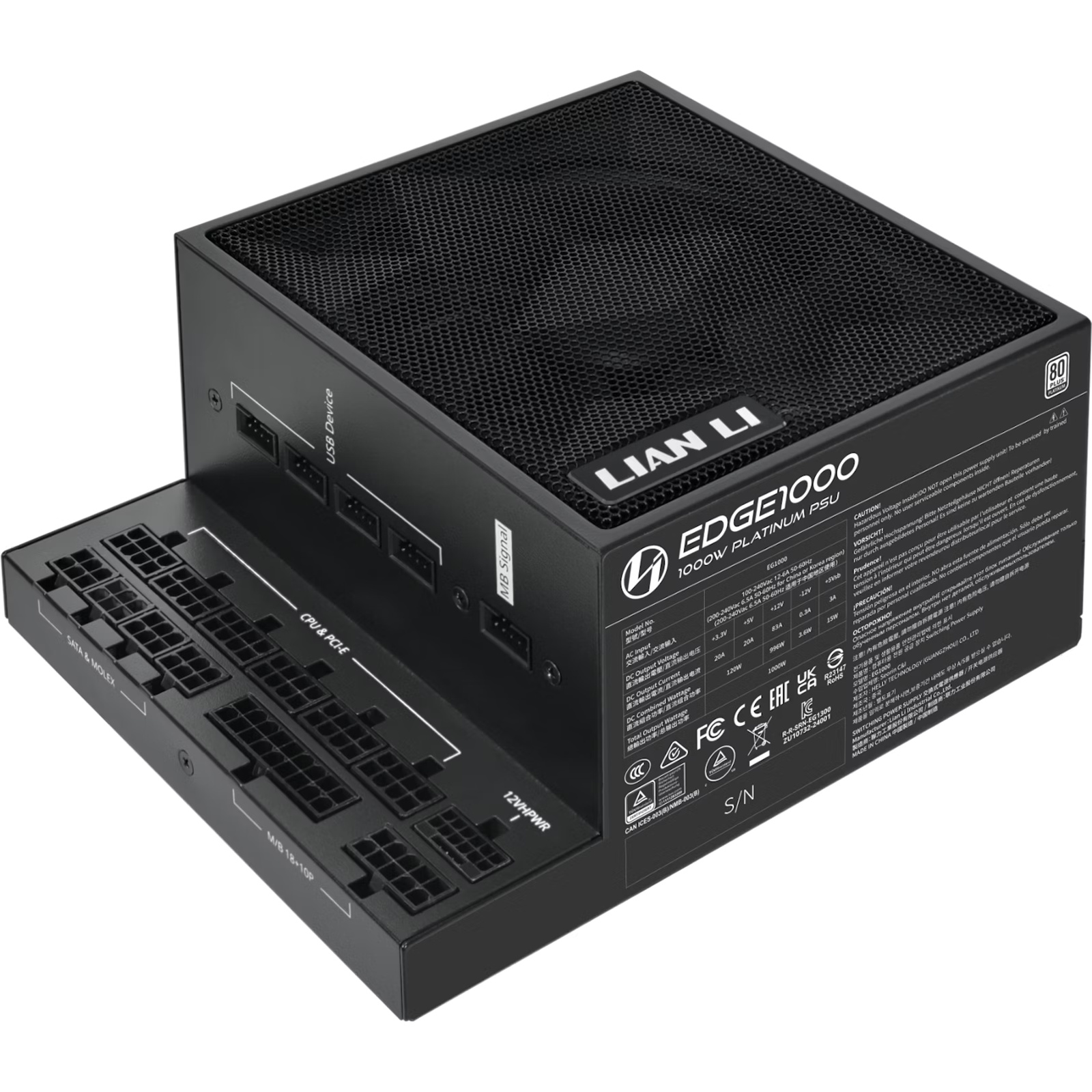

Lian Li Edge 1000W Black 80 Plus Platinum ATX 3.1 Power Supply
80 Plus Platinum- Full Modular - 12VHPWR 12+4-Pin
Lian Li Edge 1000W Black 80 Plus Platinum ATX 3.1 Power Supply
80 Plus Platinum- Full Modular - 12VHPWR 12+4-Pin
- Brand: Lian Li
- MPN: G9P.EG1000.BE00
- Part #: PSULAN2020
- UPC: 840353045910
Select your store to check availability
- Brand: Lian Li
- MPN: G9P.EG1000.BE00
- Part #: PSULAN2020
- UPC: 840353045910
What PB Tech customers are saying about this product...
See More Reviews
"PSU what can I say, it provides power.
Purchased as add on for new new GPU. Like the design of it. Got it after a lot of YouTube research from trusted creators.
Con. Does not ma ...view more"
"I did not need an 850w PSU for my PC, but given the low price and 80 platinum rating, it became my best purchase for future upgrades."
"If you are building a Dual Chamber Case, then you need this PSU. Not only does it have great connectivity, the cables are all sleeved and come with comb clips."
COMBO DEALS: Buy Together and SAVE!
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$53.67 +GST
$61.72
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$19.13 +GST
$22.00
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50 +GST
$7.48
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$105.00 +GST
$120.75
Features
EDGE
- L-Shape design for dual chamber case
- 80 PLUS Platinum Efficiency
- Built-in USB expantion hub with 4 internal USB 2.0 headers
- Integrating German EPCOS bulk capacitors
- In-house R&D 12V-2×6 alloy copper soldered terminals
- ATX 3.0/3/1 compliant PSU
- Full modular sleeved cable with cable comb MB/CPU/GPU connectors
EDGE - THE "POWER" FOR DUAL CHAMBER CASES
The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.

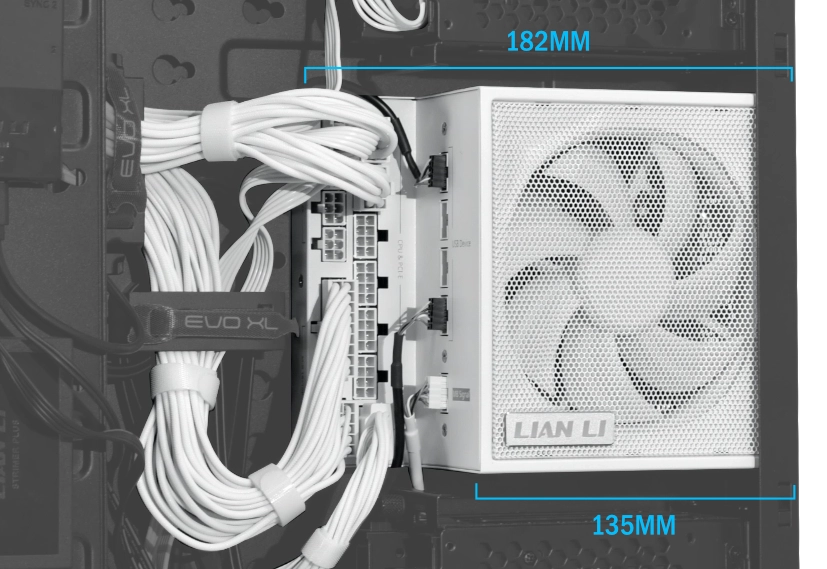

INNOVATIVE L-SHAPE DESIGN
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU's L-shape design is ideal for vertical installation at the second chamber.
This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
POWER AND USB HUB TWO-IN-ONE
The full Edge Series integrates 4 × 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.
All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.
1 - CONNECT TO USB DEVICES
Port #1 provides 1 USB signal, while port#2/3/4 each provide 2 USB signals. This allows for up to 7 USB devices when using a 1-to-2 splitter cable at port #2/3/4 .
Note: Due to the TL controller's 2-in-1 USB design to support both TL LCD and TL, it is recommended to connect it to port#2/3/4. Other LIAN LI or third-party controllers can be connected to any port.
For detailed limited number of TL and LCD fans supported when using the Edge PSU's USB signal, please click here.
2 - CONNECT TO MOTHERBOARD
Offers two options for motherboard signal connection to accommodate different configurations.
STANDARD INTERNAL USB CONNECTOR
Connect to the motherboard in the main chamber
USB TYPE A CONNECTOR
Connect to the rear IO of the motherboard
PLATINUM CERTIFIED
Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
EDGE 1000W Efficiency
ATX 3.0 AND 3.1 COMPLIANT
Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.

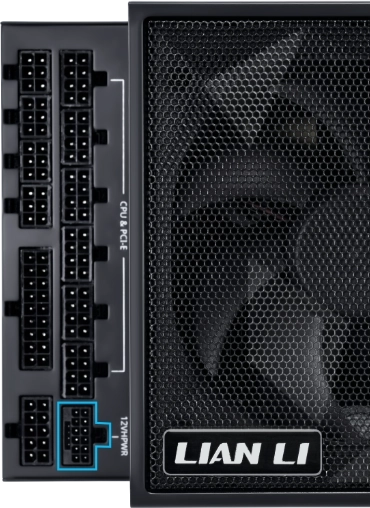

STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI's in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
1 - Dual-color shell for confirming secure connections
2 - Added gold plating to prevent short circuits
3 - Soldered wire and terminal connection for current stability
4 - Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mO after 50 plug/pull cycles, compared to ordinary terminals at 2-3mO, enhancing the connector's performance and long-term reliability.
INDUSTRIAL GRADE CAPACITORS
The EDGE PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments.
Featuring LLC topology and Active PFC, the EDGE PSU enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.

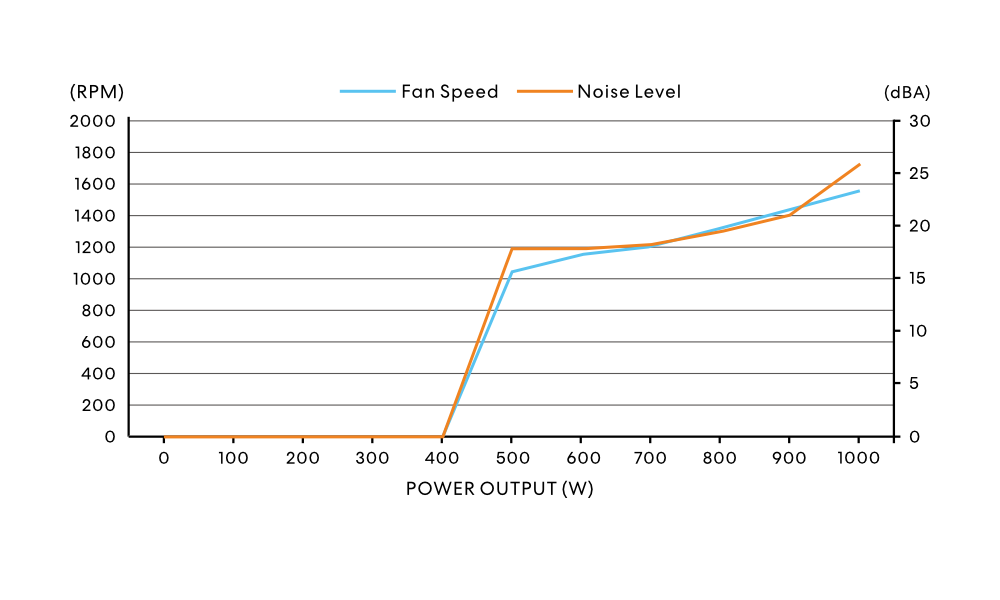

Edge 1000W Fan Acoustic Noise (Ambiance temperature 25?)
Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
PREMIUM BRAIDED SLEEVED CABLES FOR A CLEAN BUILD
The power supply units come equipped with 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables featuring premium braided sleeves. These cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
Comprehensive SATA Power Solutions
Included with the EDGE PSU series are several SATA power cables to suit various needs:
Note: Please do not connect 850W or 1000W cables to a 1300W power supply unit. Using incompatible cables can lead to serious damage to your components and may void your warranty.
Y-Type SATA Cable:
Perfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.

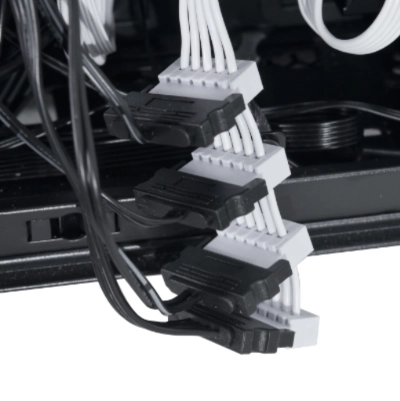

Close-Type SATA Cable:
A 300mm long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
COMPREHENSIVE CONNECTORS
The modular cables are measured precisely for the dual chamber chassis to avoid bulkiness and ensure efficient cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of electrion flow Protection), NLP (No Load Protection) and inrush current limiter that make the PSU operating in stable condition.
Specifications
Reviews
Do you own this product?
Its a PSU, what can I say
PSU what can I say, it provides power.
Purchased as add on for new new GPU. Like the design of it. Got it after a lot of YouTube research from trusted creators.
Con. Does not matter with way I orientate the PSU, The Logo and details will be upside down in my more traditional case.
very good but loud
The Lian Li 850W Edge Platinum has excellent build quality and premium modular cables with a clean, high end feel. However, the 120mm fan is disappointingly loud under even moderate loads. In an otherwise near-silent setup, the PSU is easily the dominant noise source even with all case and GPU fans ramped up. This is especially frustrating given that my system draws well below the PSU’s rated capacity (under 400W typical load). It's clear the fan curve is overly aggressive or lacks proper passive/low RPM operation at idle. I really want to recommend this PSU for its aesthetics and electrical performance, but the acoustic profile is a major...view more
Bit disappointing but decent
Beautiful looking PSU, fits perfectly into my O11d case. Cables come with 3 ties, easy to manage, feel high quality, comes with all the cables you'll need.
I did have some troubles connecting the 12VHPWR connector to the PSU end, it didn't click into place properly. The fan is by no means quiet, once it turns on, which is pretty much 24/7.
Power delivery is strong, as you'd expect from any 80+ Platinum PSU. Overall a decent purchase, but there's better.
The price and 80 plus platinum is a killer factor.
I did not need an 850w PSU for my PC, but given the low price and 80 platinum rating, it became my best purchase for future upgrades.
Awesome Power Supply
If you are building a Dual Chamber Case, then you need this PSU. Not only does it have great connectivity, the cables are all sleeved and come with comb clips.
Lasted less than 24 hours total run time
Was the perfect solution to my new Lian Li case, the USB hub and Edge style modular connectors made it really nice and easy to install, However... it was Installed on Saturday and on Sunday night at it went pop and was dead. all without any high-loading hardware, the same system is currently running with my spare 600W PSU until I can find another one I like since these don't appear to be coming into stock again.
Good price for what you get.
Don't think I can go back now, having a usb header in the power supply helps if you have a motherboard that only has a couple of usb headers on it.
I have all my fans daisy chained into the power supply and have the wireless fans (so the only cable is for power)
A quality PSU
Got a great deal on black friday. Fitted great into my NZXT H9 case easy as. Cables are really nice and the preinstalled cable combs are a nice touch. I have never heard the fan operate, It won't turn on unless it hits over 400w.....and when I'm gaming my case fans will be louder anyway. Importantly, there are no coil whine noises of any kind - this was my greatest concern. Buy with confidence.
So good.
I actually wanted a 850W version but no stock so I got this, which is overkill.
Installation was a breeze, the included cables seem like good Lian Li quality.
The USB feature and 12+4 were the reason for getting this, really handy.
This PSU is quiet.
Well thought out design
The plugs being on the extended section, parallel to the case opening is a game changer. I can't count how many times I have had to access the power ports on a PSU and struggled like heck to access them without completely removing the PSU and having to re-do all of my cable organising. With this PSU the ports are right in front of you, allowing you to check seating, or change plugs with ease. The USB Light port extensions on the PSU are also very useful for builds requiring more than a few spots to plug the RGB power into.
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
Lian Li Edge 1000W Black 80 Plus Platinum ATX 3.1 Power Supply 80 Plus Platinum- Full Modular - 12VHPWR 12+4-Pin
- Brand: Lian Li
- MPN: G9P.EG1000.BE00
- Part #: PSULAN2020
- UPC:840353045910
Product URL: https://www.pbtech.co.nz/product/PSULAN2020/Lian-Li-Edge-1000W-Black-80-Plus-Platinum-ATX-31-P?is-review=1&qr=similar-no-stock
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 2 | |
| Auckland - Glenfield | 4 | |
| Auckland - Queen Street | 4 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 2 | |
| Auckland - Westgate | 5 | |
| Auckland - Penrose | 6 | |
| Auckland - Henderson (Express) | 1 | |
| Auckland - St Lukes | 2 | |
| Auckland - Manukau | 2 | |
| Hamilton | 0 | |
| Tauranga | 1 | |
| New Plymouth | 0 | |
| Palmerston North | 1 | |
| Petone | 0 | |
| Wellington | 2 | |
| Auckland - Head Office | 30+ | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 3 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EDGE
- L-Shape design for dual chamber case
- 80 PLUS Platinum Efficiency
- Built-in USB expantion hub with 4 internal USB 2.0 headers
- Integrating German EPCOS bulk capacitors
- In-house R&D 12V-2×6 alloy copper soldered terminals
- ATX 3.0/3/1 compliant PSU
- Full modular sleeved cable with cable comb MB/CPU/GPU connectors
EDGE - THE "POWER" FOR DUAL CHAMBER CASES
The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.
INNOVATIVE L-SHAPE DESIGN
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU's L-shape design is ideal for vertical installation at the second chamber.
This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
POWER AND USB HUB TWO-IN-ONE
The full Edge Series integrates 4 × 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.
All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.
1 - CONNECT TO USB DEVICES
Port #1 provides 1 USB signal, while port#2/3/4 each provide 2 USB signals. This allows for up to 7 USB devices when using a 1-to-2 splitter cable at port #2/3/4 .
Note: Due to the TL controller's 2-in-1 USB design to support both TL LCD and TL, it is recommended to connect it to port#2/3/4. Other LIAN LI or third-party controllers can be connected to any port.
For detailed limited number of TL and LCD fans supported when using the Edge PSU's USB signal, please click here.
2 - CONNECT TO MOTHERBOARD
Offers two options for motherboard signal connection to accommodate different configurations.
STANDARD INTERNAL USB CONNECTOR
Connect to the motherboard in the main chamber
USB TYPE A CONNECTOR
Connect to the rear IO of the motherboard
PLATINUM CERTIFIED
Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
EDGE 1000W Efficiency
ATX 3.0 AND 3.1 COMPLIANT
Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI's in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
1 - Dual-color shell for confirming secure connections
2 - Added gold plating to prevent short circuits
3 - Soldered wire and terminal connection for current stability
4 - Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mO after 50 plug/pull cycles, compared to ordinary terminals at 2-3mO, enhancing the connector's performance and long-term reliability.
INDUSTRIAL GRADE CAPACITORS
The EDGE PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments.
Featuring LLC topology and Active PFC, the EDGE PSU enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
Edge 1000W Fan Acoustic Noise (Ambiance temperature 25?)
Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
PREMIUM BRAIDED SLEEVED CABLES FOR A CLEAN BUILD
The power supply units come equipped with 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables featuring premium braided sleeves. These cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
Comprehensive SATA Power Solutions
Included with the EDGE PSU series are several SATA power cables to suit various needs:
Note: Please do not connect 850W or 1000W cables to a 1300W power supply unit. Using incompatible cables can lead to serious damage to your components and may void your warranty.
Y-Type SATA Cable:
Perfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.
Close-Type SATA Cable:
A 300mm long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
COMPREHENSIVE CONNECTORS
The modular cables are measured precisely for the dual chamber chassis to avoid bulkiness and ensure efficient cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of electrion flow Protection), NLP (No Load Protection) and inrush current limiter that make the PSU operating in stable condition.
Specifications
MODEL NAME
EDGE1000
MODEL NO.
EG1000
COLOR
Black
DIMENSIONS
(D)182 mm X (W)86 mm X (H)150 mm
POWER SUPPLY DESIGN
Fully modular
MATERIAL
Steel
FORM FACTOR
ATX 3.1
CERTIFICATION
80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
MAX. DC OUTPUT
1000W
COMBINED +3.3V & +5V
120W
COMBINED +12V
996W
INPUT VOLTAGE
100-240Vac
INPUT FREQUENCY RANGE
12-6A 50-60Hz
PFC
Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
EFFICIENCY
92.36% MAX
PROTECTIVE CIRCUIT
OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP
CONNECTORS
1 x 24/20-Pin motherboard connector (500mm) x1pcs
1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
1 x 8/6+2 Pin PCle connector (550m m) x4pcs
1 x 12V-2×6 connector (550mm) × 1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
4 x Y Type SATA connector (400mm-125mm*2) x1pcs
USB*9pin - USB*9pin connector (350mm) × 1pcs
USB*9pin -Type A connector (550mm) × 1pcs
FAN TYPE
120mm FDB Fan
FAN SPEED
2000RPM
FAN NOISE LEVEL
25.96dBA
