MSI MAG 750W Power Supply
80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
MSI MAG 750W Power Supply
80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
- Brand: MSI
- MPN: MAG A750GL PCIE5
- Part #: PSUMSI1010
- UPC: 824142319239
- Brand: MSI
- MPN: MAG A750GL PCIE5
- Part #: PSUMSI1010
- UPC: 824142319239
Similar in-stock products available at PB Tech right now
What PB Tech customers are saying about this product...
See More Reviews"This power supply is very quiet and performs well. It's very well priced for a gold rated power supply."
"Had absolutely no issues with this. I specifically purchased it because it was on sale for Black Friday and it had everything I needed. It's modular, has a 16-pin. I got the 750W v ...view more"
"When I build a new PC I don't skimp on the power supply. Fortunately, an excellent PS like this is one of the least expensive components. It comes with a comprehensive cable-set th ...view more"
COMBO DEALS: Buy Together and SAVE!
Samsung 980 1TB M.2 NVMe Internal SSD PCIe 3.0 - Up to 3500MB/s Read - Up to 3000MB/s Write - 500K...
$149.00 +GST
$171.35
Cooler Master MasterLiquid 360L Core ARGB 360mm AiO Water Cooling Black Support Intel LGA 1851 /...
$149.00 +GST
$171.35
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$19.13 +GST
$22.00
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB...
$56.52 +GST
$65.00
Features
MAG A750GL PCIE5
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
MAG - UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
DUAL-COLOR 16-PIN CABLE
The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the patented pending Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 450W of power to PCIe 5.0 graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
*The photo is only for illustration
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
*The photo is only for illustration
FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
*The picture is for illustrative only.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- UVP Under Voltage Protection
- SCP Short Circuit Protection
CONNECTORS
Specifications
Reviews
Do you own this product?
A very well made product!
Nice modular design PSU with a coloured native 16 PIN PCIe connector! It can help users to ensure the cable is firmly plugged into the GPU to avoid the risk of melting connector. Overall very satisfied with the purchase!
A must for any upgrade
Had to upgrade CPU and MB. Put in a new GPU so why not PSU. Better to have to much power and not need it than to need it and not have it. Will only draw what is needed. Future proof.
Highy Recommend
So far so good
PSU runs well with my current setup. No issues what so ever. Runs how it should at a reasonable price.
Only downside is slightly stiff cables but not a big issue for me.
Easy purchase from PBTech St lukes
Does what it says
Some people seem to have a problem with the noise? Mine doesn't make any noise.
Good price, no issues.
Thanks, PB!
Good price to performance.
This was purchased for future-proofing. Handles power delivery extremely well. I can recommend it for any mid to upper-range build.
Works great for the price
This power supply is very quiet and performs well. It's very well priced for a gold rated power supply.
Just a great product
Had absolutely no issues with this. I specifically purchased it because it was on sale for Black Friday and it had everything I needed. It's modular, has a 16-pin. I got the 750W variant because it leaves lots of room for more power consuming components later on.
The core of a dependable PC-build is a great power-supply
When I build a new PC I don't skimp on the power supply. Fortunately, an excellent PS like this is one of the least expensive components. It comes with a comprehensive cable-set that cleverly deals with current and old graphics cards, motherboards, and disk drives. This supply is quiet, runs cool, and eased the construction of my latest build. Highly recommended.
Great power for the price.
Enough cables with good spacing. Pricing is also very good.
So far so good, good value for money, quality brand. Works well.
Stuck with a quality brand, that hit the 80+ gold level of specification. 7 year warranty isnt quite as much as some of the others however for the price it is just what I need. Happy to recommend.
Good PSU
Gives good power to my PC setup, fits nicely with everything else.
Pretty good given the price too. Recommend 👍
No downsides
Perfect!! I have an All White set up and the black, cheap power supply is so good, I LOVE LOVE LOVEEE the cable bag, it fits all of the bags of screws, cables, etc. inside and it’s good for the price. I love this!!
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Related Hardwired Articles
Popular Desktop Power Supplies
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
Corsair RM750e 750W ATX 3.0 Power Supply 80 Plus Gold - Fully...
Cooler Master MWE Gold 850W ATX 3.0 Power Supply 80 Plus Gold -...
Corsair RM850e 850W ATX 3.0 Power Supply 80 Plus Gold - Fully...
NZXT C Series ATX 3.0 1200W Power Supply 80 Plus Gold - Fully...
_20250106132842.webp)
MSI MAG 750W Power Supply 80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
- Brand: MSI
- MPN: MAG A750GL PCIE5
- Part #: PSUMSI1010
- UPC:824142319239
Product URL: https://www.pbtech.co.nz/product/PSUMSI1010/MSI-MAG-750W-Power-Supply-80-Plus-Gold---Native-16
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
MAG A750GL PCIE5
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
MAG - UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
DUAL-COLOR 16-PIN CABLE
The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the patented pending Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 450W of power to PCIe 5.0 graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
*The photo is only for illustration
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
*The photo is only for illustration
FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
*The picture is for illustrative only.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- UVP Under Voltage Protection
- SCP Short Circuit Protection

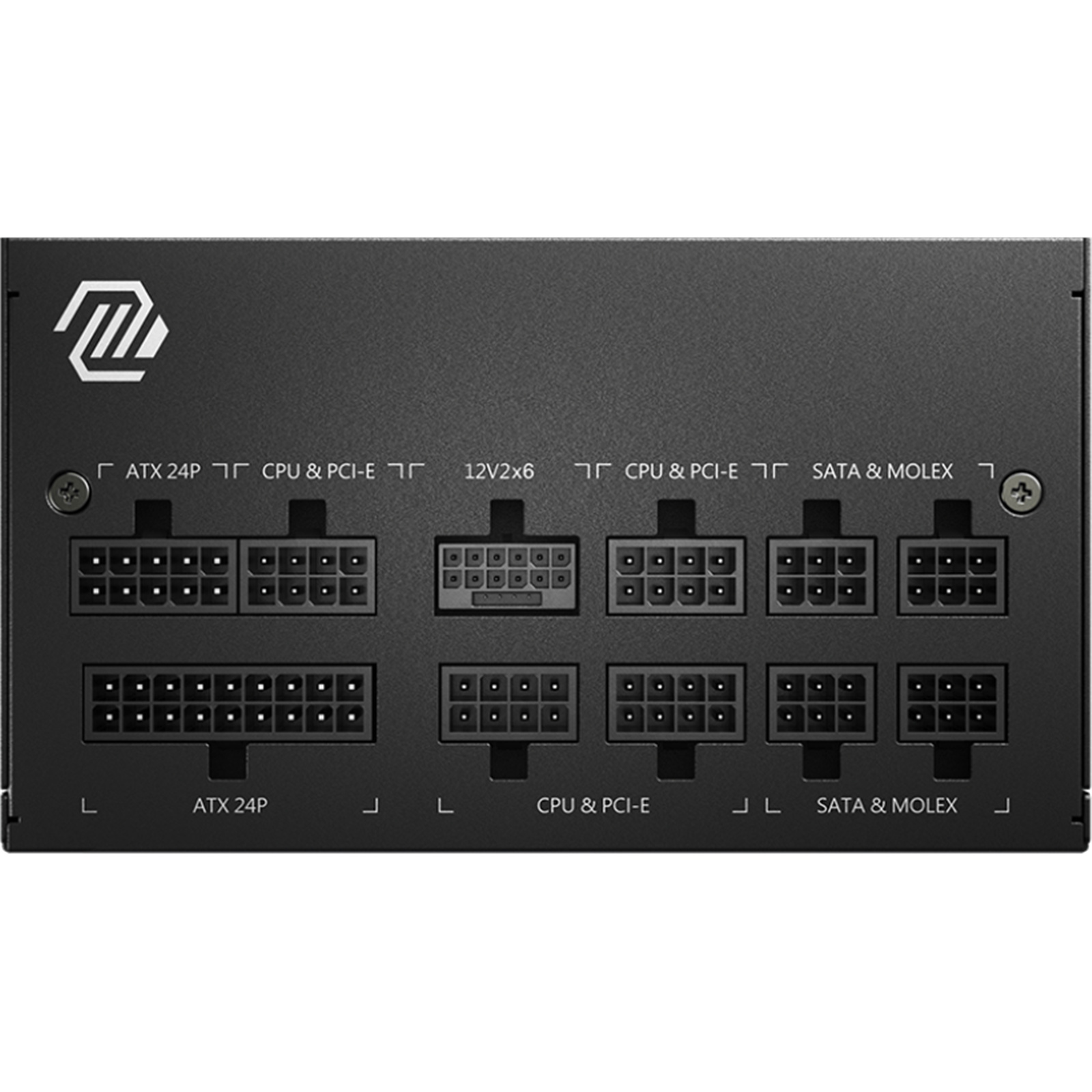

CONNECTORS
Specifications
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
MODULAR
Yes (full modular)
FAN SIZE
120 mm
FAN BEARING
Fluid Dynamic Bearing
DIMENSIONS (DXWXH)
140 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100~240 VAC
POWER WATT
750W
POWER EXCURSION
1500W (*up to 200% of the PSU's rated power for 100µs)
INPUT FREQUENCY RANGE
47-63Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
2
PCI-E 5.0 (16 PIN)
1 (450W)
PCI-E (6+2 PIN)
3
SATA (15 PIN)
8
MOLEX (4 PIN)
4
FDD (4 PIN)
1
