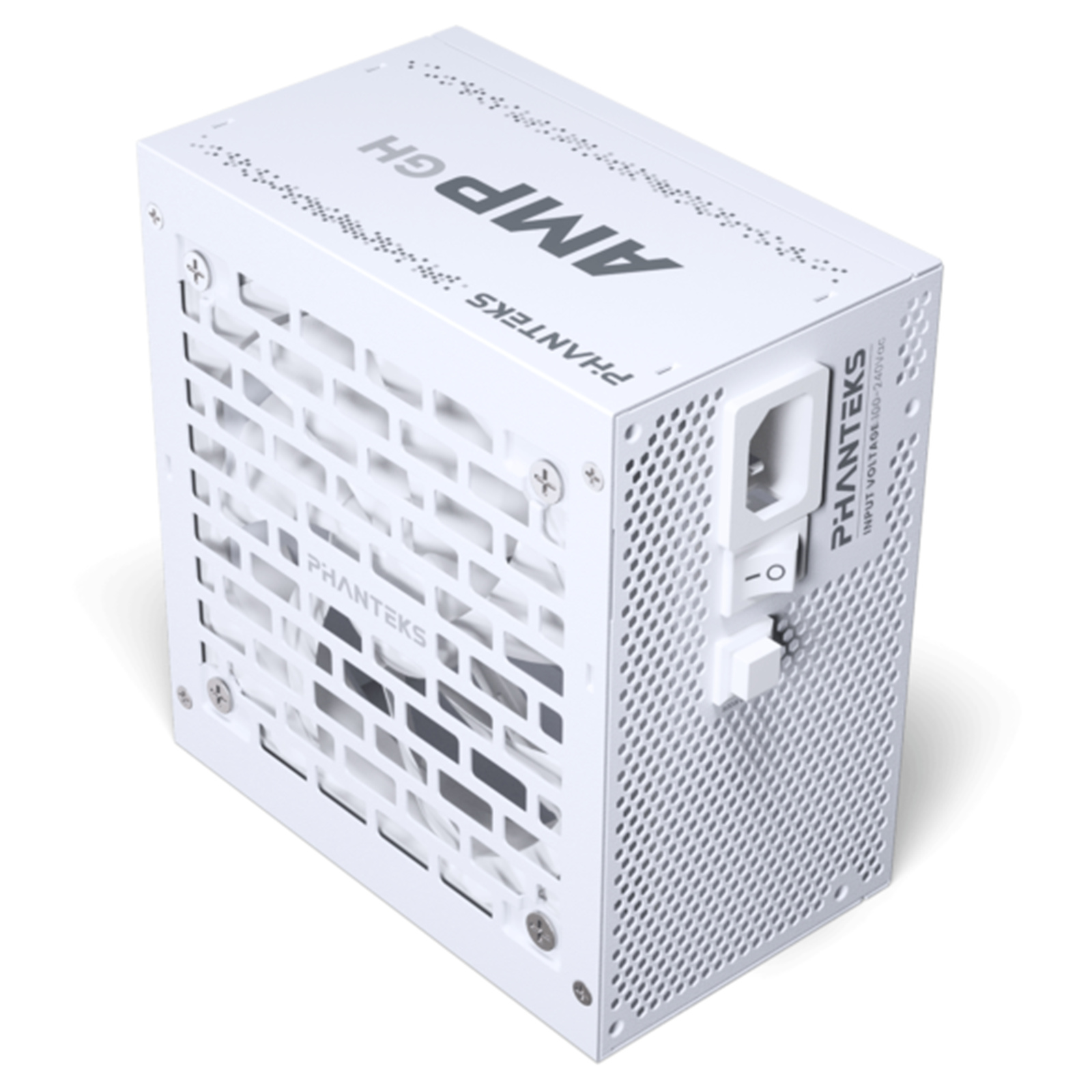

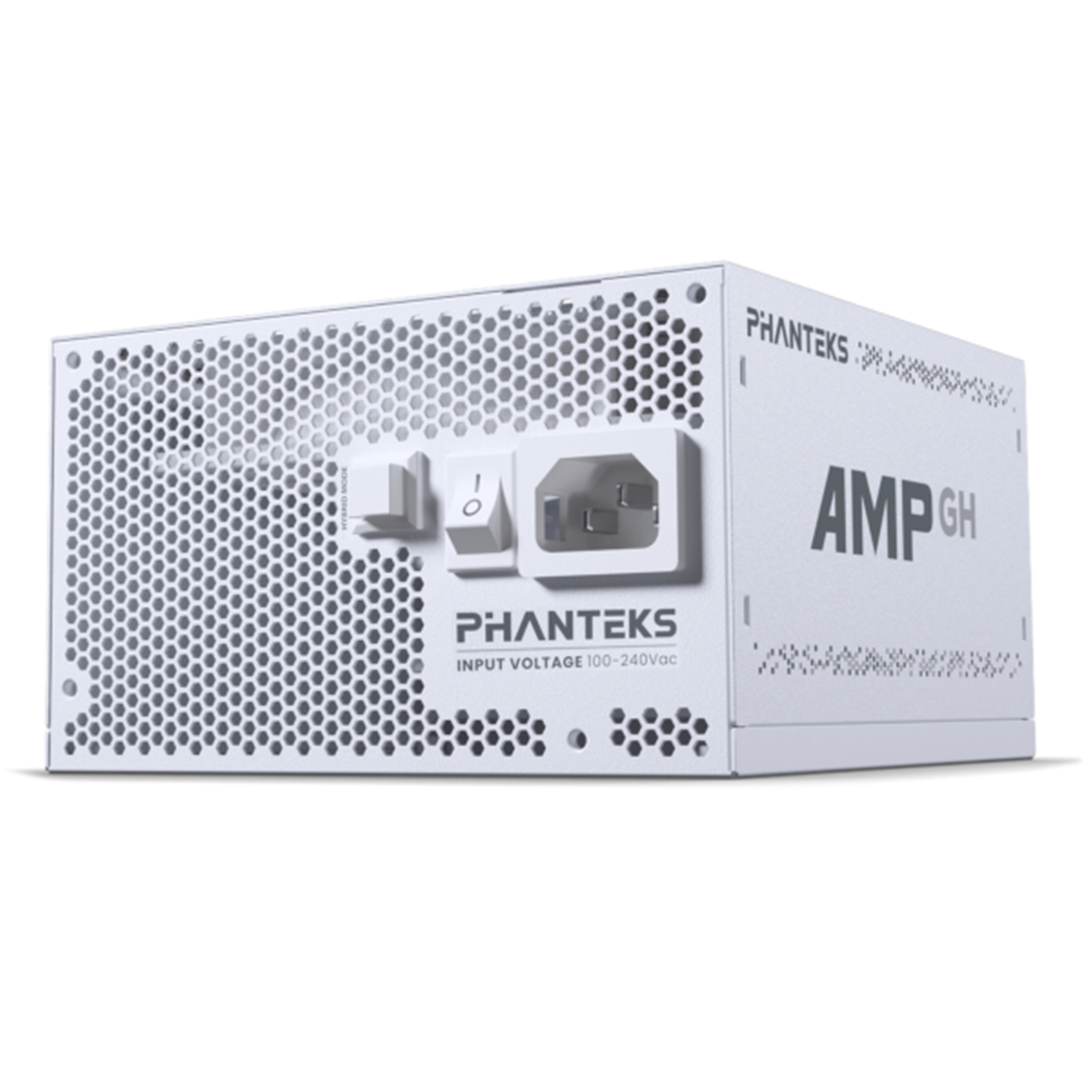

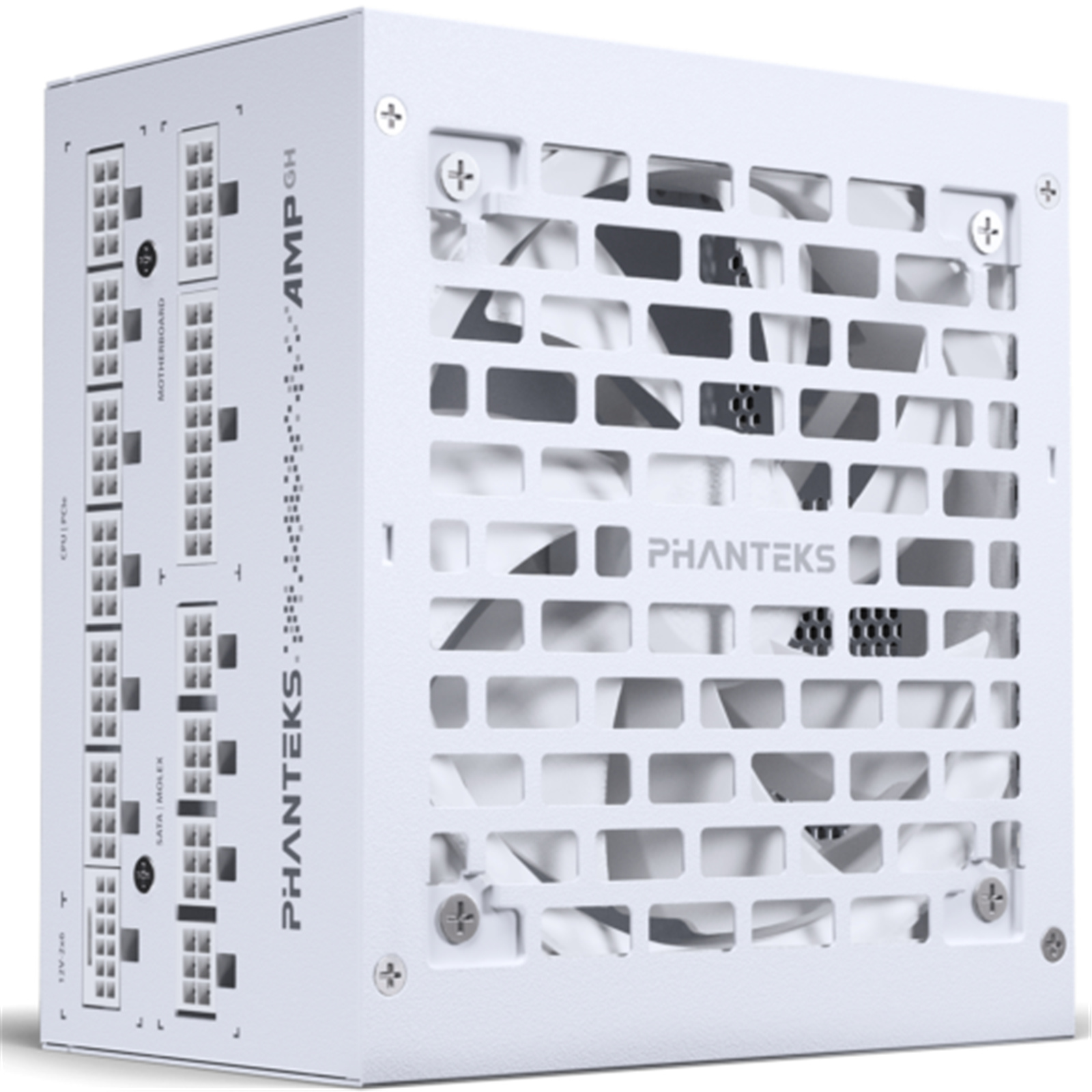

Phanteks AMP 1000W ATX 3.1 80Plus Platinum - White - Full Modular Power Supply
Phanteks AMP 1000W ATX 3.1 80Plus Platinum - White - Full Modular Power Supply
- Brand: Phanteks
- MPN: PH-P1000GH_WT01
- Part #: PSUPHA0041
- UPC: 886523510628
Select your store to check availability
- Brand: Phanteks
- MPN: PH-P1000GH_WT01
- Part #: PSUPHA0041
- UPC: 886523510628
What PB Tech customers are saying about this product...
See More Reviews"Silent fan, no issues with AMD 78003XD CPU, Gigbyte MB, DDR5 RAM and ASUS GPU Hasn't missed a beat!!"
"I was originally going to purchase a corsair rm850e, but this was around the same price while on discount. It is a great power supply, nice and quiet. It comes with textured cables ...view more"
"Amazingly quiet and responsive power supply. Cables have a nylon texture which gives it a little more bend than my previous plastic leads.
Make sure you ONLY USE THE CABLES SUPP ...view more"
COMBO DEALS: Buy Together and SAVE!
Samsung 990 EVO 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Read up to 5000MB/s - Write up to 4200MB/s -...
$175.00 +GST
$201.25
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50 +GST
$7.48
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$19.13 +GST
$22.00
Crucial BX500 1TB 2.5" Internal SSD SATA 6GB/s - Up to 540MB/s Read - Up to 500MB/s Write - 7mm
$105.00 +GST
$120.75
Features
AMP GH - Fully Modular Power Supply
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2x6 connector delivers up to 600W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
12V-2x6 Cable Included
- Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
- Fully Modular Design, individually textured cables for easy installation and reduced clutter.
- Latest PCIe Gen5.1 GPU Connector, 12V-2x6 connector providing up to 600W of power through a single cable.
- Improves compatibility with any chassis.
Packed With Features
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120 mm Hydraulic Dynamic Bearing Fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Backpanel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Premium Hybrid Mode
A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.
Specifications
Reviews
Do you own this product?
Excelent performance
Pros:
Excellent performance and efficiency
Fully modular design with detachable cables
Hybrid Fan button for quiet operation
High-quality components and construction
80Plus Gold certification
Cons:
Noisy fan at high loads (although the Hybrid Fan button helps mitigate this)
No dedicated connector for high-wattage GPUs (users may need to use multiple 6pin connectors)
Conclusion
The Phanteks AMP 750W is an excellent choice for enthusiasts and gamers seeking a high-performance, efficient, and modular PSU. Its 80Plus Gold certification, ATX 3.0 compliance, and hybrid fan design make it a great option for modern systems. While it may have some...view more
Phanteks 1000W Power Supply
Silent fan, no issues with AMD 78003XD CPU, Gigbyte MB, DDR5 RAM and ASUS GPU
Hasn't missed a beat!!
Great power supply nice and quiet
I was originally going to purchase a corsair rm850e, but this was around the same price while on discount. It is a great power supply, nice and quiet. It comes with textured cables, cable combs, and some things for cable management. Looks high quality. I highly recommend this PSU.
Amazing power supply, sexy cables.
Amazingly quiet and responsive power supply. Cables have a nylon texture which gives it a little more bend than my previous plastic leads.
Make sure you ONLY USE THE CABLES SUPPLIED. It will not even let your PC turn on if you use cables from another PSU.
Perfect
10/10 no complaints at all
Easy install
Like it, with full module it is really easy to do the cable management
Easy install
Really good like it
Great value
Got this because of its Platinum rating and great price. really quiet PSU
It works
Had an issue with the 12v 6x2 that came with the PSU. I plugged it into my rtx 5080 and the rgb was working but the display didn't come on.
Switched to the adapter that came with the gpu and connected the 3 pcie connections and it worked.
It's a shame my chord didn't work but it runs my rig so i dont mind too much.
Great purchase.
Bought this one because my older MSI 750W wasn't handling 7800 XT well. This one actually manages it well.
Does what is says on the box
Excellent power supply, Does what it says it will do
Phanteks PSU
What's more to say, it's a good full modular PSU with lots of draw power.
Works well and looks good.
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies
Phanteks AMP 1000W ATX 3.1 80Plus Platinum - Black - Full Modular...
DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PL750D 750W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
Phanteks AMP 1000W ATX 3.1 80Plus Platinum - White - Full Modular Power Supply
- Brand: Phanteks
- MPN: PH-P1000GH_WT01
- Part #: PSUPHA0041
- UPC:886523510628
Product URL: https://www.pbtech.co.nz/product/PSUPHA0041/Phanteks-AMP-1000W-ATX-31-80Plus-Platinum---White
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 5 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 5 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 30+ | |
| Hornby | 2 | |
| Christchurch Central | 0 |
Features
AMP GH - Fully Modular Power Supply
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2x6 connector delivers up to 600W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
12V-2x6 Cable Included
- Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
- Fully Modular Design, individually textured cables for easy installation and reduced clutter.
- Latest PCIe Gen5.1 GPU Connector, 12V-2x6 connector providing up to 600W of power through a single cable.
- Improves compatibility with any chassis.
Packed With Features
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120 mm Hydraulic Dynamic Bearing Fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Backpanel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Premium Hybrid Mode
A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.
Specifications
MODEL NO.
PH-P1000GH_WT01
COLOR
White
DIMENSIONS (Length X Width X Height)
140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
POWER OUTPUT
1000W
PCIe GEN5 OUTPUT
600W
80 PLUS
Platinum
COOLING FAN
120mm Hydraulic Bearing fan
BACK PLATE
Fully modular
MTFB
> 100.000 hrs at 25°C (Excluding DC fan)

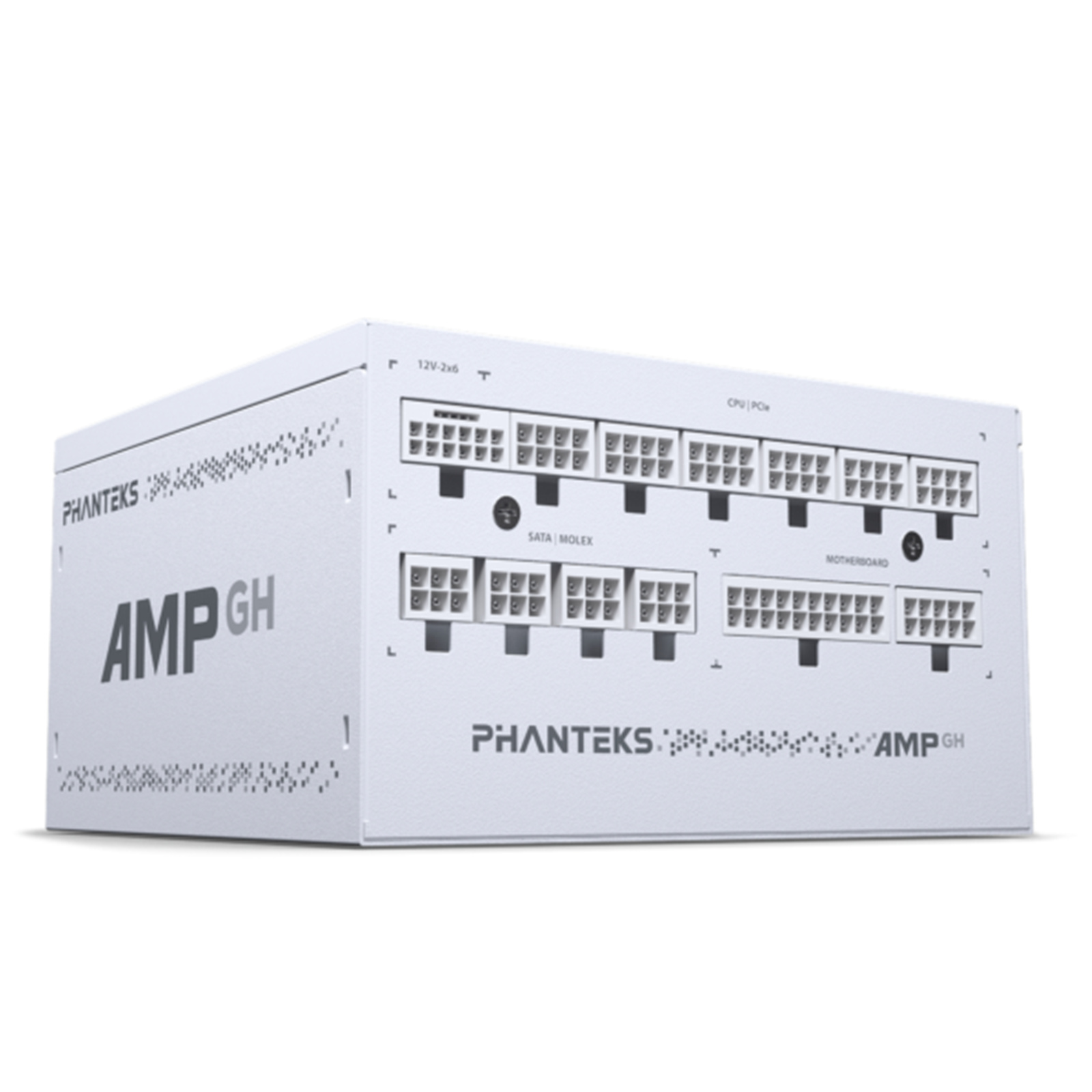

POWER SUPPLY OUTPUT CONNECTORS
Mainboard - 1x
CPU | PCIe - 5x
SATA | Molex - 3x
12V-2×6 - 1x
OUTPUT PROTECTION
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
NET WEIGHT
1.40 kg | 3.08 lbs
GROSS WEIGHT
3.20 kg | 7.05 lbs
SCOPE OF DELIVERY
1x AMP GH 1000W Power supply unit
1x C13 Power cord (1500mm)
TEXTURED CABLES
1x 18+10-Pin Mainboard (610 mm)
2x 4+4-Pin CPU (650 mm)
4x 6+2-Pin PCI-E (750 mm)
1x 12V-2×6 (720 mm)
3x 6-Pin 4-SATA (450 - 150 | 150 | 150 mm)
1x 6-Pin 2-SATA + 2-Molex (450 - 150 | 150 | 150 mm)
ACCESSORY BOX
1x User's manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
