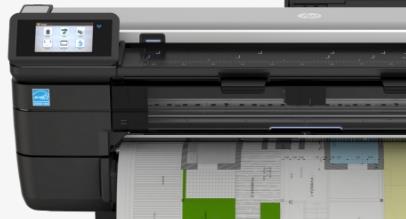

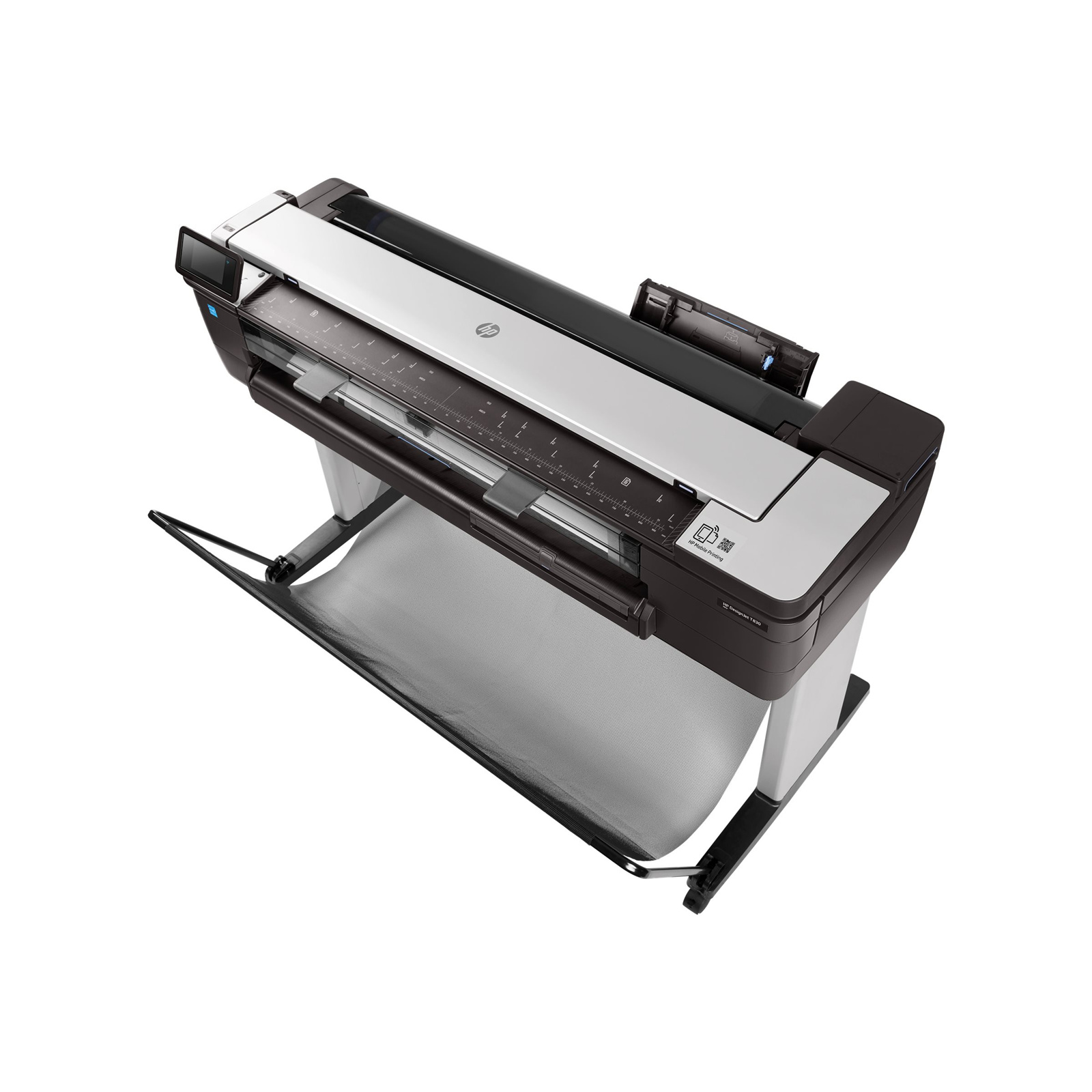

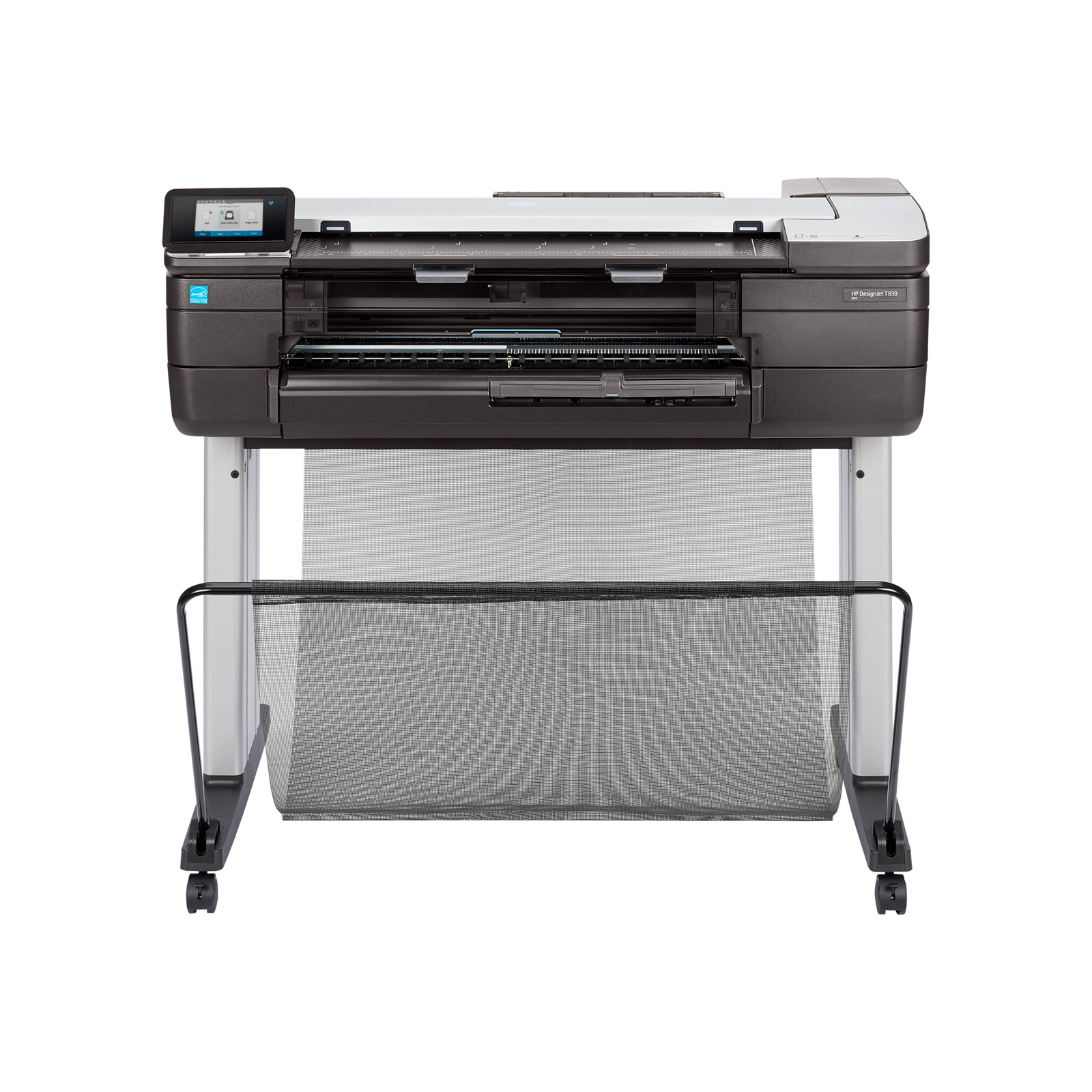

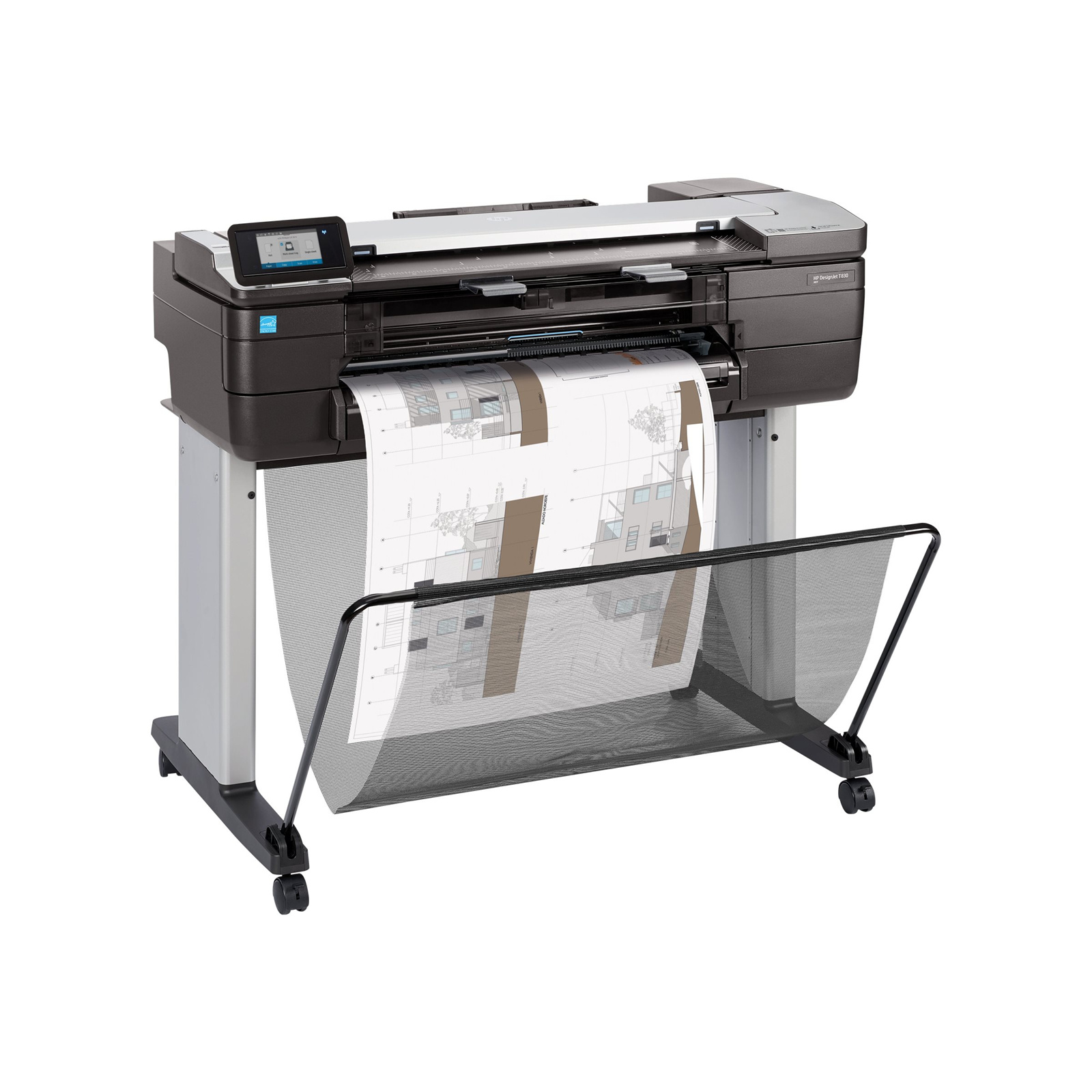

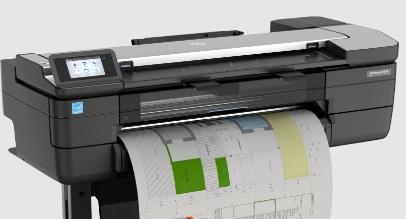

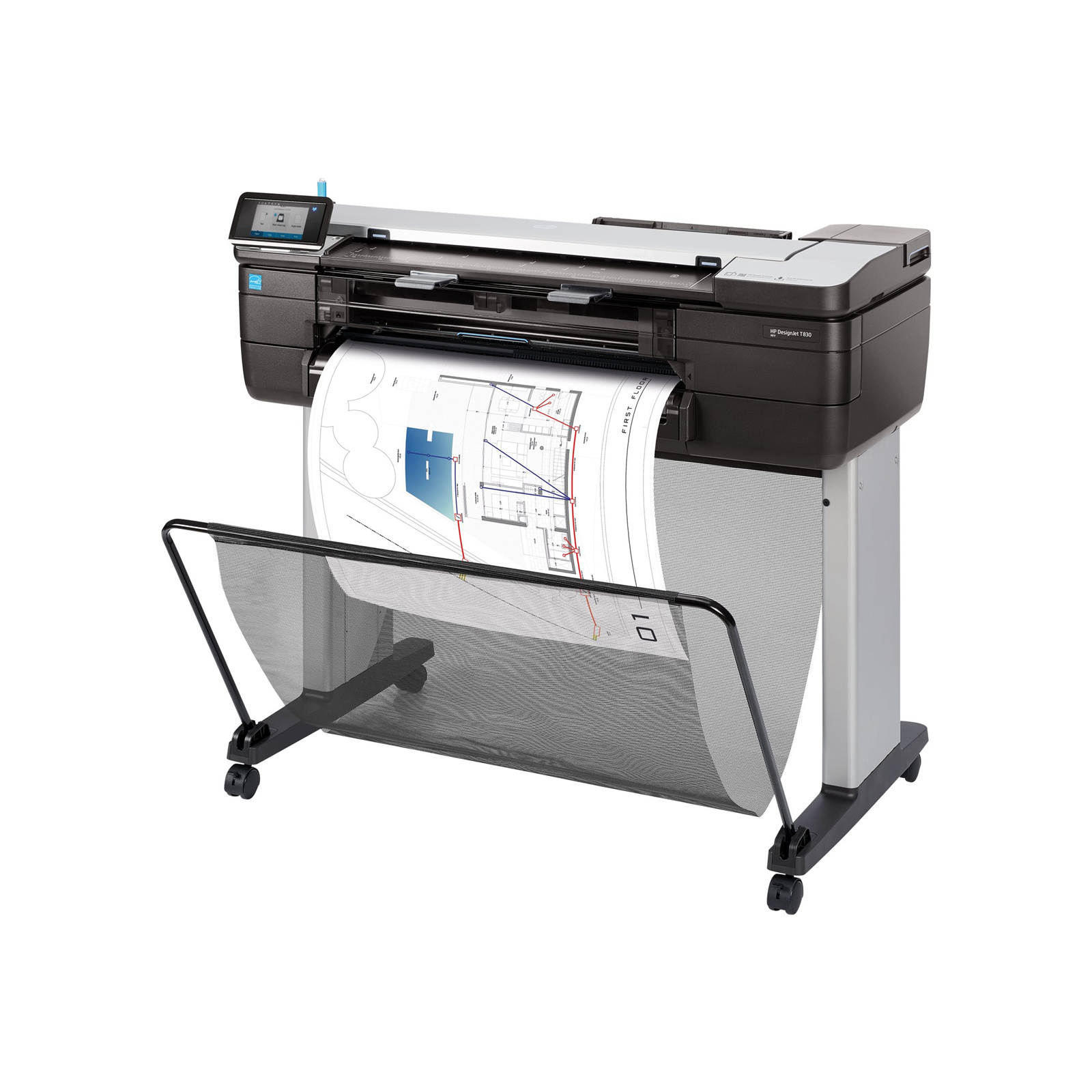

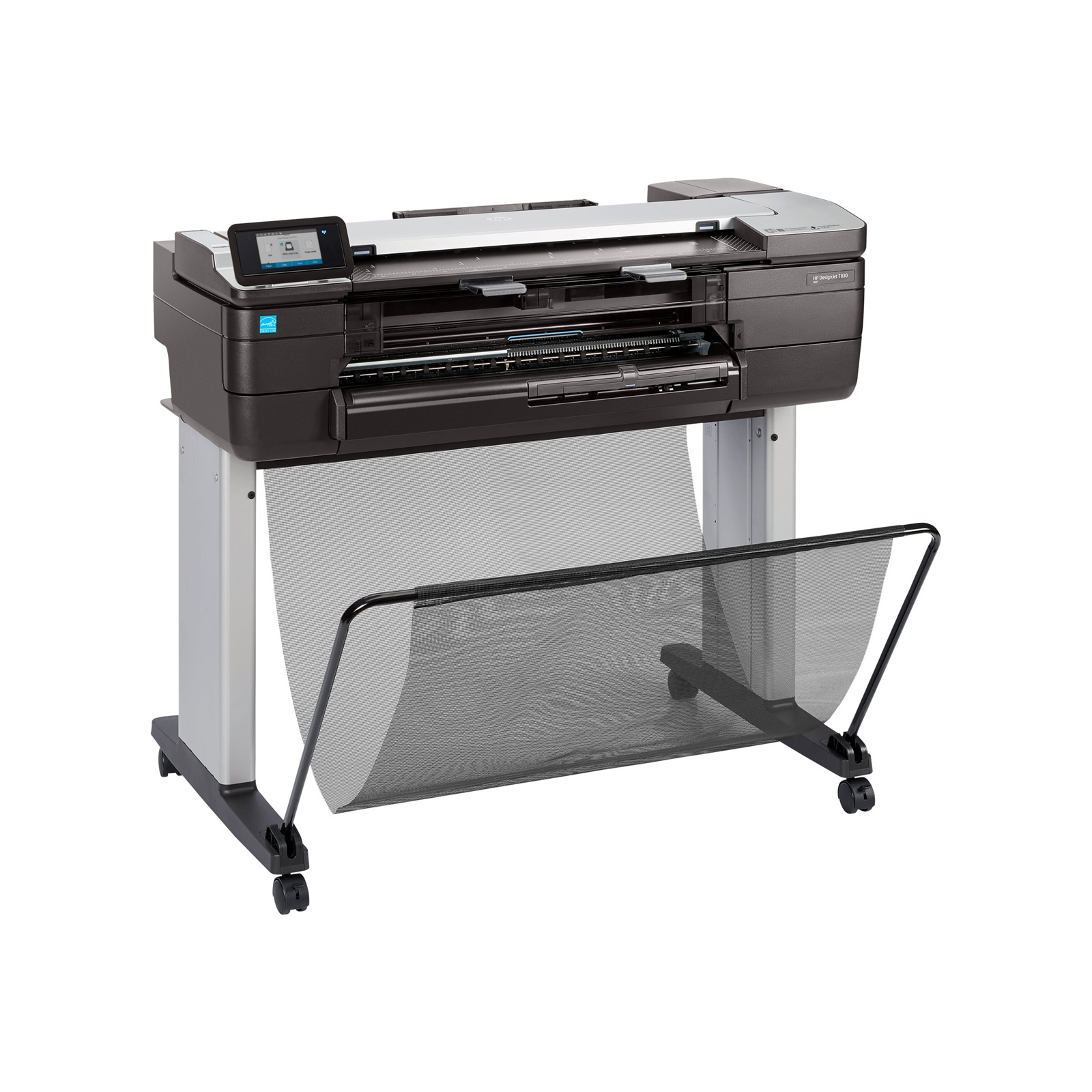

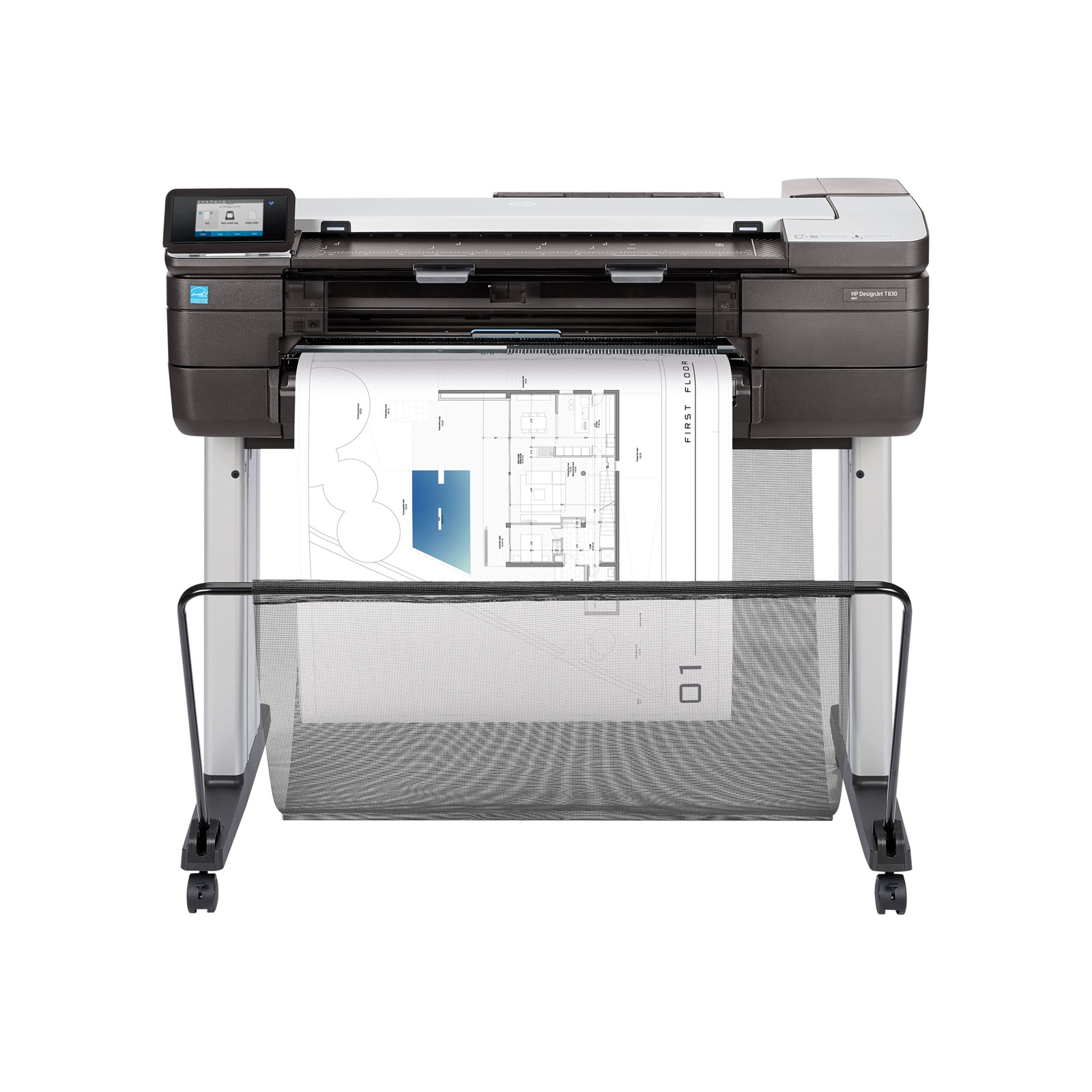

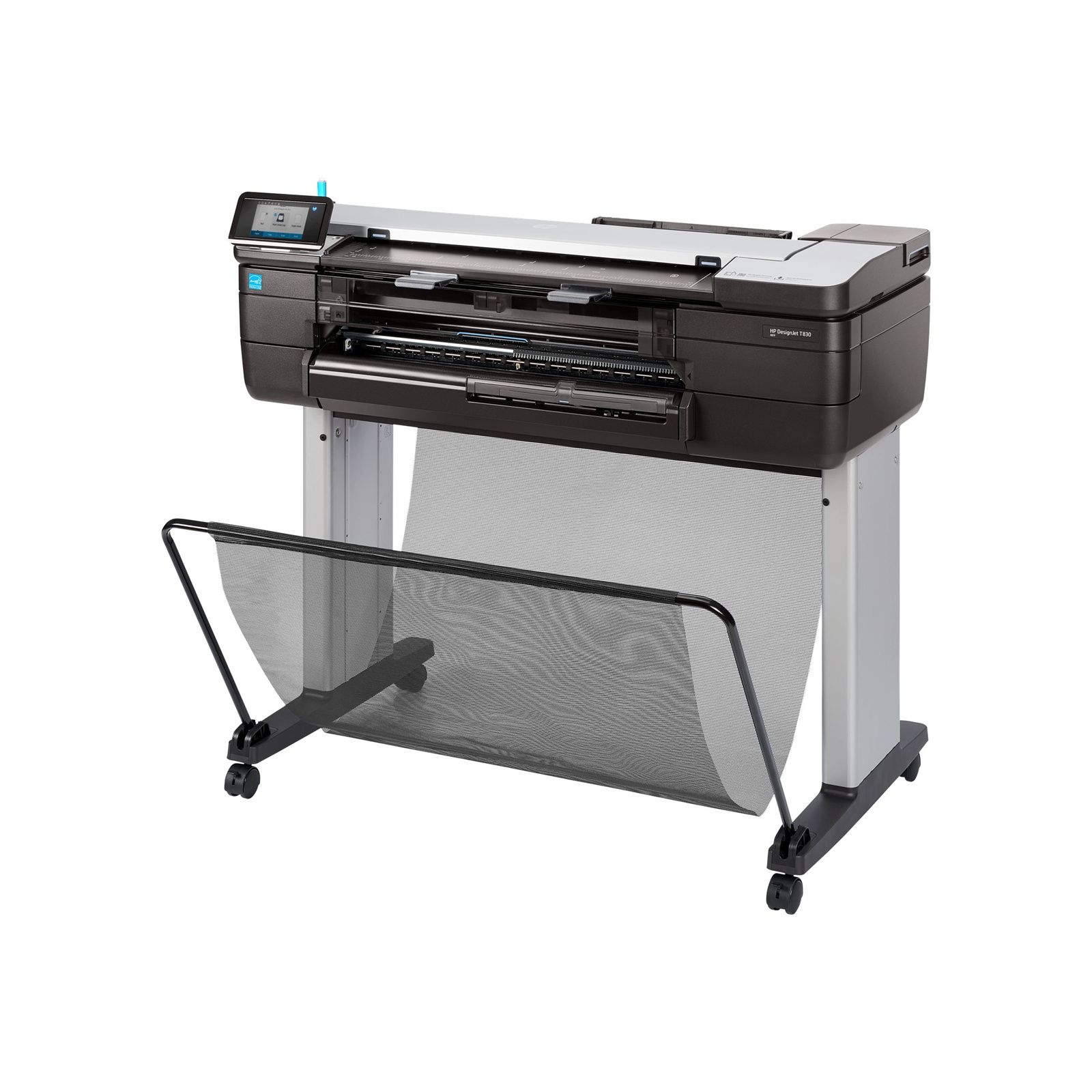

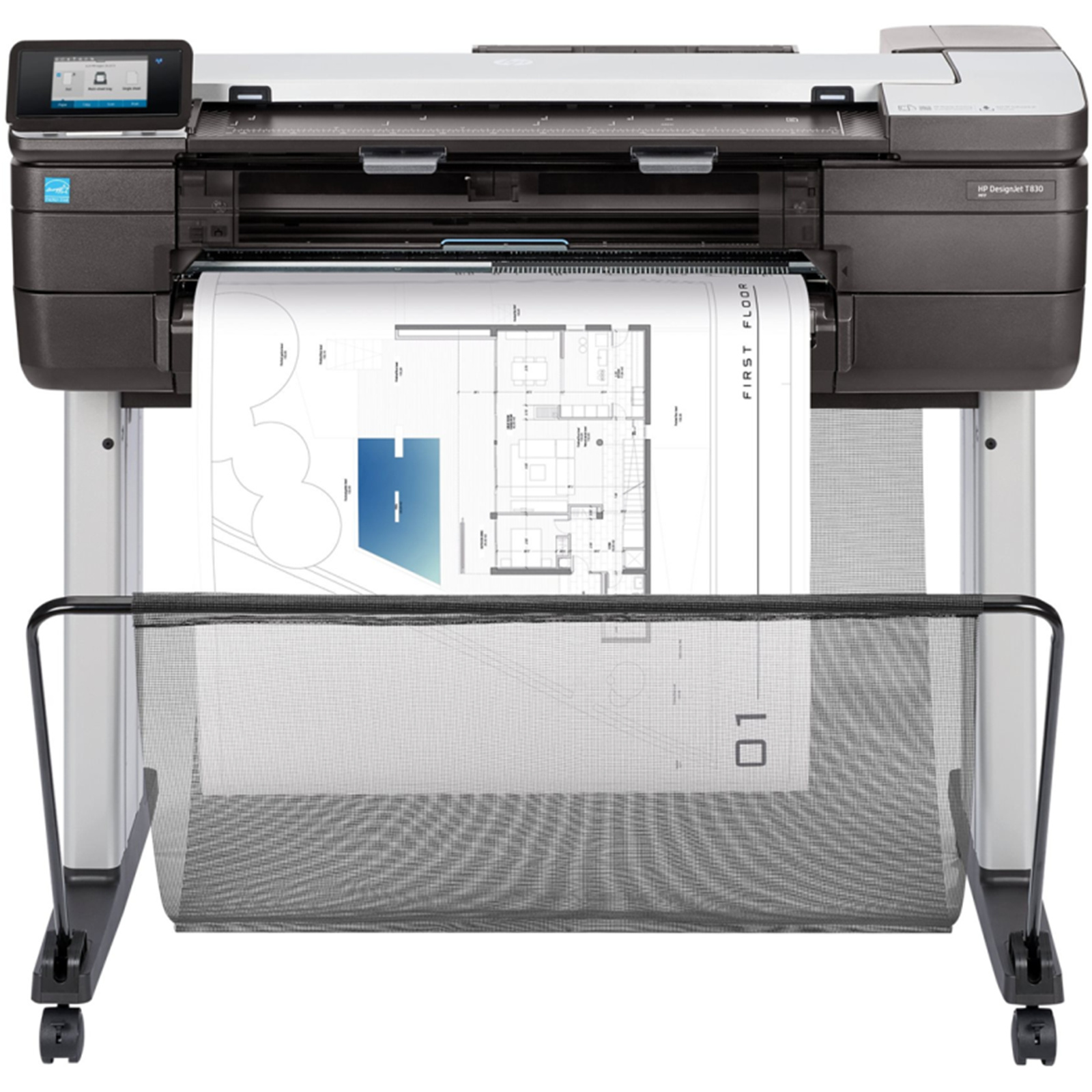

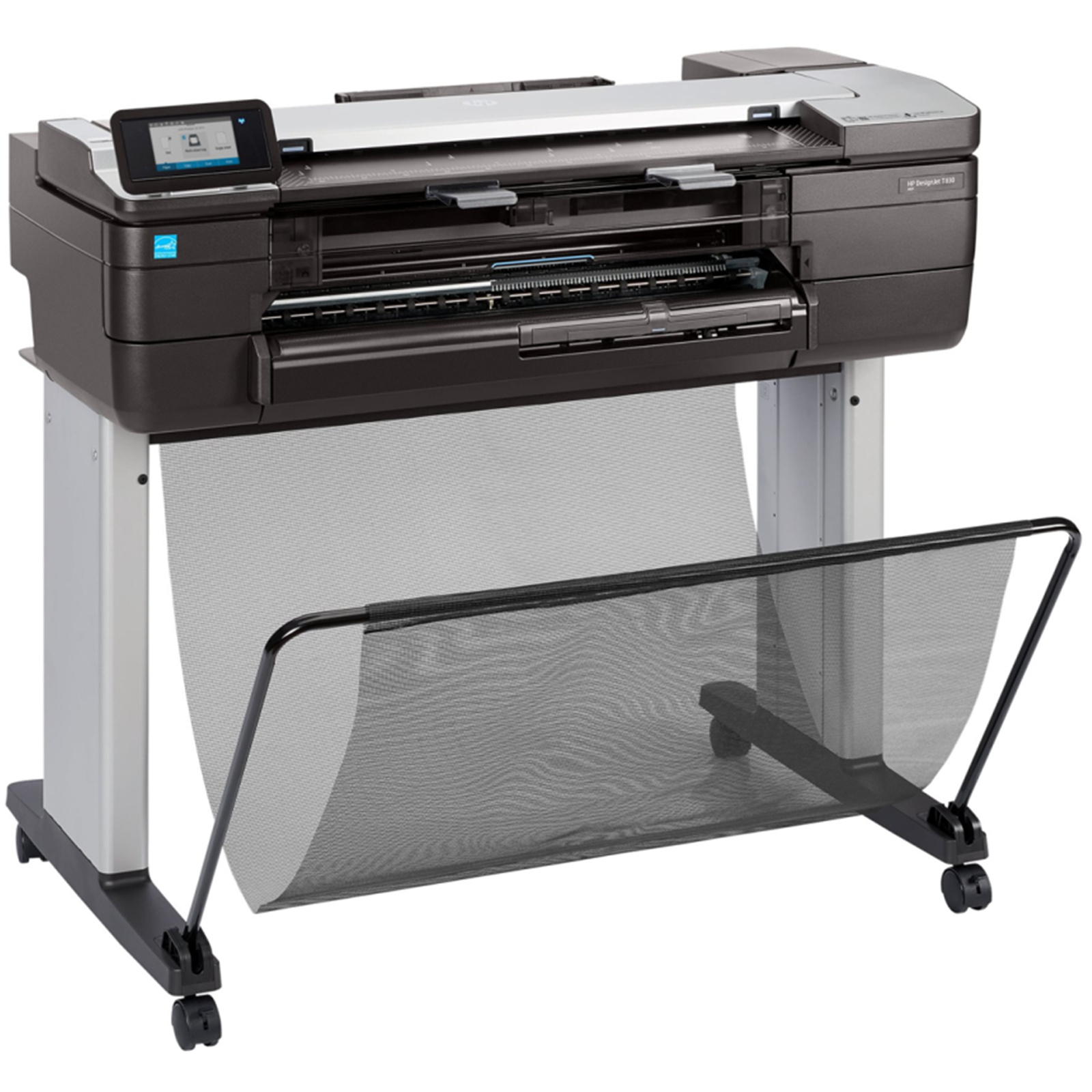

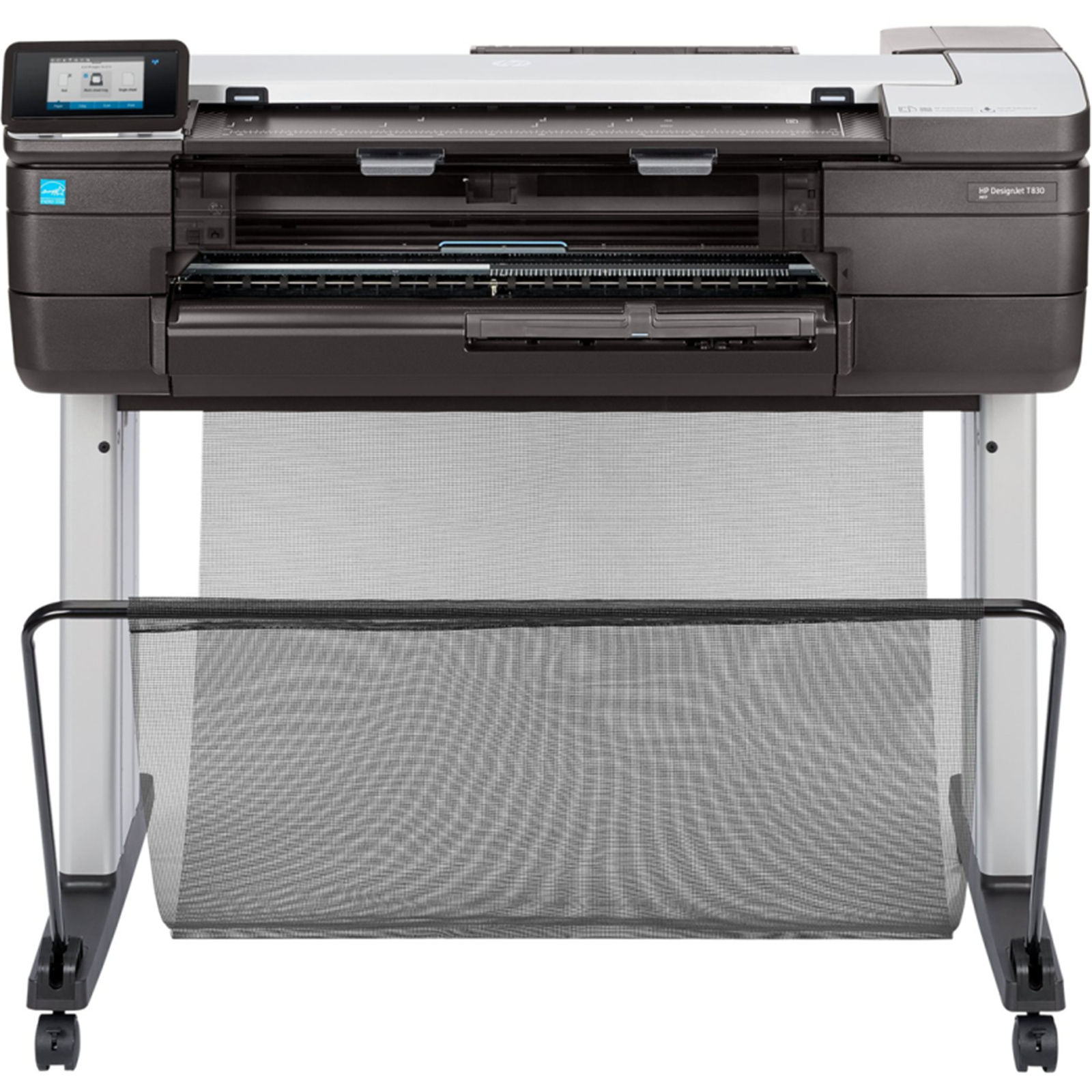

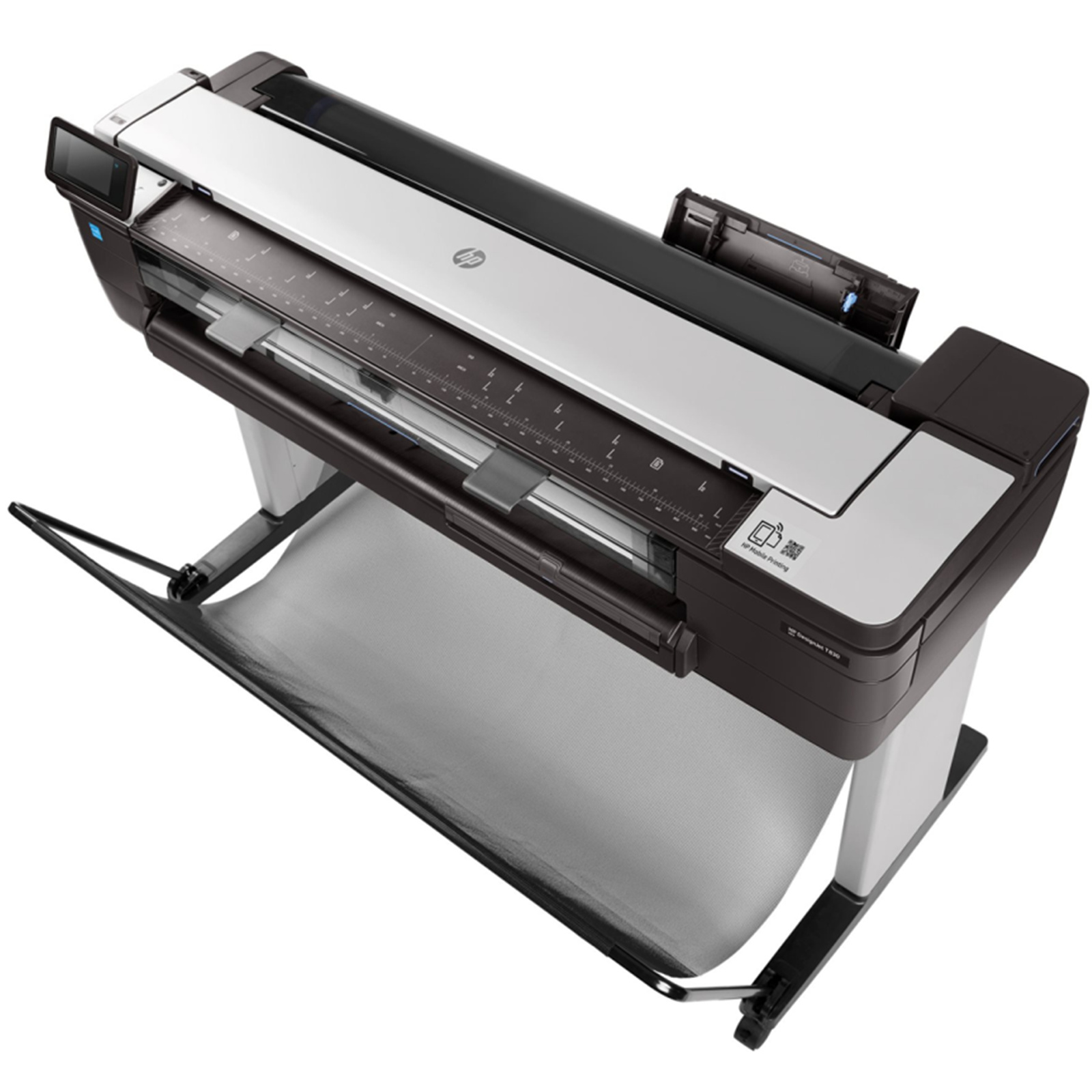

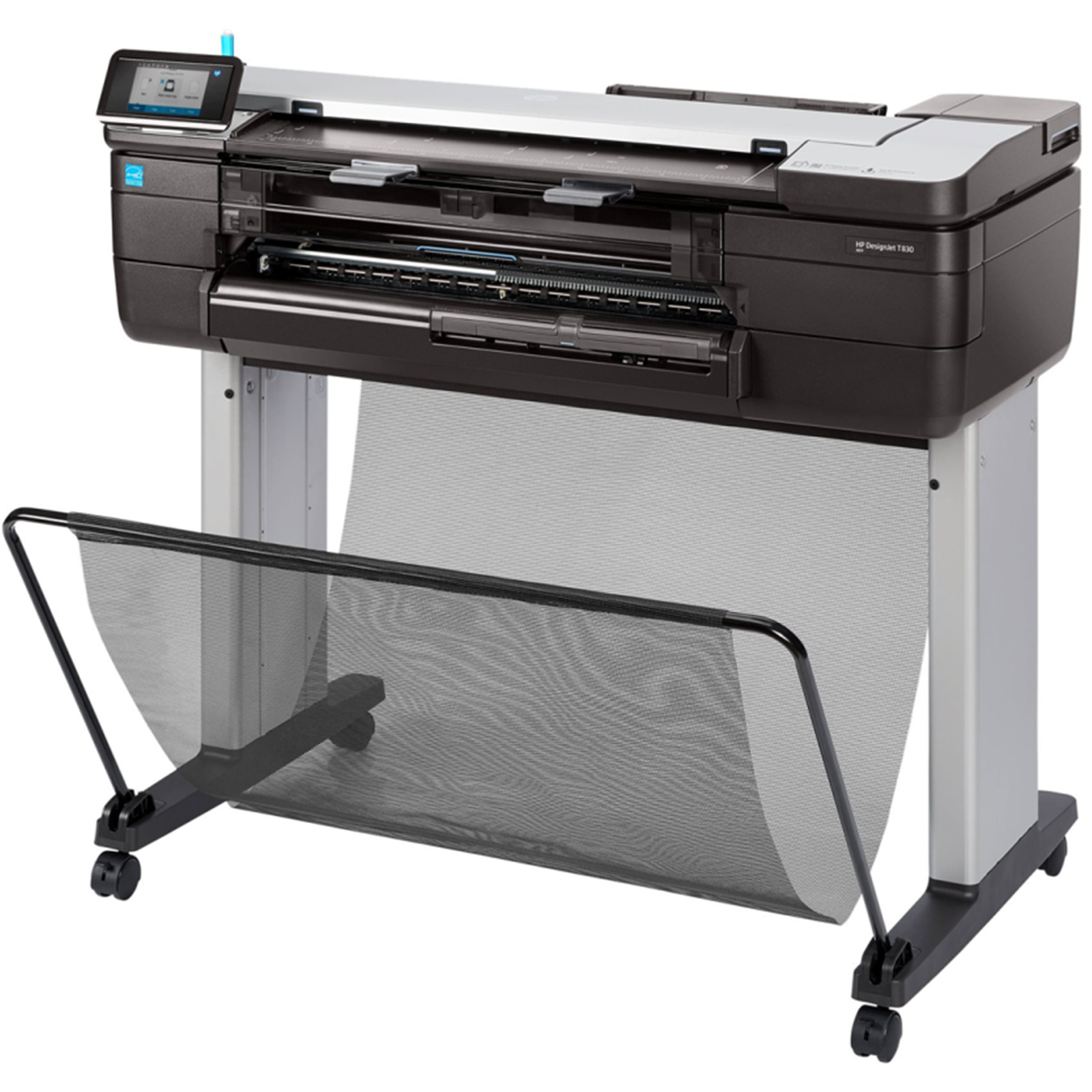

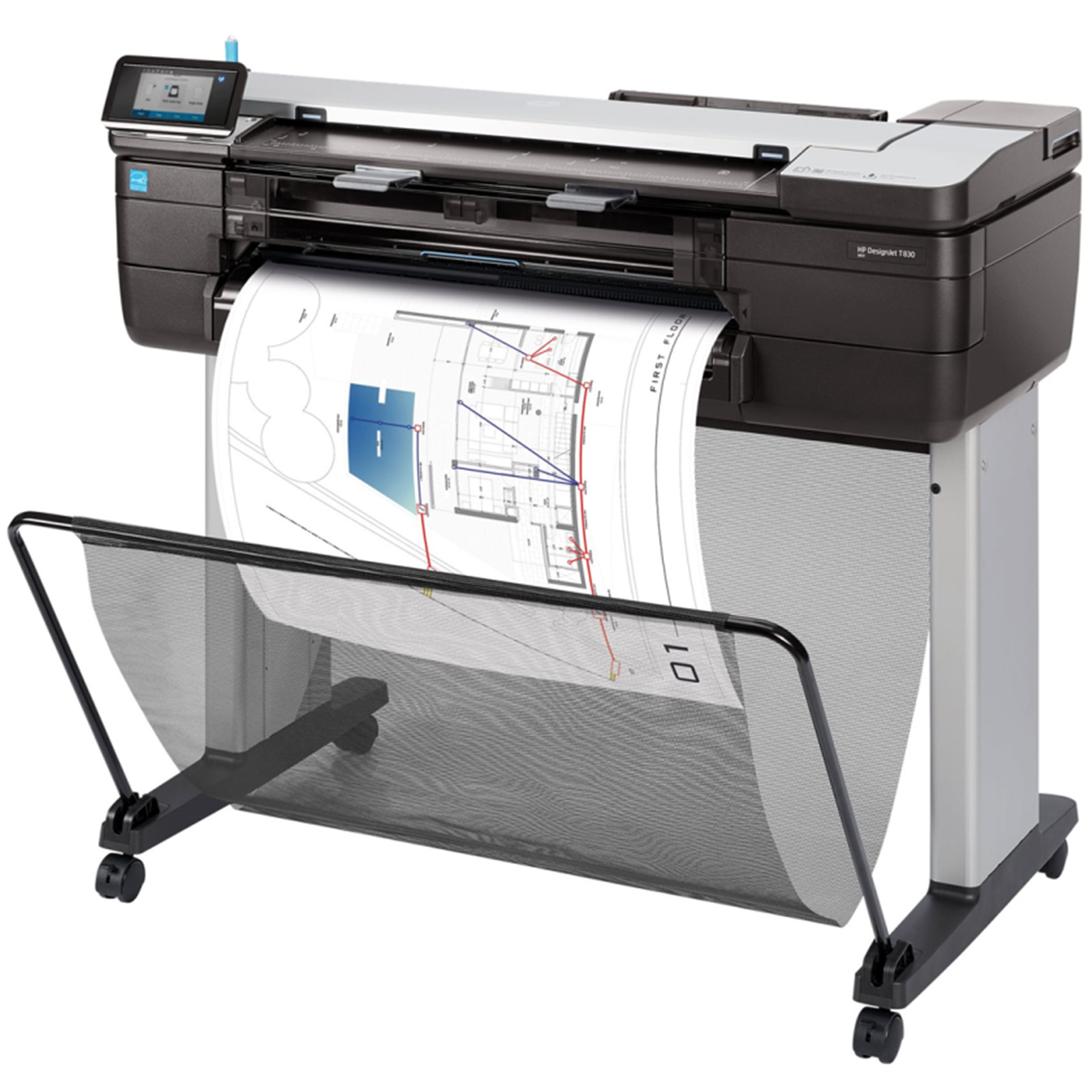

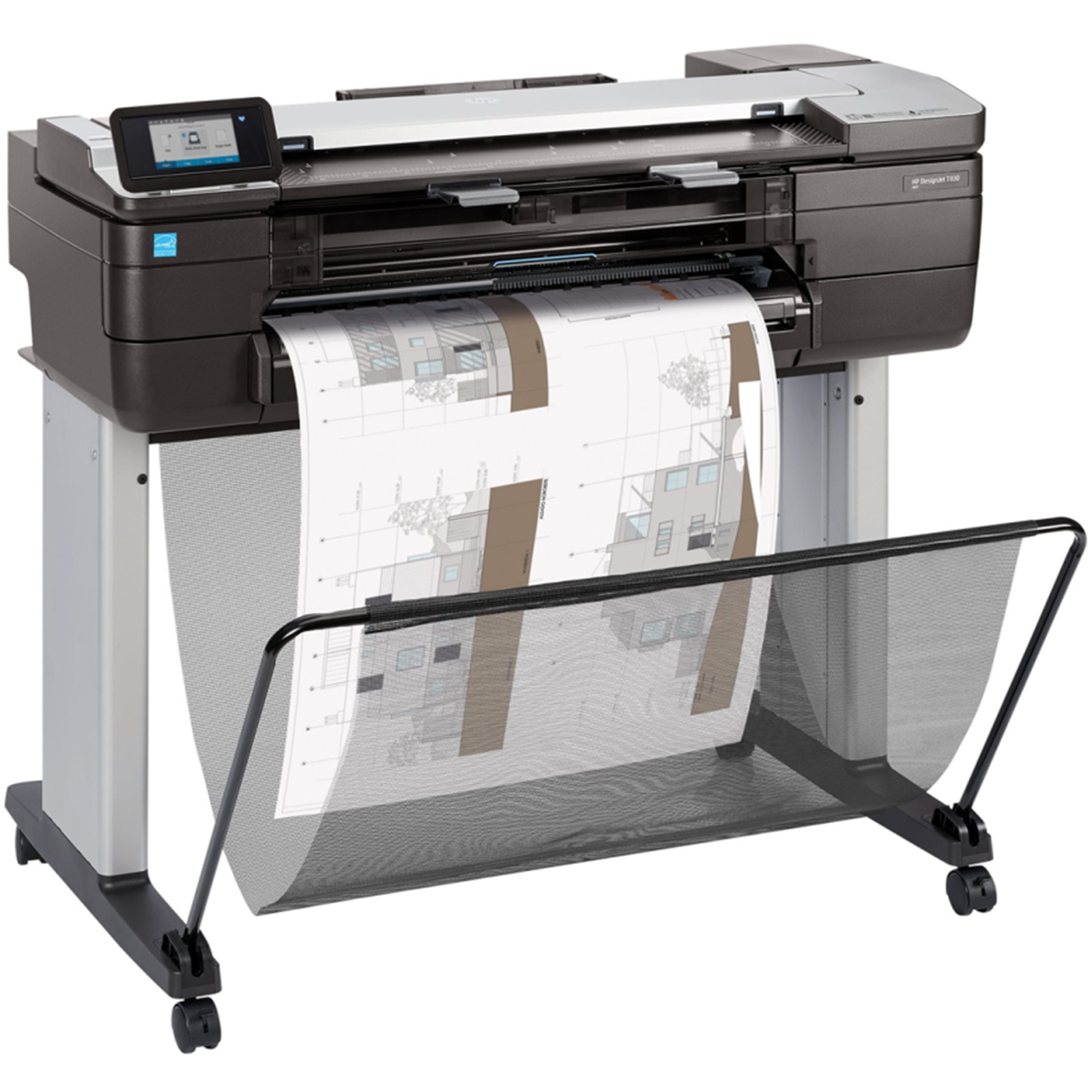

HP DesignJet T830 24-in MFP A1 Printer

Print Specifications

Print Technology

HP Thermal Inkjet

Average Weekly Print Volume (D/A1)

90 A1/D prints per week

Print Languages

HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF

Model Size

610 mm

Guaranteed Minimum Line Width

0.07 mm (ISO/IEC 13660:2001(E))

Guaranteed Minimum Line Width Footnote

Measured on HP Matte Film

Theoretical Minimum Line Width

0.02 mm (HP-GL/2 addressable)

Line Accuracy

±0.1%[2]

Line Accuracy Note

±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A1/D HP Heavyweight media in Best or Normal mode with Original HP inks

Print Speed

26 sec/page on A1, 81 A1 prints per hour[1]

Print Speed Line Drawing (Economode, A1 Plain Paper)

81 A1 prints per hour

Print Time Line Drawing (Economode, A1 Plain Paper)

26 sec/page

Maximum Optical Density (Black)

8 L* min/2.10 D[3]

Print Quality Color (Best)

Up to 2400 x 1200 optimized dpi

Maximum Optical Density Footnote (Black)

With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Non-Printable Area (Cut-Sheet)

5 x 5 x 5 x 5 mm

Non-Printable Area (Roll Media)

5 x 5 x 5 x 5 mm

Printing Path

Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, print from USB pen drive

Printer Drivers Included

HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows

Internal Storage

None

Memory

1 GB

Scanner Specifications

Scanner Type

Sheetfed, CIS (Contact Image Sensor)

Scan Size, Maximum

610 mm x 2.77 m

Scan Size, Minimum

203 x 127 mm

Scan File Format

JPEG, PDF, TIFF

Scan Input Modes

Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile

Maximum Media Thickness

0.8 mm

Linear Scan Speed

Up to 3.81 cm/sec (color, 200 dpi); Up to 11.43 cm/sec (grayscale, 200 dpi)

Scan Speed Footnote

Measured at 200 dpi in color and grayscale

Scan Resolution, Optical

Up to 600 dpi

Enhanced Scanning Resolution

600 dpi

Copier Specifications

Copier Settings

Content type; Lighter/Darker; Background noise removal; Background color removal; Blue print invert; Translucent media; Color; Scan full width (24-in); Auto De-skew; Resize; Copy Margins; Quality

Copies, Maximum

Up to 99 copies

Copy Reduce / Enlarge Settings

50 to 400%

Connectivity And Communications

Connectivity, Standard

Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

Connectivity, Optional

HP USB 3.0 to Gigabit LAN Adapter

Network Ready

Standard

HP EPrint Capability

Yes

Mobile Printing Capability

Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

Power

Power Consumption Description

35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max

Cartridges And Printheads

Number Of Print Cartridges

4 (C, M, Y, mK)

Print Cartridge Volume Delivered

HP 728 Ink Cartridge: matte black, cyan, magenta, yellow (300 ml); cyan, magenta, yellow (130 ml); matte black (69 ml); cyan, magenta, yellow (40 ml)

Print Heads

1 (C, M, Y, mK)

Print Head Nozzles

1376

Ink Drop

6 pl (C, M, Y); 12.6 pl (mK)

Ink Types

Dye-based (C, M, Y); pigment-based (mK)

Supported Printing Media

Finished Output Handling

Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

Media Types

Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media Sizes Supported

Input tray: A4, A3; Manual feed: A2, A1

Media Sizes, Custom

Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm

Media Sizes Standard (Metric Rolls)

279 to 610 mm

Media Width, Maximum

610 mm

Media Weight, Recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Media Thickness

Up to 11.8 mil

Roll External Diameter

100 mm

Roll Maximum Input

1

Roll Maximum Weight

4.1 kg

Supported Primary Applications

Line drawings; Renderings; Presentations

Environmental

Operating Temperature Range

5 to 40ºC

Storage Temperature Range

-25 to 55ºC

Operating Humidity Range

20 to 80% RH

Non-Operating Humidity Range

0 to 95% RH

Acoustic Power Emissions

6.5 B(A) (operating), <3.4 B(A) (idle)

Acoustic Pressure Emissions

48 dB(A) (operating), <16 dB(A) (idle)

Dimensions And Weight

Dimensions Without Stand (W X D X H)

1098 x 605 x 1155 mm

Weight

46.7 kg

Box Contents

What's In The Box

HP DesignJet T830 24-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers

Software Included

HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Certification And Compliance

ENERGY STAR® Certified

Yes

Electromagnetic Emission Standard

Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Environmental Certifications

ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine.

Safety Approvals And Requirements

USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia (EAC); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS)
