3D Printing Systems UP Mini 3 3D Printer
Build Volume 200 x 200 x 200mm
3D Printing Systems UP Mini 3 3D Printer
Build Volume 200 x 200 x 200mm
- Brand: 3D Printing Systems
- MPN: 3D Mini3
- Part #: PTRPTS0029
- UPC:
- Brand: 3D Printing Systems
- MPN: 3D Mini3
- Part #: PTRPTS0029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 3D Printers





3D Printing Systems UP Mini 3 3D Printer Build Volume 200 x 200 x 200mm
- Brand: 3D Printing Systems
- MPN: 3D Mini3
- Part #: PTRPTS0029

Product URL: https://www.pbtech.co.nz/product/PTRPTS0029/3D-Printing-Systems-UP-Mini-3-3D-Printer-Build-Vol
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
UP Mini 3--A perfect printer for Schools and Families
- True auto calibration - Load balancing
- Dual filtration system for toxic & odor free printing
- Larger build volume
- Automatic door pause protection

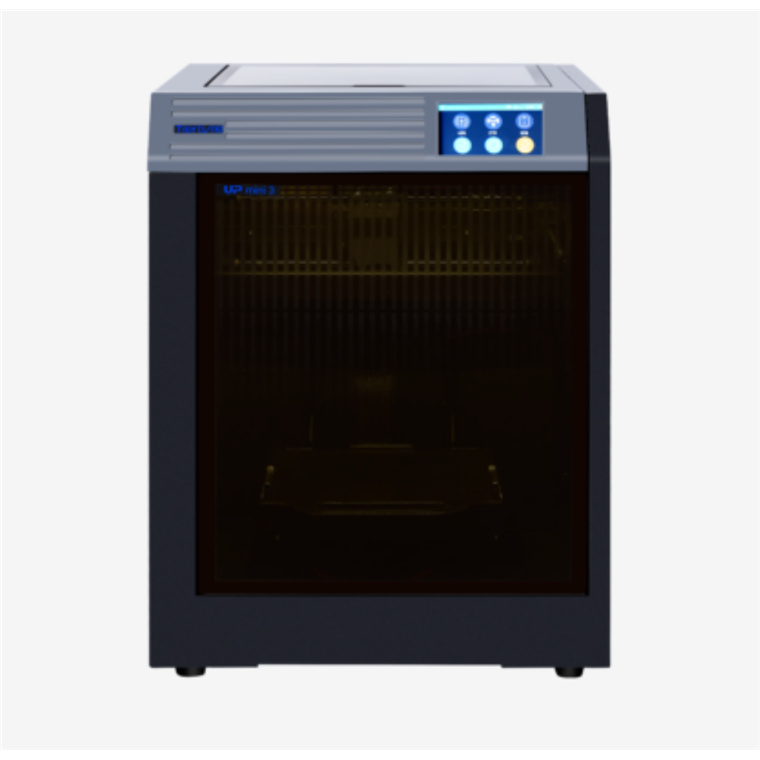

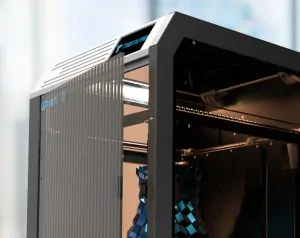

A New look for the UP Mini3

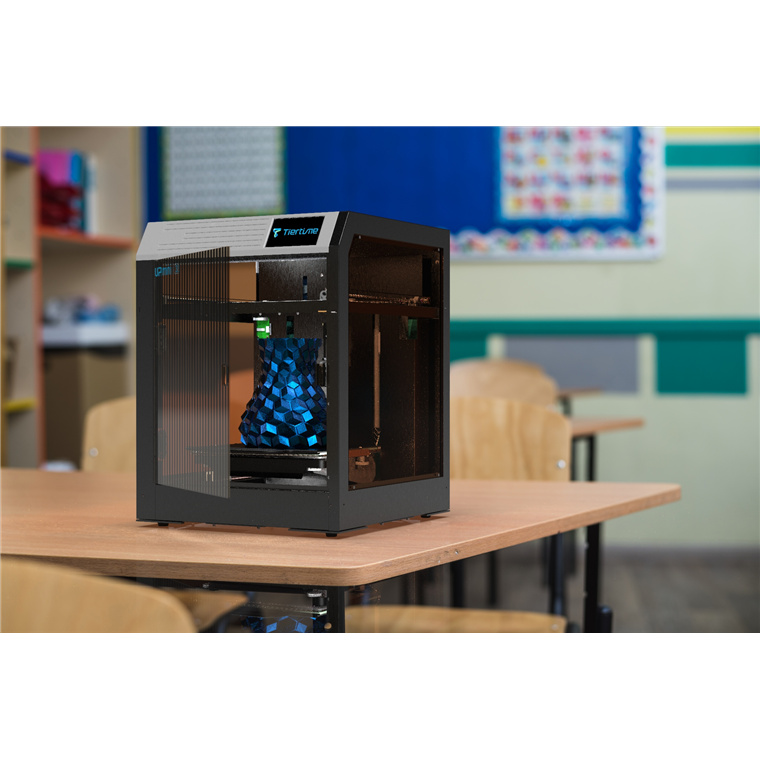

Designed with the classroom in mind, the all-new UP Mini 3 not only has a new look, but it also has made crucial upgrades with bigger build plate, true auto calibration and filament runout protection.

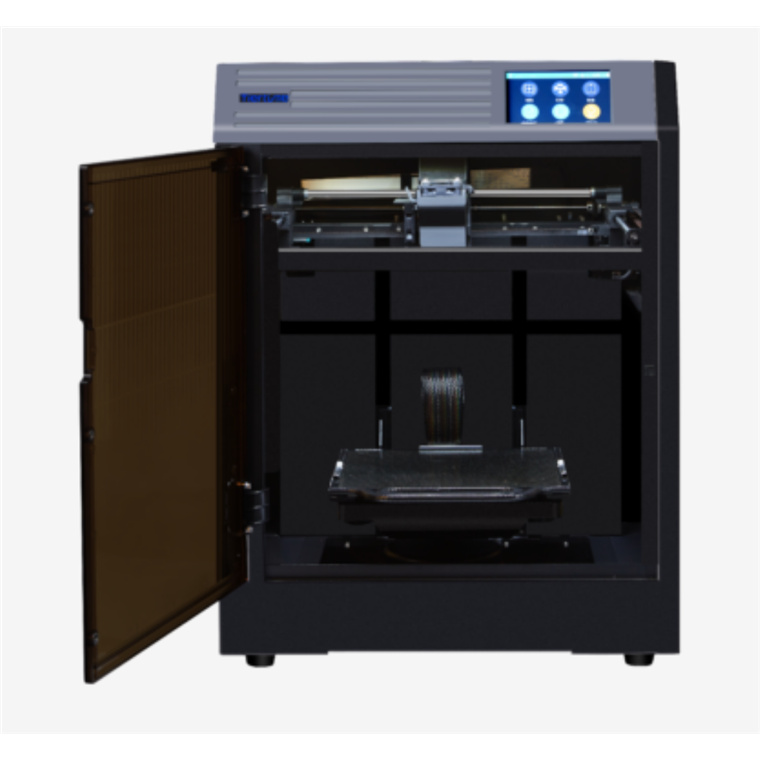

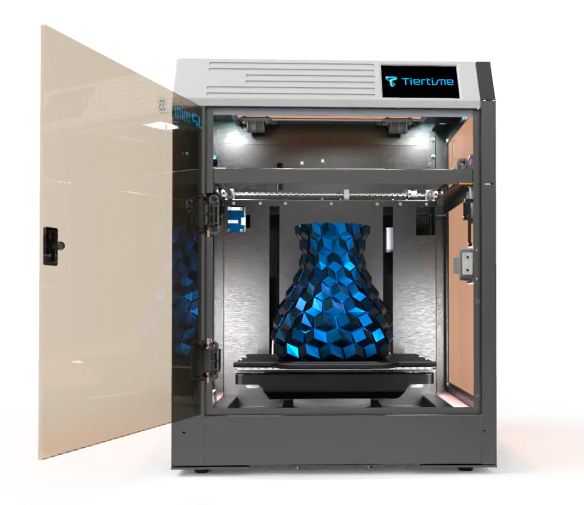

Door Pause Protection
Children are full of curiosity and, let's face it, very excitably impatient sometimes. Kids prematurely opening 3D printer's door during a print is like the 3D printing version of "Are we there yet?" during a car ride. With UP Mini 3's smart door pause protection any time the door is opened the printer will pause mid-printing, so their little fingers will be kept safe from any moving parts inside the printer as it is operating.

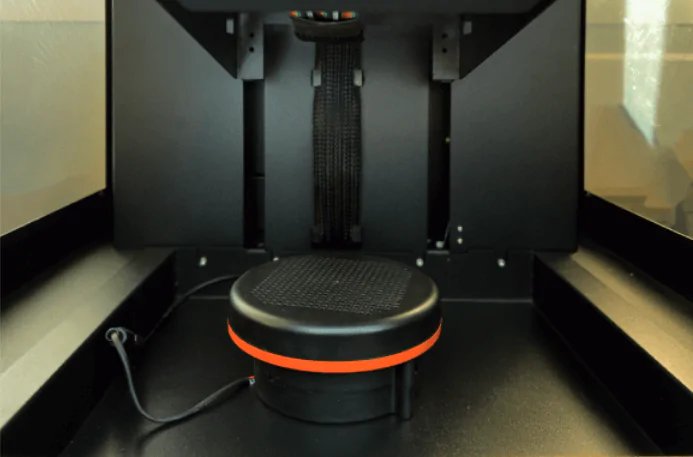

Dual Filtration Systems
Another way to keep it safe to use the UP Mini 3 in the classroom and in the home is effective filtering systems. Like its big brother the UP 300, the UP Mini 3 has two filtration systems to ensure the absolute purity of airflow around the printer. A HEPA and activated carbon filter combined with higher airflow capacity allows the maintaining of minimal UFP and VOC density inside the printer's large enclosure.
66% larger build volume
Enjoy a larger printing workspace with the UP Mini 3. The build volume has been increased from 120 x 120 x 120 mm to 200 x 200 x 200 mm.
Tiertime Print Queue
The new Tiertime print queue allows for multiple users on the network can become the queue's administrator, controlling and re-ordering the print queue. Select the next file from the print queue when with the printer, minimising downtime and letting you make faster than ever before!

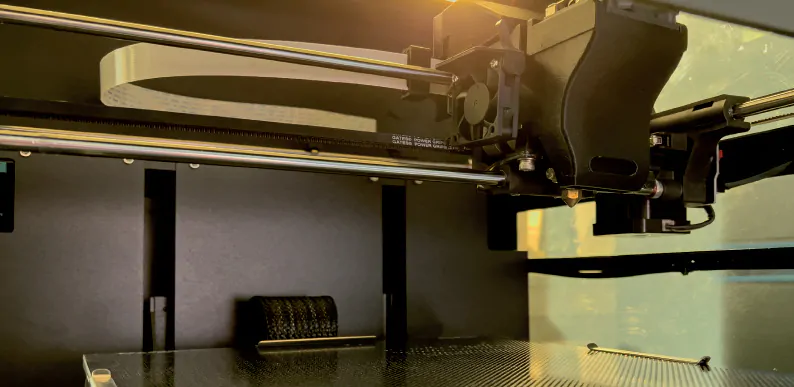

Stable build platform
Similar to the UP 300, the UP Mini 3 now has a sliding rail system in the build platform. Slide the plate into the rail guide for secure printing and reduce prints from lifting.
True Auto Calibration based on Load Balancing
The new bed leveling mechanism is based on the concept of load balancing. It also means there are no more nozzle height adjustments, everything is calibrated with a simple touch of a button.
Let UP Mini 3 take care of the rest so that you can experience greater 3D printing accuracy.
Specifications
Specifications
Printing Technology
MEM(Melted Extrusion Modeling)
Extruder
Single
Nozzle Diameter
0.4mm
Buildplate Max. Temperature
100°C
Connectivity
USB cable and Wi-Fi
Touch Screen
4.3" LCD Screen
Build volume
200 x 200 x 200 mm (XYZ)
Calibration and leveling
True Touch 2.0, Automatic
Layer Resolution
0.1/0.15/0.2/0.25/0.3/0.35mm
Buildplate Surface
UP Glass Perf or UP Glass Flex, Heated
Air Filtration System
HEPA and Activited Carbon Filters
Print Resume On Power interrupt
Yes
Pause to Change Filament Type
Yes
Out of Filament Detection
Yes
Filament
UP Fila ABS, ABS+, PLA, TPU and 3rd Parties
Filament Diameter
1.75mm
Filament Spool Compatibility
500g, 1kg or 2kg
Operating Sound
47db
Software
Software
UP Studio 2 or above
Supported OS
Windows 7 or later Mac OS X, iOS 8 or later
Supported File
.tsk, .up3, .ups, .stl, .obj, .3mf, .ply
Formats
.off, .3ds
Special Features
Preview Support Structures
Tiertime Print Queue
Power Loss Recovery
Door Open Pause Protection
Dimensions
Machine Dimensions
487 x 423 x 550 mm
Net Weight2
15kg
Environment
Operating Amblent
15-30°C. 20-70% RH
Temperatures
non
Requirements
Power Input
110-241 VAC. 50-60Hz
