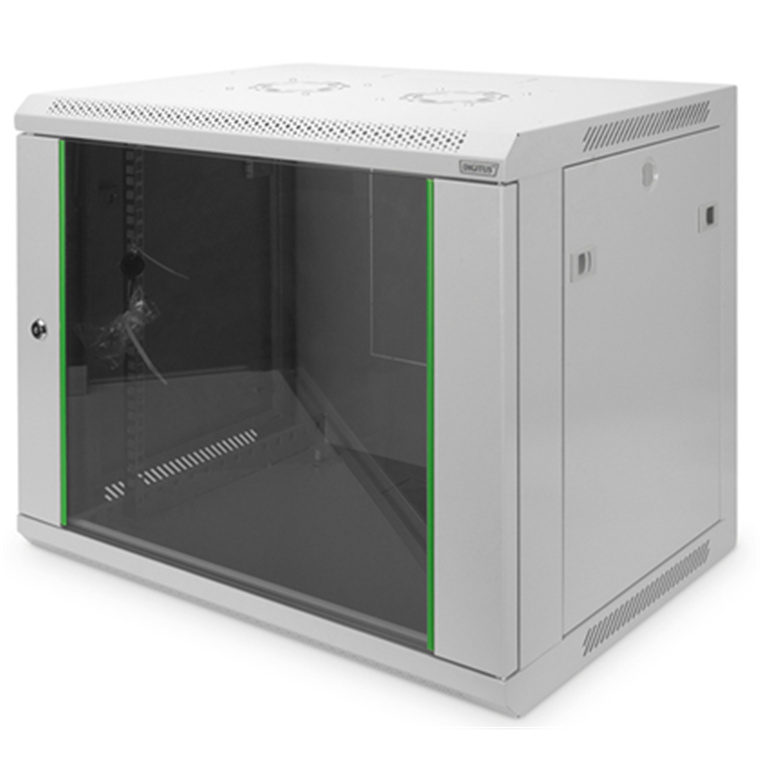

Digitus DN-19 12-U-EC 12U 19" Wall Mount Server Cabinet 600(w)x450(d)x638(h)
Digitus DN-19 12-U-EC 12U 19" Wall Mount Server Cabinet 600(w)x450(d)x638(h)
- Brand: Digitus
- MPN: DN-19 12-U-EC
- Part #: RACDIG0733
- UPC:
- Brand: Digitus
- MPN: DN-19 12-U-EC
- Part #: RACDIG0733
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wall Mount Cabinets





Digitus DN-19 12-U-EC 12U 19" Wall Mount Server Cabinet 600(w)x450(d)x638(h)
- Brand: Digitus
- MPN: DN-19 12-U-EC
- Part #: RACDIG0733

Product URL: https://www.pbtech.co.nz/product/RACDIG0733/Digitus-DN-19-12-U-EC-12U-19-Wall-Mount-Server-Cab
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 1 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Digitus 12U 19" Wall Mount Server Cabinet - 600(w)x450(d)x638(h)
The Wall Mounting Cabinets of the Dynamic Basic Series are made of a robust steel construction. Stability is given due to the welding spots. The side sections are detachable and the installation on the wall is easy so it can be implemented quickly. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
- 450 mm depth provides a space saving installation
- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame
Specifications
MPN
DN-19 12-U-EC
Safety
Class Rating IP20
Door
1x Door Lockable Safety Glass Door 210° door opening angle 1-point-locking-mechanism on the front door
Rails
483 mm (19") profile rails mounted on the front side inside of the cabinet, galvanized 483 mm (19") profile rails are adjustable in depth and with height unit marking Type of profile rail: L shaped
Material
0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated Cable entry on the rear side, roof and base (pre-punched break-outs) Roof is prepared for fan units (punched out entries) Ventilation slots for active and passive ventilation and exhausting 4 earthing points (base, side panel and front door) with protection cap
Colour
Grey
Number of Height Units
12
Ventilation
Passive
Physical
Roof Plate: Yes Earthing: 4 Earthing Points Front Door: Yes Rear Door: No Sidewall: Yes Demountable: No
Dimensions (mm)
600 (w) x 450 (d) x 638 (h)
Loading Capacity
60kg
