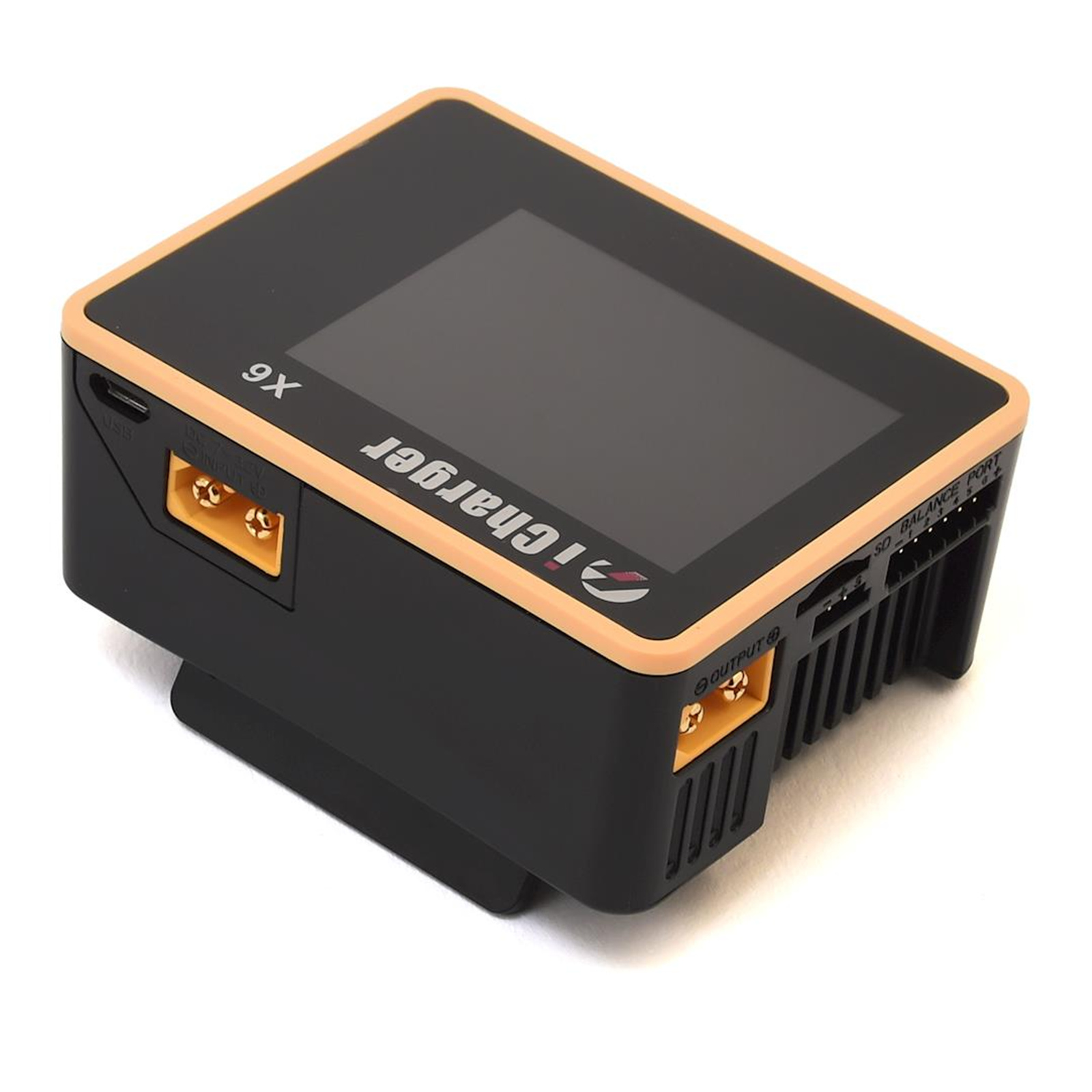

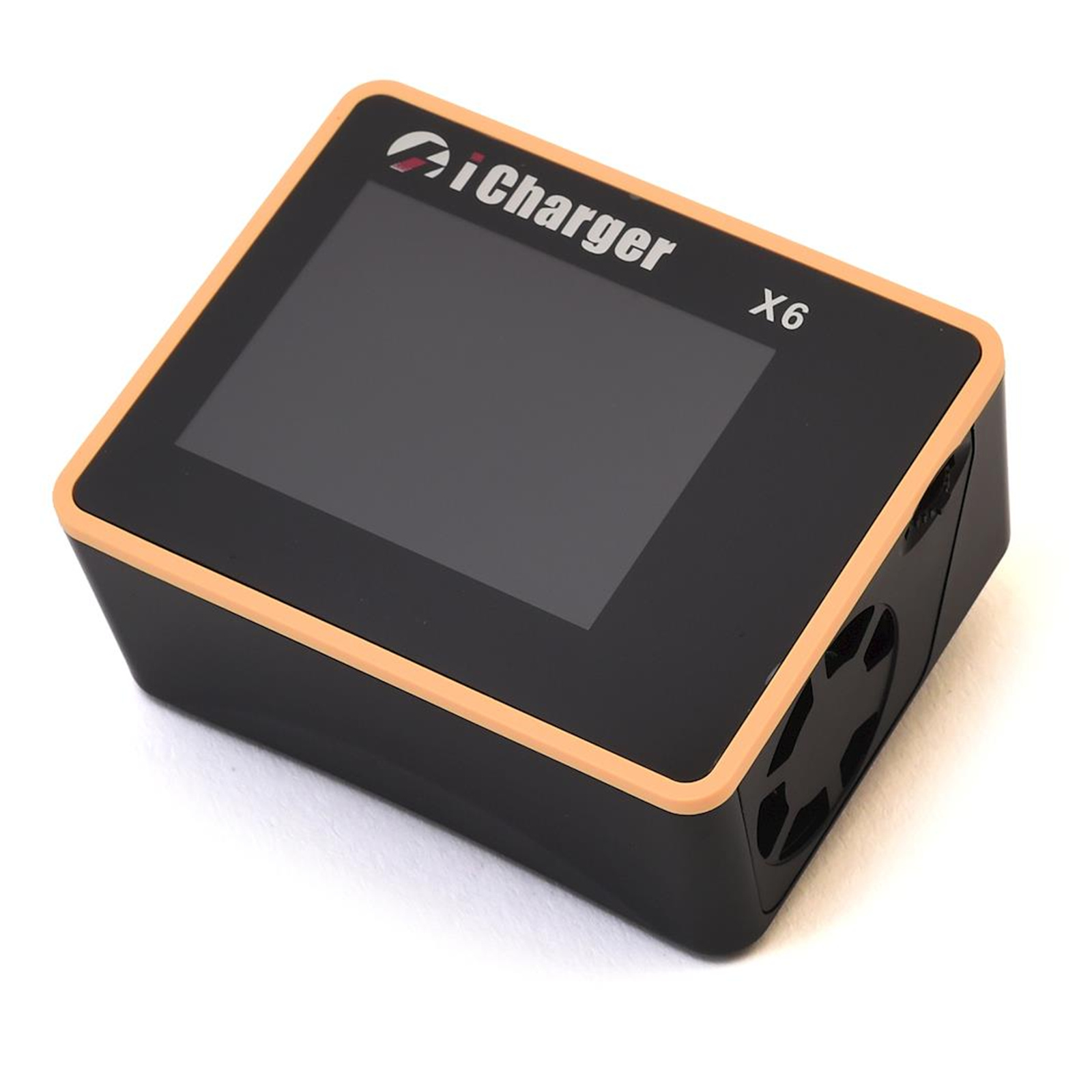

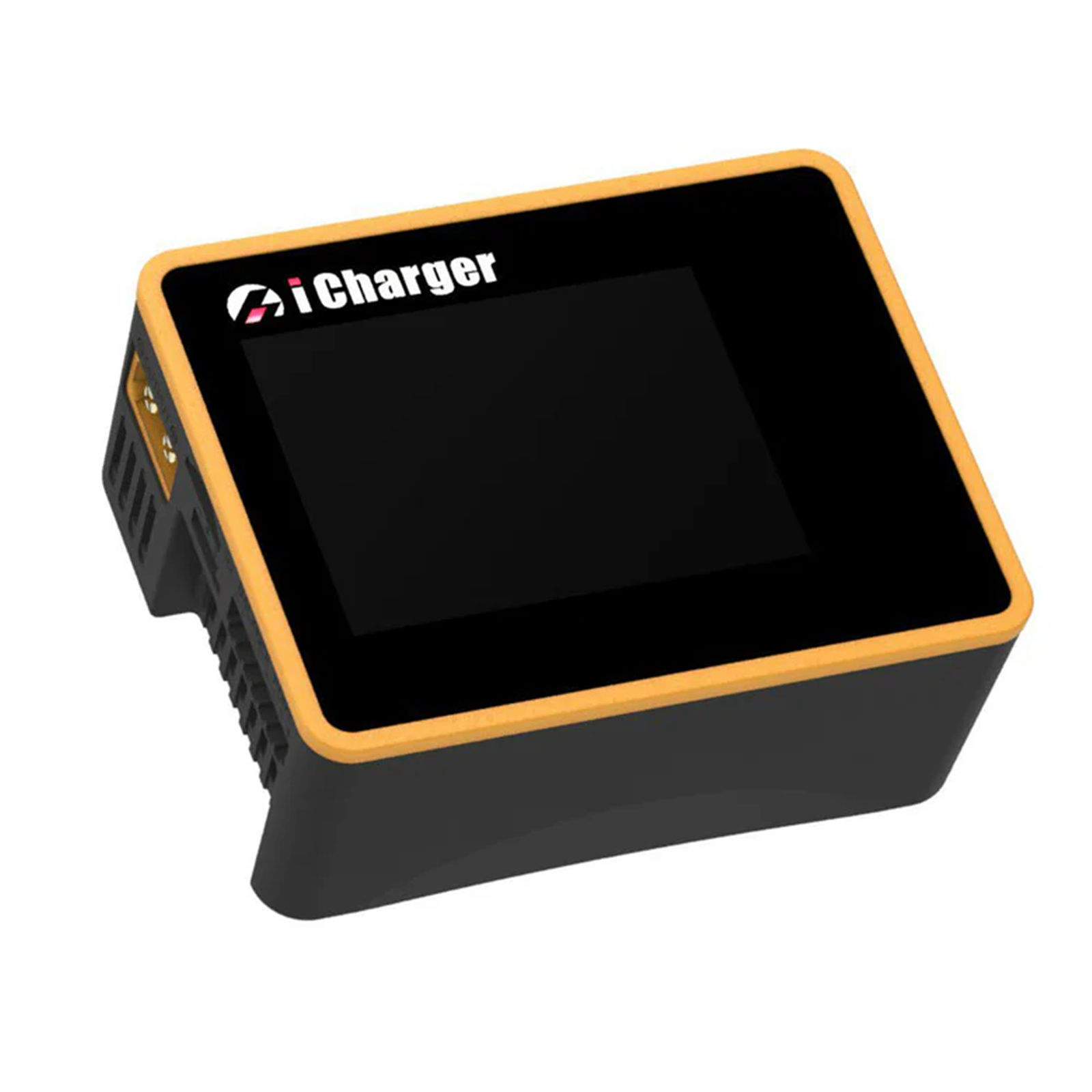

iCharger iCharger X6 Compact 800w DC Battery Charger

  • MPN: ICX6
  • Part #: RCTMRP9001
  • UPC:
CLEARANCE
With promo code $158.19
With promo code $181.92
Save $8 with code CLEARANCE
Save $9 with code CLEARANCE
Without promo code
$ 166 .52 $ 191 .50
 +GST  inc GST

Part of Clearance Zone
For a limited time only, only 3 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$166.52  +GST
$191.50

Four payments of $48.35 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

iCharger X6 800W 30A LiPo 6S

The Junsi X6 Charger is the latest charger on the market that features an incredible power density never before seen! The X6 boasts a whopping 800W charge capabilities at up to 30A on appropriate input voltages. The balance circuit offers a power 2A circuit, allowing your batteries to be maintained at the highest levels of power possible. Featuring an excellent IPS color display, the X6 will be easily seen in all lighting sources. The X6 utilizes the famous and simplistic Junsi user interface, as well as standard logging & servo testing abilities.

High-Power DC/DC Conversion

X6 uses advanced Synchronous buck-boost DC/DC converter technology with high power, high current and high-performance power conversion circuit. The maximum charge power capacity is up to 800W, the maximum charge/discharge current of a channel is up to 30A.

Broad Battery Compatibility

X6 Supports 6s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-20s NiMH/NiCd batteries and 1-12s Pb batteries.

Comprehensive Digital Protection

With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)

Smart Fan Control

Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.

Temperature Safety Management

Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.

Data Storage and Transfer

This charger can save 32 parameters sets and support the data import/export to SD card.

Vivid IPS Display

A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.

Versatile Discharge Functions

Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

Internal Resistance Measurement

Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.

Full Protection Suite

X6 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.

Upgradeable and Smart Analytics

Supports upgrading the hardware program by USB port or SD card. X6 also supports the "Junsi Console" software and can display, plot and analyze the charge and discharge data by it.

Specifications

Product Type

Battery Charger

Brand

iCharger

Net weight

168g

Dimension

83x65x37 ±0.5mm

Input Voltage Range

10.0-32.0VDC

Maximum Input Current Limit

<35A

Maximum Charge/Discharge Current

30A

Maximum Charge Power Capacity

800W

Maximum Discharge Power Capacity

30W

Maximum Regenerative Discharge Power Capacity

800W

Maximum Extra Discharge Power Capacity

900W @ 30V/30A

Maximum Current Drain for Balancing

>2A

Includes

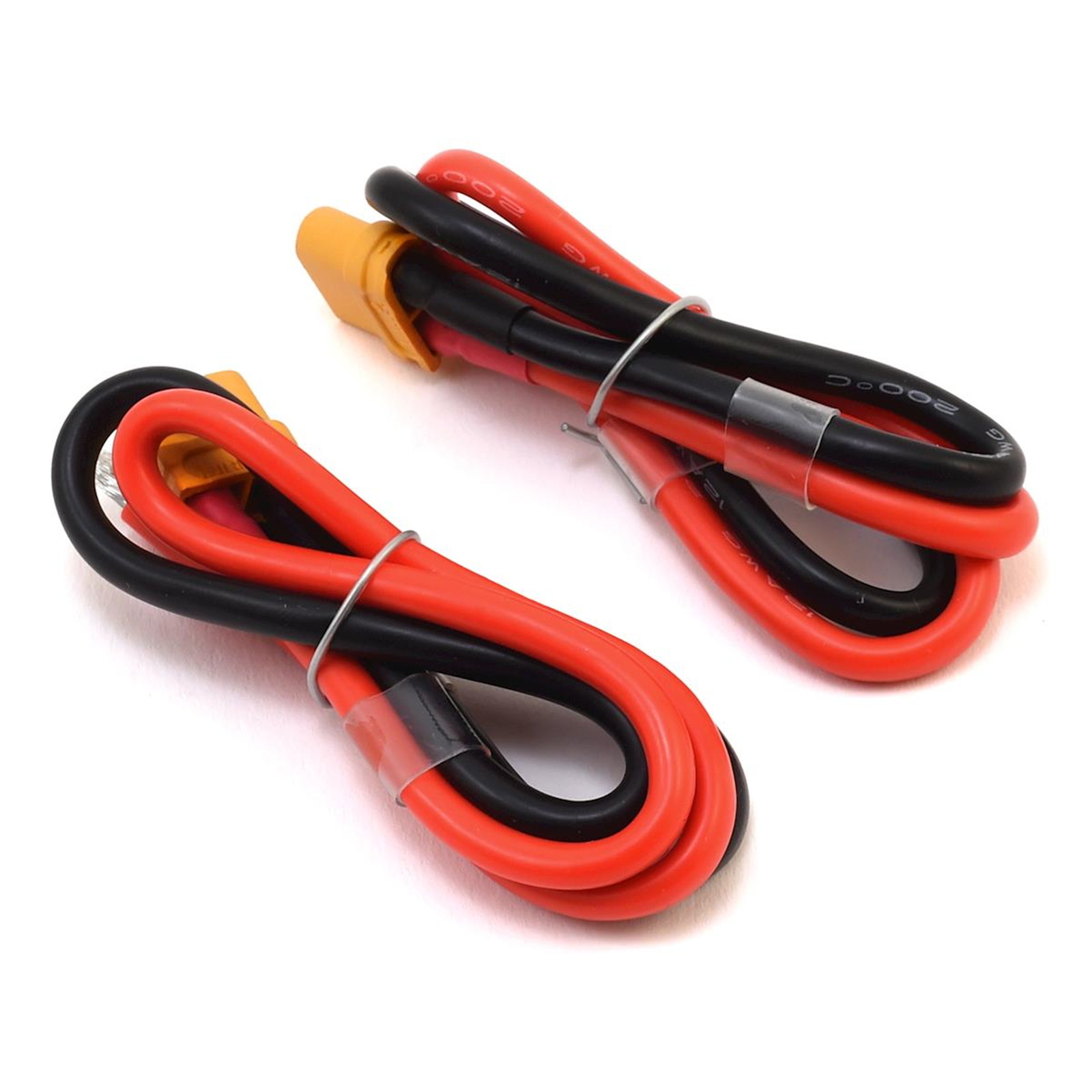

(2) Input/Output Cables
(1) CD Rom Manual

Manufacturer Part No:
ICX6
Brand:
Product Type:
Compact 800w DC Battery Charger
UPC
-
Product Family:
iCharger
Shipping Weight:
0.4 kg
PB Part No:
RCTMRP9001
Product Model:
X6
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake
