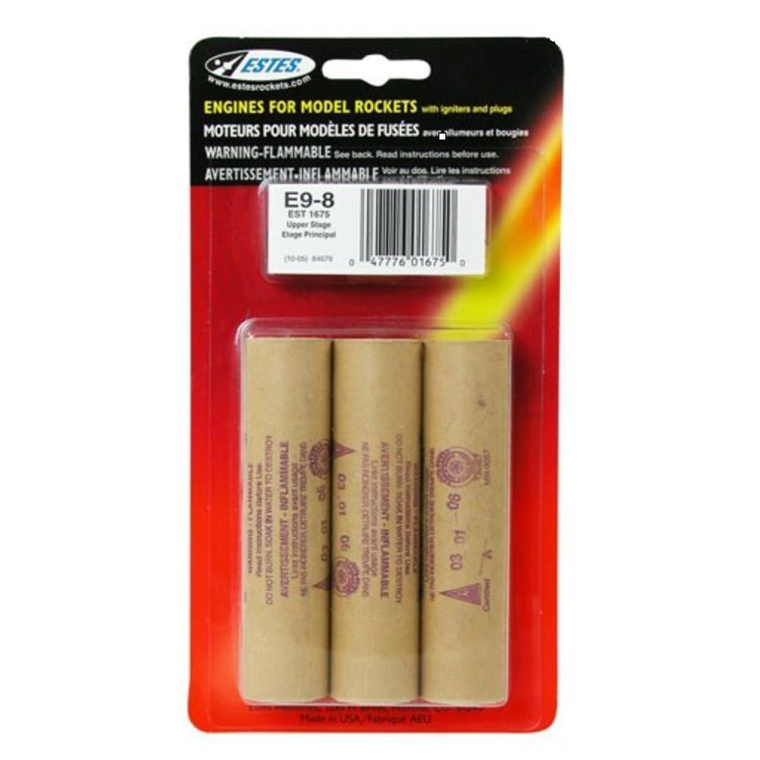

Estes E9-8 - E Rocket Engine - 3 Pieces

PB Tech price: PB Tech price:
$41 74  +GST $48 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Estes E9-8 - E Rocket Engine - 3 Pieces

Estes E9-8 - E Rocket Engine - 3 Pieces

  • Brand: Estes
  • MPN: Estes ES1675
  • Part #: RKTEST01675
  • UPC:
PB Tech price:PB Tech price:
$4174$4800
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships on 20/11/2019
When will I receive it?
Add To Compare

Four easy payments of $12.36 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $8.24 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Popular Rockets

#1
Estes Wacky Wiggler - Rocket Launch Set
$58.26 +GST $67.00 inc GST
#2
Estes Flip Flyer - Rocket Launch Set
$58.26 +GST $67.00 inc GST
#3
Estes Javelin - Rocket Launch Set
$58.26 +GST $67.00 inc GST
#4
Estes Whirlybird - Rocket Launch Set
$58.26 +GST $67.00 inc GST
#5
Estes Flash - Rocket Launch Set
$58.26 +GST $67.00 inc GST
View All Rockets

Features

The Estes E9-8 engine is single stage rocket engine. This engine is a standard engine designed for flights in rockets weighing less than 340g including the engine.

What do all the letters and numbers in the the motor name mean?

Lets take an example so you can see how to read the charts. As an example, we'll look at the "1/2A3-2T" motor.

Breaking it down, we have four bits of information. "1/2A," "3," "2," and "T"

The first letter, "1/2A," in our example, is the power level classification of the motor.  The "1/2" power band, as the chart to the right shows, is greater than .625 Newton-seconds of Total Impulse, and less than 1.25 Newton-Seconds. The maximum power doubles from one letter to the next. So a "B" motor can have twice the power of a "A" motor; which means it will fly approximately twice as high.

Remember, think of power as the size of the fuel tank. The tank doesn't have to be totally full. So An "E" motor isn't required to have the maximum of 40 N-s of total power to still be classified as an "E". It just has to have greater than 20 N-s but less than 40 N-s. This gives us the power-bands (shown as the colors in the chart to the right).

The first number after the power letter is the average thrust level of the rocket measured in Newtons, equivalent to 0.225 pounds of force. That means in our example, the motor has an average thrust of 3 Newtons during the entire burn time. If you were driving a car, you could relate average thrust to the amount of pressure you push on the accelerator pedal. The harder you push, the higher the average thrust of the motor, and hence the higher you'll accelerate the rocket. If you want to go fast, choose a high thrust motor. If you want to get good economy (longer travel distance), choose a lower average thrust motor.

For example, a B6 and a B4 would have the same amount of fuel in the tank. But the B6 burns it faster, and hence the rocket will reach a higher speed. The B4 motor burns the fuel slower, and like in your automobile, you'll get more distance out of the fuel that is burne

The number after the dash is the length of time in which the "delay" charge burns before it allows the ejection charge, which deploys your parachute, to go off. Delay allows time for the rocket to coast and slow down so the parachute doesn't rip out of the tube at ejection. In our example, the rocket would coast for 2 seconds before deployment.

Most single-use motors give a hard number for the delay, and you will need to purchase the appropriate one for your kit. Some loadable, larger single use or reloadable motors will often have a maximum delay that, with a specially designed tool, you can use to shorten the delay to what is best for your rocket. Look at the "Max Delay" statistic for that particular motor.  If it is an N/A, or not listed, you cannot adjust the delay.

Specifications

Includes:

3x E12-8 Engines
3x Igniters
4x Sheets Recovery Wadding

Manufacturer Part No: Estes ES1675 Brand: Estes Product Type: -
UPC - Product Family: - Shipping Weight: 0.2 kg
PB Part No: RKTEST01675 Product Model: E9-8

Warranty: 12 months local warranty *
