AAEON UP Board Squared Pro UPN-APLC2F-A10-0432 Intel N3350, 4G, 32GB DP/eDP/HDMI x 1, SATA3 x 1, Gigabit LAN x 2, USB 2.0 x 2, USB 3.2 x 3, 12-24VDC-in,12-24VDC-in, 6A without adpater
AAEON UP Board Squared Pro UPN-APLC2F-A10-0432 Intel N3350, 4G, 32GB DP/eDP/HDMI x 1, SATA3 x 1, Gigabit LAN x 2, USB 2.0 x 2, USB 3.2 x 3, 12-24VDC-in,12-24VDC-in, 6A without adpater
- Brand: AAEON
- MPN: UPN-APLC2F-A10-0432
- Part #: SBCAAEUPPRO0001
- UPC:
Select your store to check availability
- Brand: AAEON
- MPN: UPN-APLC2F-A10-0432
- Part #: SBCAAEUPPRO0001
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





AAEON UP Board Squared Pro UPN-APLC2F-A10-0432 Intel N3350, 4G, 32GB DP/eDP/HDMI x 1, SATA3 x 1, Gigabit LAN x 2, USB 2.0 x 2, USB 3.2 x 3, 12-24VDC-in,12-24VDC-in, 6A without adpater
- Brand: AAEON
- MPN: UPN-APLC2F-A10-0432
- Part #: SBCAAEUPPRO0001

Product URL: https://www.pbtech.co.nz/product/SBCAAEUPPRO0001/AAEON-UP-Board-Squared-Pro-UPN-APLC2F-A10-0432-Int
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 1 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
- Intel® Celeron® N3350 Processor SoC
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Gigabit LAN x 2, USB 2.0 x 2, USB 3.2 Gen 1 (Type A) x 3
- 12 VDC-in, 6A
- 40 pin GPIO x 1
- DP/eDP/HDMI x 1
- M.2 2230 E-key x 1
- M.2 2280 M-key x 1
- SATA3 x 1
- M.2 3042/3052 B-key x 1
Specifications
PROCESSOR
Intel® Celeron® N3350 Processor SoC
GRAPHICS
Intel® Gen 9 HD, supporting 4K Codec Decode and Encode for HEVC4, H.264, VP8
I/O
HDMI x 1
DP x 1
COM port (RS422/RS232/RS485) x 2
Audio Jack x 1
USB
USB 2.0 x 2
USB 3.2 Gen 1 OTG x 1
USB 3.2 Gen 1 (Type A) x 3
EXPANSION
40 pin GPIO x 1

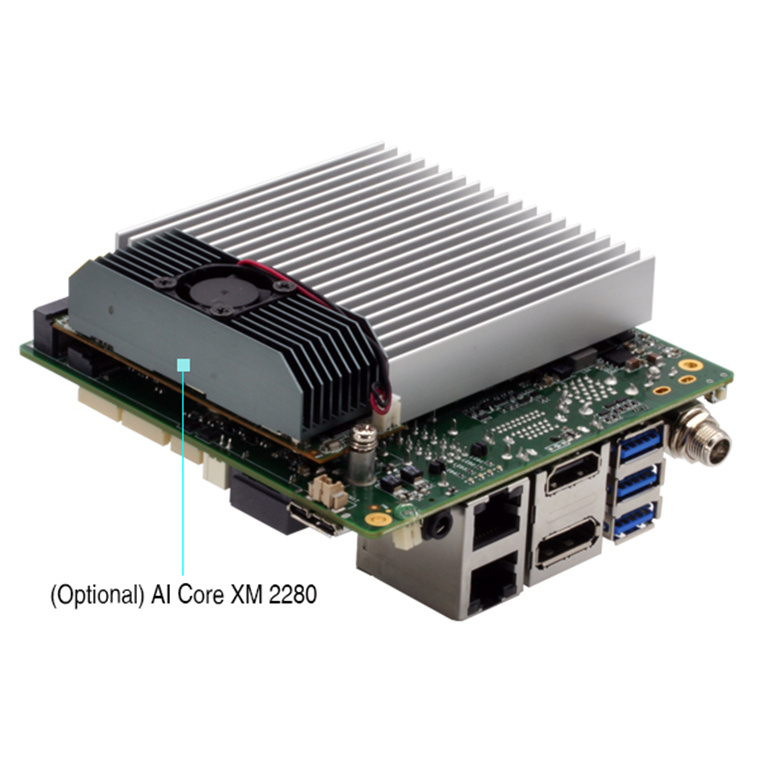

M.2 2230 E-key x 1
M.2 2280 M-key x 1
SATA3 x 1
M.2 3042/3052 B-key x 1
RTC
Yes
POWER
12V-24V DC-in (Lockable plug)/ Phoenix connector (optional)

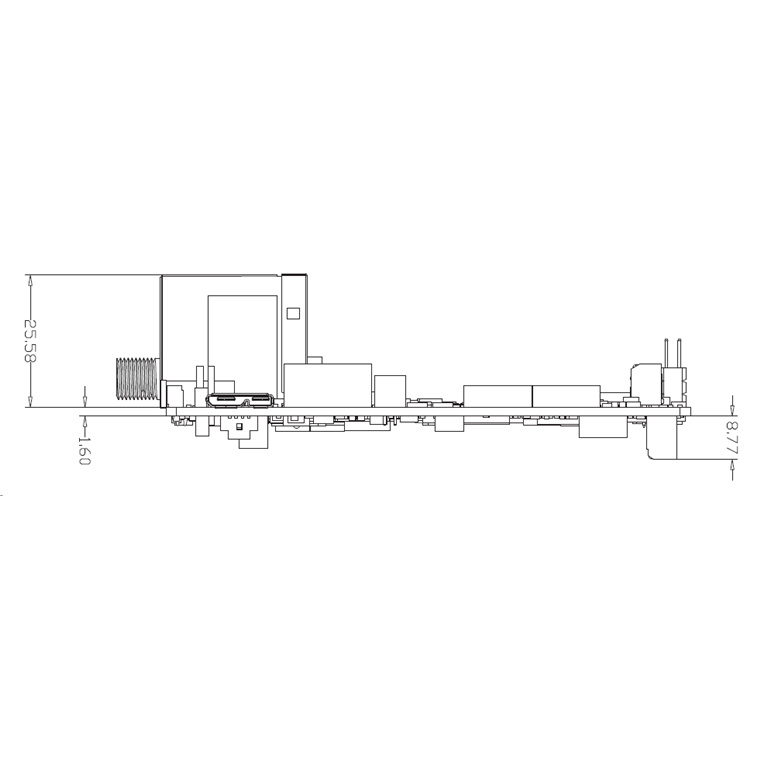

DIMENSION
10.16cm x 10.16cm
MEMORY
2GB (single channel) LPDDR4
4GB/8GB (dual channel) LPDDR4
STORAGE
eMMC 32 GB / 64 GB
DISPLAY INTERFACE
HDMI2.0 x 1
DP1.2 x 1
eDP x 1
ETHERNET
Gb Ethernet (full speed) RJ-45 x 2
OS SUPPORT
Microsoft Windows 10 (full), Windows IOT Core
Linux: Ubuntu 18.04.5, Ubuntu 20.04.1, Yocto 3.1
OPERATING TEMPERATURE
with Fan: 32°F ~ 140°F (0°C ~ 60°C)
with Heatsink: 32°F ~ 122°F (0°C ~ 50°C)
OPERATING HUMIDITY
0% ~ 90% relative humidity, non-condensing
CERTIFICATE
CE/FCC Class A, RoHS Compliant, REACH
