Features

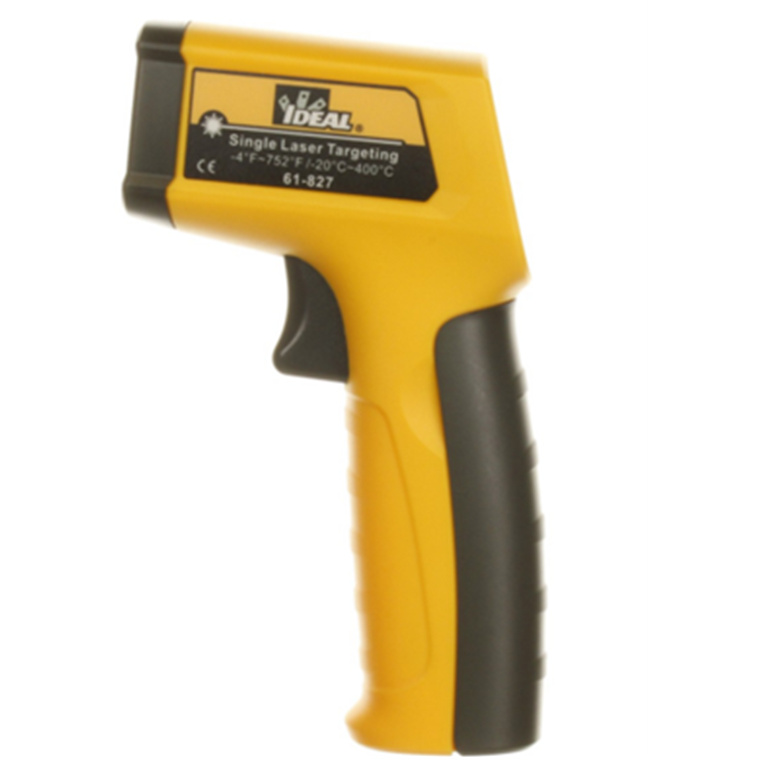

IDEAL INDUSTRIES Single Laser Targeting Infrared Thermometer.
The IDEAL 61-827 Single Laser Targeting Infrared Thermometer (IRT) is a non-contact temperature sensing meter. Its single laser defines the centre of the area whose temperature will be measured.
The IRT measures temperatures from -20°~400°C. The LCD backlit display is automatically illuminated when the trigger is pulled and allows working in poor or zero lighting conditions.

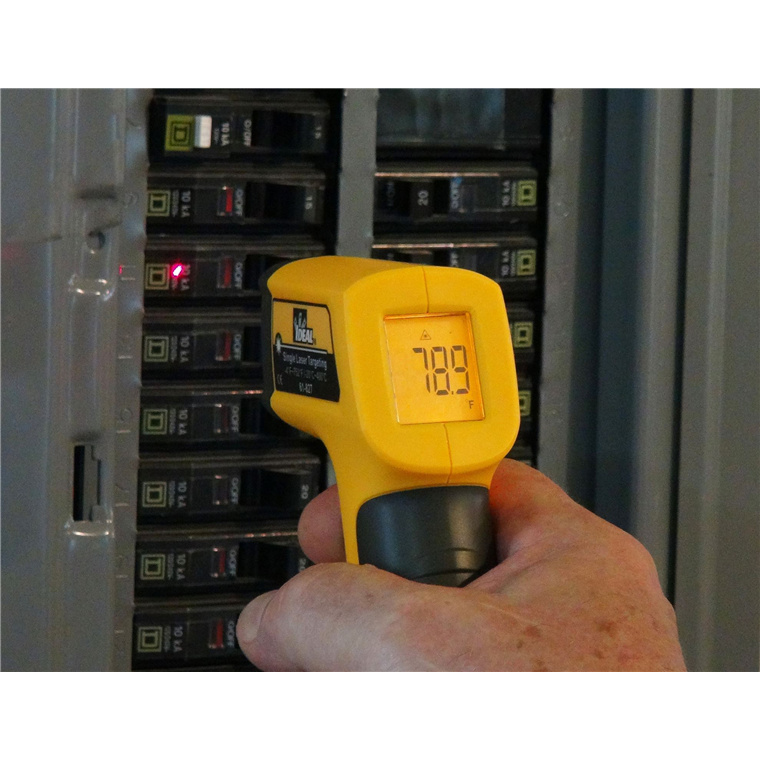

The single laser targeting system is also activated when the trigger is pulled. The unit uses a single red laser located above the IR sensor to locate the centre of the area being measured. The meter constantly updates the temperature measurement when pulling the trigger.
The unit also has selectable Fahrenheit and Celsius measurements, Auto Power Off, and comes with 2 1.5V AAA Batteries.
- UL Certified complies with IEC/EN 60825-1 and 21 CFR 1010/1040
- Measurement Range: -20°~400°C
- 10:1 Distance to Spot size
- Large, easy-to-read LCD with integrated selectable backlight allows for safer/faster work in poorly lit environments
- Scan mode constantly updates the temperature readings in the display as different targets are scanned
- Single Laser Targeting System identifies the centre of the specific area being measured to provide for accurate surface temperature measurement
- Selectable degrees Fahrenheit and Celsius measurement scales
- Integrated lanyard and tie-off point
- Includes 2 1.5V AAA batteries
Specifications
Product Type
Dual Laser Targeting Infrared Thermometer
Certification
CLASS 2, IEC 60825-1:2014
Wavelength
630nm-670nm
Output
< 1mW
Listing
cULs, CE
Drop Protection
3.3 ft. (1m)
Optical Resolution (distance-to-spot)
10 : 1
Measurement Range
-4° to 752°F (-20° to 400°C)
Laser Targeting
Single
Emissivity
0.95 Fixed
Display
LCD
Battery Type (Included)
2 x 1.5V AAA
Response Time
500 ms
Spectral Response
8 to 14um
