Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
- UPC:
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
- UPC:
What PB Tech customers are saying about this product...
See More ReviewsCustomer Review Summary
"The Raspberry Pi Zero 2 W is a powerhouse in a compact form, beloved for its quad-core CPU performance that effortlessly handles diverse projects like print servers, Home Assistant ...view more"

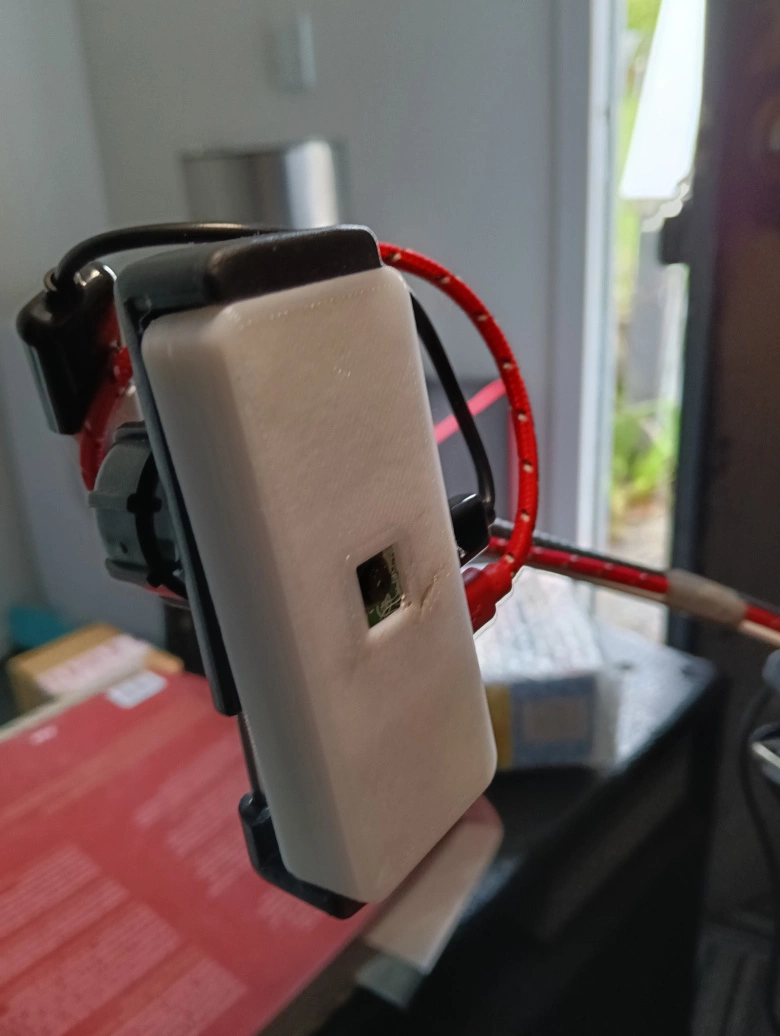

"Worked out well. I still need to buy a heatsink as it got hot quick and slowed down. Otherwise works well."
"I have been coming to PB tech to buy products for our busine ...view more"
COMBO DEALS: Buy Together and SAVE!
Dynamix A-HDMI-MINI HDMI Female to HDMI Mini Male Adapter
$5.47 +GST
$6.29
Dynamix SPAUSB-5V2.4A Small Form Single Port USB Wall Charger - White Portable Universal Power...
$10.78 +GST
$12.40
Dynamix C-U2-OTG OTG Compatible USB Micro B 2.0 Male to USB-A Female Adapter - 10cm On-The-Go
$3.77 +GST
$4.34
ADATA Premier microSDHC Memory Card - 32GB Includes SD Adapter - Read up to 100MB/s
$10.95 +GST
$12.59
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Development & Expansion Boards
Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
Product URL: https://www.pbtech.co.nz/product/SEVRBP0360/Raspberry-Pi-Zero-2-W-ARM-64-bit-Cortex-A53-CPU-51?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Just as small. Five times as fast.

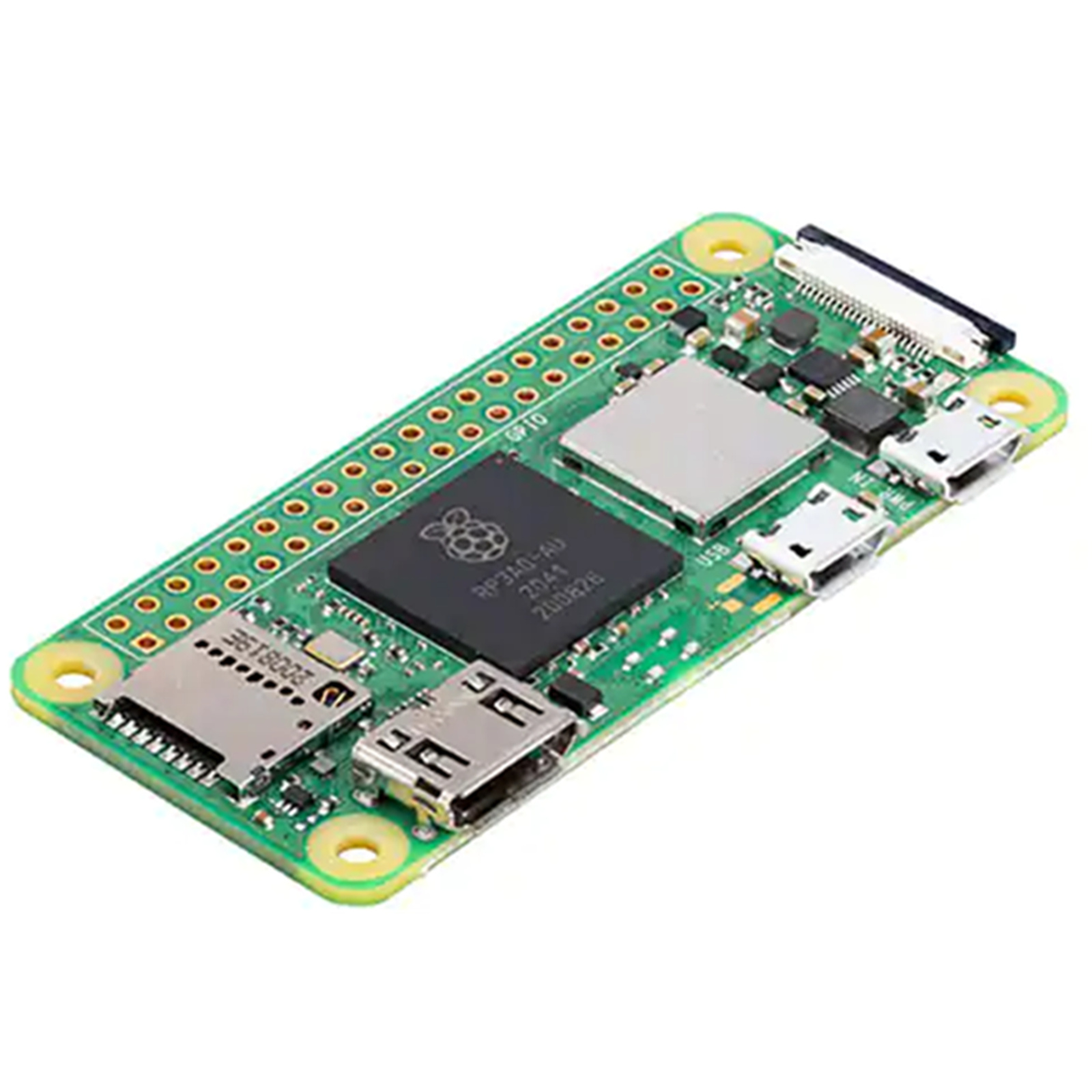

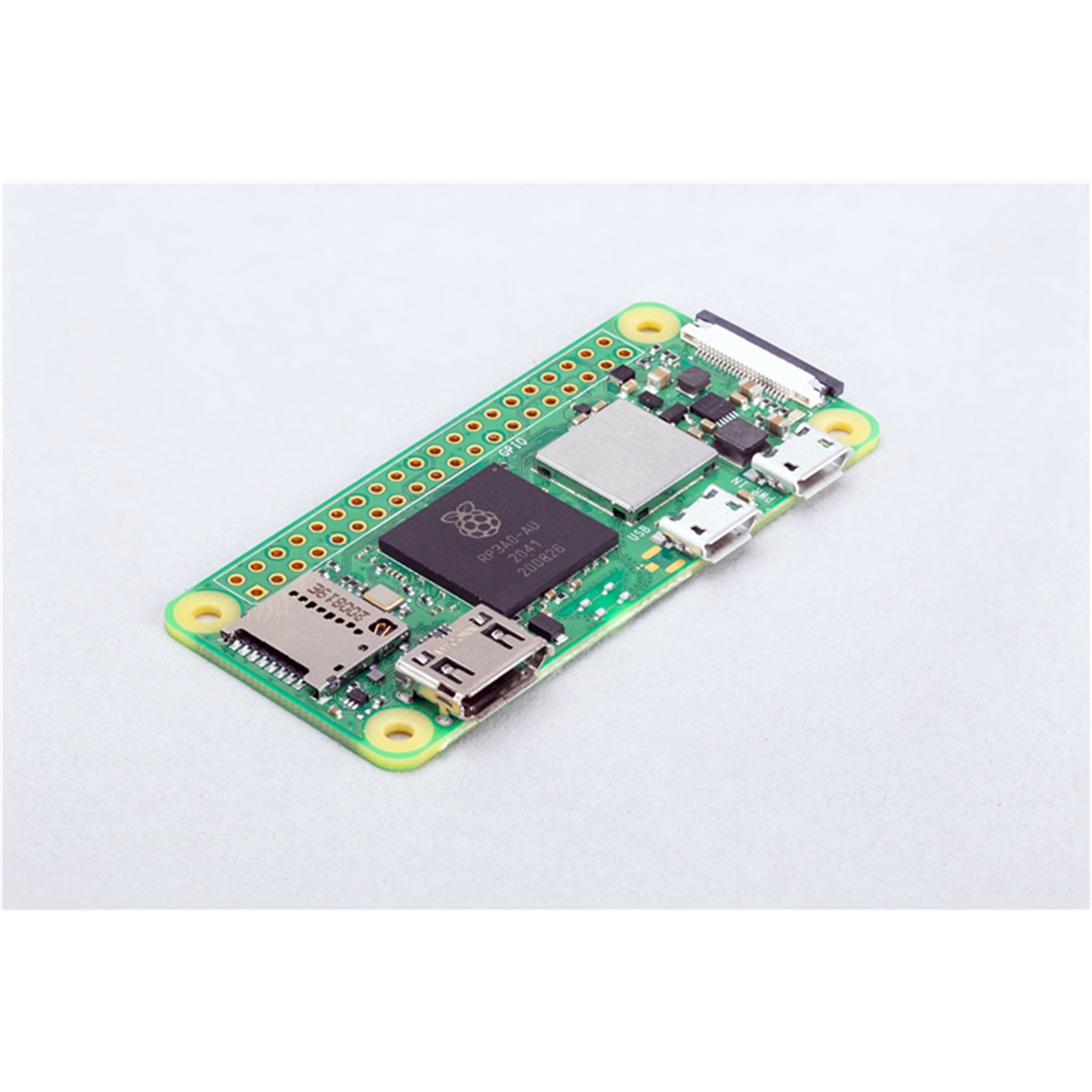

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.
Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.
All in the same tiny 65mm x 30mm form factor.





Documents:
- Getting started guide
- Raspberry Pi Zero 2 W product brief
Specifications
Form factor
65mm×30mm
Processor
Broadcom BCM2710A1, quad-core 64-bit SoC
(Arm Cortex-A53 @ 1GHz)
Memory
512MB LPDDR2
Connectivity
- 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
- 1 × USB 2.0 interface with OTG
- HAT-compatible 40-pin I/O header footprint
- microSD card slot
- Mini HDMI port
- CSI-2 camera connector
Video
- HDMI interface
- Composite video
Multimedia
- H.264, MPEG-4 decode (1080p30)
- H.264 encode (1080p30)
- OpenGL ES 1.1, 2.0 graphics
Input power
5V DC 2.5A
Operating temperature
-20°C to +70°C
Production lifetime
Raspberry Pi Zero 2 W will remain in production until at least January 2028
Compliance
For a full list of local and regional product approvals, please visit pip.raspberrypi.com
