Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
- UPC:
Select your store to check availability
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
- UPC:
What PB Tech customers are saying about this product...
See More ReviewsCustomer Review Summary

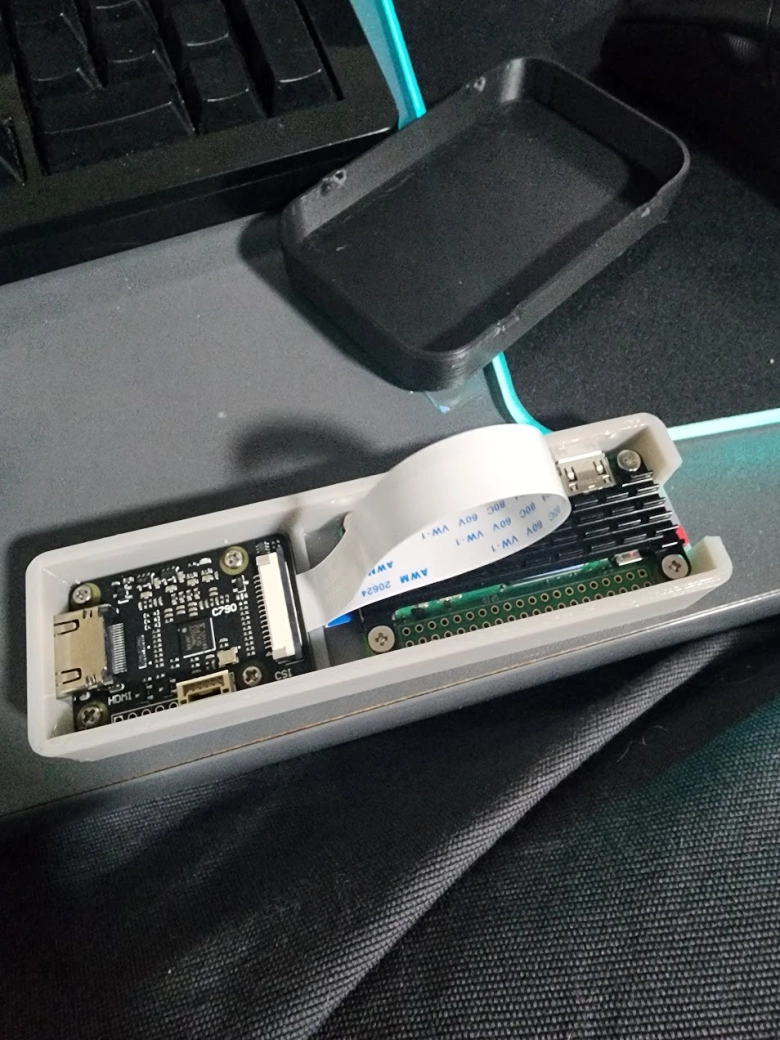

"This compact device is highly praised for its surprising computing power despite its 512MB RAM, offering unique versatility in multiple practical applications such as print servers ...view more"

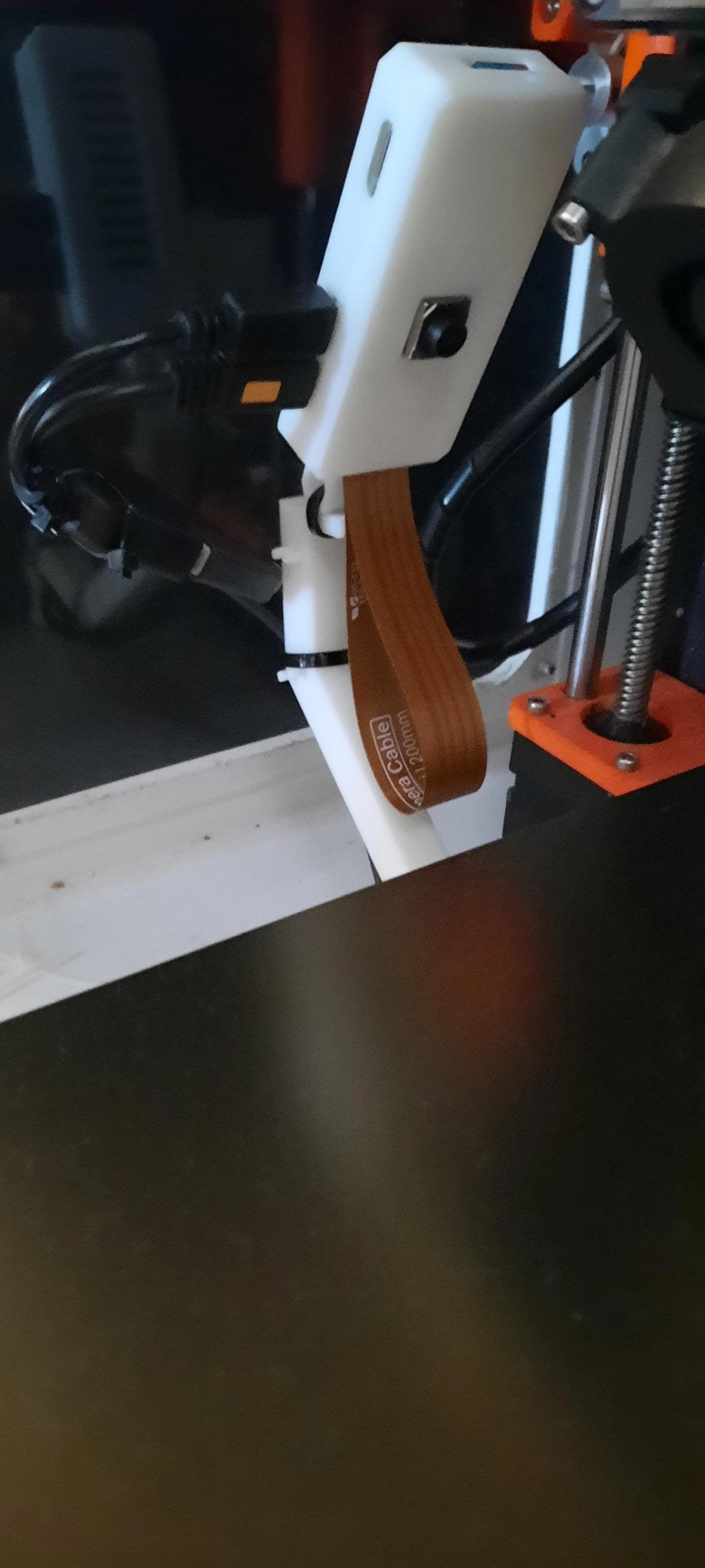

"This and the wide angle pi camera 3 module make for an easy to install timelapse/print controller.
The board can get a little hot in the enclosure, but i have had no issues with p ...view more"
"Great purchase from PBTech, came quickly and works well."
COMBO DEALS: Buy Together and SAVE!
Dynamix A-HDMI-MINI HDMI Female to HDMI Mini Male Adapter
$5.77 +GST
$6.64
Dynamix C-U2-OTG 10cm USB 2.0 Micro B Male to Type A Female Adapter - OTG compatible - On-The-Go...
$3.23 +GST
$3.71
Dynamix SPAUSB-5V2.4A 5V 2.4A Small Form Single Port USB Wall Charger. Portable Universal Power...
$8.23 +GST
$9.46
ADATA Premier microSDHC Memory Card - 32GB Includes SD Adapter - Read up to 100MB/s
$4.90 +GST
$5.64
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Development & Expansion Boards
Raspberry Pi Zero 2 W ARM 64-bit Cortex-A53 CPU, 512MB SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, Bluetooth, BLE, Composite video and reset pins via solder test points
- Brand: Raspberry Pi
- MPN: SC1176
- Part #: SEVRBP0360
Product URL: https://www.pbtech.co.nz/product/SEVRBP0360/Raspberry-Pi-Zero-2-W-ARM-64-bit-Cortex-A53-CPU-51?is-review=1&pg=2
Branch | New Stock | On Display |
---|---|---|
Albany | 6 | |
Glenfield | 8 | |
Queen Street | 4 | |
Auckland Uni | 6 | |
Newmarket | 6 | |
Westgate | 8 | |
Penrose | 8 | |
Henderson (Express) | 8 | |
St Lukes | 6 | |
Manukau | 6 | |
Hamilton | 0 | |
Tauranga | 4 | |
New Plymouth | 6 | |
Palmerston North | 5 | |
Petone | 6 | |
Wellington | 10 | |
Head Office | 30+ | |
Hornby | 0 | |
Christchurch Central | 8 |
Features
Just as small. Five times as fast.
At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.
Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.
All in the same tiny 65mm x 30mm form factor.
Documents:
- Getting started guide
- Raspberry Pi Zero 2 W product brief
Specifications
Form factor
65mm×30mm
Processor
Broadcom BCM2710A1, quad-core 64-bit SoC
(Arm Cortex-A53 @ 1GHz)
Memory
512MB LPDDR2
Connectivity
- 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
- 1 × USB 2.0 interface with OTG
- HAT-compatible 40-pin I/O header footprint
- microSD card slot
- Mini HDMI port
- CSI-2 camera connector
Video
- HDMI interface
- Composite video
Multimedia
- H.264, MPEG-4 decode (1080p30)
- H.264 encode (1080p30)
- OpenGL ES 1.1, 2.0 graphics
Input power
5V DC 2.5A
Operating temperature
-20°C to +70°C
Production lifetime
Raspberry Pi Zero 2 W will remain in production until at least January 2028
Compliance
For a full list of local and regional product approvals, please visit pip.raspberrypi.com
