GIVE FEEDBACK

Generating Print Page

Raspberry Pi Official Debug Probe, All-In-One USB to Serial Debug and UART Bridge

PB Tech price
PB Tech price
$ 24 .78
 +GST
$ 28 .50
 inc GST
$24.78  +GST
$28.50

Raspberry Pi Official Debug Probe, All-In-One USB to Serial Debug and UART Bridge

3
PB Tech price
$ 24 .78 $ 28 .50
 +GST  inc GST
Tax free price $26.27*
*Price includes surcharge


Click & Collect: Available from 18 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$24.78  +GST
$28.50

Four payments of $7.20 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Case Colour

Clear

Memory Size

N/A

PSU Colour

N/A

What PB Tech customers are saying about this product...

See More Reviews

"Purchased the probe to use it as a serial/USB converter and ...view more"

SP
By: SebastianP982 05/08/24
Verified Owner

"Seems to work very well when coupled with OpenOCD to debug targets including (but not limited to) RP2040, STM32F4xx and Nordic NRF52. Note that a 'naked' RP2040 Pico board can in p ...view more"

VM
By: VaughanM22 25/05/24
Verified Owner

"my rpi pico was not working o i bought one of these and i hooked it up and it worked"

G
By: Guest 07/01/24

Features

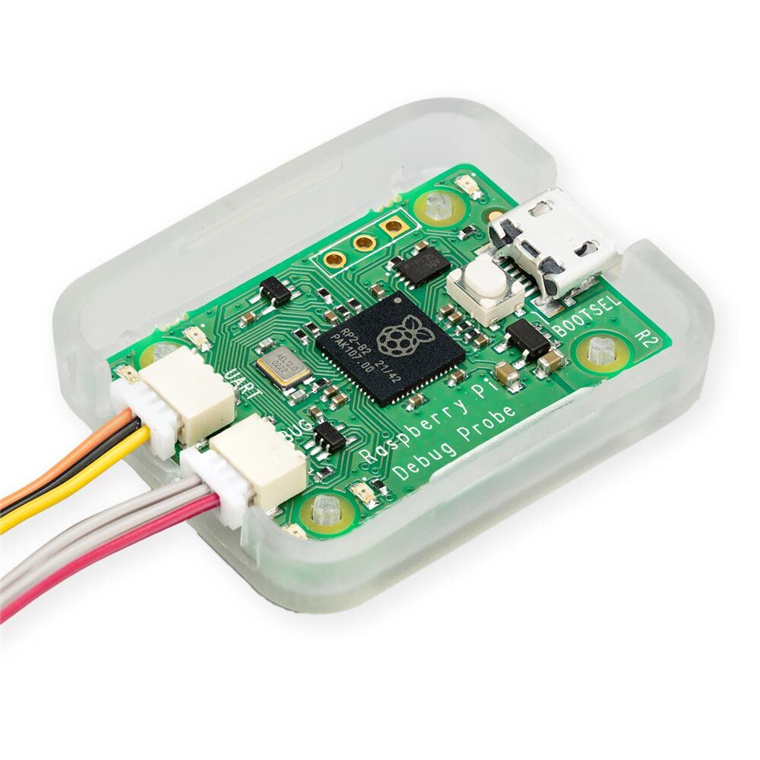

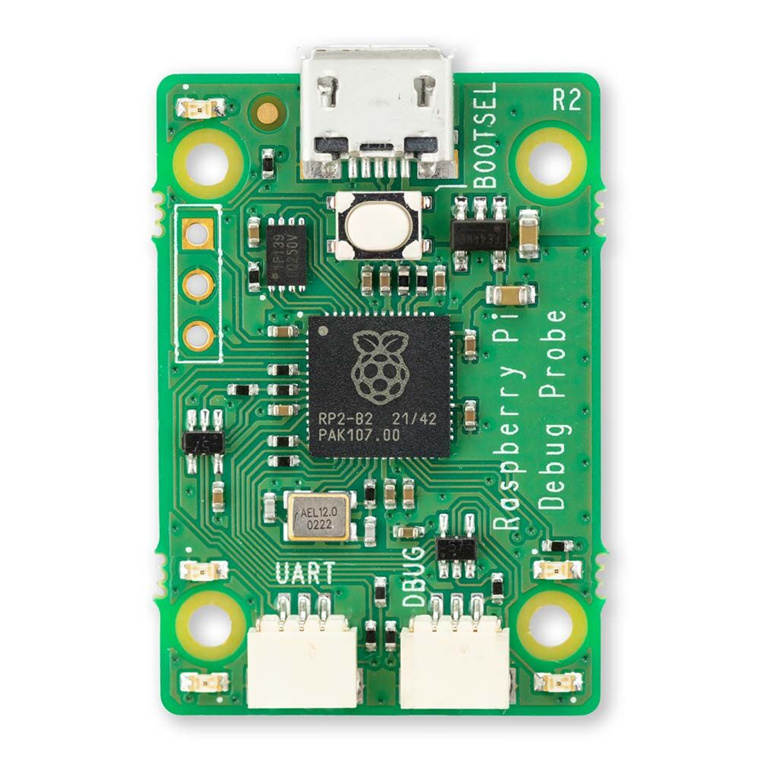

The Raspberry Pi Debug Probe is an inexpensive, all-in-one USB to serial debug and UART bridge.

It provides the necessary hardware and cabling to support "plug and play" debugging of Raspberry Pi Pico and other microcontroller- and microprocessor-based platforms.

The Raspberry Pi Debug Probe provides both a processor serial debug interface (by default this is the ARM Serial Wire Debug interface) and an industry-standard UART interface. Both interfaces use a 3-pin debug connector, as specified in the Raspberry Pi 3-pin debug connector specification.

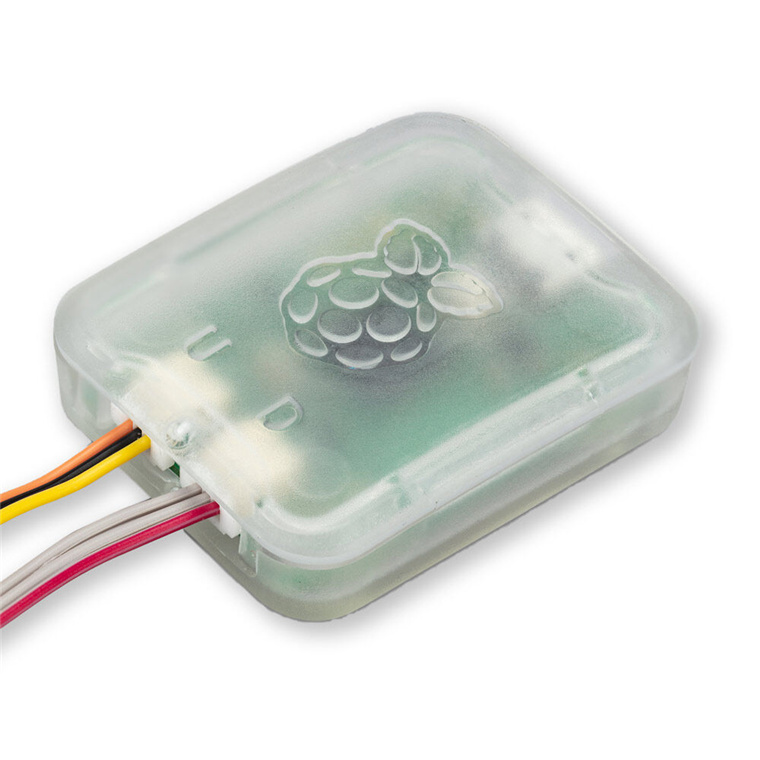

The Raspberry Pi Debug Probe is provided as a kit, containing the probe hardware in a plastic case, and a set of cables: a USB cable, and three different types of debug cable to cover the vast majority of use cases.

It provides:

 - A USB to Serial Wire Debug (SWD) bridge
 - A generic USB serial adapter
 - Cables to connect to a host computer, and to the debug target

While it has been designed primarily for Raspberry Pi Pico, and other RP2040-based targets, the Debug Probe provides standard CMSIS-DAP debug and UART interfaces over USB; it can therefore be used to debug other targets (that have an SWD port with 3V3 I/O), or simply as a cost-effective USB-to-UART cable.

The Raspberry Pi Debug Probe is based on the Raspberry Pi Pico hardware design and runs the open-source Raspberry Pi Picoprobe software. Updating the firmware is accomplished in the same way as on a Raspberry Pi Pico, so it is straightforward to keep the unit up to date with the latest Picoprobe firmware, or to use a custom firmware.

What is a debug probe?

All modern Arm-based microcontrollers, including RP2040, implement Arm's CoreSight debug architecture. Each processor core, like the Cortex-M0+ used in RP2040, provides an Access Port (AP) which can be used to single step, set breakpoints, observe the values of processor registers, and access memory and peripherals via the processor's bus interface.

The microcontroller itself provides a Debug Port (DP), which is connected externally to pins on the package, and internally to each AP in the system. RP2040 exposes its DP via a low-pin-count Serial Wire Debug (SWD) port: by talking the SWD protocol over this port, a host computer can control each core's AP, in order to debug a program running on the core.

A debug probe provides a bridge between USB and the SWD protocol. While not strictly required if the host computer is a Raspberry Pi (you can wire up the target's SWD port directly to the GPIO header on a Raspberry Pi), it's much more convenient to connect via USB. And if you're using a PC or Mac, USB is your only option.

The Raspberry Pi Debug Probe exposes the SWD signals on a three-pin JST connector, conforming to the Raspberry Pi Debug Connector Specification. We provide adapter cables to connect without soldering to breadboard, and to the debug connector on Raspberry Pi Pico H and WH.

Arm has helpfully standardised the protocol used to communicate over USB between a host computer and a debug probe. The Raspberry Pi Debug Probe conforms to this CMSIS-DAP standard, and so will work out of the box with many existing debug software platforms, including our favourite, OpenOCD.

Serial communication

We often want to establish a serial console connection between a microcontroller target and a host computer. This provides a simple way to interact with software running on the target, and to retrieve logging and other diagnostic data. If the host computer is a Raspberry Pi, then you can use one of the UART peripherals exposed via the GPIO header. But if you're using a PC or Mac, it's very unlikely that you have access to a built-in serial port.

The Raspberry Pi Debug Probe functions as a USB serial adapter, over the same USB connection as the SWD bridge. It exposes the UART signals on a second three-pin JST connector, again conforming to the Raspberry Pi Debug Connector Specification.

For users who do not require debug functionality, the Raspberry Pi Debug Probe's low price makes it a cost-effective alternative to other USB serial adapters. It has largely replaced the once-ubiquitous FTDI cable as our adapter of choice here at Pi Towers.

 - 3.3V Logic
 - Customisable Two-wire serial debugging (ARM Serial Wire Debug supported by default)
 - A convenient USB-UART bridge
 - Compatible with the CMSIS-DAP standard
 - Works with OpenOCD and other tools supporting CMSIS-DAP
 - Follows the Raspberry Pi 3-pin debug connector specification.

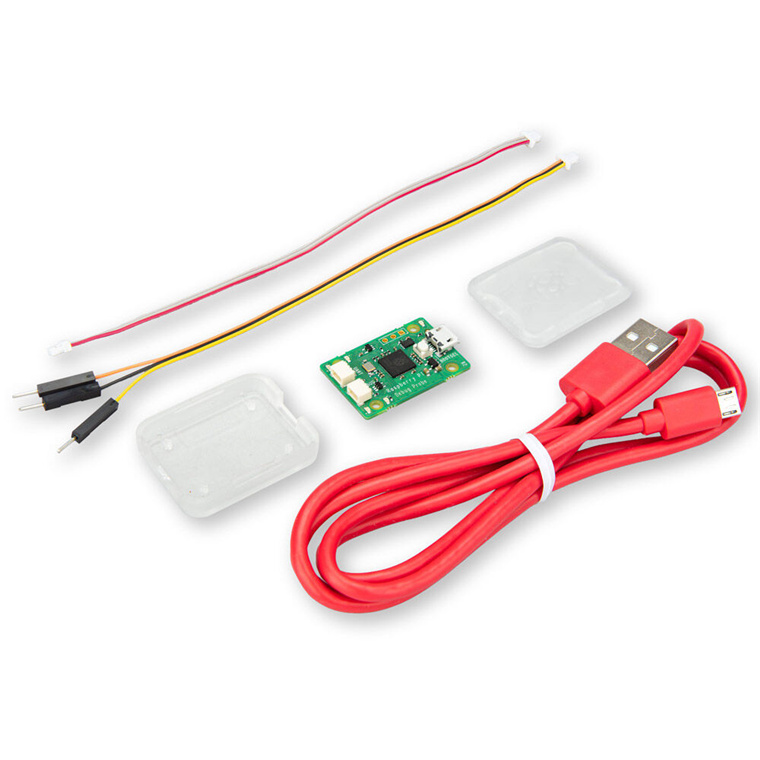

Includes:

 - RP2040 based Debug probe board
 - Protective case
 - USB cable (Power and Data lines)
 - 3x Debug cables:
    - 3-pin JST SH to 3-Pin JST SH
    - 3-pin JST SH to Dupont-style female header
    - 3-pin JST SH to Dupont-style male header

Specifications

Manufacturer

Raspberry Pi

Product No.

SC0889

Manufacturer Part No:
SC0889
Brand:
Product Type:
-
UPC
-
Product Family:
Official
Shipping Weight:
0.05 kg
PB Part No:
SEVRBP0417
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

A great handy tool

Purchased the probe to use it as a serial/USB converter and very glad I did. It comes with an extra 3-pin debug to female jumper cable not shown on the photos. Exactly what I needed.
Pros:
- works well out of the box
- good selection of cables
- very good manufacturing quality
Cons:
- none, really

SP
By: SebastianP982 05/08/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Works well with a variety of target microcontrollers

Seems to work very well when coupled with OpenOCD to debug targets including (but not limited to) RP2040, STM32F4xx and Nordic NRF52. Note that a 'naked' RP2040 Pico board can in principal be used to debug these targets when loaded with the debugger firmware, it will not work reliabily with all of them. In my experience, this approach will work well when debugging a RP2040 but not STM32Fxx and Nordic targets (and probably others). I think that this is because the Picoprobe has an additional driver IC involved in the SWD debug interface that a 'naked' RP2040 Pico board lacks and the firmware is slightly different, this IC which seems to be...view more

VM
By: VaughanM22 25/05/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

awsome product

my rpi pico was not working o i bought one of these and i hooked it up and it worked

G
By: Guest 07/01/24
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Raspberry Pi Official Debug Probe, All-In-One USB to Serial Debug and UART Bridge

PB Tech price $24.78 Excluding GST PB Tech price $28.50 Including GST

Date Created: 07:22, 06-12-2024
Product URL: https://www.pbtech.co.nz/product/SEVRBP0417/Raspberry-Pi-Official-Debug-Probe-All-In-One-USB-t
Branch New Stock On Display
Albany 2
Glenfield 3
Queen Street 3
Auckland Uni 3
Newmarket 1
Westgate 5
Penrose 2
Henderson (Express) 2
St Lukes 2
Manukau 3
Hamilton 3
Tauranga 2
New Plymouth 3
Palmerston North 1
Petone 4
Wellington 1
Head Office 30+
Hornby 3
Christchurch Central 2

Features

The Raspberry Pi Debug Probe is an inexpensive, all-in-one USB to serial debug and UART bridge.

It provides the necessary hardware and cabling to support "plug and play" debugging of Raspberry Pi Pico and other microcontroller- and microprocessor-based platforms.

The Raspberry Pi Debug Probe provides both a processor serial debug interface (by default this is the ARM Serial Wire Debug interface) and an industry-standard UART interface. Both interfaces use a 3-pin debug connector, as specified in the Raspberry Pi 3-pin debug connector specification.

The Raspberry Pi Debug Probe is provided as a kit, containing the probe hardware in a plastic case, and a set of cables: a USB cable, and three different types of debug cable to cover the vast majority of use cases.

It provides:

 - A USB to Serial Wire Debug (SWD) bridge
 - A generic USB serial adapter
 - Cables to connect to a host computer, and to the debug target

While it has been designed primarily for Raspberry Pi Pico, and other RP2040-based targets, the Debug Probe provides standard CMSIS-DAP debug and UART interfaces over USB; it can therefore be used to debug other targets (that have an SWD port with 3V3 I/O), or simply as a cost-effective USB-to-UART cable.

The Raspberry Pi Debug Probe is based on the Raspberry Pi Pico hardware design and runs the open-source Raspberry Pi Picoprobe software. Updating the firmware is accomplished in the same way as on a Raspberry Pi Pico, so it is straightforward to keep the unit up to date with the latest Picoprobe firmware, or to use a custom firmware.

What is a debug probe?

All modern Arm-based microcontrollers, including RP2040, implement Arm's CoreSight debug architecture. Each processor core, like the Cortex-M0+ used in RP2040, provides an Access Port (AP) which can be used to single step, set breakpoints, observe the values of processor registers, and access memory and peripherals via the processor's bus interface.

The microcontroller itself provides a Debug Port (DP), which is connected externally to pins on the package, and internally to each AP in the system. RP2040 exposes its DP via a low-pin-count Serial Wire Debug (SWD) port: by talking the SWD protocol over this port, a host computer can control each core's AP, in order to debug a program running on the core.

A debug probe provides a bridge between USB and the SWD protocol. While not strictly required if the host computer is a Raspberry Pi (you can wire up the target's SWD port directly to the GPIO header on a Raspberry Pi), it's much more convenient to connect via USB. And if you're using a PC or Mac, USB is your only option.

The Raspberry Pi Debug Probe exposes the SWD signals on a three-pin JST connector, conforming to the Raspberry Pi Debug Connector Specification. We provide adapter cables to connect without soldering to breadboard, and to the debug connector on Raspberry Pi Pico H and WH.

Arm has helpfully standardised the protocol used to communicate over USB between a host computer and a debug probe. The Raspberry Pi Debug Probe conforms to this CMSIS-DAP standard, and so will work out of the box with many existing debug software platforms, including our favourite, OpenOCD.

Serial communication

We often want to establish a serial console connection between a microcontroller target and a host computer. This provides a simple way to interact with software running on the target, and to retrieve logging and other diagnostic data. If the host computer is a Raspberry Pi, then you can use one of the UART peripherals exposed via the GPIO header. But if you're using a PC or Mac, it's very unlikely that you have access to a built-in serial port.

The Raspberry Pi Debug Probe functions as a USB serial adapter, over the same USB connection as the SWD bridge. It exposes the UART signals on a second three-pin JST connector, again conforming to the Raspberry Pi Debug Connector Specification.

For users who do not require debug functionality, the Raspberry Pi Debug Probe's low price makes it a cost-effective alternative to other USB serial adapters. It has largely replaced the once-ubiquitous FTDI cable as our adapter of choice here at Pi Towers.

 - 3.3V Logic
 - Customisable Two-wire serial debugging (ARM Serial Wire Debug supported by default)
 - A convenient USB-UART bridge
 - Compatible with the CMSIS-DAP standard
 - Works with OpenOCD and other tools supporting CMSIS-DAP
 - Follows the Raspberry Pi 3-pin debug connector specification.

Includes:

 - RP2040 based Debug probe board
 - Protective case
 - USB cable (Power and Data lines)
 - 3x Debug cables:
    - 3-pin JST SH to 3-Pin JST SH
    - 3-pin JST SH to Dupont-style female header
    - 3-pin JST SH to Dupont-style male header

Specifications

Manufacturer

Raspberry Pi

Product No.

SC0889

Date Created: 07:22, 06-12-2024
Product URL: https://www.pbtech.co.nz/product/SEVRBP0417/Raspberry-Pi-Official-Debug-Probe-All-In-One-USB-t
