Raspberry Pi Argon NEO 5 M.2 NVME PCIE Case Designed for Raspberry Pi 5 Compatible with any M.2 NVME with M-Key up to 2280 size

PB Tech price
PB Tech price
$ 76 .94
 +GST
$ 88 .48
 inc GST
$76.94  +GST
$88.48

Raspberry Pi Argon NEO 5 M.2 NVME PCIE Case Designed for Raspberry Pi 5 Compatible with any M.2 NVME with M-Key up to 2280 size

Please Read the product detail Carefully
1
PB Tech price
$ 76 .94 $ 88 .48
 +GST  inc GST
Tax free price $81.56*
*Price includes surcharge


Click & Collect: Available from 8 stores.
Select your store to check availability
Delivery: Order now and it ships on 15 Sep When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$76.94  +GST
$88.48

Case Colour

Black

Memory Size

N/A

PSU Colour

N/A

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Raspberry Pi Argon NEO 5 M.2 NVME PCIE Case Designed for Raspberry Pi...
Raspberry Pi Argon NEO 5 M.2 NVME PCIE Case Designed for Raspberry Pi 5 Compatible with any M.2 NVME with M-Key up to 2280 size
Total:
$ 94 .33
 +GST
$ 108 .48
Buy together and save $1.74 $2.00
NoBrand USB-C 27w Universal Power Adapter /  Wall Charger Output 27W PD-Compatible Compatible: Raspberry Pi 5 - Black - 1.2m Long, Delivery 5A/5.1V, 3A/9V, 2.25A/12V, 1.8A/15V 27W to PD-Compatible Products
NoBrand USB-C 27w Universal Power Adapter /  Wall Charger Output 27W PD-Compatible Compatible: Raspberry Pi 5 - Black - 1.2m Long, Delivery 5A/5.1V, 3A/9V, 2.25A/12V, 1.8A/15V 27W to PD-Compatible Products
$19.13 $22.00

$17.39  +GST

$20.00

You save 9% You save 9%

Features

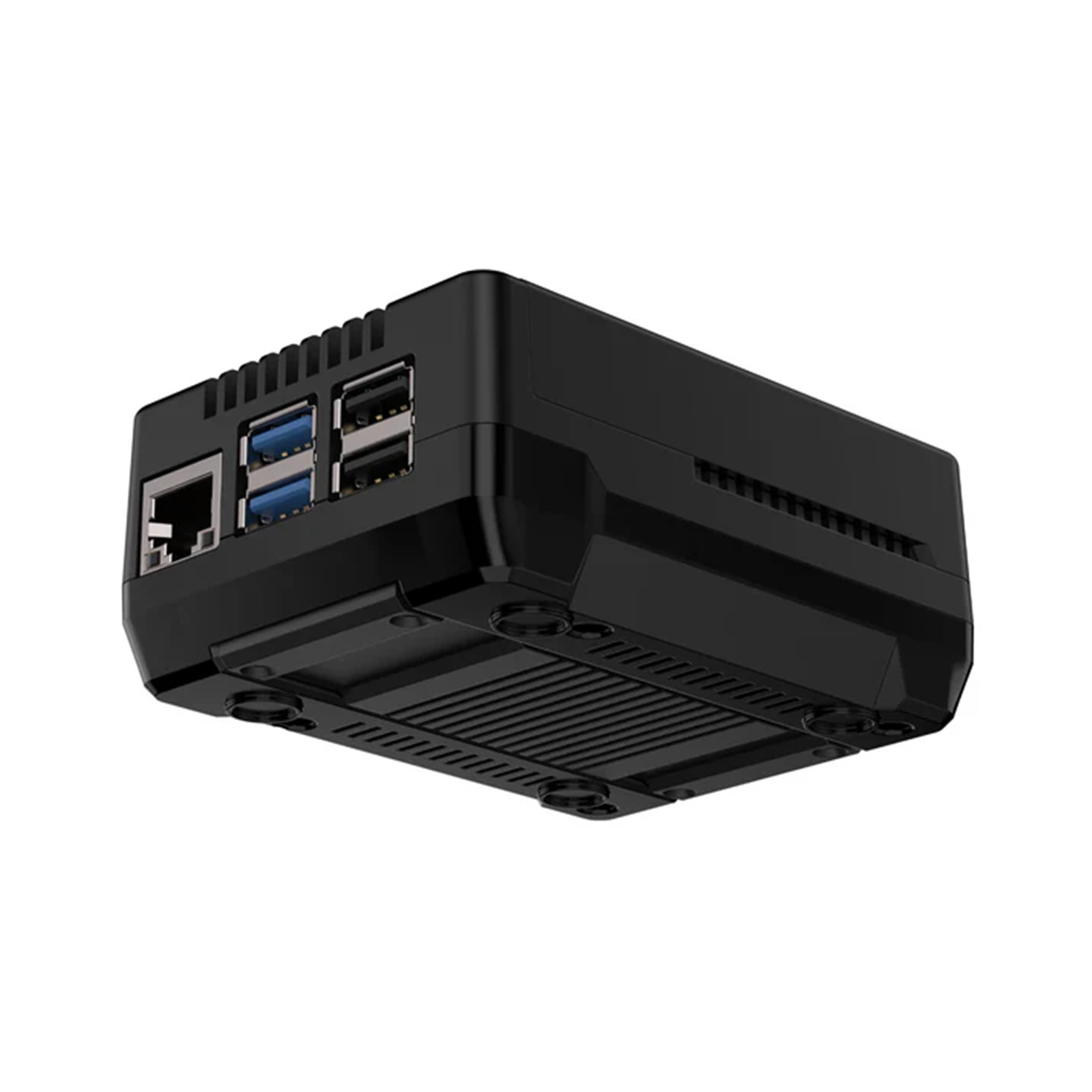

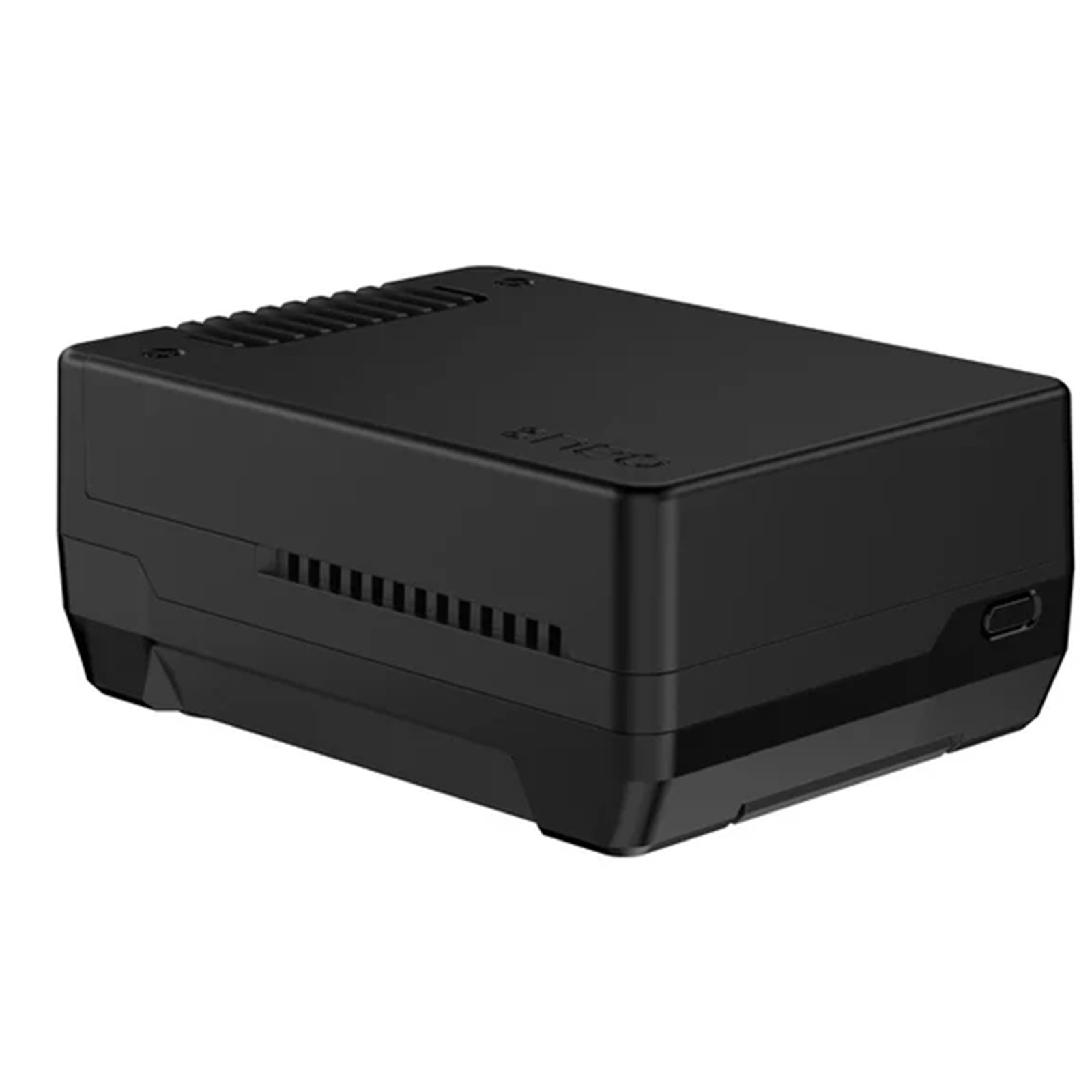

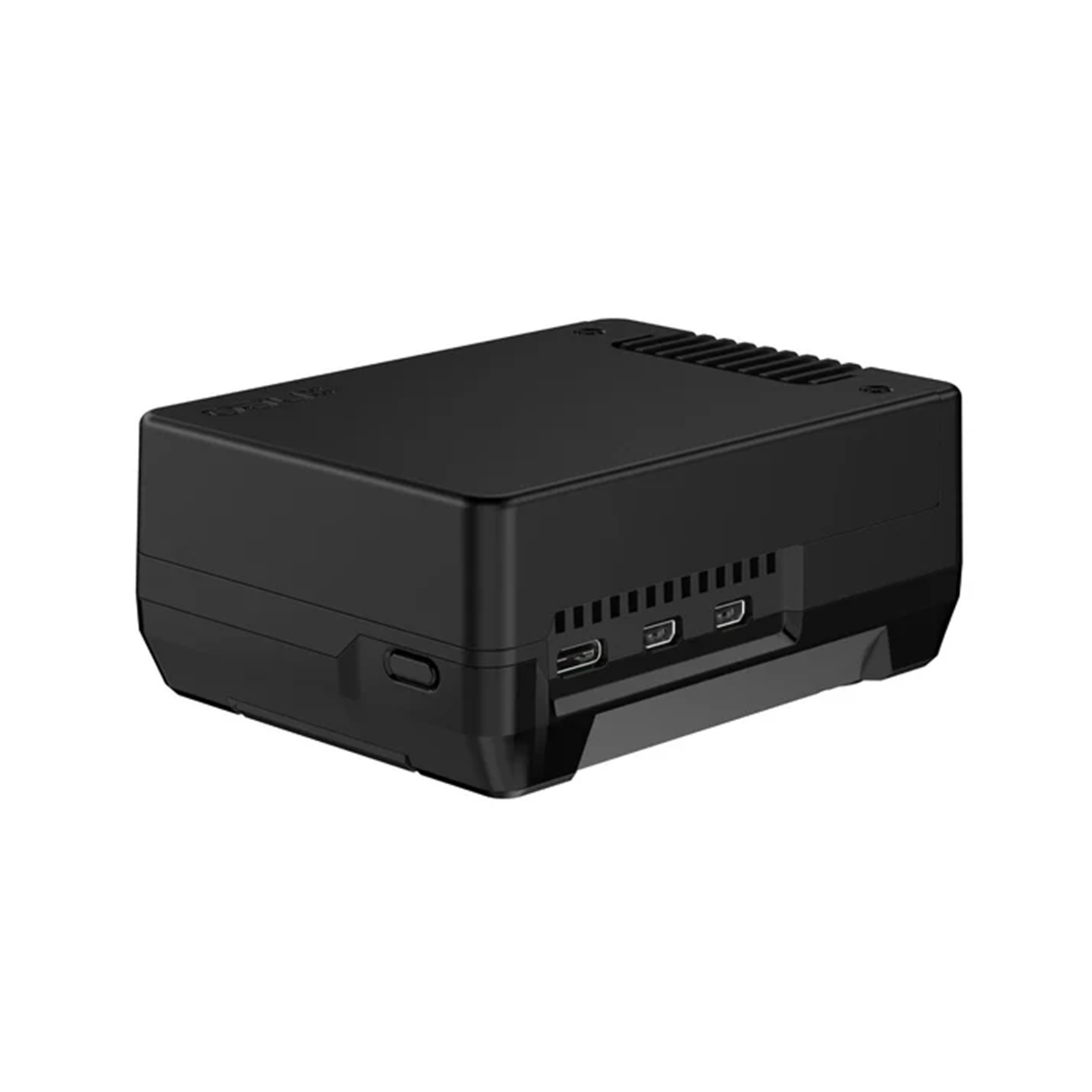

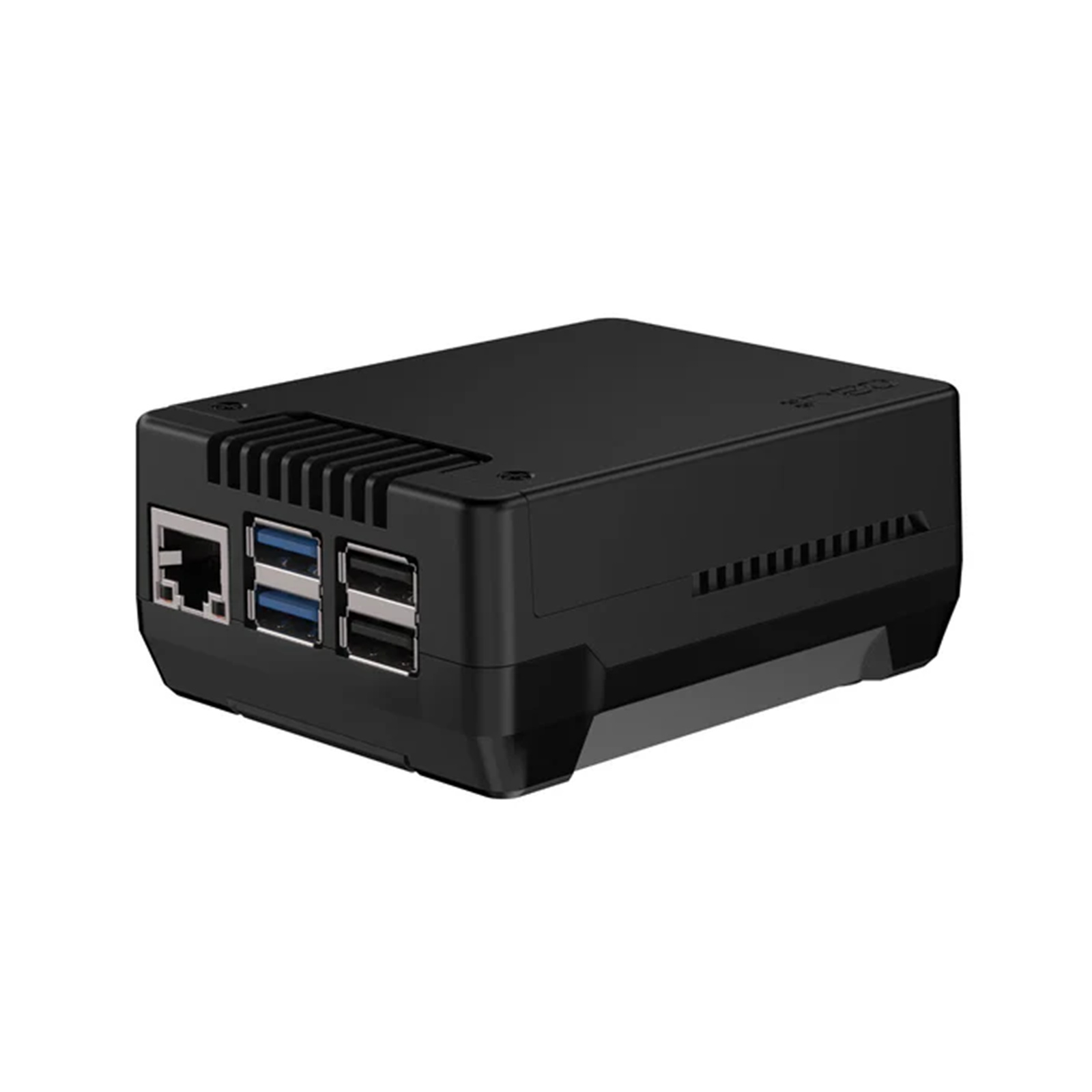

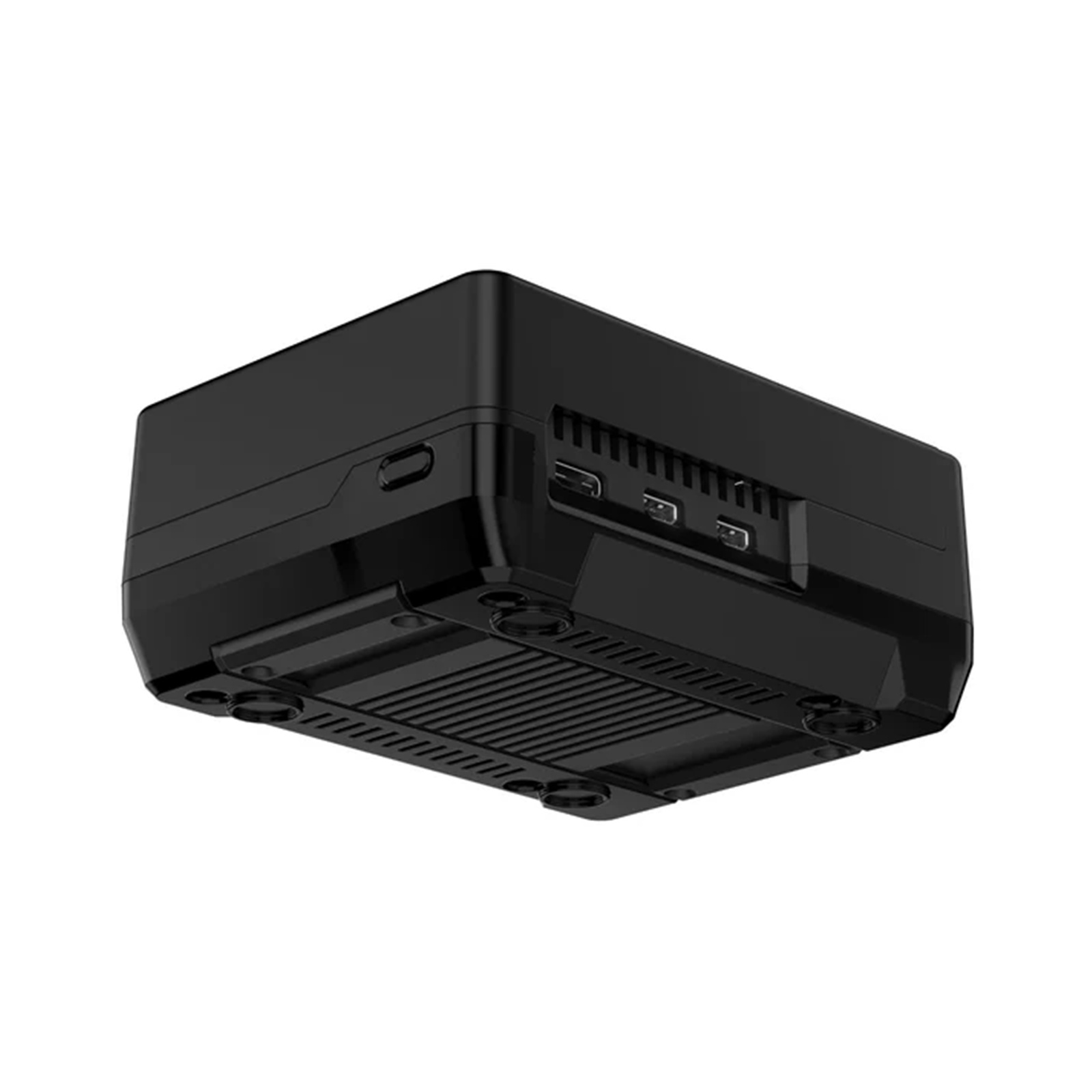

This case offers the same great features and style as the standard NEO 5 but with the addition of M.2 NVME support (drive not included) allowing you to add lots of fast storage to your Raspberry Pi 5 via the PCI-E header!

The lower section of the case accepts any M.2 NVME SSD with M-Key up to 2280 size (not included), and even has an included aluminium heatsink to keep your drive cool.

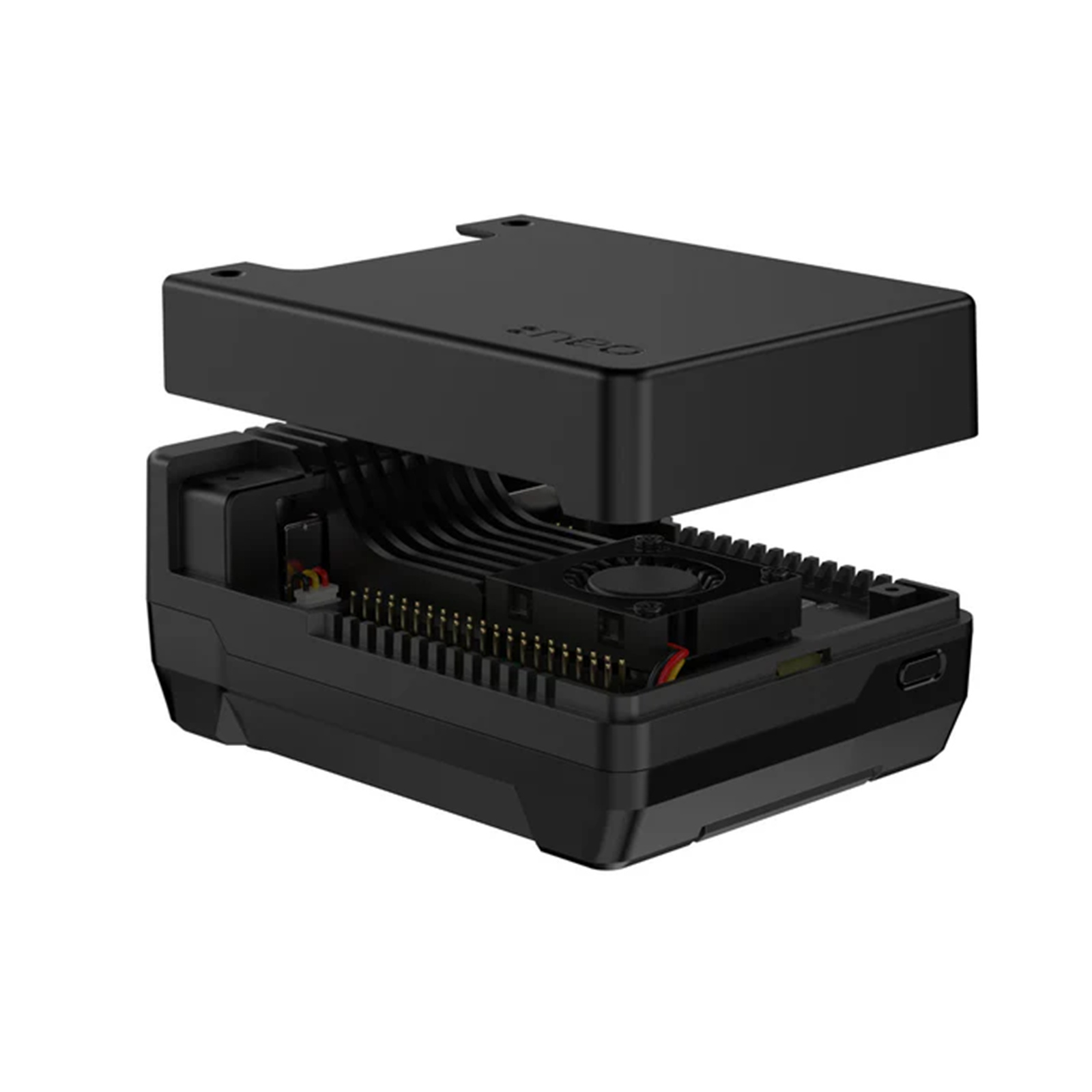

Just like the standard NEO 5, the case has a smooth aluminium alloy main body with both active and passive cooling for the ultimate cooling/quiet combo.  The case also gives access to all ports including the power button.

With a 30mm internal PWM blower fan, combined with intake and exhaust vents, you can push your Pi 5 to the max and let the case handle cooling when it's needed. When you're not pushing things to the limits, the fan will turn off and allow the passive cooling features to take over, keeping your environment quiet.

Note: You will need to use an official 27W Raspberry Pi power supply with this case to ensure sufficient power for the Pi, case and NVMe drive.

NVME Compatibility

Some customers have reported compatibility issues with certain brands/models of NVME drives. Whilst no 'official' compatibility list is maintained by Argon40 (yet), we have made them aware and discussions on their own forum are highlighting the need for clarification.

For now, we suggest following the same compatibility list on the Pimoroni NVME Base page as a starting point until something official is shared from Argon40. Please also read our troubleshooting guide.

Please also note that double-sided NVME drives will not fit this product (usually found with higher-capacity drives with components on both sides of the stick).

Feature:

 - Argon NEO 5 M.2 NVME Case further expands your Raspberry Pi 5 potential with included M.2 NVME Expansion Board support.
 - Boot your Raspberry Pi 5 from an NVME M.2 Drive.
 - Built-in HEATSINK for your M.2 NVME Drive
 - Enjoy faster and higher storage access by connecting M.2 NVME drives via the PCIe slot on the Raspberry Pi 5
 - Versatile M.2 NVME support compatible with any M.2 NVME with M-Key up to 2280 size
 - Greater thermal management on M.2 NVME with included aluminum heatsink specific to M.2 drive to keep it cool, efficient and working longer
 - Reliable and consistent data transfer with included FPC impedance controlled cable

M.2 NVMe Drive Compatibility:

Other drives may also be compatible but we have not tested yet.

Western Digital SN850

Western Digital SN740

Western Digital SN570

Western Digital SN530

Western Digital Black SN750 SE (Phison Controller)

Samsung 980 Pro

Samsung 980

Sabrent Rocket Nano

Sabrent Rocket 4.0

PNY CS1030

Origin Inception TLC830 Pro NVMe

Netac NV3000 NVMe SSD

Netac NV2000 NVMe SSD

Lexar NM710

Lexar NM620

Kioxia Exceria NVMe SSD

Kioxia Exceria G2 NVMe SSD

Kingston KC3000

Kingston SNV2S NV2 Gen4 PCIe NVMe M.2 2280 Solid-State Drive

Inland PCIe NVMe SSD

Crucial P3 Plus M.2

Crucial P3 M.2

Crucial P2 M.2

Axe Memory Generic Drive

AData XPG SX8200 Pro

Specifications

Manufacturer Part No:
SEVRBP0576
Brand:
Product Type:
NVME PCIE Case
UPC
-
Product Family:
Argon
Shipping Weight:
1 kg
PB Part No:
SEVRBP0576
Product Model:
NEO 5 M.2
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

1 out of 5 Stars Based on 1 review
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
1

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

This device does NOT physically support all 2280 size SSD boards as claimed

I bought this to house the new 2TB FireCuda 530R and found that this SSD is physically incompatible because the 530R is a double-sided 2280 board. The Argon SSD bay interferes with the memory chips underneath the board, closest to the M.2 connector. I suspect any double sided SSD may have the same issue. Other issues: It's a very fiddly assembly, with difficult cable routing to the SSD bay and poor instructions. The plastic SSD bay feels like a cheap afterthought, compared to the rather elegant cast aluminium of the main case. Cooling is also compromised as the SSD case doesn't properly keep the PI in proper contact with the thermal transfer...view more

CC
By: ChrisC74 18/08/25
Verified Owner
2 out of 2 users found this review helpful
