JBL PRO CONTROL50-PACK SURFACE-MOUNT SUB-SATELLITE LOUDSPEAKER PACK
JBL PRO CONTROL50-PACK SURFACE-MOUNT SUB-SATELLITE LOUDSPEAKER PACK
- Brand: JBL PRO
- MPN: CONTROL50-PACK
- Part #: SPKJBL1108
- UPC:
- Brand: JBL PRO
- MPN: CONTROL50-PACK
- Part #: SPKJBL1108
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Multi Room Speakers





JBL PRO CONTROL50-PACK SURFACE-MOUNT SUB-SATELLITE LOUDSPEAKER PACK
- Brand: JBL PRO
- MPN: CONTROL50-PACK
- Part #: SPKJBL1108

Product URL: https://www.pbtech.co.nz/product/SPKJBL1108/JBL-PRO-CONTROL50-PACK-SURFACE-MOUNT-SUB-SATELLITE
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

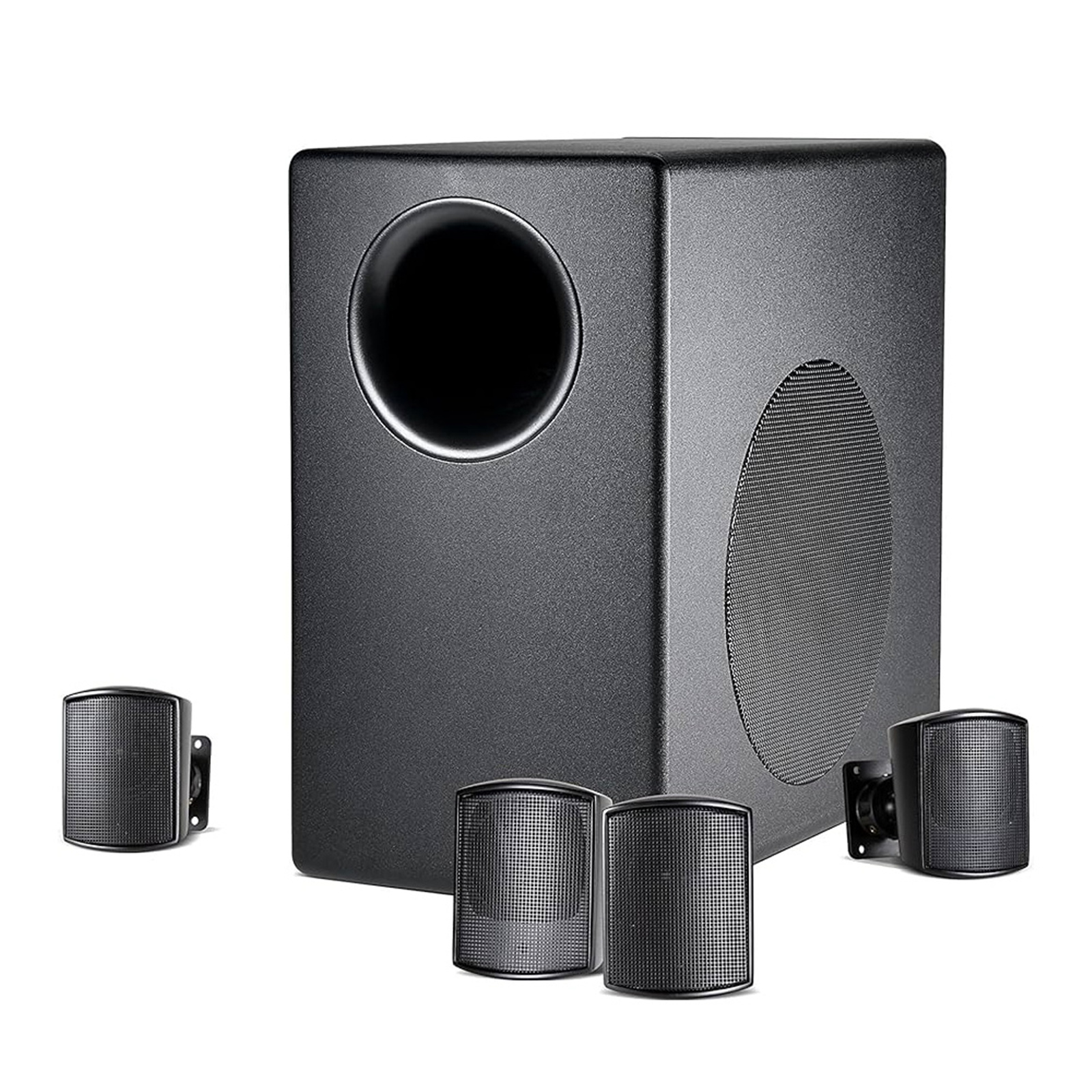

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System
The Control 50 Series subwoofer-satellite loudspeaker system provides high ?delity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high ?delity foreground/background music is required from surfacemount system.
- Versatile four satellite speaker system
- Stylish, unobtrusive design ?ts into a wide variety of decor
- High ?delity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Wall-mount brackets include
Specifications
Frequency Range (-10dB)
32 Hz - 20 kHz
Frequency Response (±3 dB)
50 Hz - 17 kHz
Power Rating
200 Watts Continuous Program Power (100 hrs)
100 Watts Continuous Pink Noise (100 hrs)
Sensitivity
System: 87 dB with 4 satellites
85 dB with 2 satellites
(depends on subwoofer boundary loading, see application note)
Impedance
4 ohms with 4 satellites, 8 ohms with 2 satellites
Transformer Taps
80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
Maximum SPL (1m)
System: 107 dB with 4 satellites, continuous (113 dB peak)
105 dB with 2 satellites, continuous (111 dB peak)
(depends on subwoofer boundary loading, see application note)
Input Connectors
Removable locking 2-pin connectors with screw-down terminals.
Grille
Zinc-plated steel
Mounting Hardware
C50S/T: 2-part flush wall-mount bracket included.
C52: Wall swivel ball bracket included
Included Accessories
See Control 50S/T & Control 52
Coverage Angle
Omnidirectional
