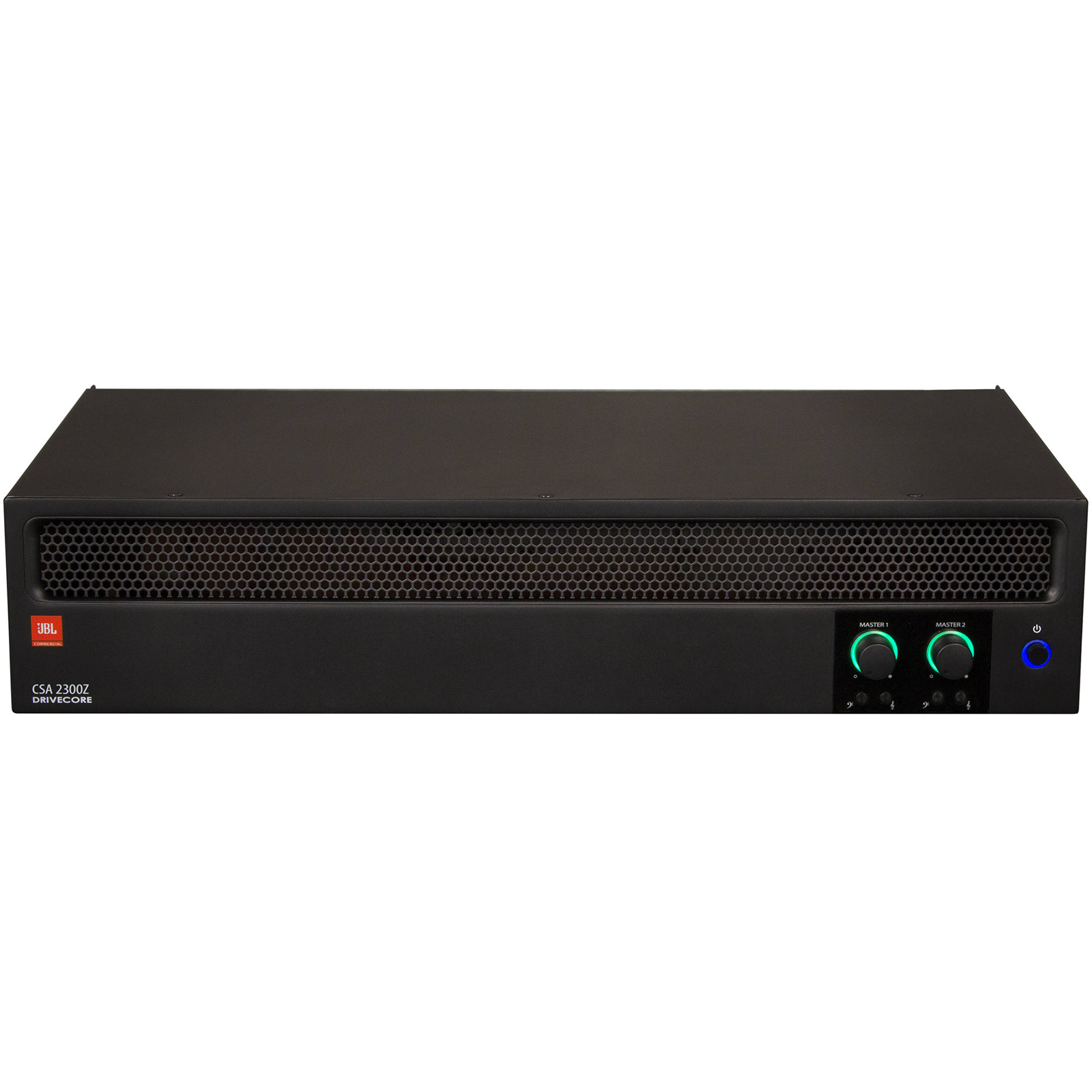

JBL PRO CSA2300Z 2 X 300W COMMERCIAL AUDIO AMPLIFIER
JBL PRO CSA2300Z 2 X 300W COMMERCIAL AUDIO AMPLIFIER
- Brand: JBL PRO
- MPN: CSA2300Z
- Part #: SPKJBL1125
- UPC:
- Brand: JBL PRO
- MPN: CSA2300Z
- Part #: SPKJBL1125
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Amplifiers





JBL PRO CSA2300Z 2 X 300W COMMERCIAL AUDIO AMPLIFIER
- Brand: JBL PRO
- MPN: CSA2300Z
- Part #: SPKJBL1125

Product URL: https://www.pbtech.co.nz/product/SPKJBL1125/JBL-PRO-CSA2300Z-2-X-300W-COMMERCIAL-AUDIO-AMPLIFI
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
300-Watt 2-Channel Commercial Power Amplifier
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
The efficient performance of Crown's DriveCore™ Technology continues to set new standards in commercial power amplifier technology.
Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.
Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls.
And with HARMAN's GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.
- 2 channel 300W output
- Built-in 70V and 100V
- Space-saving 2 RU design
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
Specifications
General
Brand
JBL PRO
Manufacturer Part Number
CSA2300Z
Dimensions (W x D x H)
17.0" x 10.8" x 3.5" (432mm x 274mm x 89mm)
Weight
Approx. 17.8 lb (8.05 kg)
Performance
Rated Power into 4ohm or 8ohm; 1kHz, <= 0.5% THD
300W
Number of Output Channels
2
Insertion Loss (70V & 100V outputs)
1 dB maximum
Input Sensitivity (8ohm Load)
Balanced line input: 775mV RCA Mono Sum input: 300mV
Frequency Response (8ohm, 20Hz- 20kHz, tone ctrls set to flat response)
+/- 1.0 dB
Total Harmonic Distortion (THD) (@Full rated power, 20Hz-20kHz)
<0.5%
Signal-to-Noise Ratio (Ref. rated output, 22KHz BW, A-weighted)
>97dB
Input Impedance (nominal)
Euro Block: 20 kohm (balanced); RCA: 10 kohm
Maximum Input Level
+22dBu (Nominal)
Crosstalk (Ref. rated power, A-weighted, 1kHz)
<-70 dB
Tone Controls (Bass and Treble non-detented potentiometers on each channel)
Bass +/-12dB @100Hz
Treble +/-12dB @10kHz
Nominal AC Line Voltages
100V, 120V, 220V, 230-240V, 50/60 Hz
Minimum Load Impedance
Low-Z Output: 4ohm
70V Output: 12ohm
100V Output: 24ohm
Operating Temperature/Humidity
0°C to 35°C 95% R.H. (non-condensing)
Storage Temperature
-20°C to 85°C
