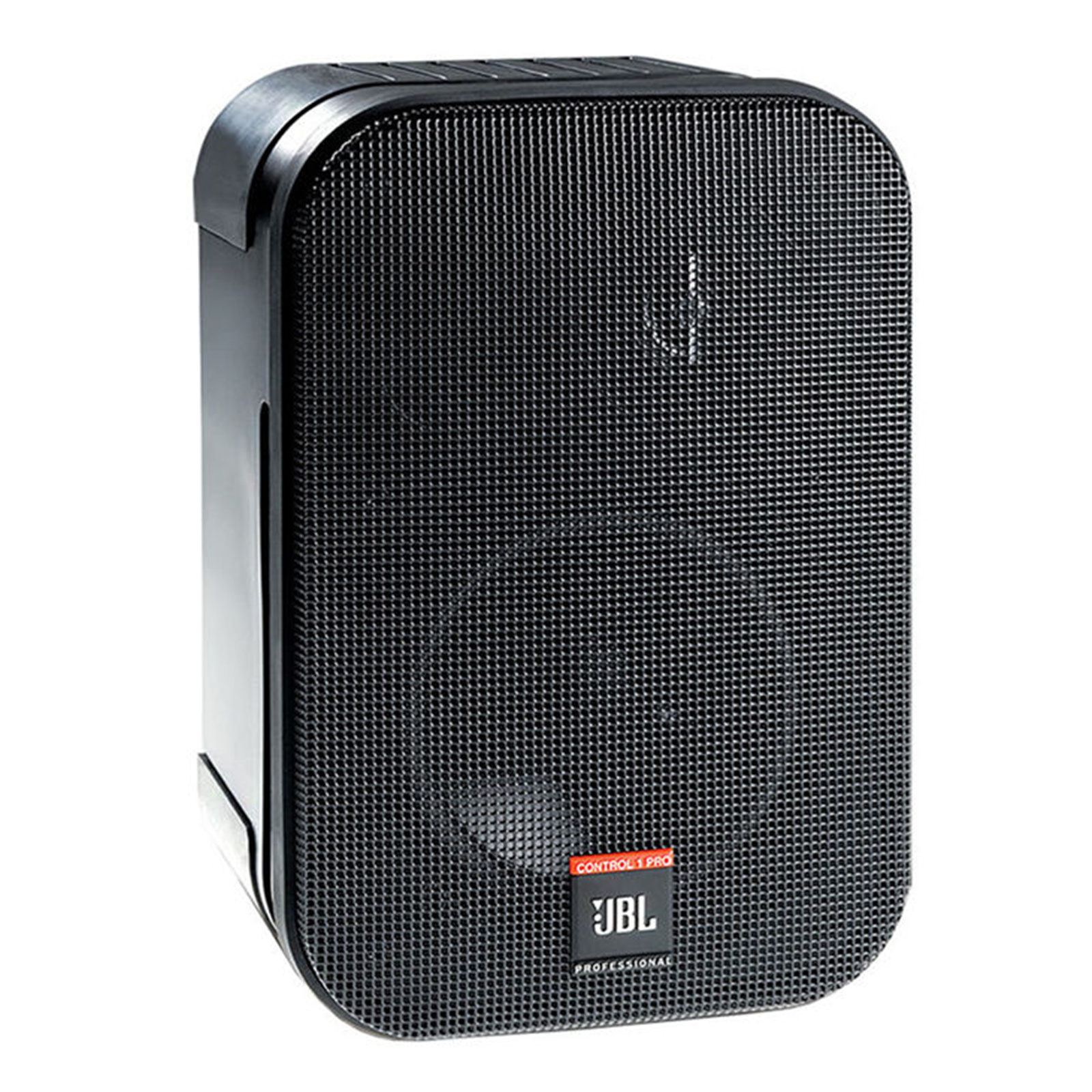

JBL PRO CSS1ST 5.25IN DUAL IMP SPEAKER - WALL MOUNT
JBL PRO CSS1ST 5.25IN DUAL IMP SPEAKER - WALL MOUNT
- Brand: JBL PRO
- MPN: CSS1ST
- Part #: SPKJBL1133
- UPC:
- Brand: JBL PRO
- MPN: CSS1ST
- Part #: SPKJBL1133
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular PA Speakers





JBL PRO CSS1ST 5.25IN DUAL IMP SPEAKER - WALL MOUNT
- Brand: JBL PRO
- MPN: CSS1ST
- Part #: SPKJBL1133

Product URL: https://www.pbtech.co.nz/product/SPKJBL1133/JBL-PRO-CSS1ST-525IN-DUAL-IMP-SPEAKER---WALL-MOUNT
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Compact Two-Way 100V/70V/8-Ohm Loudspeaker
CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
- 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
- 8 Ohm Direct Setting
- Included Wall-Mounting Bracket
- Professional Drivers and Network
Specifications
Frequency Range (-10dB)
85 Hz - 18 kHz
Frequency Response (±3 dB)
120 Hz - 16 kHz
Power Capacity
60 Watts
Sensitivity
86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
Maximum SPL (1m)
106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
Nominal Coverage
120ºH x 120ºV
Directivity Factor (Q)
6.2
Directivity Index (DI)
7.9 dB
Nominal Impedance
8 ohms (in 8O DIRECT mode, selectable on back panel)
Transformer Taps
10 W, 5 W (& 2.5W @ 70V)
Crossover Frequency
4.3 kHz
LF Driver
135 mm (5.25 in) low frequency driver
HF Driver
19 mm (0.75 in) polycarbonate dome tweeter
Input Connectors
Spring-loaded terminals
Enclosure Material
Polypropylene Structural Foam
Color
Black
Included Accessories
Wall-mounting bracket assembly
