Features
The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
- Excellent voice range clarity for announcement and paging.
- High sensitivity delivers high sound levels with minimal power amplification.
- Wide 70° horizontal by 90° vertical coverage for medium throw applications.
- Phenolic diaphragm driver for outdoor durability and high reliability.
- UL-registered 15-watt multi-tap transformer, with 8 O direct bypass.
- Built-in high-pass filter enhances reliability by protecting against low frequency damage.
- Highly weather-resistant, with stainless steel bracket and hardware.
APPLICATION EXAMPLES
- Public Access Areas
- Warehouses
- Factories
- Schools
- Recreational Facilities
- Commercial Buildings
- Distribution Centers
- Civic Centers
- Other Commercial Sound and Protective Signaling Systems
Specifications
Frequency Range (-10dB)
400 Hz - 7.5 kHz
Coverage Angle
70°H x 90°V
Included High-Pass Filter
Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q)
10.9 (2 kHz)
Directivity Index (DI)
10.4 (2 kHz)
Power Rating
15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m)
105 dB, ave. 1 kHz - 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m)
117 dB cont ave. (123 dB peak), 1 kHz - 6 kHz;123 dB cont ave. (129 dB peak), 2 kHz, 15W input,8 ohm setting
Impedance
15W/70V, NC/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 0.9W/100V, 1.9W/100V tap:5332 ohms 8 ohms at 8 ohm direct setting

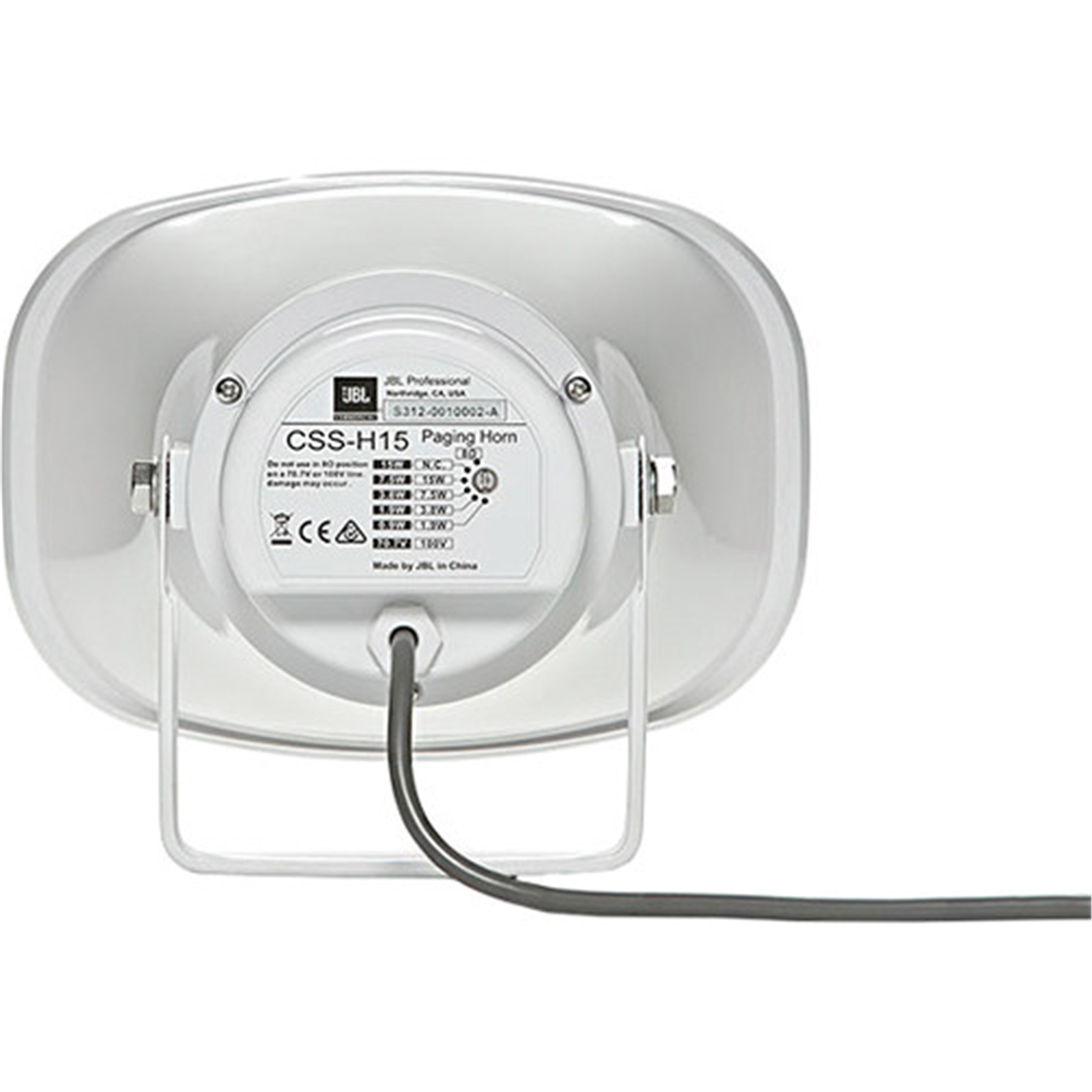

Transformer Taps
70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W 100V: 15W, 7.5W, 3.8W, 1.9W
Drivers

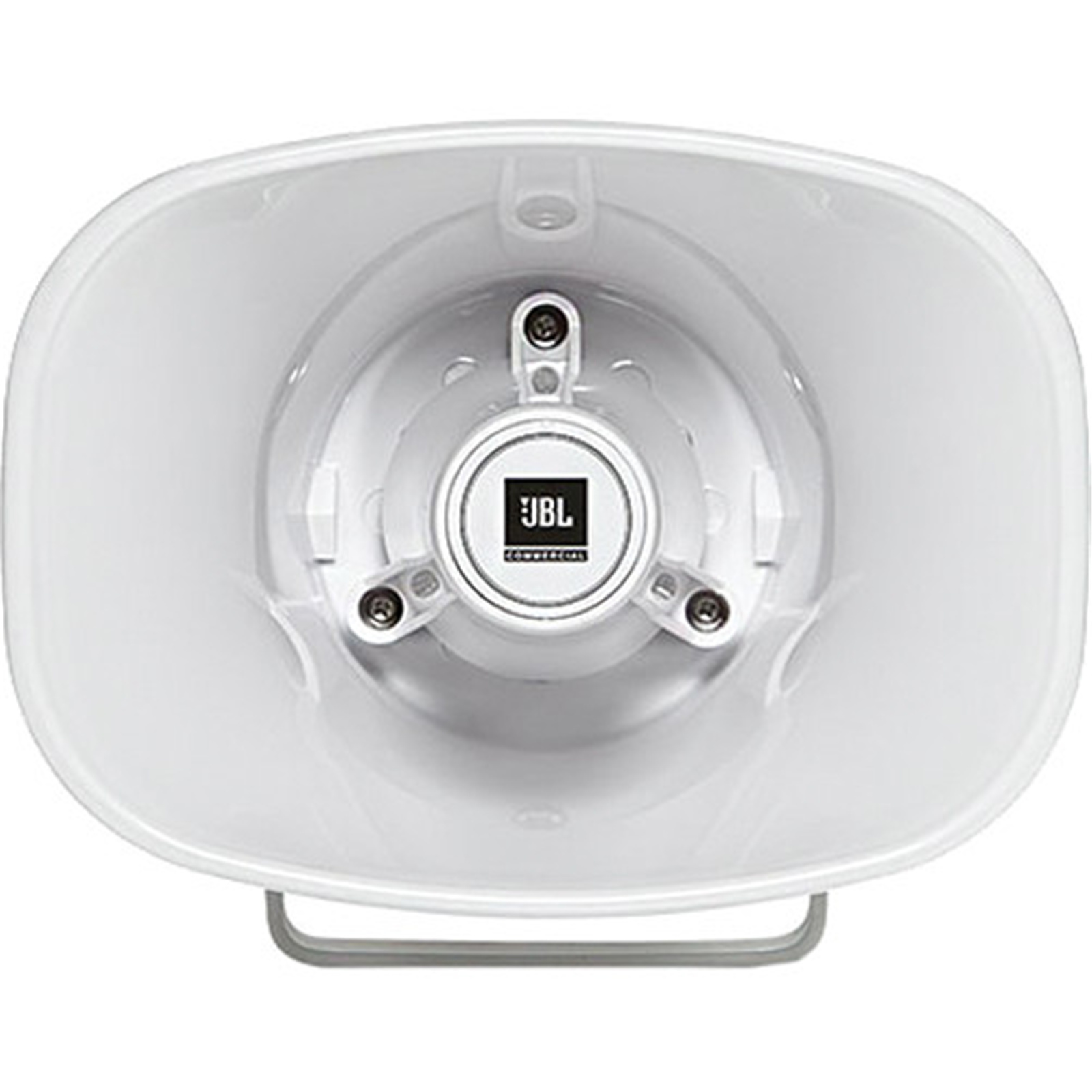

33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material
ABS
Mounting Hardware
Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
Color
RAL9016 (horn and bracket)
Input Connectors
300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Outdoor Capability
IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Ratings
Transformer UL Registered per UL1876 "Isolating Signal and Feedback Transformers for Use in Electronic Equipment"
Included Accessories
Stainless steel mounting bracket
