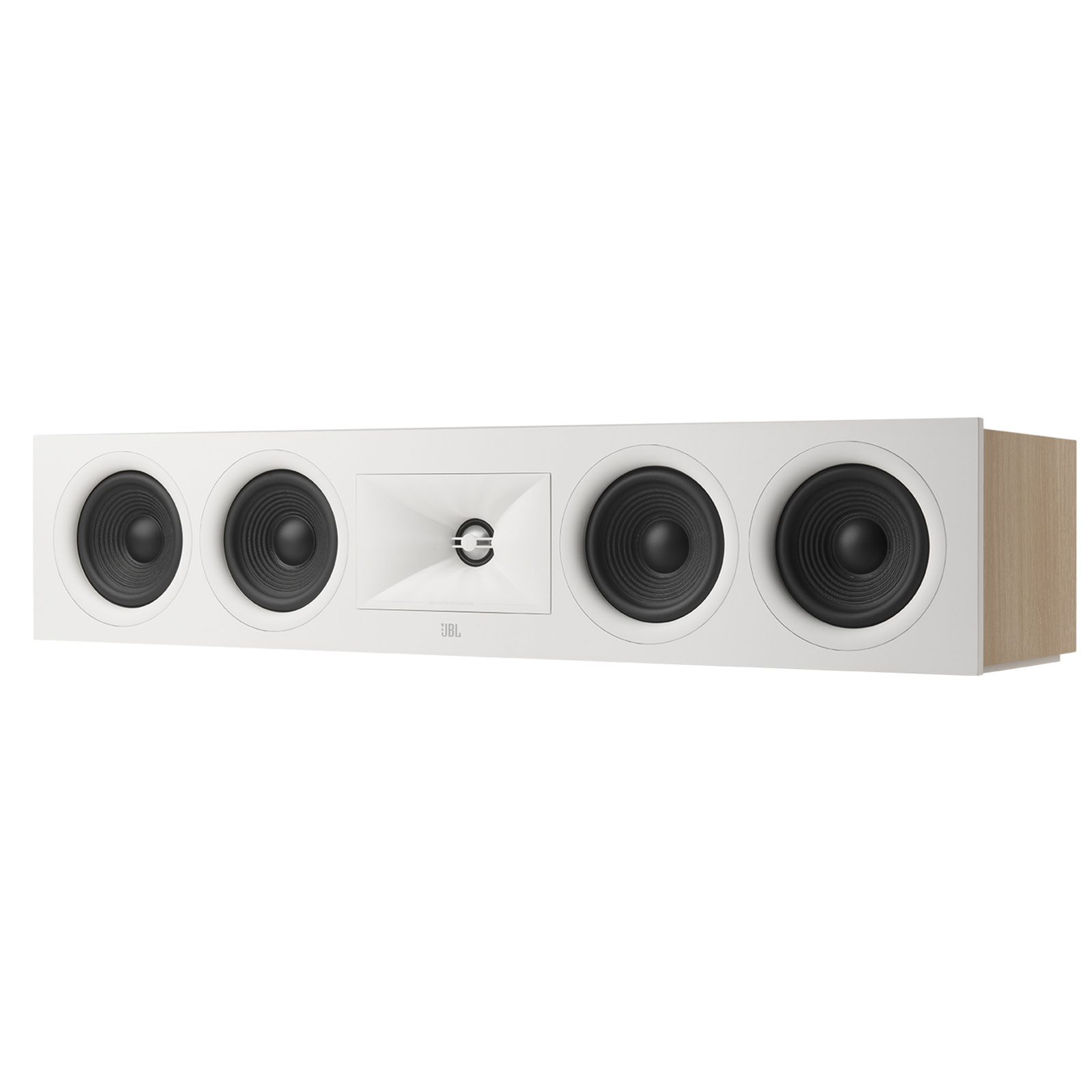

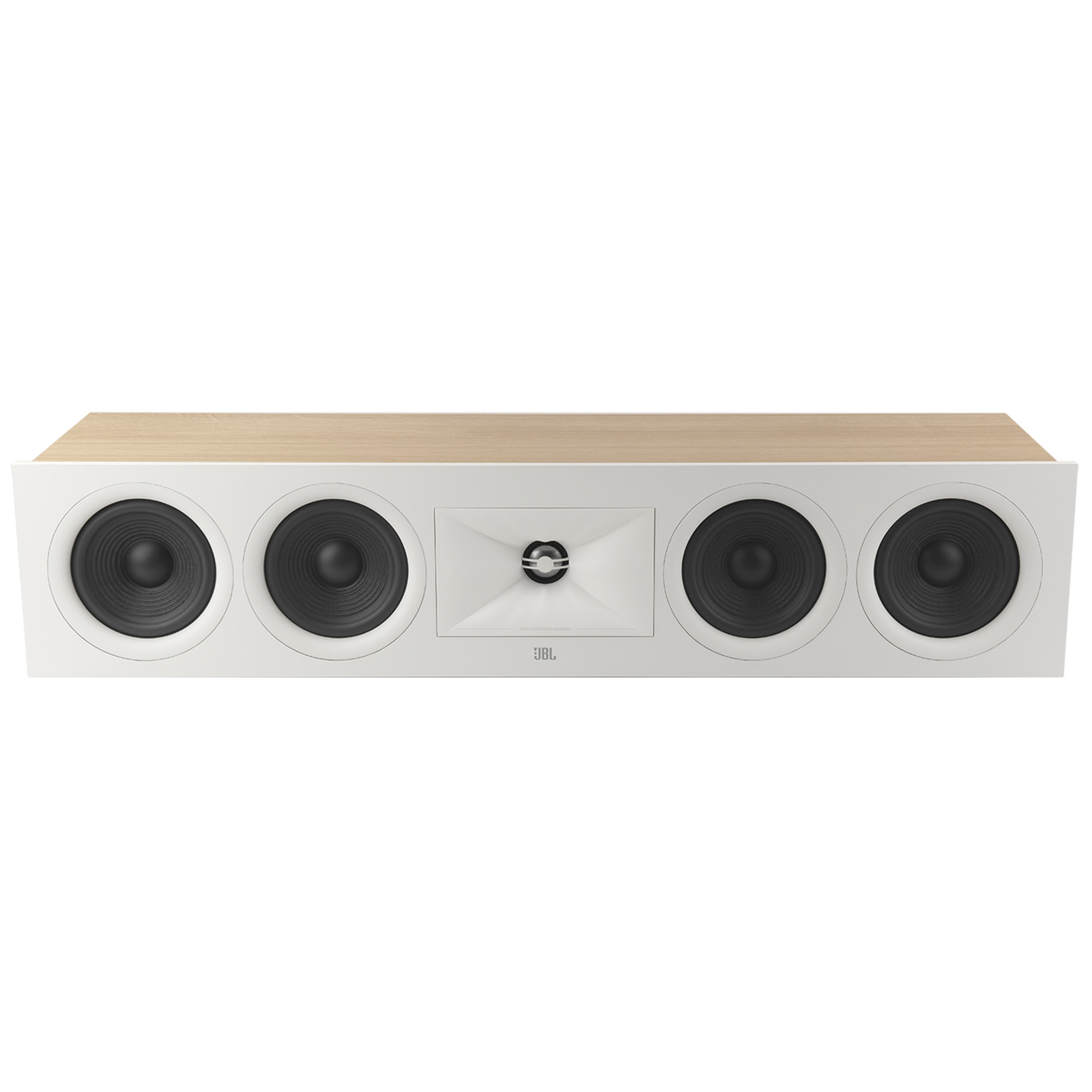

JBL Stage 245C 2.5-Way Quad 4.5" Passive Centre Channel Loudspeaker - Latte White
Quad 4.5" Woofers + 1" Horn Tweeter - Ideal for 5.1 / 7.1 Surround Sound Centre Channel - 6ohm - 20W-150W - Amplifier Required
JBL Stage 245C 2.5-Way Quad 4.5" Passive Centre Channel Loudspeaker - Latte White
Quad 4.5" Woofers + 1" Horn Tweeter - Ideal for 5.1 / 7.1 Surround Sound Centre Channel - 6ohm - 20W-150W - Amplifier Required
- Brand: JBL
- MPN: JBL245CWHT
- Part #: SPKJBL6268858
- UPC: 050036401883
- Brand: JBL
- MPN: JBL245CWHT
- Part #: SPKJBL6268858
- UPC: 050036401883
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Home Theatre Speaker Systems
JBL Stage 245C 2.5-Way Quad 4.5" Passive Centre Channel Loudspeaker - Latte White Quad 4.5" Woofers + 1" Horn Tweeter - Ideal for 5.1 / 7.1 Surround Sound Centre Channel - 6ohm - 20W-150W - Amplifier Required
- Brand: JBL
- MPN: JBL245CWHT
- Part #: SPKJBL6268858
- UPC:050036401883
Product URL: https://www.pbtech.co.nz/product/SPKJBL6268858/JBL-Stage-245C-25-Way-Quad-45-Passive-Centre-Chann
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 2 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.
Precision 2.5-Way Crossover
The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter's output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.

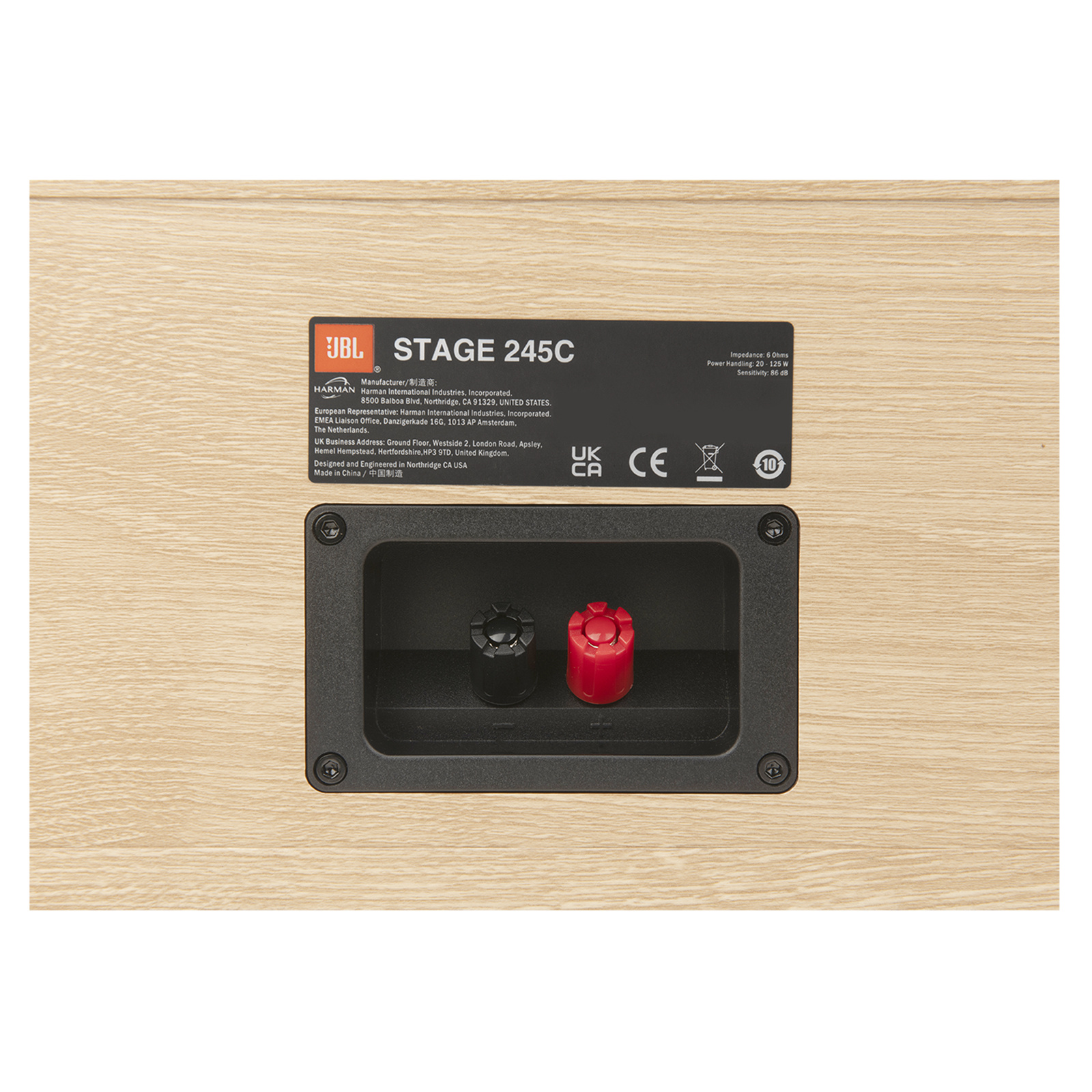

5-Way Binding Posts
Sturdy 5-way binding posts provide the listener with their choice of high-quality connection. They also match the binding posts on the JBL MA AVRS, carrying the cohesive look throughout.

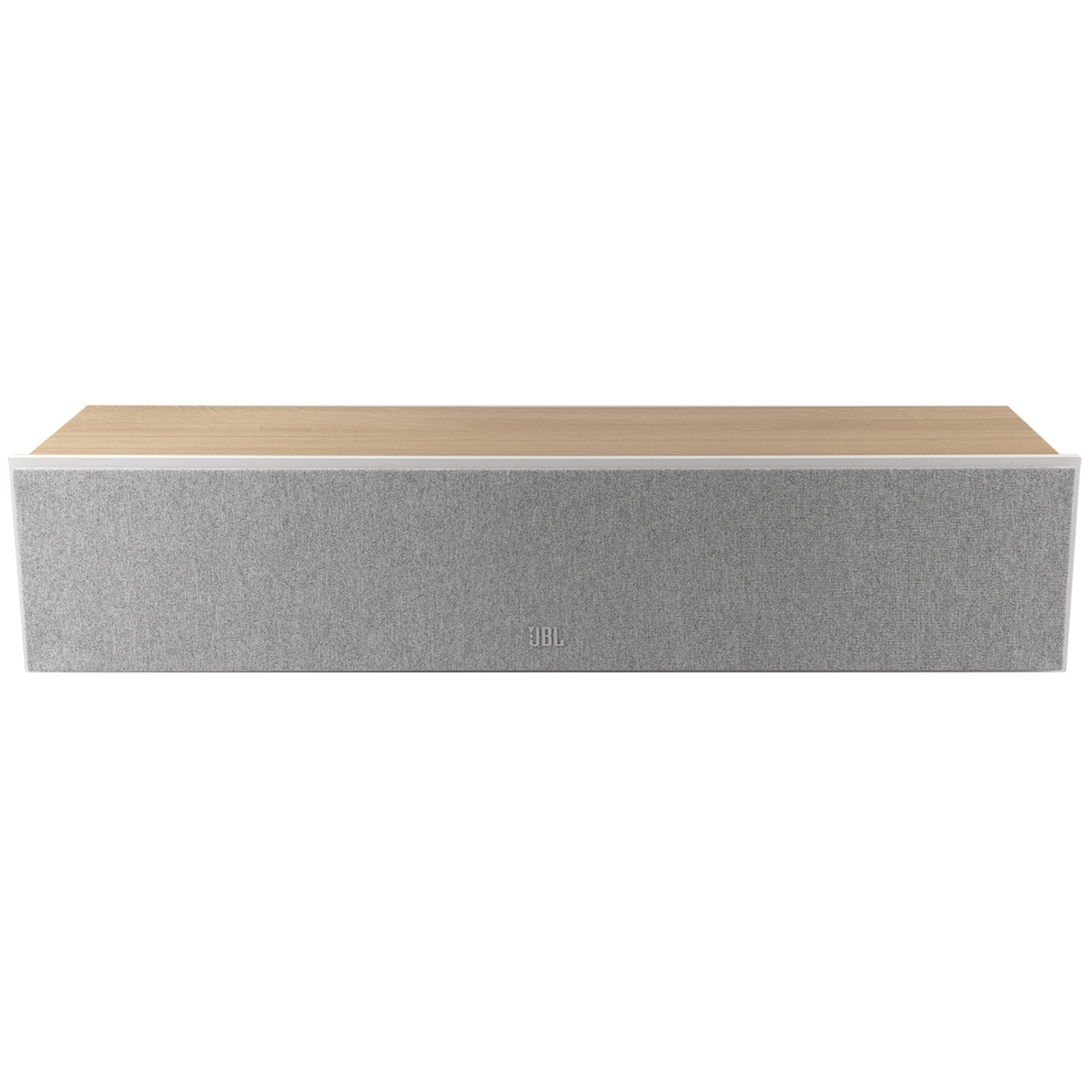

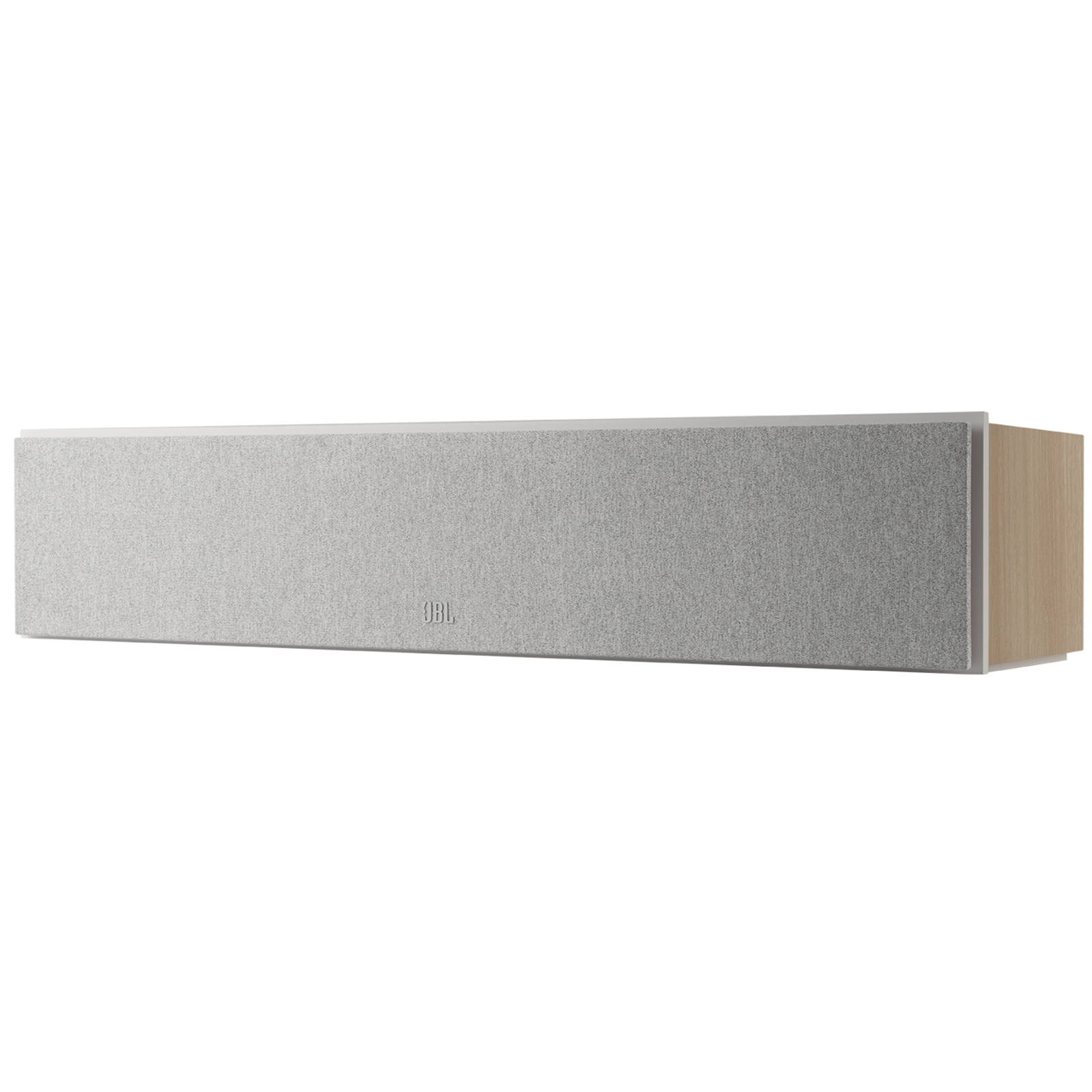

Magnetically Attached Grilles
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.

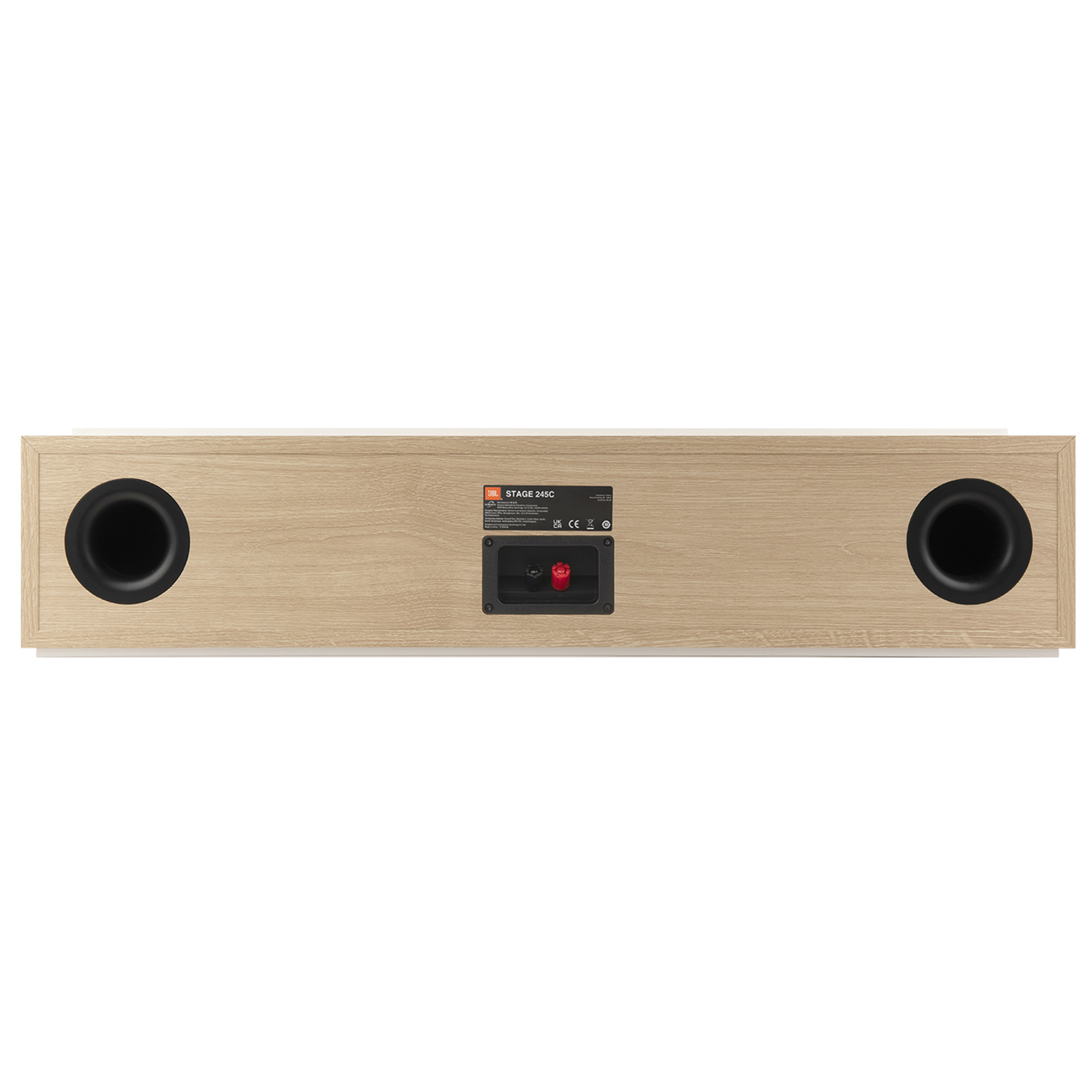

Dual Rear-Firing Tuned Port
Dual flared ports are featured on the 245C. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
Anti-Slip Pads
The 245C includes anti slip pads to hold the speaker securely in place to minimize vibrations.
Specifications
General
Type
Center Channel Loudspeaker System
Low Frequency Driver
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
55Hz-25kHz
Sensitivity @ 1M, 2.83V
91dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.3kHz/2.0Khz
Enclosure Tuning
Bass Reflex via Dual Rear-Firing Tuned Ports
Finish
Latte White
Dimensions
Dimensions (HxWxD)
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight
26.4lbs. (12.0kg)
What's in the box?
Box Contents
1 x 245C
6 x Anti-Slip Pads
1 x Speaker Grille
1 x Safety Sheet
1 x Quick-Start Guide
