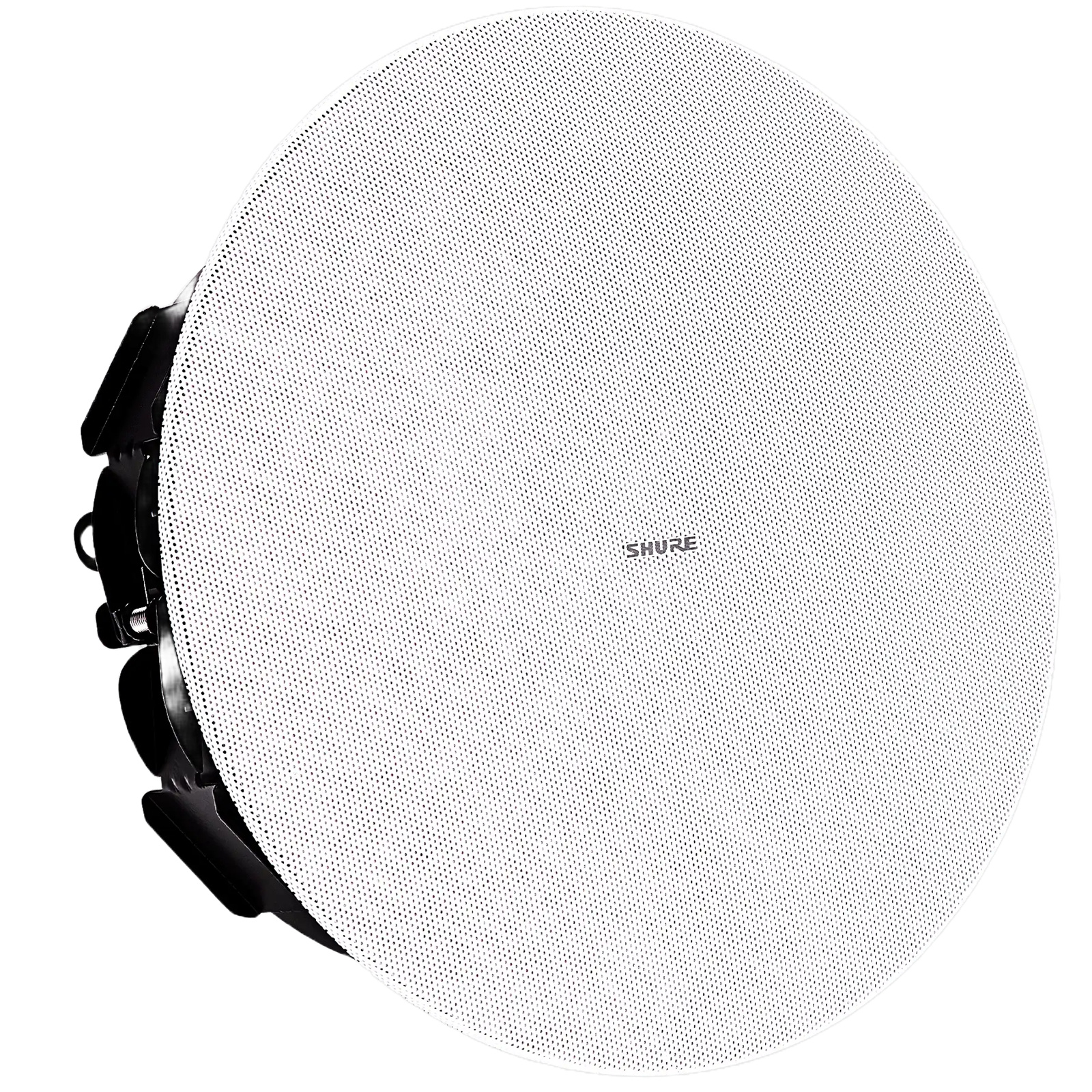

Shure MXN5W - Networked Loudspeaker - POE - White - 2 Dante inputs - 1 Dante output - Low-profile Design
Out of stock
Shure MXN5W - Networked Loudspeaker - POE - White - 2 Dante inputs - 1 Dante output - Low-profile Design
- Brand: Shure
- MPN: MXN5W-C
- Part #: SPKSHU1000
- UPC:
- Brand: Shure
- MPN: MXN5W-C
- Part #: SPKSHU1000
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Audio Interfaces





Shure MXN5W - Networked Loudspeaker - POE - White - 2 Dante inputs - 1 Dante output - Low-profile Design
- Brand: Shure
- MPN: MXN5W-C
- Part #: SPKSHU1000

Product URL: https://www.pbtech.co.nz/product/SPKSHU1000/Shure-MXN5W---Networked-Loudspeaker---POE---White
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure's ecosystem of networked hardware and software for a complete audio solution.
Software-based configuration and control
- Design and deploy every device in your audio chain with Shure Designer System Configuration software
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
- Dante Domain Manager compatible
- AES67 compatible
Loudspeaker technical elements
- Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications

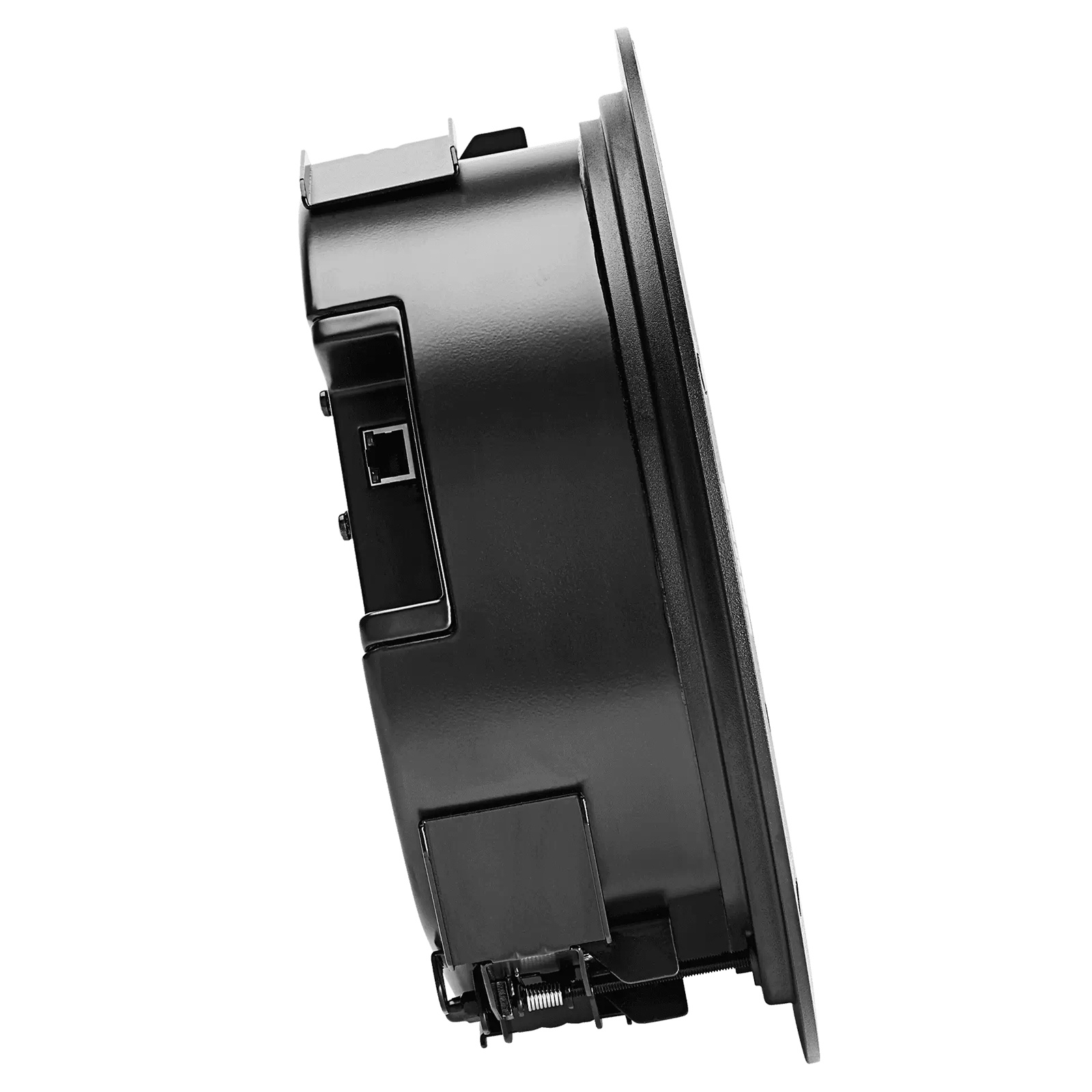

- Low-profile, shallow-can design compatible with most drop ceiling installations

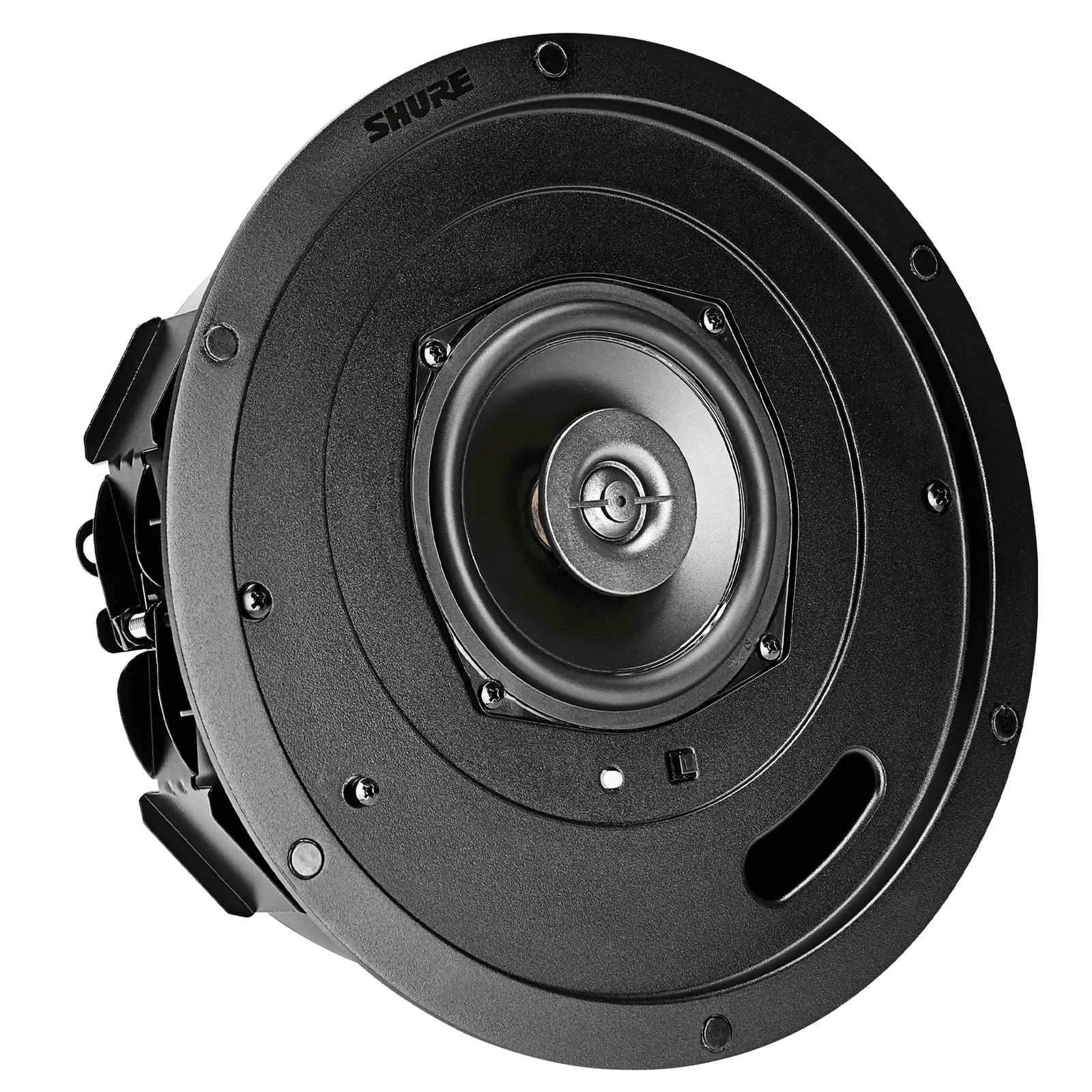

- 2-way driver system with 5.25 in (13.3cm) woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output
Clean design elements

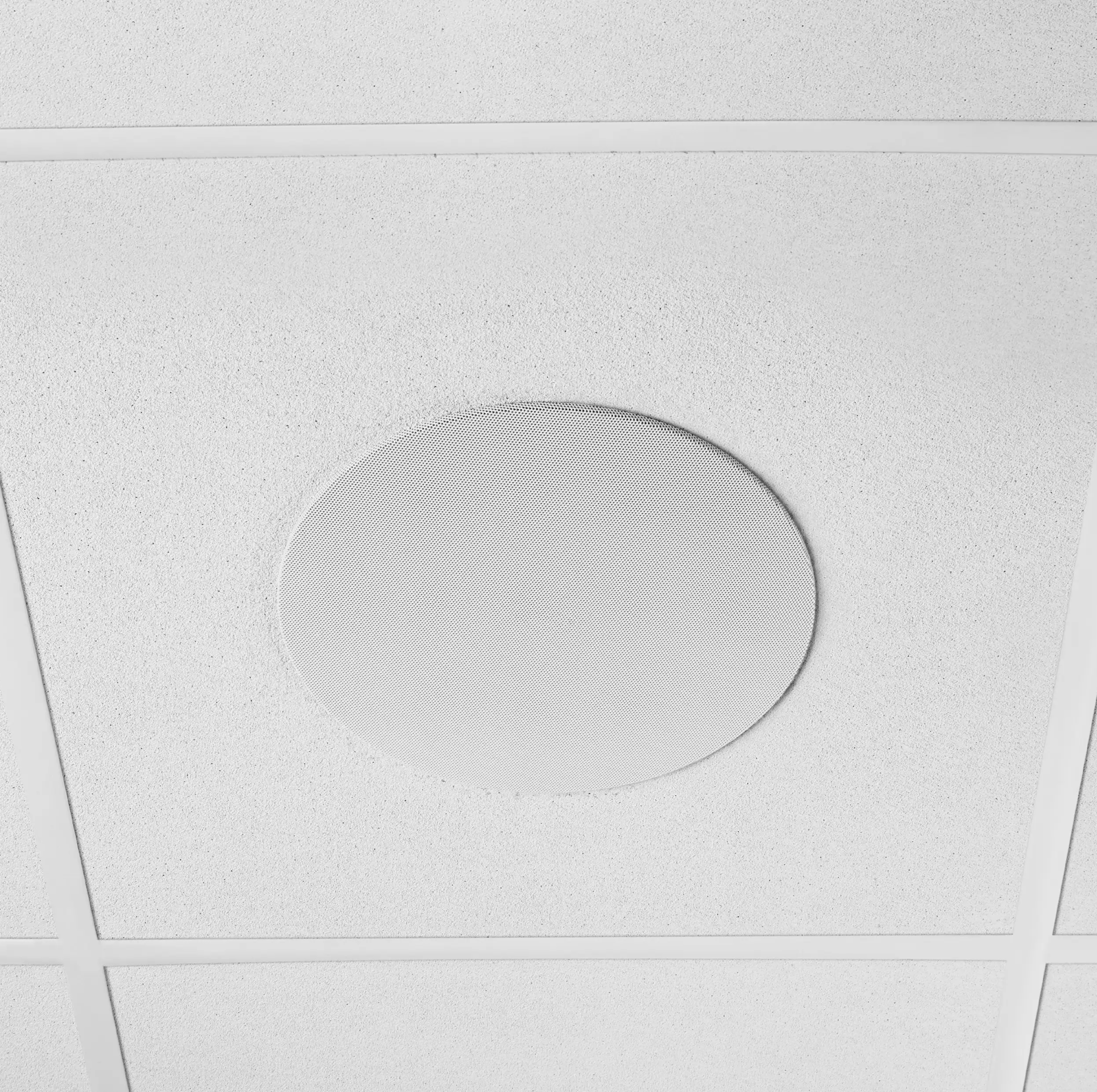

- Aesthetic design subtly blends into drop ceiling environments

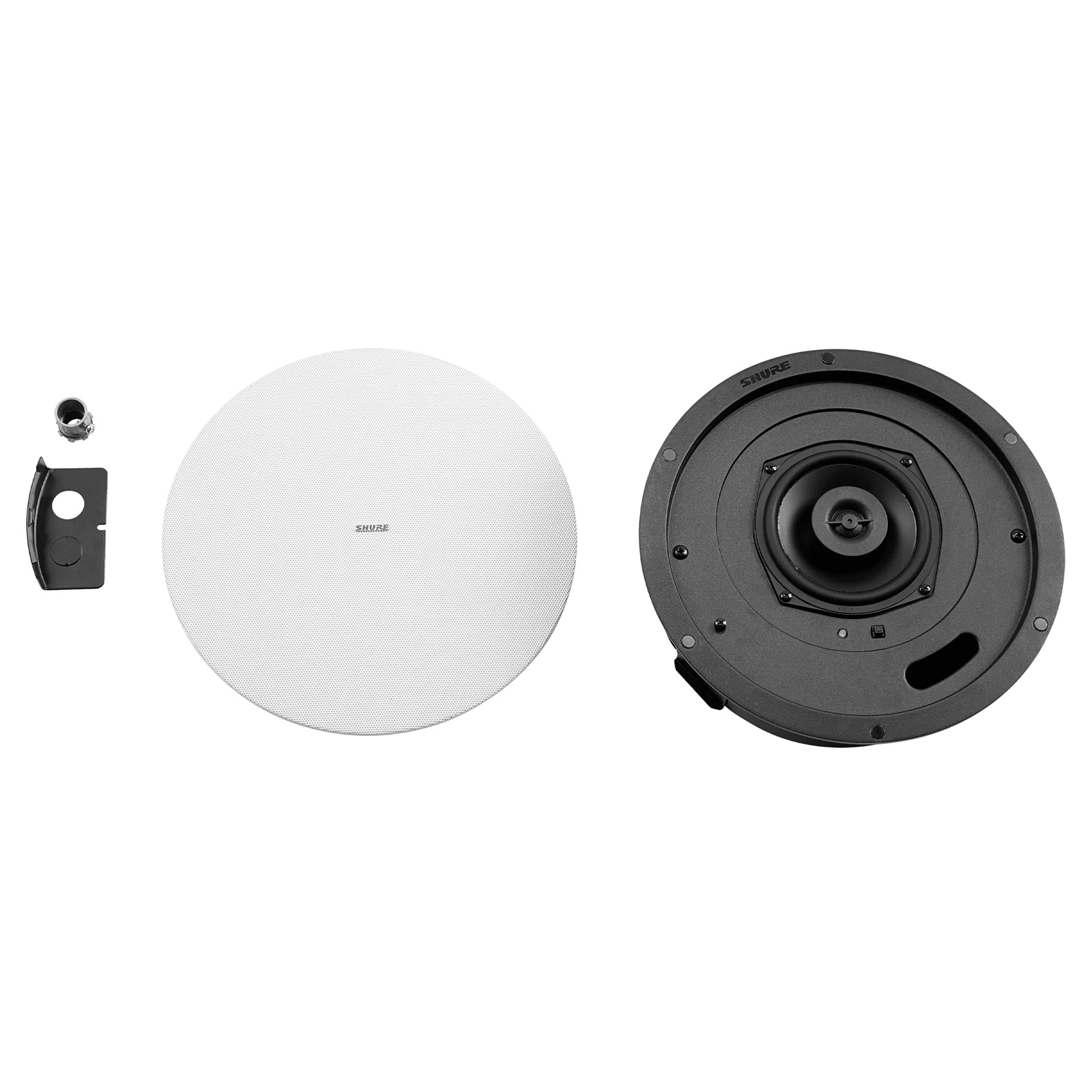

- Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
- Removable magnetic Shure logo
- UL 2043 plenum rated
- Tile bridge or New Construction Bracket accessories for quick and easy mounting
The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Specifications
General
Compatibility
Shure Microflex Advance MXA920 / Microflex Advance MXA910 / Microflex Advance MXA710 / Microflex Advance MXA310 / Microflex P300 / Microflex ANIUSB-MATRIX / Microflex MXN5-C / Microflex Advance MXA Network Mute Button / Microflex IntelliMix Room / Microflex Shure Designer Software
Inputs/Outputs
Audio I/O
1x RJ45 Input/Output
Frequency Response
120 Hz to 20 kHz (- 3dB)
Maximum Output Level
Power over Ethernet (PoE): 92 dB SPL
PoE Plus: 98 dB SPL (at 3.3" / 1 m)
Latency
1.5 ms (Not Including Dante Latency)
DSP
Delay, Limiter, Signal Generator, Equalizer (4-Band Parametric)
Angle of Coverage
-6 dB at 2 kHz: 180 Degrees
-6 dB at 10 kHz: 107 Degrees
Power
Power Source
PoE
Power Consumption
24 W (Maximum)
Physical
Mounting
Back: Multiple Ceiling
Colour
White
Environmental Resistance
No
Certifications
PlenumUL2043, CANICES-003(B)/NMB-003(B), CE
Operating Conditions
20 to 104°F / -6 to 40°C
Storage Conditions
-20 to 165°F / -28 to 73°C
Dimensions
12 x 12 x 4" / 304.8 x 304.8 x 101.6 mm
Weight
6.5 lb / 2.95 kg
