StarTech.com SV231TDPU34K 2 Pt DP KVM Switch 4K 60Hz Ultra HD
StarTech.com SV231TDPU34K 2 Pt DP KVM Switch 4K 60Hz Ultra HD
- Brand: StarTech.com
- MPN: SV231TDPU34K
- Part #: STT5351636
- UPC: 065030881784
- Brand: StarTech.com
- MPN: SV231TDPU34K
- Part #: STT5351636
- UPC: 065030881784
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular KVM Desktop Switches





StarTech.com SV231TDPU34K 2 Pt DP KVM Switch 4K 60Hz Ultra HD
- Brand: StarTech.com
- MPN: SV231TDPU34K
- Part #: STT5351636
- UPC:065030881784

Product URL: https://www.pbtech.co.nz/product/STT5351636/StarTechcom-SV231TDPU34K-2-Pt-DP-KVM-Switch-4K-60H
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

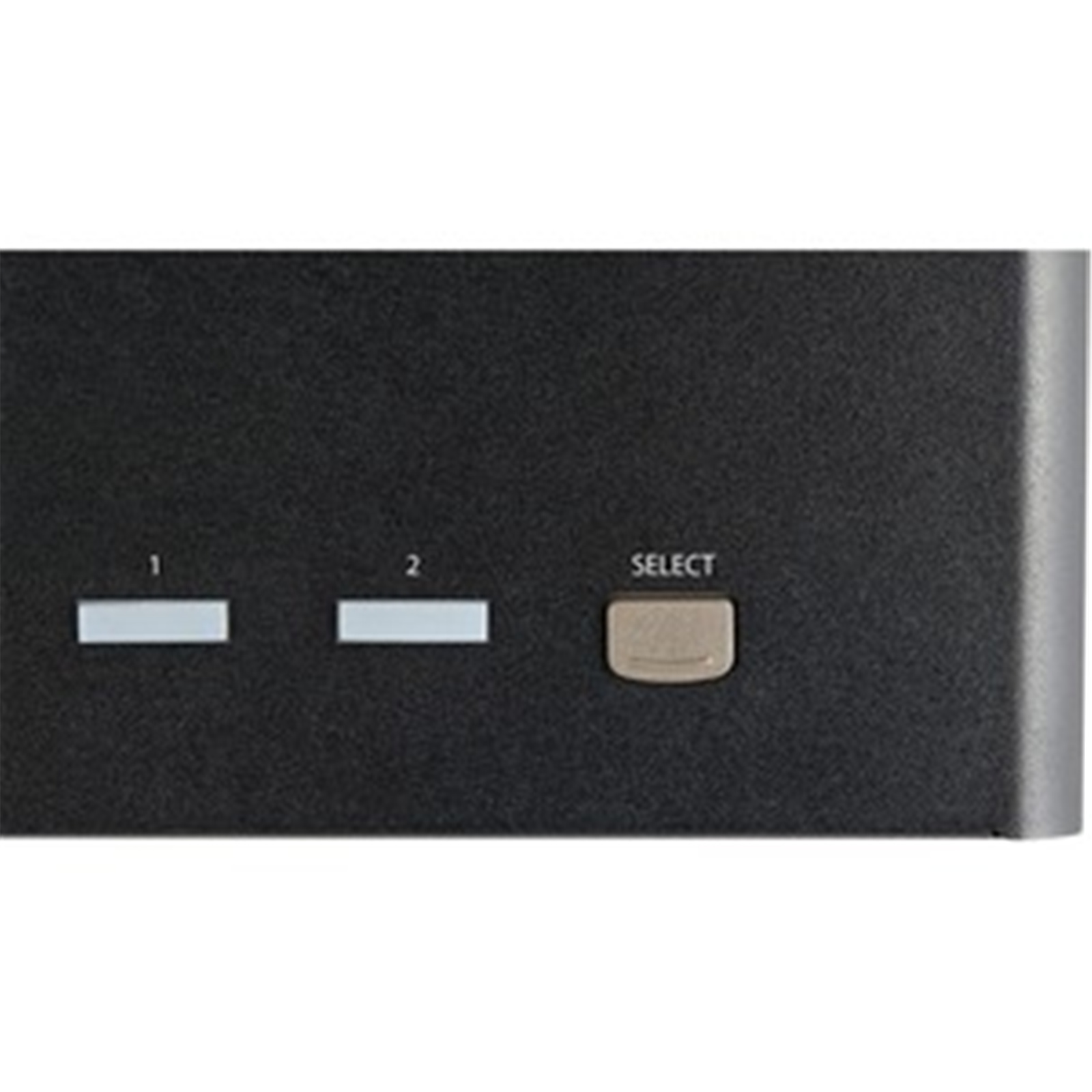

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
- IMPROVE EFFICIENCY: Switch between two computers with three monitors using USB and DisplayPort video from a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers
- TRIPLE MONITOR 4K 60Hz UHD: DisplayPort triple screen KVM switch supports up to 4K at 60Hz on three monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- TECH SPECS: 2 Port KVM | Triple Display | DisplayPort 1.2 | 3840 x 2160 60 Hz | HDCP 2.2 | HDR Support | 2 Port USB 3.0 Hub | 4x USB HID | Hotkey & Push Button | OS Independent | Stereo Analog + Digital Audio | DP + USB Console

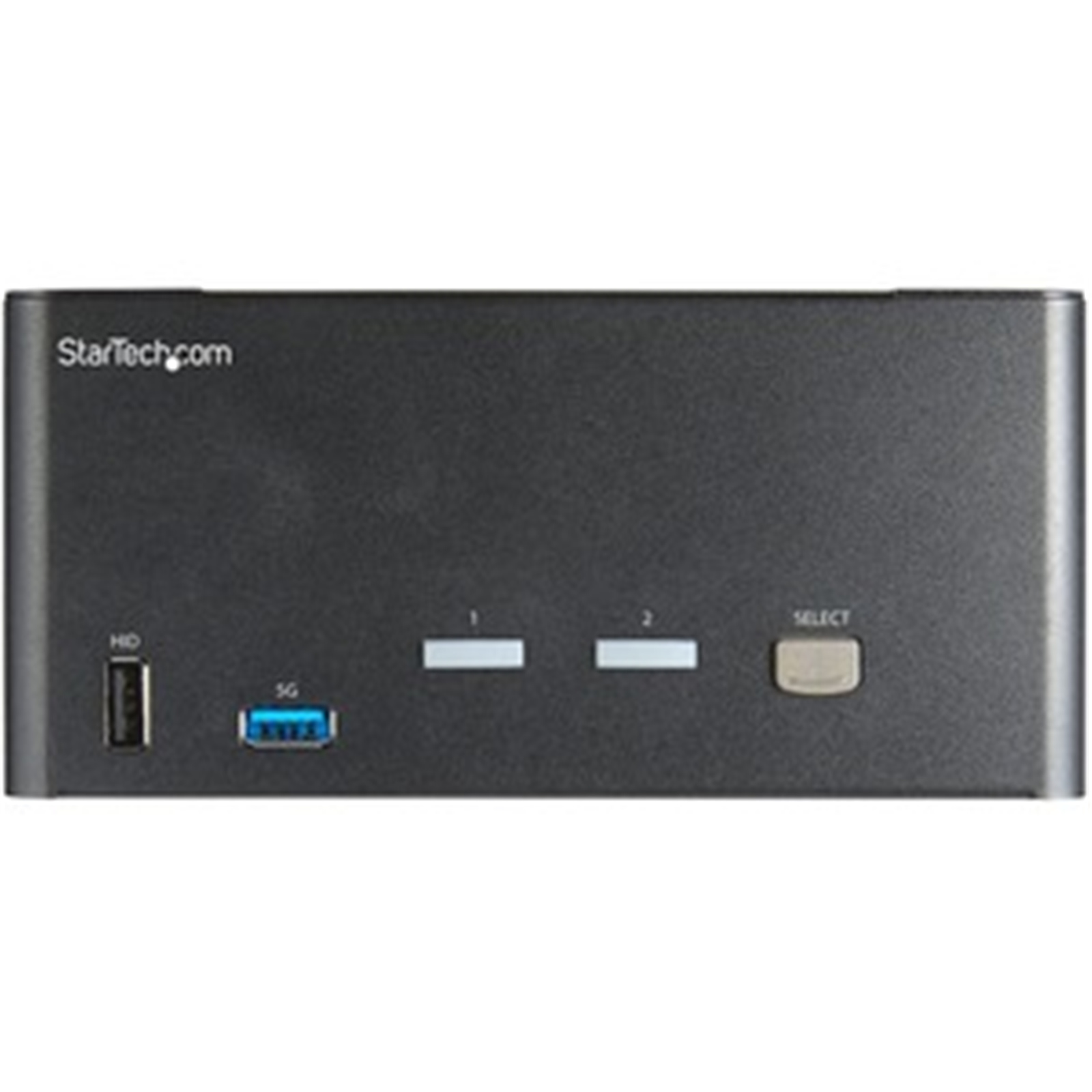

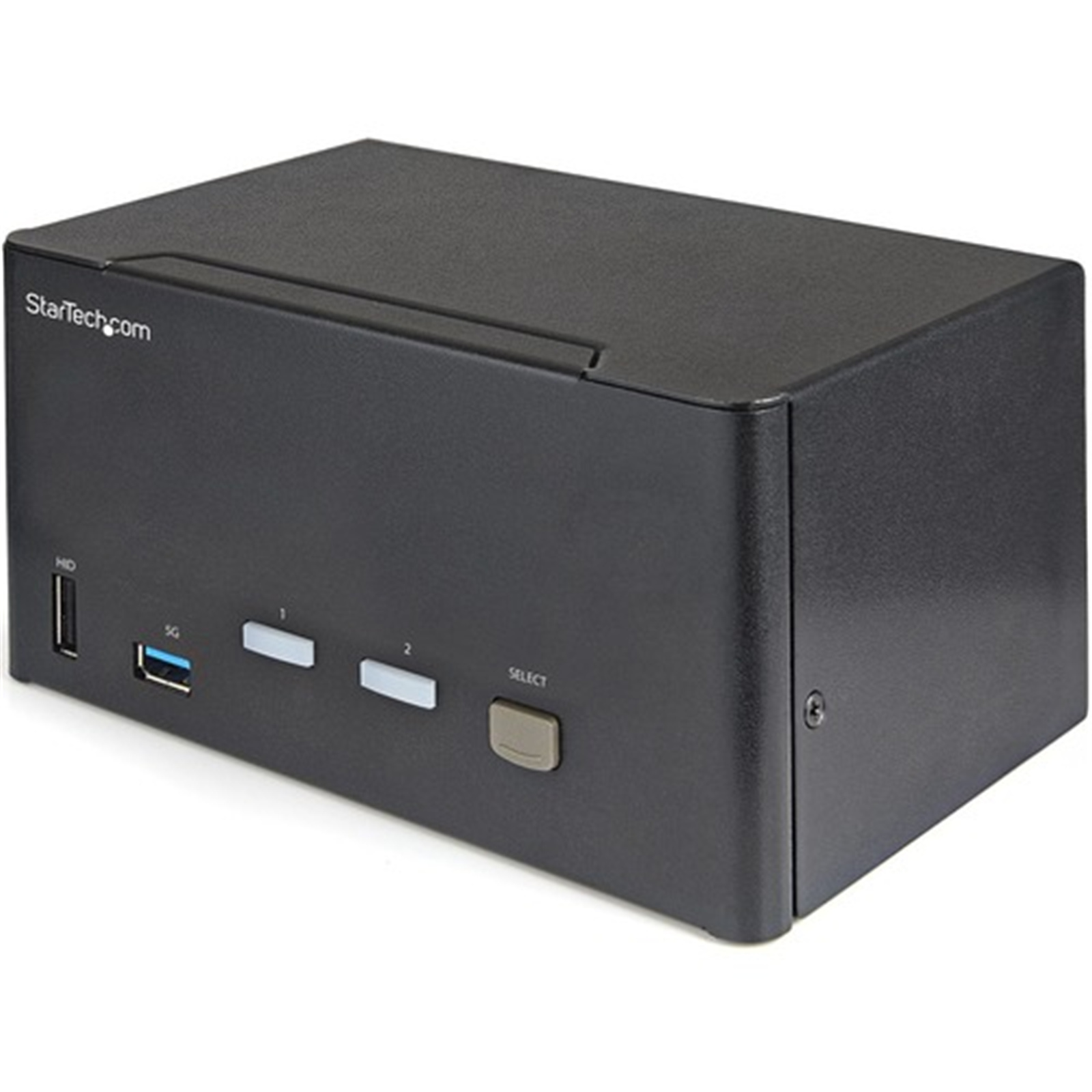

- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & an easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America
Specifications

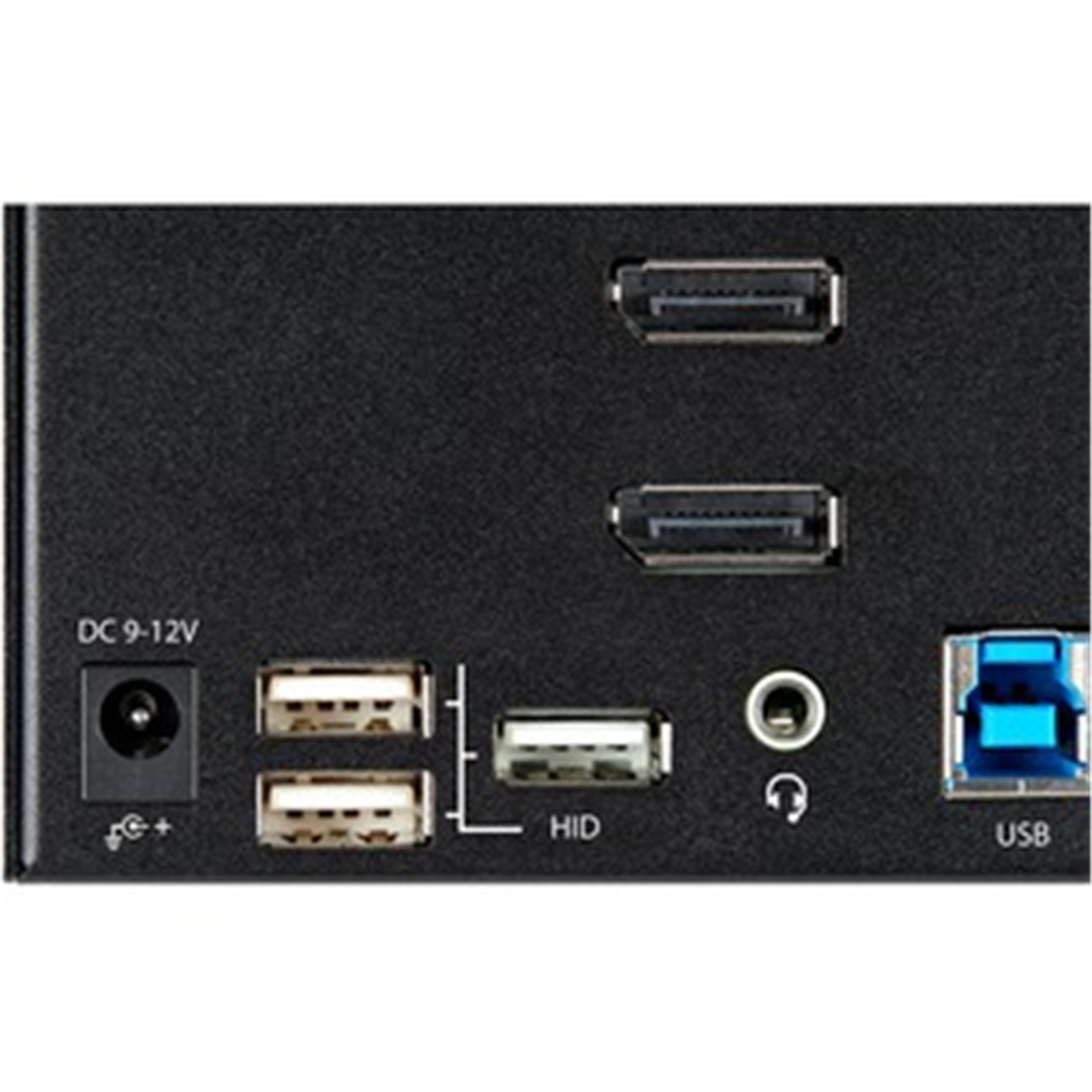

Connector(s)
Console Interface(s)
3 - 20 pin DisplayPort Female
2 - 9 pin USB 3.0 A Female
4 - USB Type-A (4 pin; HID Port) USB 1.1
1 - 3.5 mm Audio Female

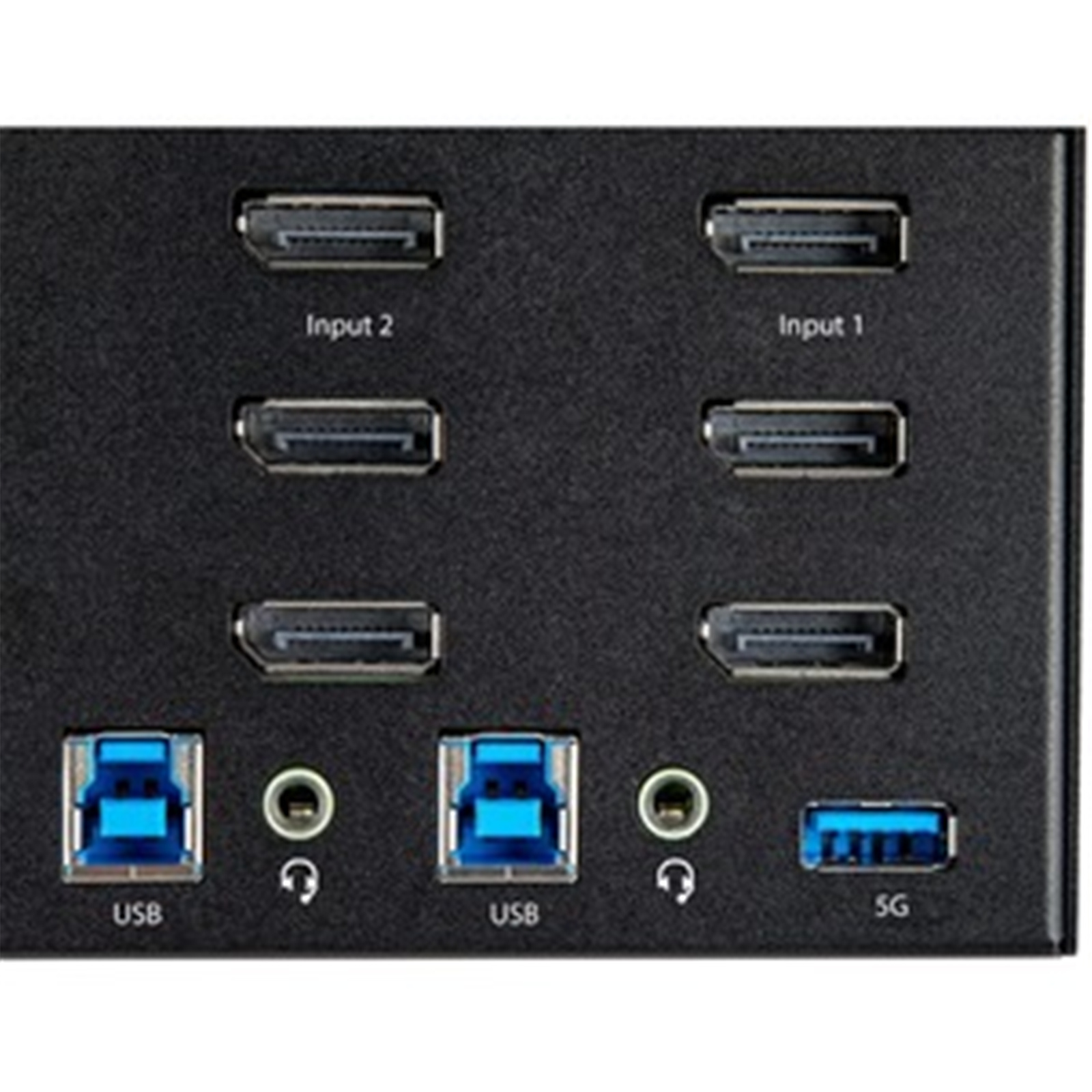

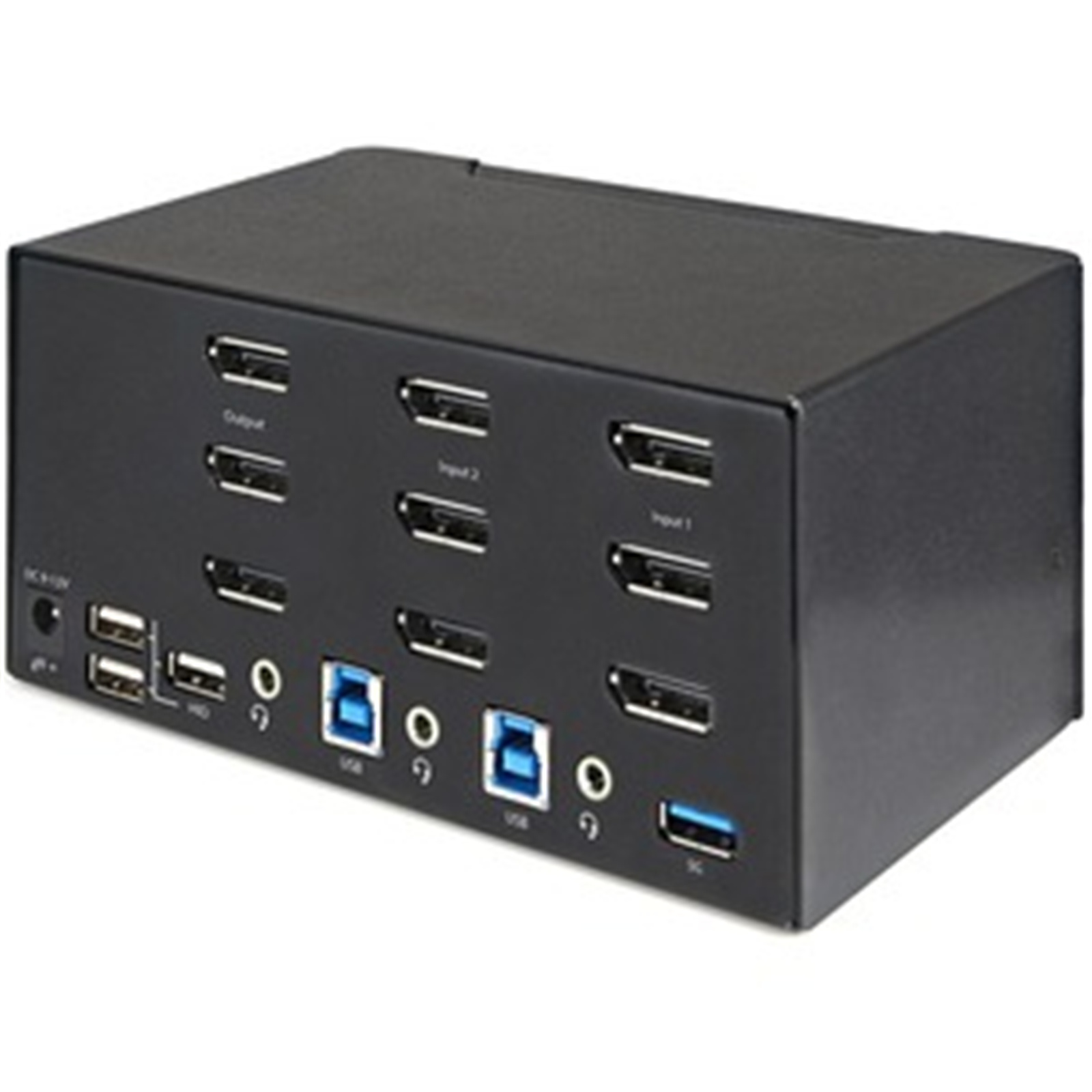

Host Connectors
6 - 20 pin DisplayPort Female
2 - 9 pin USB 3.0 B Female
2 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)
Environmental
Operating Temperature
0?~40?
Storage Temperature
-10?~60?
Humidity
0%~80%
Hardware
Audio
Yes
Cables Included
No
Daisy-Chain
No
Number of Monitors Supported
3
KVM Ports
2
PC Interface
USB 3.2 Gen 1 (5Gbps)
PC Video Type
DisplayPort
Chipset ID
Genesys Logic - GL3523
Indicators
LED Indicators
2 - Green (Power/Sync)
2 - Red (Selected Host)
Packaging Information
Package Height
3.6 in [9.1 cm]
Package Length
7.4 in [18.9 cm]
Shipping (Package) Weight
3.2 lb [1.4 kg]
Package Width
9.4 in [23.8 cm]
Package Quantity
1
Performance
Auto Scan
3, 8, 15 & 30 seconds
MTBF
156 000 hrs
Port Selection Support
Push Button and Hotkeys
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 5.1 Channel Audio
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Physical Characteristics
Color
Black
Product Height
2.9 in [7.5 cm]
Product Length
6.3 in [16.0 cm]
Weight of Product
1.9 lb [0.9 kg]
Product Width
4.7 in [12.0 cm]
Material
Steel
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.0A
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36W
