StarTech.com 9M351M-RS232-CABLE Serial Cable - 1m (3ft)

DB9 to 3.5mm - RS232

PB Tech price
PB Tech price
$ 22 .61
 +GST
$ 26 .00
 inc GST
$22.61  +GST
$26.00

StarTech.com 9M351M-RS232-CABLE Serial Cable - 1m (3ft)

DB9 to 3.5mm - RS232

PB Tech price
$ 22 .61 $ 26 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
$22.61  +GST
$26.00

Cable Length

1m

Colour

Black

Connector 1

3.5mm (Male)

Connector 2

N/A

Braided

No

HDMI Version

N/A

Similar in-stock products available at PB Tech right now

Features

3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port | Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD: 3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this product is backed for life, including free lifetime 24/5 multi-lingual technical assistance

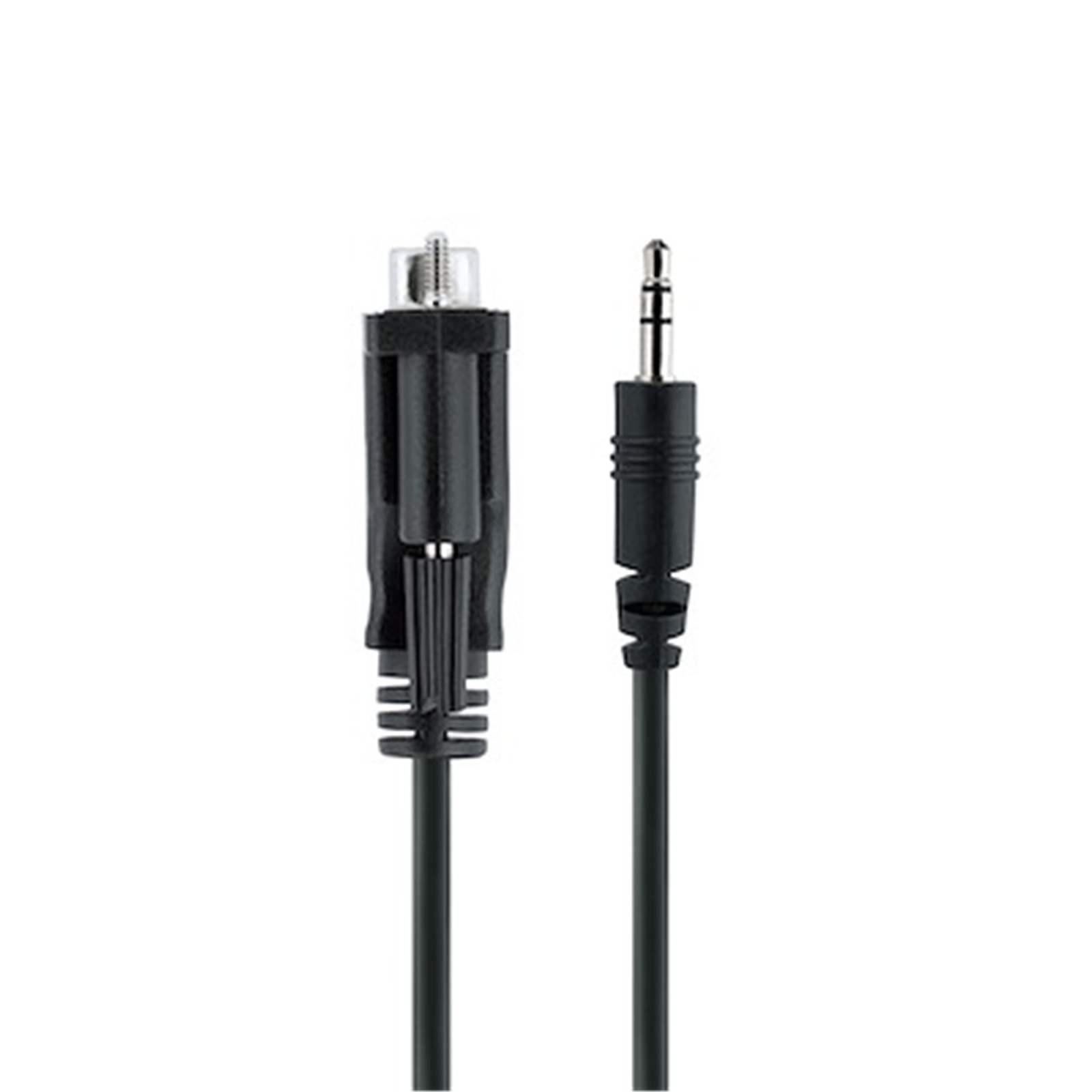

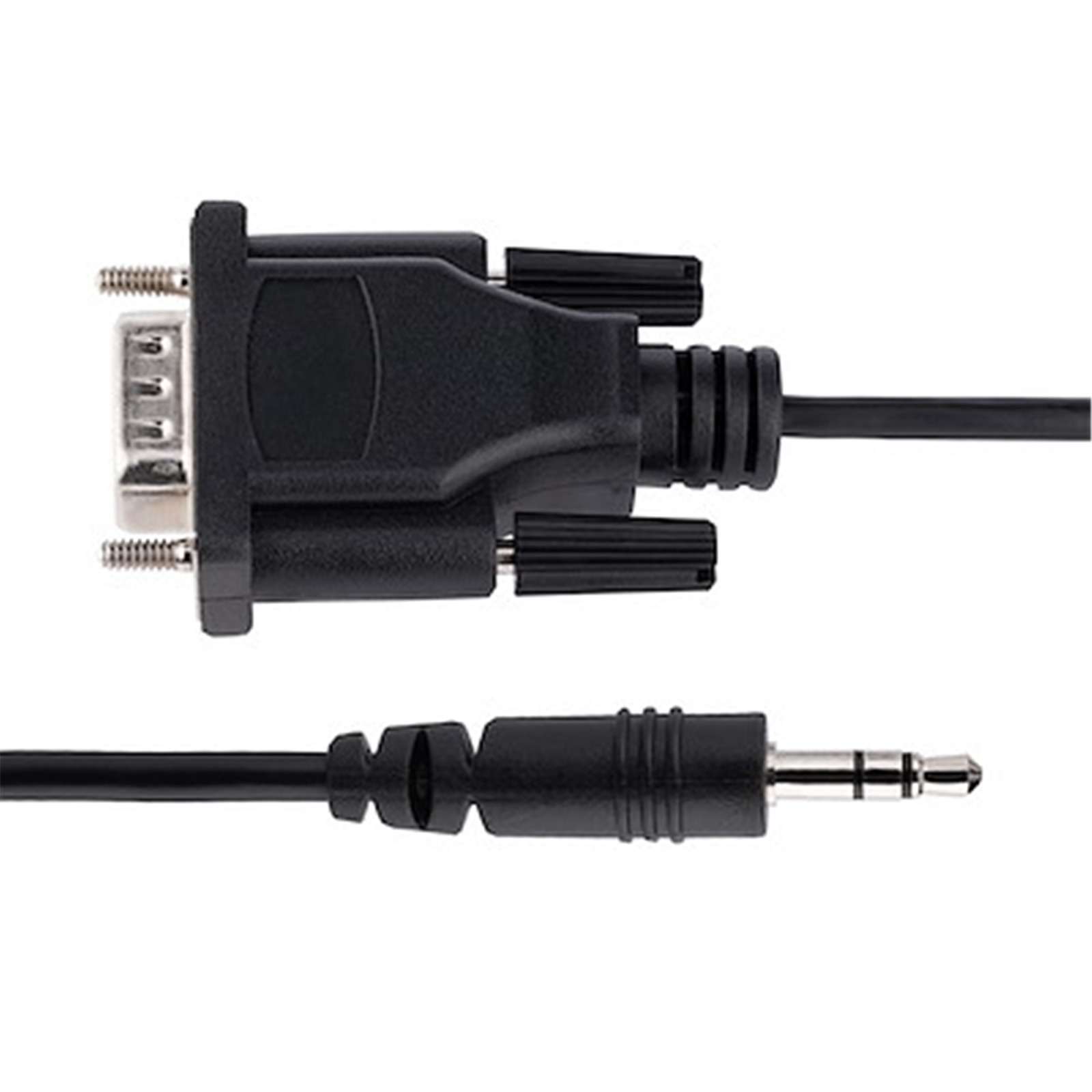

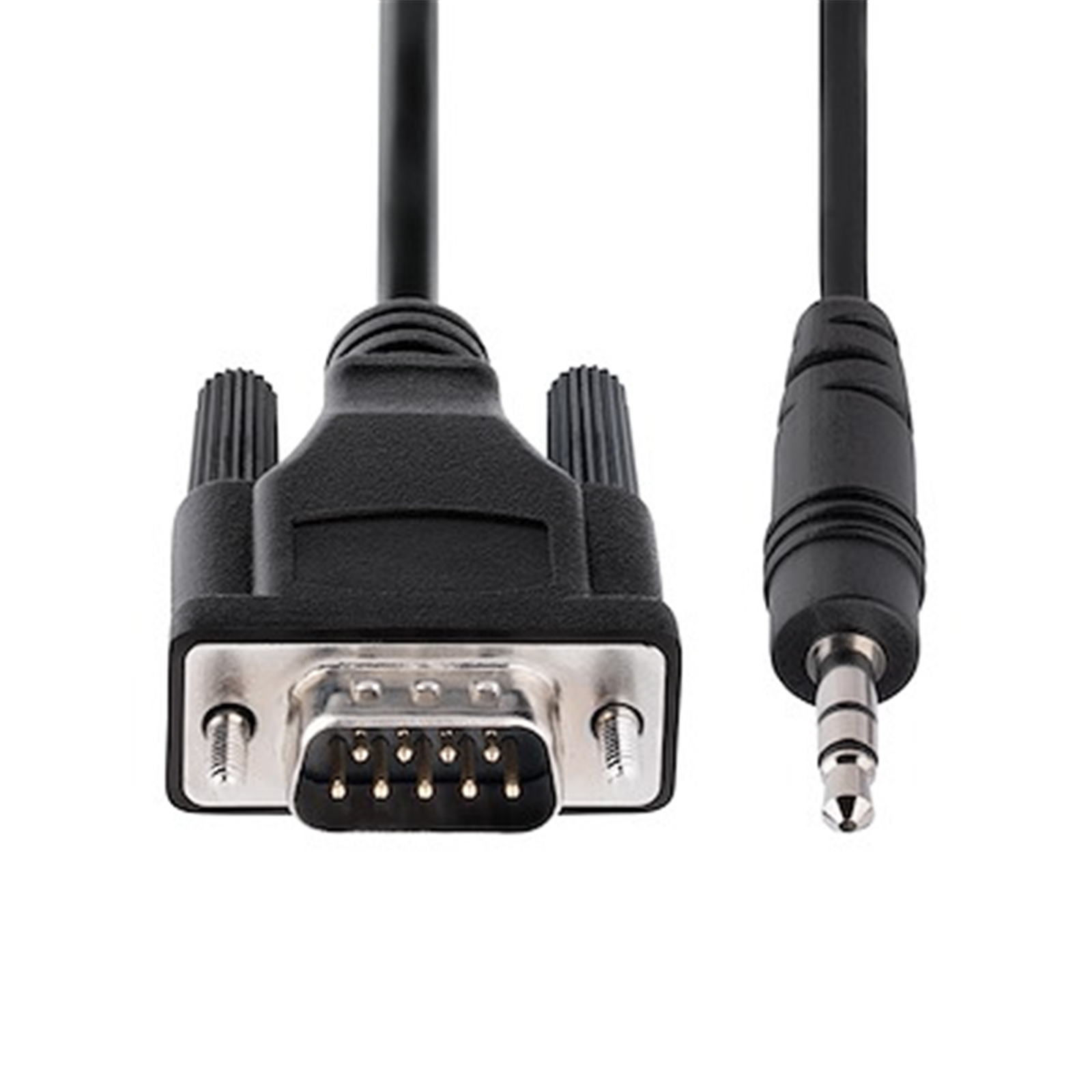

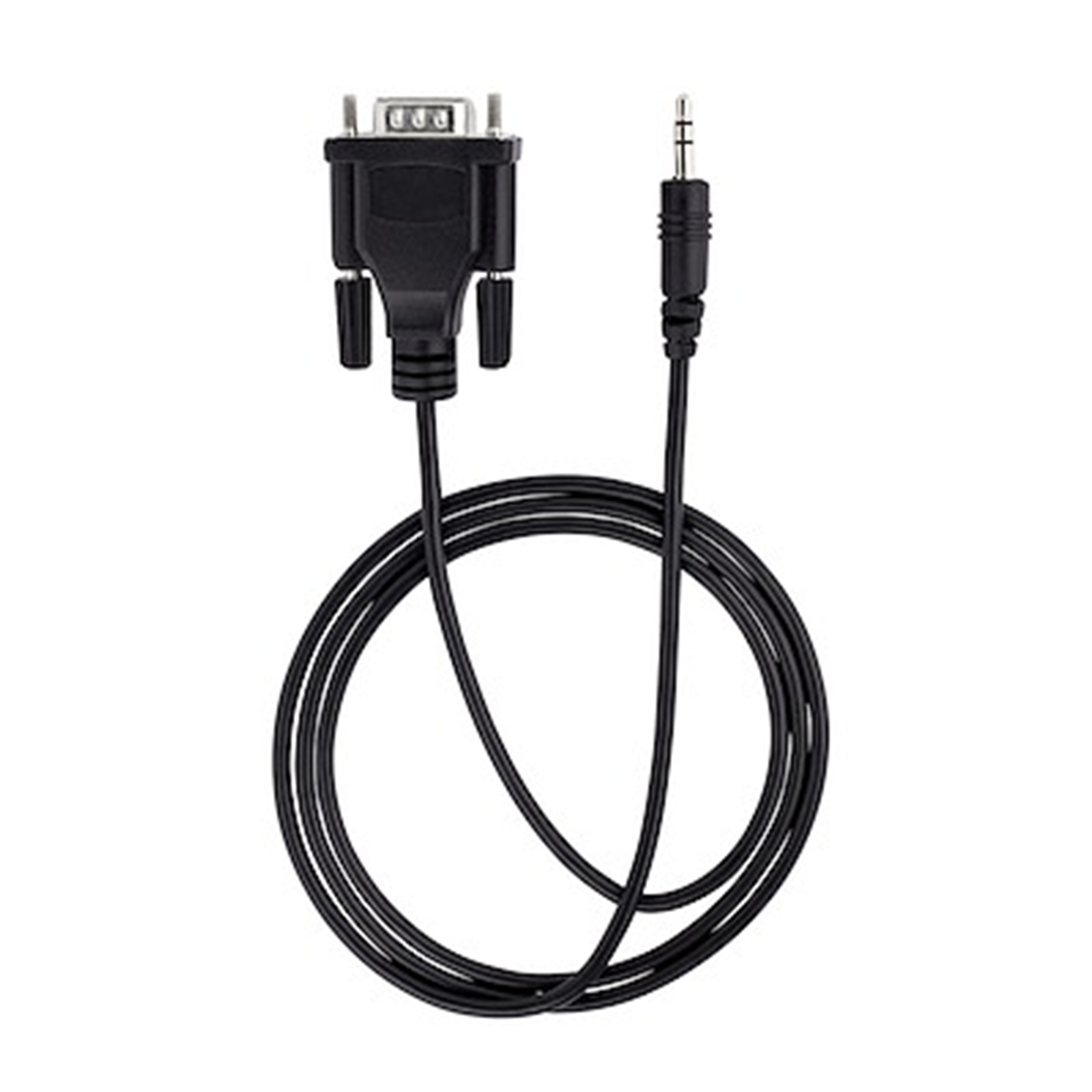

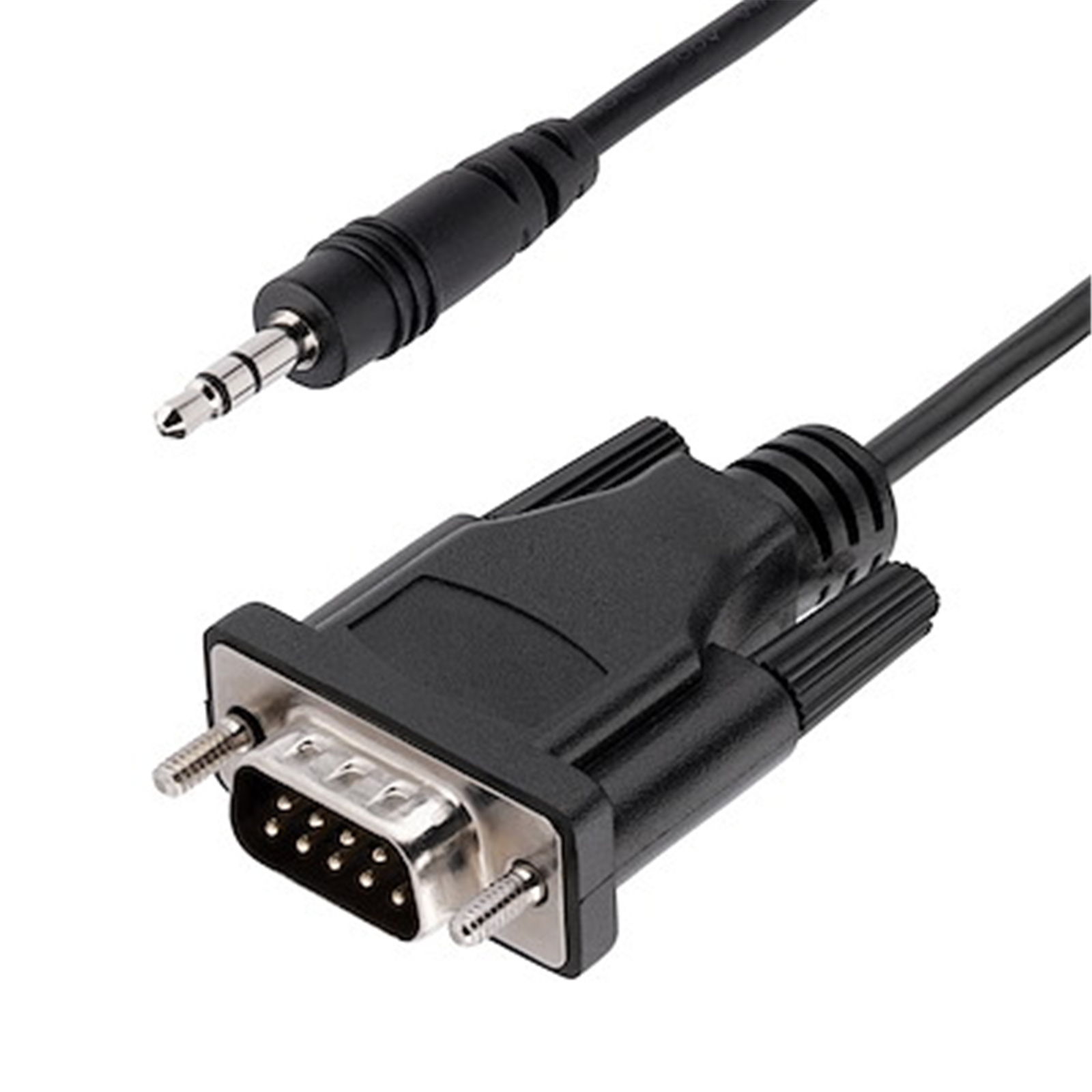

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.

High Quality Construction

The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.

Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.

DB9 Serial to 3.5mm Pinout

DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve

Specifications

Connector(s)

Connector A

1 - DB-9 (9 pin, D-Sub)

Connector B

1 - 3.5mm Stereo Male 4 pos

Environmental

Operating Temperature

-20 to 60°C (-4 to 140°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Humidity

30 ~ 75%

Hardware

Number of Conductors

3

Connector Plating

Nickel

Cable Jacket Material

PVC

Packaging Information

Package Length

8.7 in [22.0 cm]

Package Width

5.0 in [12.8 cm]

Package Height

0.4 in [1.0 cm]

Shipping (Package) Weight

0.8 oz [23.0 g]

Package Quantity

1

Performance

Supported Protocols

RS232 Serial

Physical Characteristics

Colour

Black

Product Length

3.4 ft [1.0 m]

Product Width

1.3 in [3.3 cm]

Product Height

0.6 in [1.5 cm]

Weight of Product

1.4 oz [41.0 g]

Connector Style

Straight

Wire Gauge

28 AWG

Cable Length

3.3 ft [1 m]

What's in the Box

Included in Package

1 - DB9 to 3.5mm RS232 Serial Cable

Manufacturer Part No:
9M351M-RS232-CABLE
Brand:
Product Type:
Serial Cable
UPC
-
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
STT5678876
Product Model:
9M351M-RS232-CABLE
