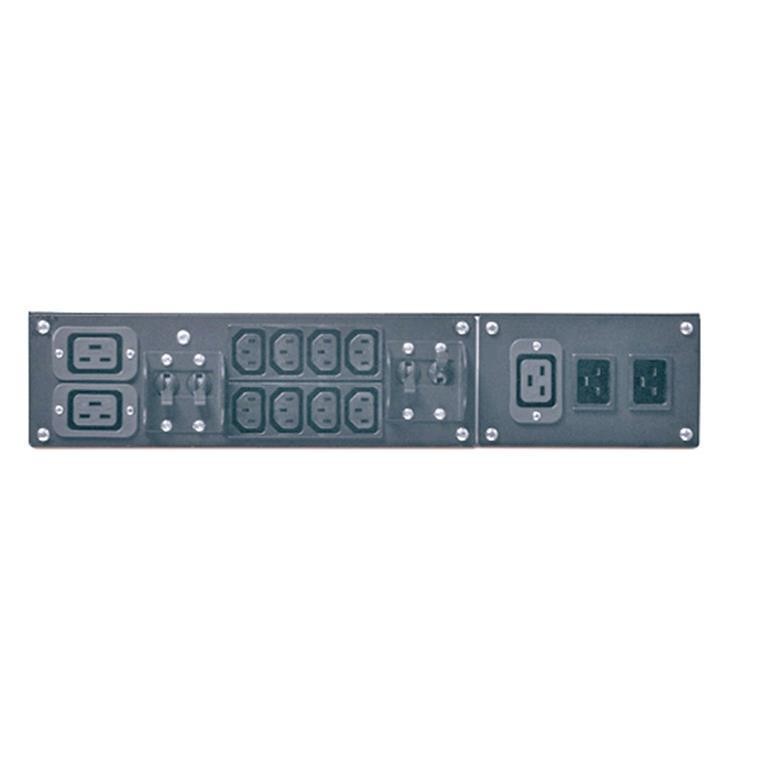

APC SCHNEIDER SBP5000RMI2U SERVICE Bypass Panel 230V 50A MBB C20
Out of stock
APC SCHNEIDER SBP5000RMI2U SERVICE Bypass Panel 230V 50A MBB C20
- Brand: APC
- MPN: SBP5000RMI2U
- Part #: SURAPC1000334
- UPC: 731304212591
- Brand: APC
- MPN: SBP5000RMI2U
- Part #: SURAPC1000334
- UPC: 731304212591
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Power Boards & Multi Plugs





APC SCHNEIDER SBP5000RMI2U SERVICE Bypass Panel 230V 50A MBB C20
- Brand: APC
- MPN: SBP5000RMI2U
- Part #: SURAPC1000334
- UPC:731304212591

Product URL: https://www.pbtech.co.nz/product/SURAPC1000334/APC-SCHNEIDER-SBP5000RMI2U-SERVICE-Bypass-Panel-23
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
SBP5000RMI2U Features
APC Service Bypass Panel- 230V; 32A; BBM; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13
Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
Includes : Hardwire Panel , Installation Guide , Rack Mounting Brackets , User Manual , Wall Mounting Brackets
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
Output
Nominal Output Voltage
230V
Overload Protection
Yes
Maximum Total Current Draw
32
Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz
Input Connections
Hard Wire 3 wire (1PH+N+G), IEC-320 C20
Number of Power Cords
1
Load Power Factor Range
0 to 1
Load Capacity
7680VA
Maximum Input Current
32A
Maximum Line Current
32A
Physical
Maximum Height
89mm , 8.9cm
Maximum Width
432mm , 43.2cm
Maximum Depth
660mm , 66.0cm
Rack Height
2U
Net Weight
11.36kg
Colour
Black
Environmental
Operating Environment
-20 - 50 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-4500meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
