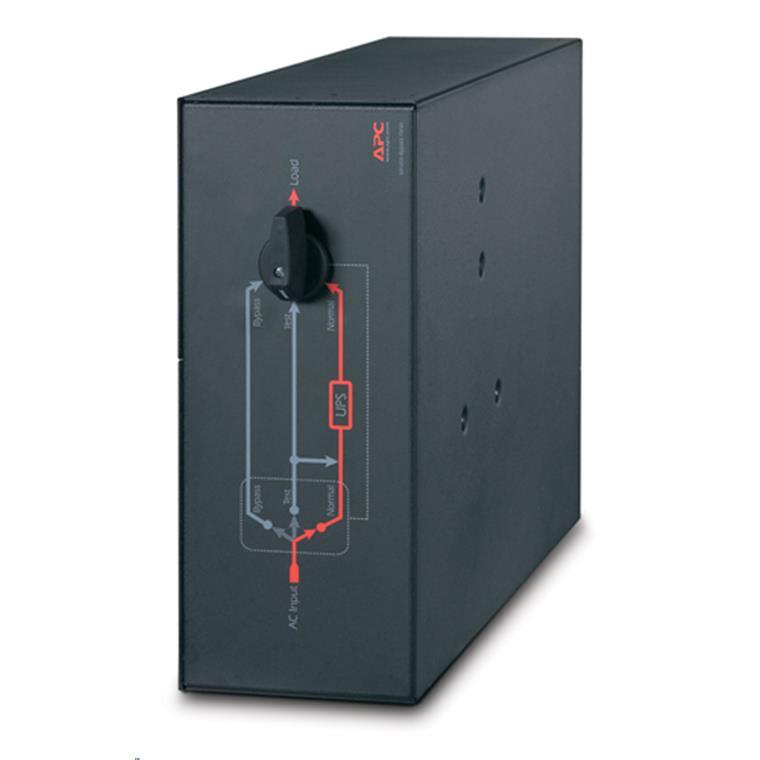

APC SCHNEIDER SBP10KRMI4U Service Bypass Panel 230V HDWIRE INPUT
Out of stock
APC SCHNEIDER SBP10KRMI4U Service Bypass Panel 230V HDWIRE INPUT
- Brand: APC
- MPN: SBP10KRMI4U
- Part #: SURAPC1063237
- UPC: 731304212638
- Brand: APC
- MPN: SBP10KRMI4U
- Part #: SURAPC1063237
- UPC: 731304212638
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Power Boards & Adapters
APC SCHNEIDER SBP10KRMI4U Service Bypass Panel 230V HDWIRE INPUT
- Brand: APC
- MPN: SBP10KRMI4U
- Part #: SURAPC1063237
- UPC:731304212638
Product URL: https://www.pbtech.co.nz/product/SURAPC1063237/APC-SCHNEIDER-SBP10KRMI4U-Service-Bypass-Panel-230
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
SBP10KRMI4U Features
APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19
Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
Includes : Installation Guide , Rack Mounting Brackets , User Manual
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
Output
Nominal Output Voltage
230V
Overload Protection
Yes
Maximum Total Current Draw
100
Output Connections
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz
Input Connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (3PH + N)
Number of Power Cords
1
Load Power Factor Range
0 to 1
Load Capacity
20000VA
Maximum Input Current
100A
Maximum Line Current
100A
Physical
Maximum Height
178mm , 17.8cm
Maximum Width
432mm , 43.2cm
Maximum Depth
673mm , 67.3cm
Rack Height
4U
Net Weight
20.91kg
Environmental
Operating Environment
-20 - 50 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-4500meters
Storage Temperature
-40 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
