APC RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
APC RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Brand: APC
- MPN: AP6020A
- Part #: SURAPC6020
- UPC: 731304327806
- Brand: APC
- MPN: AP6020A
- Part #: SURAPC6020
- UPC: 731304327806
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PDUs





APC RACK PDU, BASIC, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Brand: APC
- MPN: AP6020A
- Part #: SURAPC6020
- UPC:731304327806

Product URL: https://www.pbtech.co.nz/product/SURAPC6020/APC-RACK-PDU-BASIC-0U1U-100-240V20A-220-240V16A-13
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

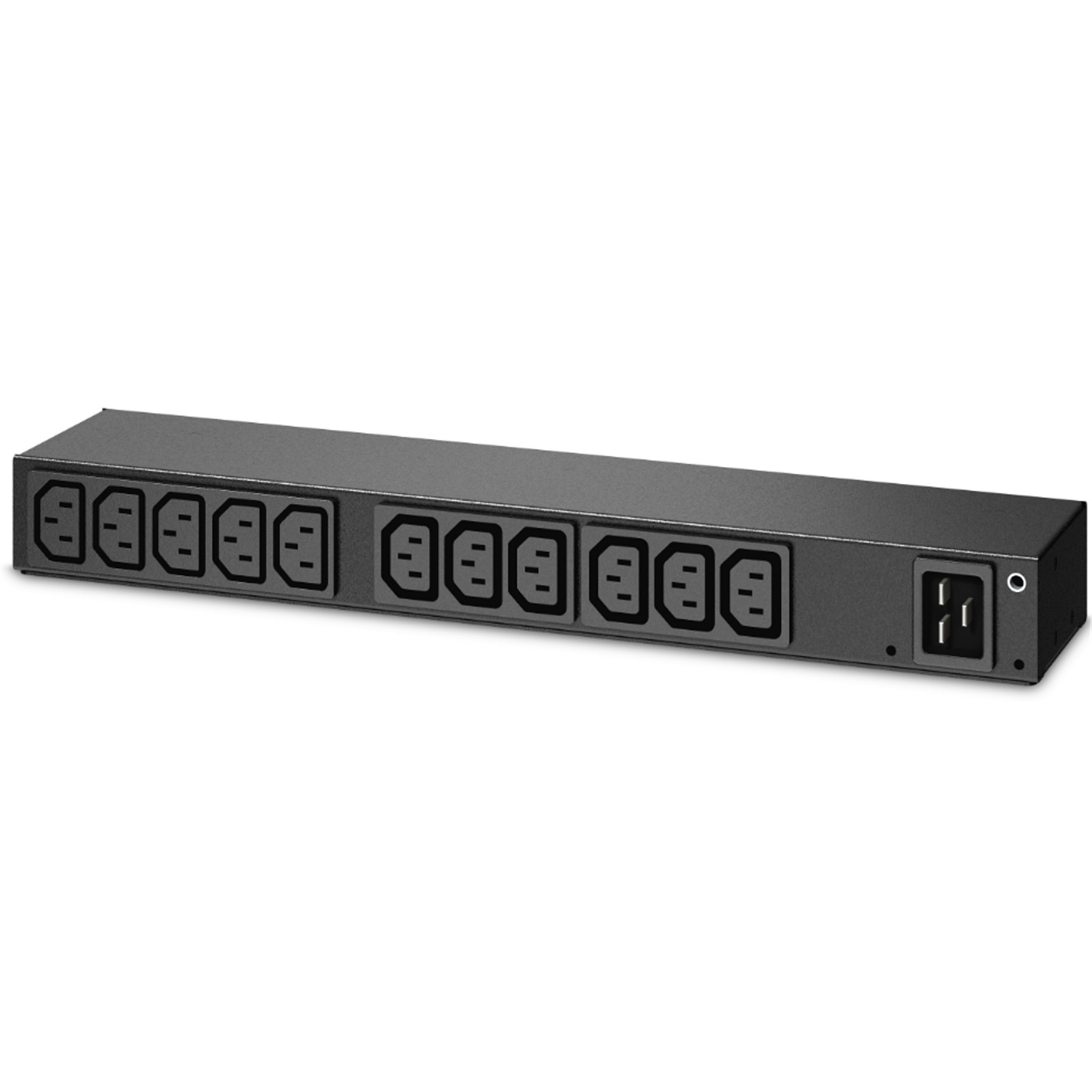

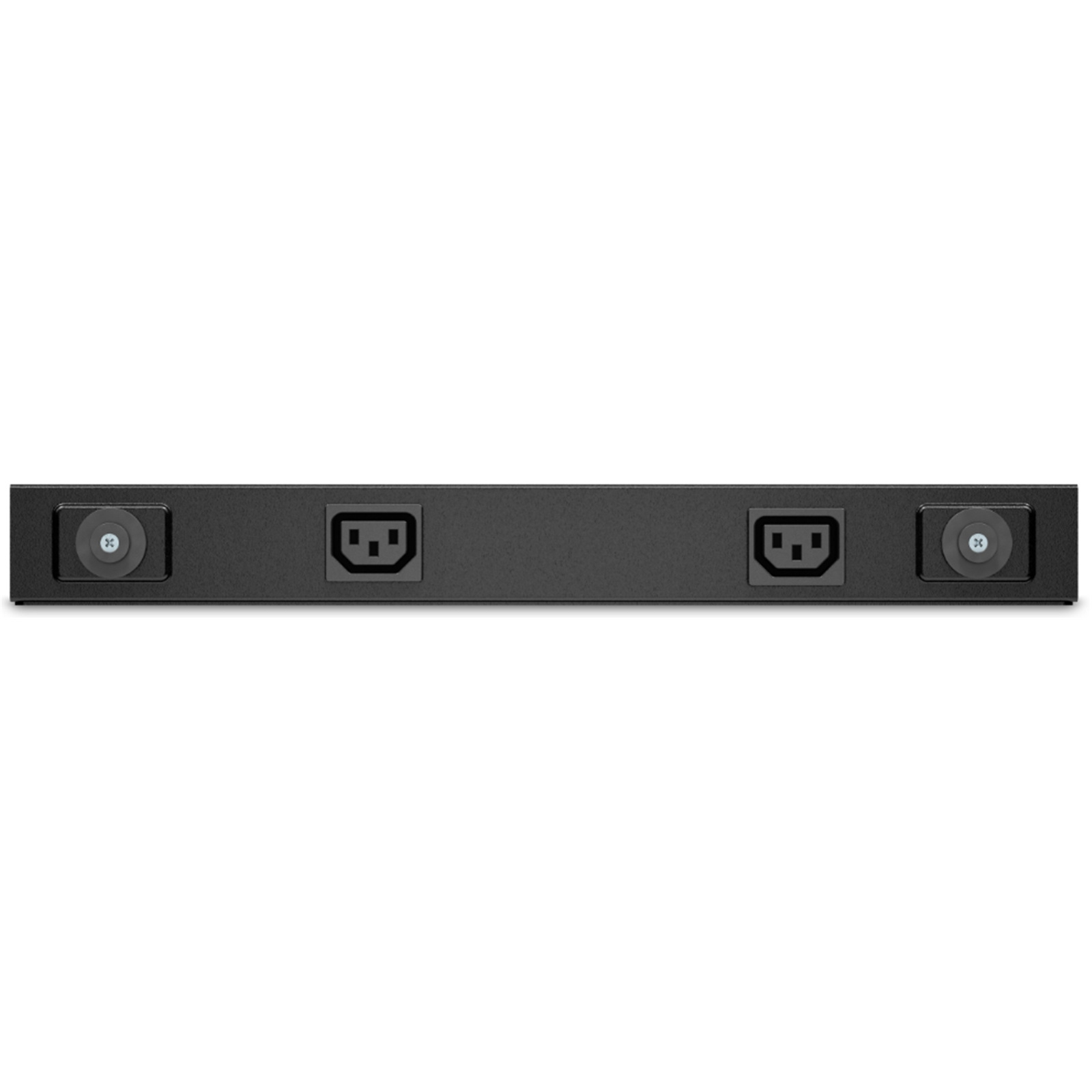

- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Reliable rack power distribution
- Includes: Installation guide, Safety guide
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Specifications
Output
Maximum Total Current Draw
20
Output Connections
(13) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
100V, 120V, 200V, 208V, 230V, 240V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Acceptable Input Voltage
100-240VAC
Load Capacity
3300VA
Maximum Input Current
20A
Maximum Line Current
20A
Regulatory Derated Input Current (North America)
16A
Physical
Maximum Height
15.28inches (388MM, 38.8CM)
Maximum Width
1.72inches (44MM, 4.4CM)
Maximum Depth
3.66inches (93MM, 9.3CM)
Rack Height
1U
Net Weight
3.3lbs. (1.5KG)
Color
Black
Units per Pallet
100.0
Conformance
Approvals
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
